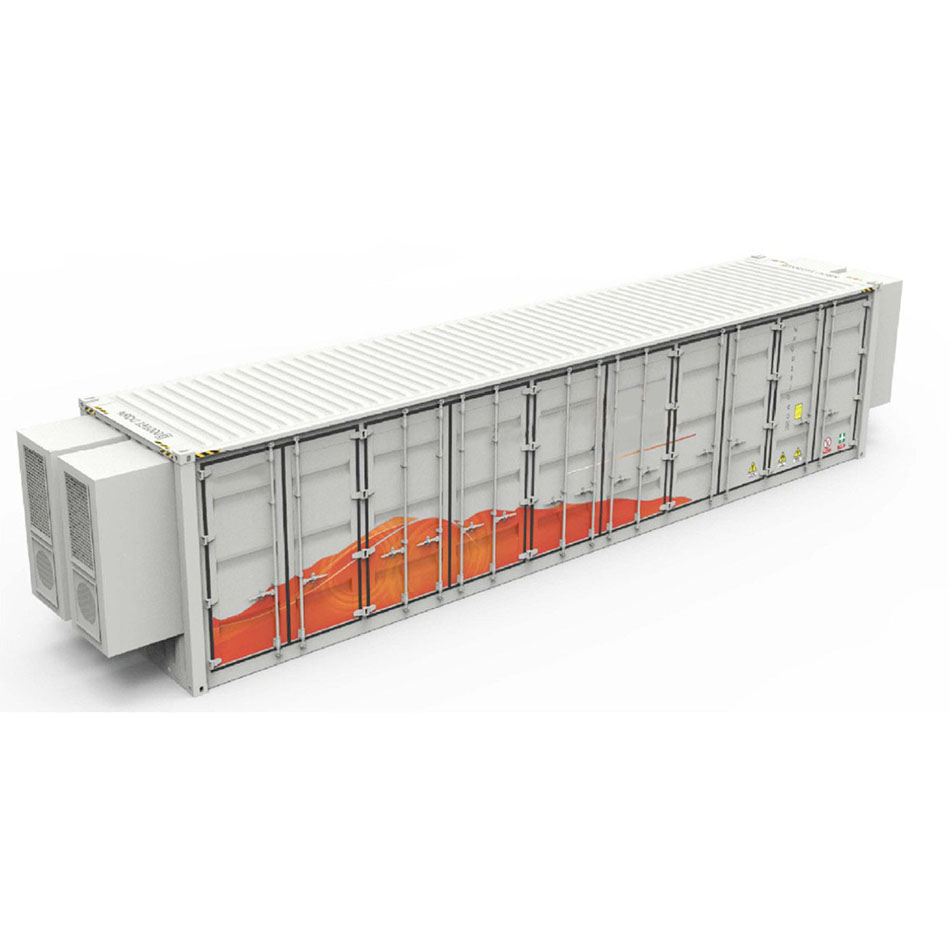

12.3kWh-288kWh Lithium Battery For Energy Storage Systems Container

Details

1. Platform Design for Energy, Medium and Power Solutions 2. 0.5C to 2C options available for Frequency regulation, Peak Shaving. Energy Reserve, etc 3. The Highest Energy density for LFP Energy Solution to optimize footprint and BOP cost

Details

Description

We focuses on intelligent energy storage services adopts advanced international energy storage technology to provide safe and reliable energy storage system containers and services for global users.

The energy storage battery Containers are built on a modular structure. We can customize them to match the capacity and power requirements of the client's needs. The energy storage systems for batteries are built on the standard container for sea freight starting at the kWh/kW (single container) up to MW/MWh (combining multiple containers). The containerized energy storage system permits quick installation, secure operation and is controlled by environmental conditions.

Energy storage systems (BESS) Containers are made for public buildings, neighborhoods, medium-sized to large-sized businesses, utility-scale storage systems, off-grid systems, electric mobility, and backup systems. Containers for the energy storage system allow you to store the energy generated through wind turbines, photovoltaics, or CHP. Because of its long duration of use, the containers for energy storage are also utilized for peak shaving, which reduces the power expense.

12.3kwh-288kwh Battery Energy Storage System

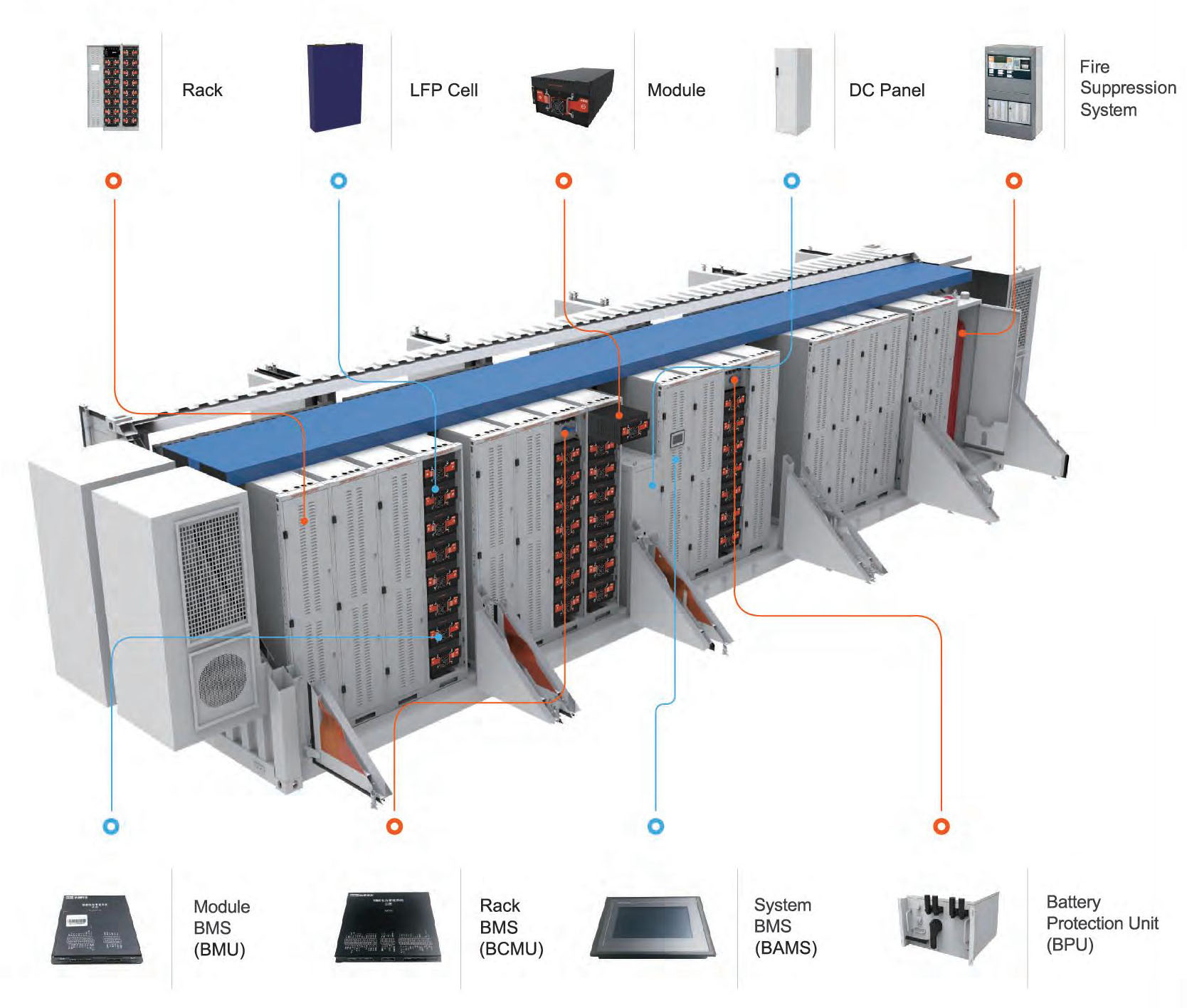

Features of Module & Rack Design

1. Platform Design for Energy, Medium and Power Solutions

2. 0.5C to 2C options available for Frequency regulation, Peak Shaving. Energy Reserve, etc

3. The Highest Energy density for LFP Energy Solution to optimize footprint and BOP cost

4. Passive & Active Thermal Ventilation System, Designed in both Module & Rack

5. Particular Considering for Containerized solution with proper aisle space

6. The Highest Lifetime Performance for Energy Storage System

7. Tested and Listed to UL and IEC Standard for Safety

12.3kwh-288kwh Battery Energy Storage System

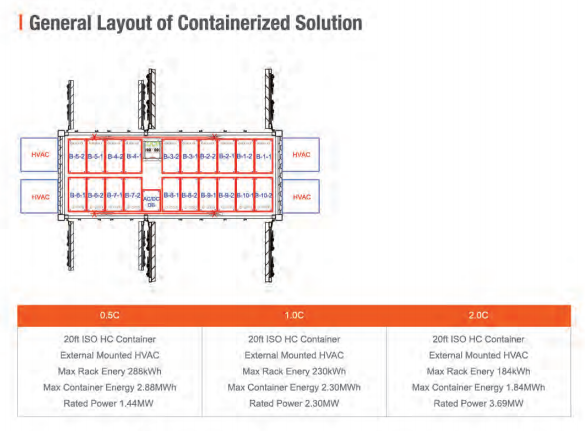

NESP Container Solution

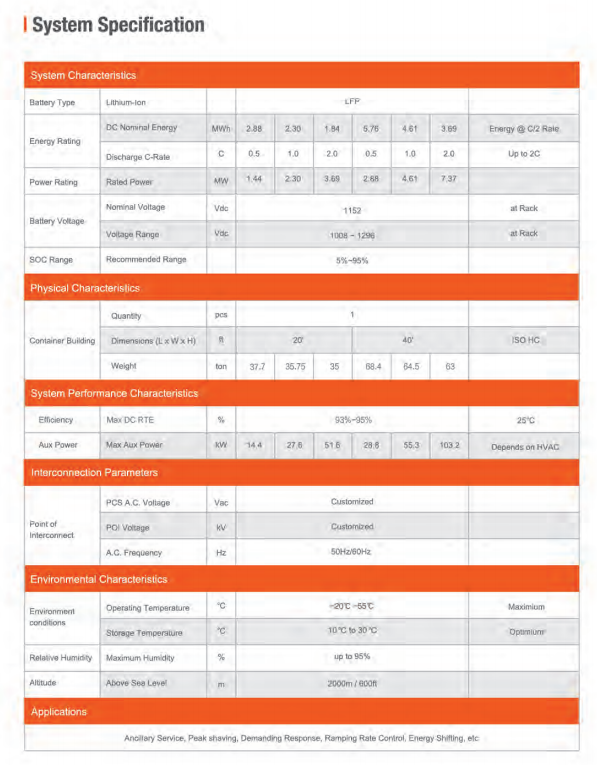

NESP Module & Rack Specification

Item		Module	Rack Type 1	Rack Type 2	Rack Type 3
Type No.		76.8NESP160	76880135	768S0160	76880184
Cell Capacity	Ah	160	160	160	160
Energy	kWh	12.3	135	160	1S4
Nominal Volt	V	76.8	844.8	998.4	1152.0
Minimum Volt	V	67.2	739.2	873.6	1008.0
Maximum Volt	V	86.4	950.4	1123.2	1296.0
Dimension	mm	400884265	5009381860 (2 pcs)	5009382130 (2 pcs)	5009382400 (2 pcs)
(W x D x H)	mm	400884265	5009381860 (2 pcs)	5009382130 (2 pcs)	5009382400 (2 pcs)
Weight	kg	129	1644	1947	2250

Item	Module		Rack Type 1	Rack Type 2	Rack Type 3
Type No.		76.8NESP200	768100169	768100200	768100230
Cell Capacity	Ah	200	200	200	200
Energy	kWh	154	169	200	230
Nominal Volt	V	76.8	844 8	998 4	1152.0
Minimum Volt	V	67.2	739.2	8736	1008.0
Maximum Volt	V	864	9504	1123.2	1296.0
Dimension	mm	400884265	5009381860 (2 pcs)	5009382130 (2 pcs)	5009382400 (2 pcs)
(W x D x H)	mm	400884265	5009381860 (2 pcs)	5009382130 (2 pcs)	5009382400 (2 pcs)
Weight	kg	134	1699	2012	2325

Item	Module		Rack Type 1	Rack Type 2	Rack Type 3
Type No.		768NESP250	768125211	768125250	768125288
Cell Capacity	Ah	250	250	250	250
Energy	kWh	19.2	211	250	288
Nominal Volt	V	76.8	844.8	998.4	1152.0
Minimum Volt	V	67.2	739.2	873.6	1008.0
Maximum Volt	V	86.4	9&0.4	1123.2	1296.0
Dimension	mm	400884265	5009381860 (2 pcs)	5009382130 (2 pcs)	5009382400 (2 pcs)
(W x D x H)	mm	400884265	5009381860 (2 pcs)	5009382130 (2 pcs)	5009382400 (2 pcs)
Weight	kg	147	1842	2181	2520
