Three Phase String Inverter(LV)
This series 3 phase grid-tie inverter output voltage is 127/220V, which is designed for 127/220V grid of South American areas. The product portfolio covers from 6kW to 50kW which is able to satisfy majority needs of residential and commercial PV plants. Deye 3 Phase Grid Tie Solar String Inverter(LV)
SUN-6/8K-G03-LV | 6-8kW | Three Phase | 2 MPPT | Low Voltage | 127/220Vac
Higher yields / Safe & Reliable / Smart / User-friendly
This series inverter is specially designed for 127/220Vac three-phase system, especially suits for South American areas. With compactness design, easy to install and operate. It supports wide AC output voltage to ensure longer working hour, improving your economic benefits.
-
120V/208V, 127V/220V, 133V/230V and 50/60Hz, Three phase system
-
2 MPP tracker, Max. efficiency up to 98.5%
-
Zero export application, VSG application
-
String intelligent monitoring (optional)
-
Wide output voltage range
-
Anti-PID function (Optional)
SUN-12/15K-G02-LV SUN-10/12/15/18/20/21K-G04-LV| 10-15kW | Three Phase | 2 MPPT | Low Voltage | 127/220Vac
Higher yields / Safe & Reliable / Smart / User-friendly
This series inverter is specially designed for 127/220Vac three-phase system, especially suits for South American areas. With compactness design, easy to install and operate. It supports wide AC output voltage to adapt to poor grid, extending the inverter working hours.
-
120V/208V, 127V/220V, 133V/230V and 50/60Hz, Three phase system
-
2 MPP tracker, Max. efficiency up to 98.6%
-
Zero export application, VSG application
-
String intelligent monitoring (optional)
-
Wide output voltage range
-
Anti-PID function (Optional)
SUN-20/25/30K-G02-LV | 20-30kW | Three Phase | 4 MPPT | Low Voltage | 127/220Vac
Higher yields / Safe & Reliable / Smart
This series inverter is specially designed for 127/220Vac three-phase system, especially suits for South American areas. Equipped with large LCD and buttons, easy to operate and maintenance. The startup voltage of 250V, much lower than 600V of other products, which makes the inverter start up earlier to generate more power with longer working time.
-
120V/208V, 127V/220V, 133V/230V and 50/60Hz, Three phase system
-
Max 4 MPP tracker, Max. efficiency up to 98.7%
-
Zero export application, VSG application
-
String intelligent monitoring (optional)
-
Wide output voltage range
-
Anti-PID function (Optional)

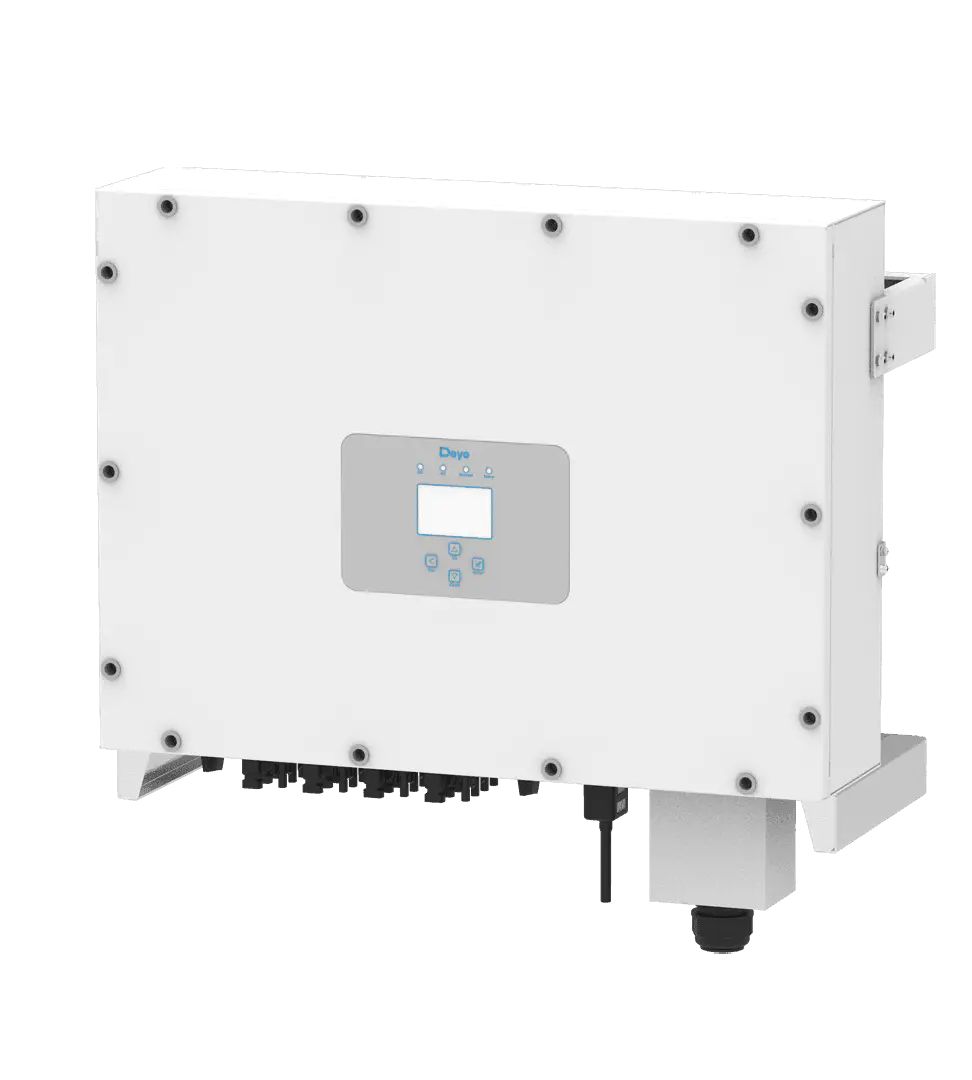

SUN-35/40/45/50K-G-LV | 33-50kW | Three Phase | 4 MPPT | Low Voltage | 127/220Vac
Higher yields / Safe & Reliable / Smart / User-friendly
This series inverter is specially designed for 127/220Vac,133/230Vac three-phase system, providing rated power at 33KW, 40KW, 45KW, 50KW. Equipped with large LCD and buttons, easy to operate and maintenance. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment.
-
120V/208V, 127V/220V, 133V/230V and 50/60Hz, Three phase system
-
4 MPP tracker, Max. efficiency up to 98.7%
-
Zero export application, VSG application
-
String intelligent monitoring (optional)
-
Wide output voltage range
-
Anti-PID function (Optional)
SUN-60/70/75K-G01P3-LV | 60-75kW | Three Phase
Higher yields / Safe & Reliable / Smart / User-friendly
-
120V/208V, 127V/220V, 133V/230V and 50/60Hz, Three phase system
-
8 MPP trackers, Max. efficiency up to 98.8%
-
Zero export application, VSG application
-
String intelligent monitoring (optional)
-
Wide output voltage range
-
Anti-PID function (Optional)
