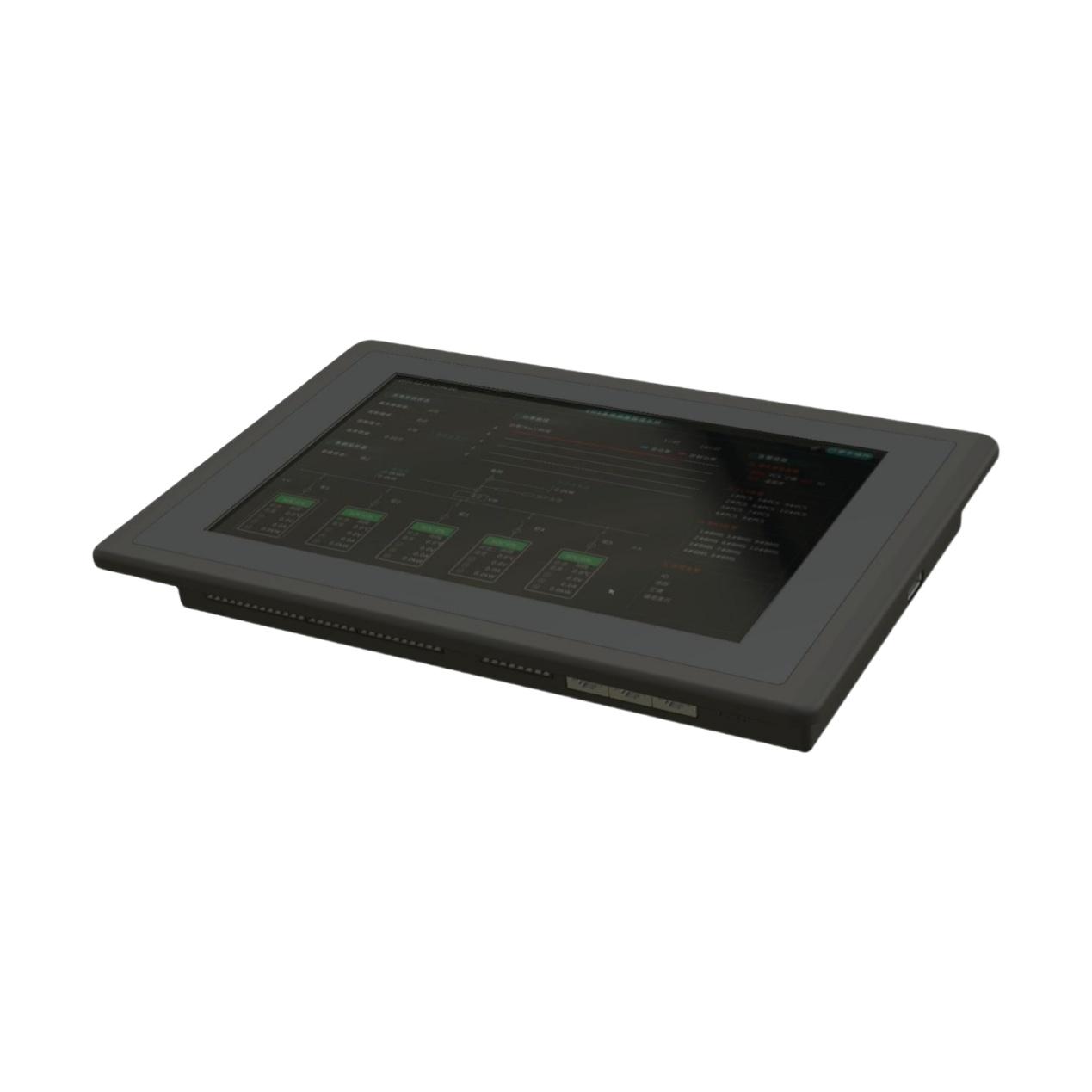

BMS ESMU HV2.0.1 is suitable for various applications of energy storage battery management systems.It has the following functions：alarm，protection and etc.
Description
ESMU HV2.0.1 has feature in monitoring and managing the battery energy storage system. It is responsible for analyzing and storing real-time data uploaded by BMS. Then it implements calculation, performance analysis, alarm processing and recording. In addition, it could be connected to PCS and EMS for external control and operation, such as generating strategies for load control and optimization according to output power and SOC of every cluster to ensure a safe and efficient system.

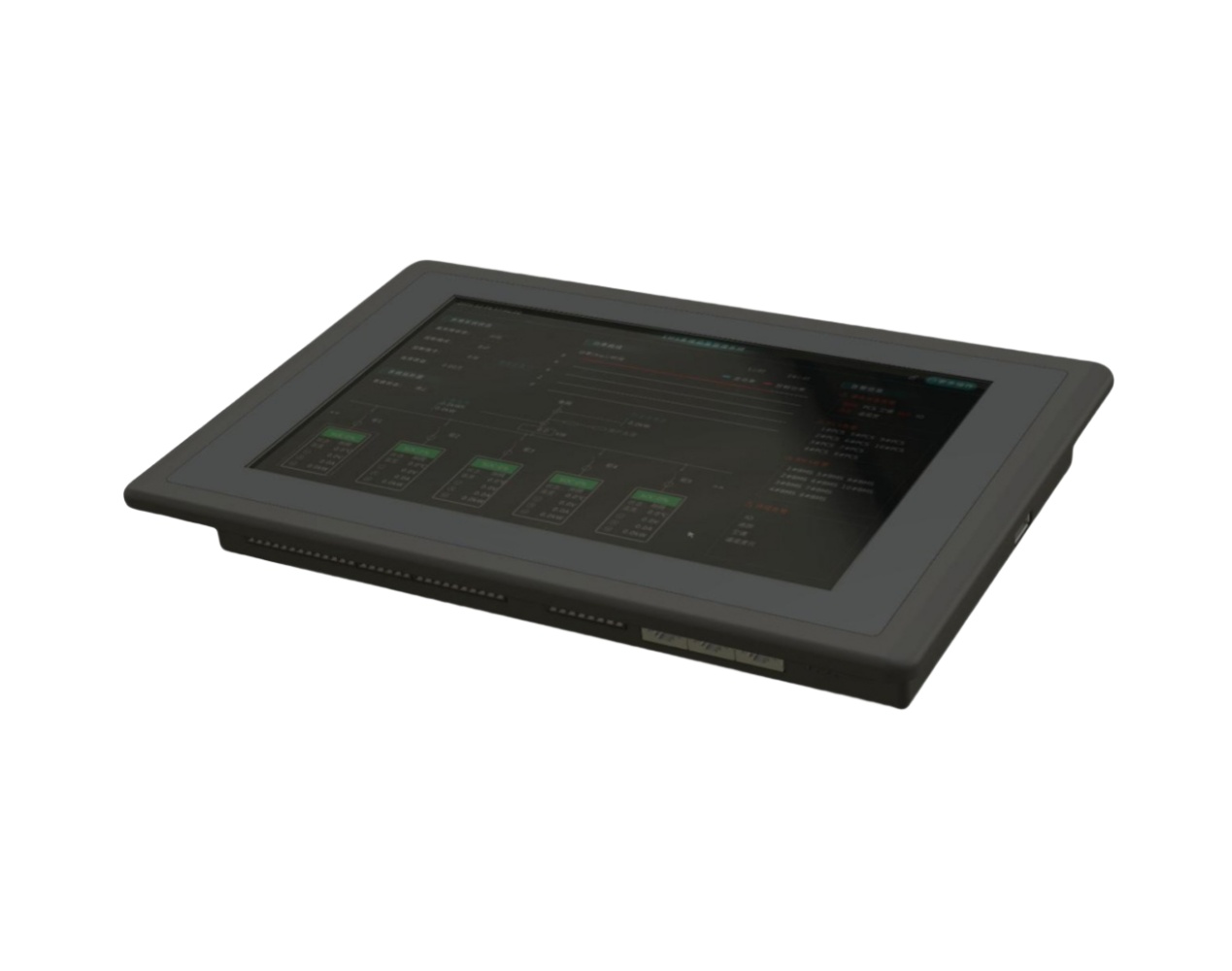

ESMU HV2.0.1 is suitable for various applications of energy storage battery management systems.

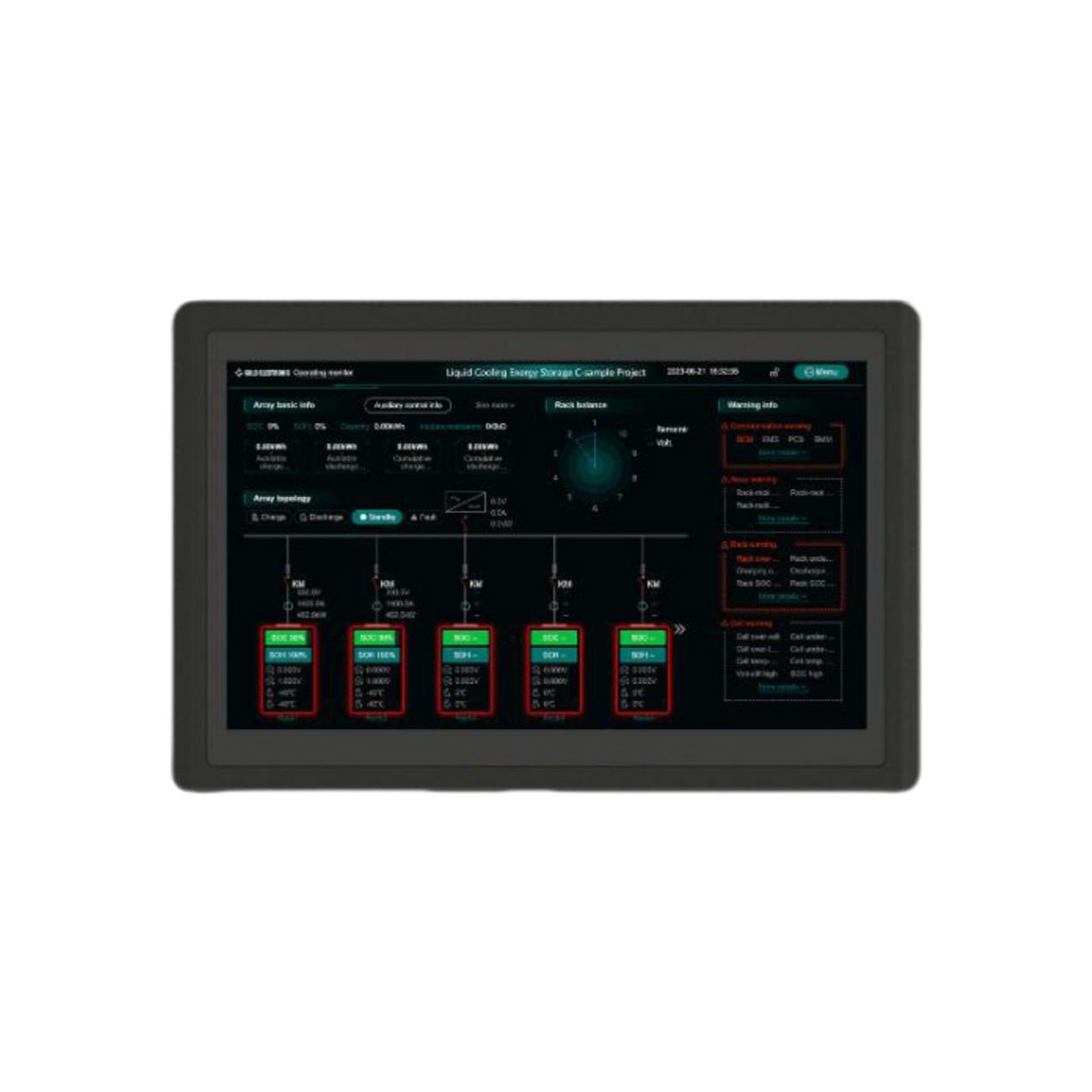

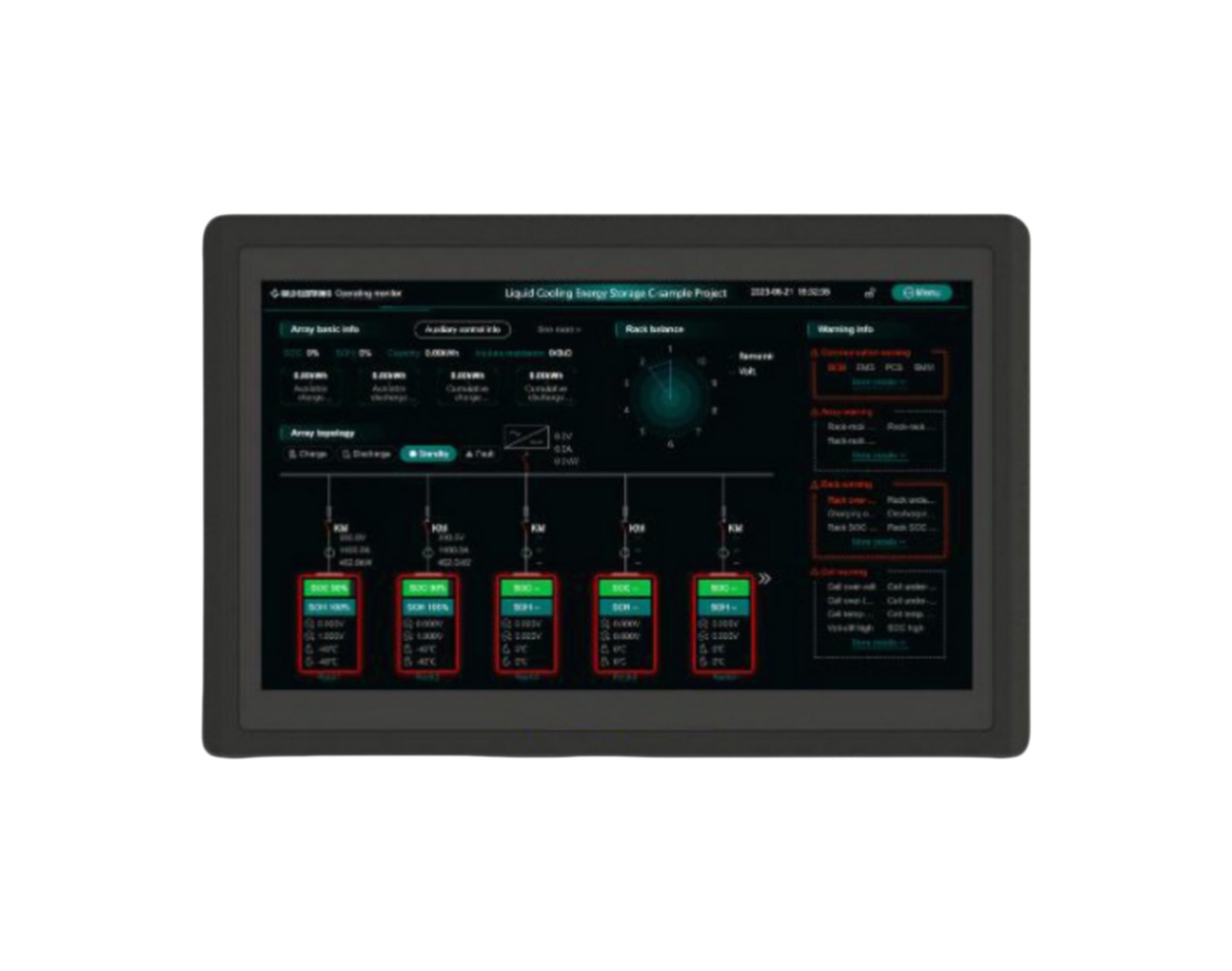

Monitor and display, Alarm
Protection, Parameter setting
Remote control and update
System Topology
Digital Output (DO)
Digital Input (DI)
AC Power Loss Detection

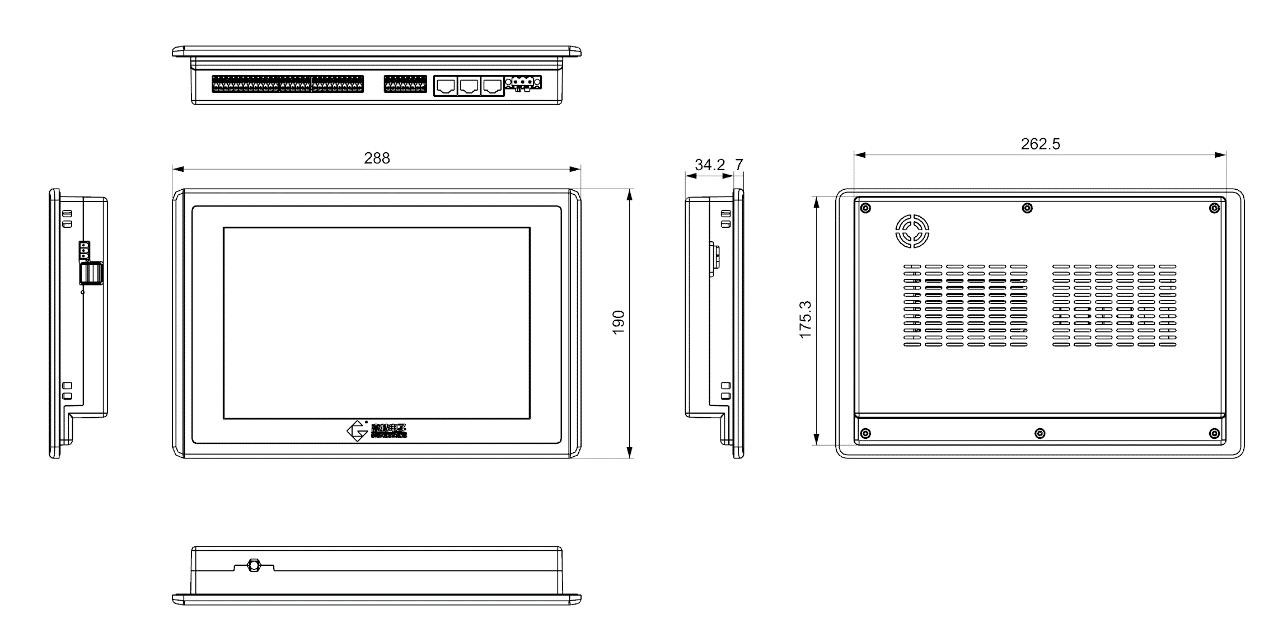

Overall size:288x190x41.2mm
Display area:216.5x135.3mm
Cabinet opening:263x176mm
Tolerance:±1.2mm
Refer to the size tolerance of plastic plastic part
| Product models | Specification |
| ESMU-1002564G | 256G SSD, 4G |
| ESMU-100256 | 256G SSD |
| Item | Specification |
| CPU | ARM, 4-core, Maximu:2.0GHz |
| RAM | 4GB LPDDR4 |
| OS | Linux |
| Storage | 16GB eMMC240G-256G SSD, Standard 256G32G SD card (optional) |
| Number of cells | Max. 450 cells x 20 clusters |
| Data record interval | ≤5s |
| Supply power | DC 9-32V |
| Power consumption | ≤10W(Initial state when the state is on) |
| Working conditions | Environmental temperature: -10-+60℃Relative humidity (non-condensing):<95%Environmental magnetic:<400A/mNo erosive, flammable and combustible gas around |
| Inquiry method | Local inquiry, remote inquiry, data download and output |
| Alarm method | Sound-light alarm, alarm content display, fault point output |

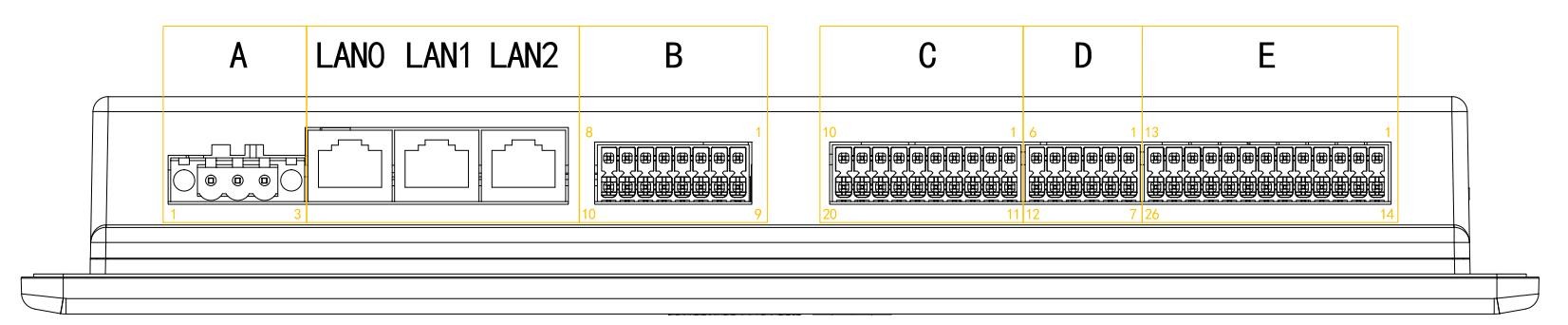

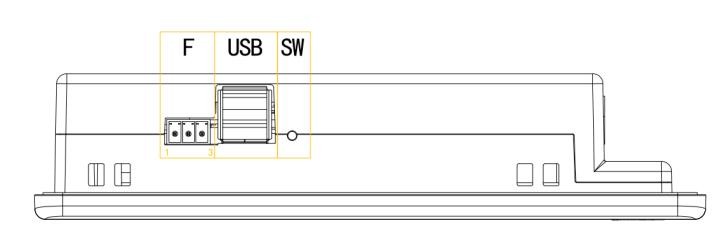

| Communication interface | 3×LAN, LAN0/LAN1: 100M/1000Mbps; LAN2: 10M/100Mbps3×CAN (Isolated), 250Kbps-500Kbps, 1530Vac5×RS485 (Isolated), 9600bps-19200bps, 1530Vac2×USB |
| DO/DI | 6×IO input (DIH) with photoelectric isolation, 9-32V effective,1530Vac6×IO input (DIL) with photoelectric isolation, 0-0.7V effective,1530Vac12×IO input/output, relay dry contact, 1A/30Vdc or1A/250Vac (use as AC output, adjacent ports could not beused), 1530Vac1×AC power loss detection, range 220Vac±30% |
