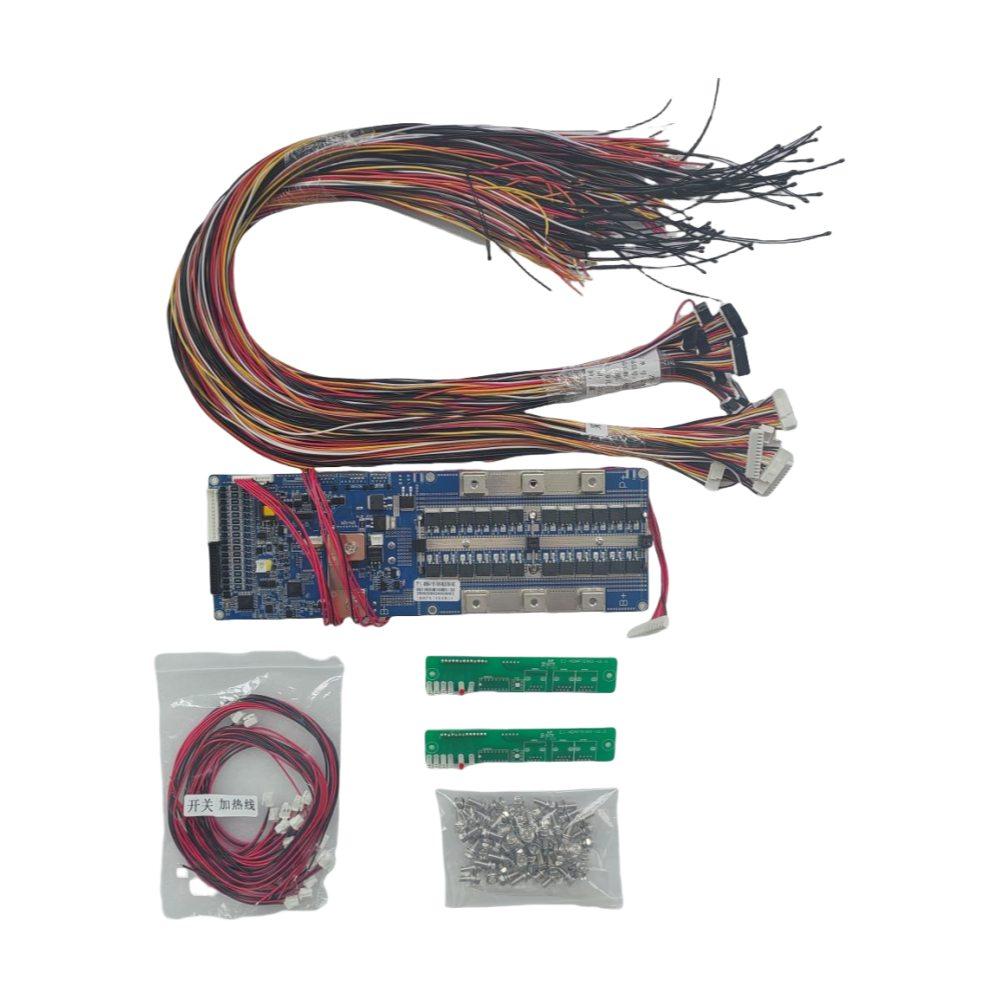

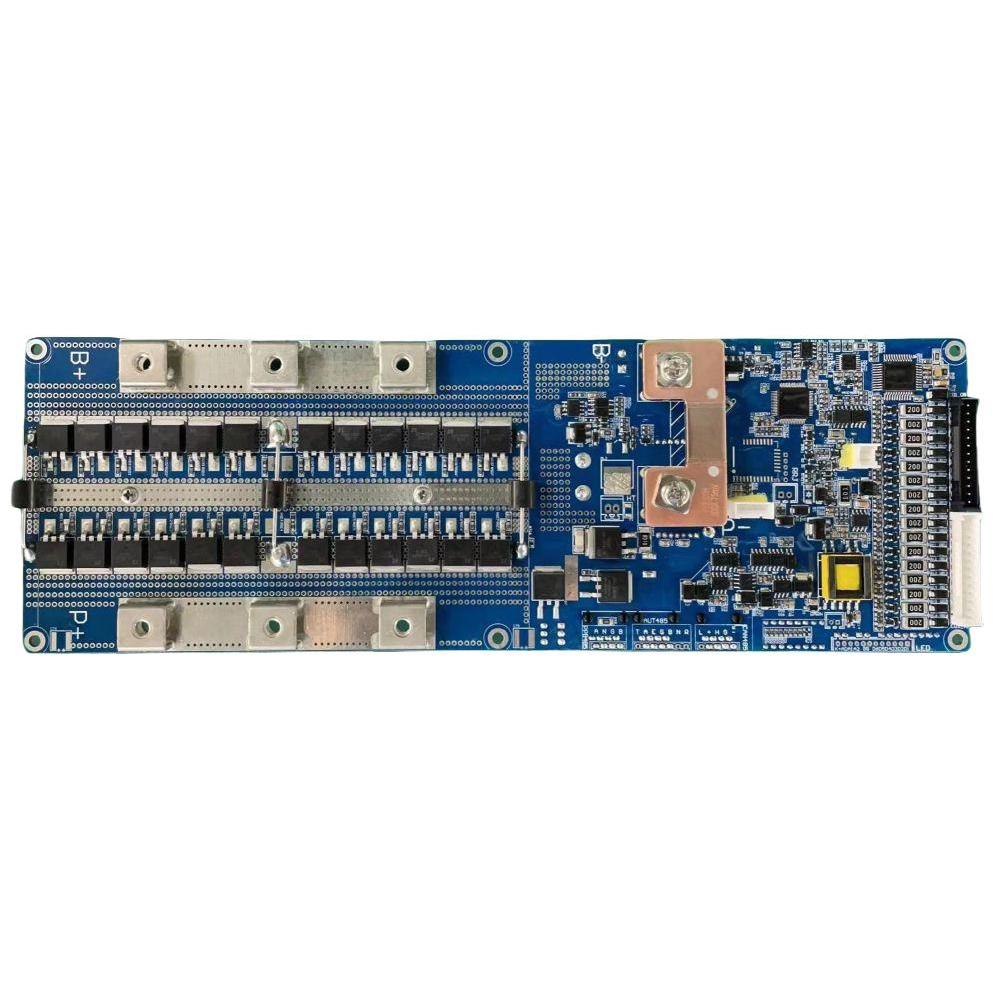

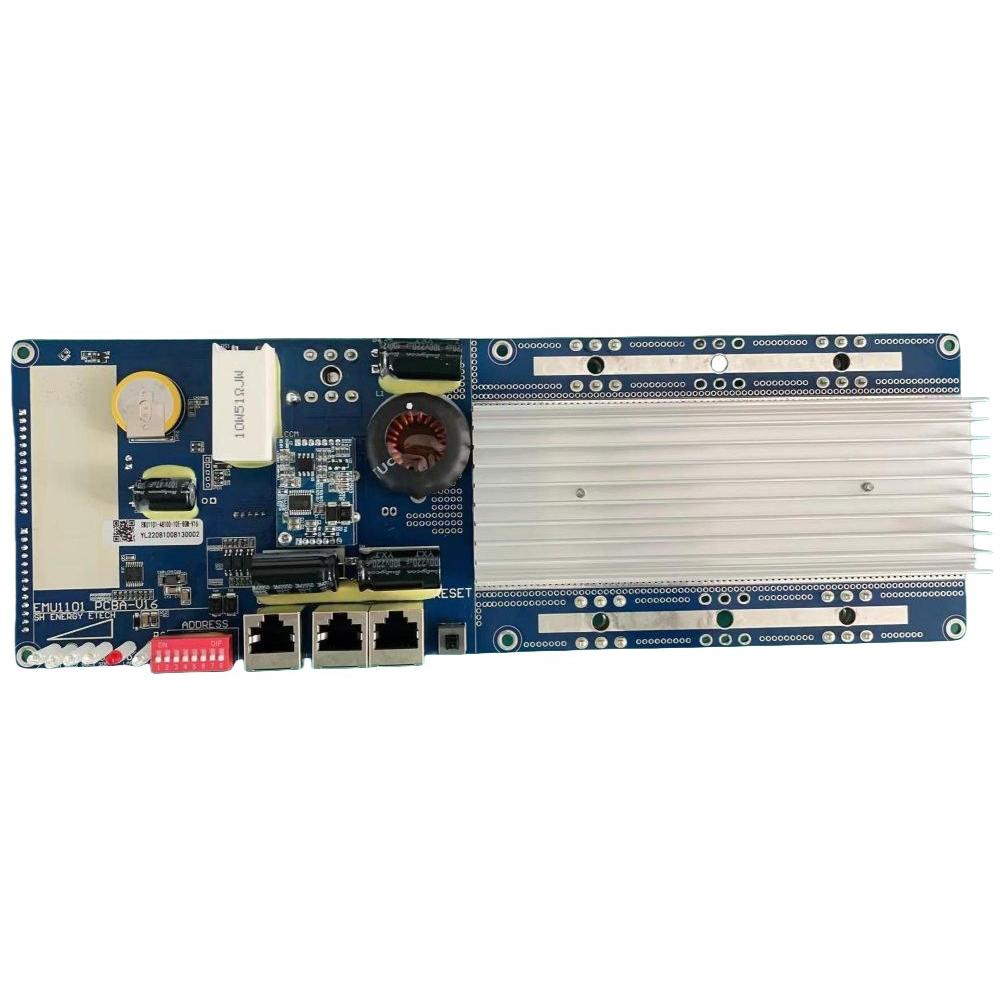

8s-16s 48V 150A Lithium BMS Battery Management System LiFePO4 LFP BMS

  • 8s-16s 48V 150A Lithium Battery Management System
  • 8s-16s 48V 150A Lithium Battery Management System
  • 8s-16s 48V 150A Lithium Battery Management System

Details

This product is a comprehensive BMS designed for 8-16 series-connected lithium-ion battery packs.It features Cell & Pack Voltage Monitoring,Intelligent Cell Balancing and etc.

Description

This product is a comprehensive battery management system (BMS) designed for 8-16 series-connected lithium-ion battery packs. It offers full compatibility between 15-celland 16-cell configurations—simply adjust the cell sampling wires to connect the 15th and 16th cells, then configure the cell count and total voltage protection parameters via the host computer software.

The BMS provides protection and recovery functions including:

Individual cell overvoltage/undervoltage

Total pack overvoltage/undervoltage

Charging/discharging overcurrent

High/low temperature protection

Short circuit protection

It complies with functional safety standards including IEC 62619 and UL 1973. The system enables: Accurate State of Charge (SOC) estimation during charging/discharging,State of Health (SOH) monitoring,Voltage balancing during charging and in static conditions.

Communication with the host device is achieved through RS485 interface. Parameters can be configured and data monitored via host computer software.

Note: Host computer baud rate is 19200.

Features

Cell & Pack Voltage Monitoring

Cell/Ambient/Power Temperature Sensing

Charge/Discharge Current Measurement

Short-Circuit Protection (SCP)

Capacity & Cycle Count Tracking

Charge/Discharge MOSFET Switching Control

Intelligent Cell Balancing

Host Computer Interface, Firmware Update (FOTA)

Functions

Overcharge Protection and Recovery

Over-discharge Protection and Recovery

Over current Protection and Recovery

Temperature Protection and Recovery

Low-Temperature Heating , Standby Status

High-Temperature Heat Dissipation, Storage Function

Two-Stage Tripping, Bluetooth, Pre-charge Function

2-Channel Dry Contact, Automatic DIP Switches

Charge Current Limiting, Cell Balancing Function

Sleep/Hibernation Function, Aerosol (Fire Suppression)

One-Key Power On/Off, Connection Compensation

Specifications

Item

Specification

Remark

Cell Type

LiFePO4 Cell

/

Number of Cells in Series

8-16s

/

10A Current Limit

Passive Current Limiting

/

Data Logging Capability

Supported

/

Inverter Communication Interface

CAN & RS485

RS485 supports auto-negotiation without protocol switching

Normal Operating Voltage

Min:40v

Max:59v

Type:48v

/

Normal Charging Voltage

Max:60v

Type:54v

/

Operating Temperature Range

Min:-20℃

Max:70℃

Type:25℃

/

Storage Temperature Range

Min:-40℃

Max:85℃

Type:25℃

/

Operating Humidity Range

Min:10%

Max:85%

/

Continuous Charge/ Discharge Current

Max:160A

Type:150A

/

Discharge Output Impedance

<2mΩ

/

Active Power Consumption

<40mA

/

Sleep Mode Power Consumption

Max:50uA

Type:0uA

/

Parameter

Item

Specification

Remark

Cell Over-Voltage Protection

3650mV

3500mV~4500mV

Cell High Voltage Alert (HV Alert)

3500mV

3000mV~3650mV

Cell HV Alert Recovery

3400mV

3000mV~3500mV

Cell Low Voltage Alert (LV Alert)

2900mV

2700mV~3100mV

Cell LV Alert Recovery

3100mV

2900mV~3300mV

Under-Voltage Protection (UVP)

2700mV

1500mV~3100mV

UVP Recovery Voltage

3100mV

2700mV~2900mV

Pack High Voltage Alert

56.0V

54.0V~57.6V

Pack Low Voltage Alert

46.4V

43.2V~48.0V

Pack LV Alert Recovery

48.0V

46.4V~55.0V

Pack Over-Voltage Protection

57.6V

56.0V~60.0V

Pack Under-Voltage Protection

43.2V

36.0V~48.0V

Pack UV Recovery

48.0V

43.2V~46.4V

Charge Over-Current Alert

150A

145A~160A

Charge OC Recovery

145A

0A~150A

Charge Over-Current Protection

160A

150A~200A

Charge OC Delay Time

10S

0S~10S

Discharge Over-Current Alert

-155A

-160A~-150A

Discharge OC Delay Time

10S

0S~10S

Discharge Over-Current Protection

-160A

-250A~-155A

Discharge OC Recovery

-150A

-155A~0A

Transient Over-Current Protection

-250A

-160A~300A

Transient OC Delay Time

30mS

0mS~100mS

Cell Balancing Activation Voltage

3400mV

Configurable

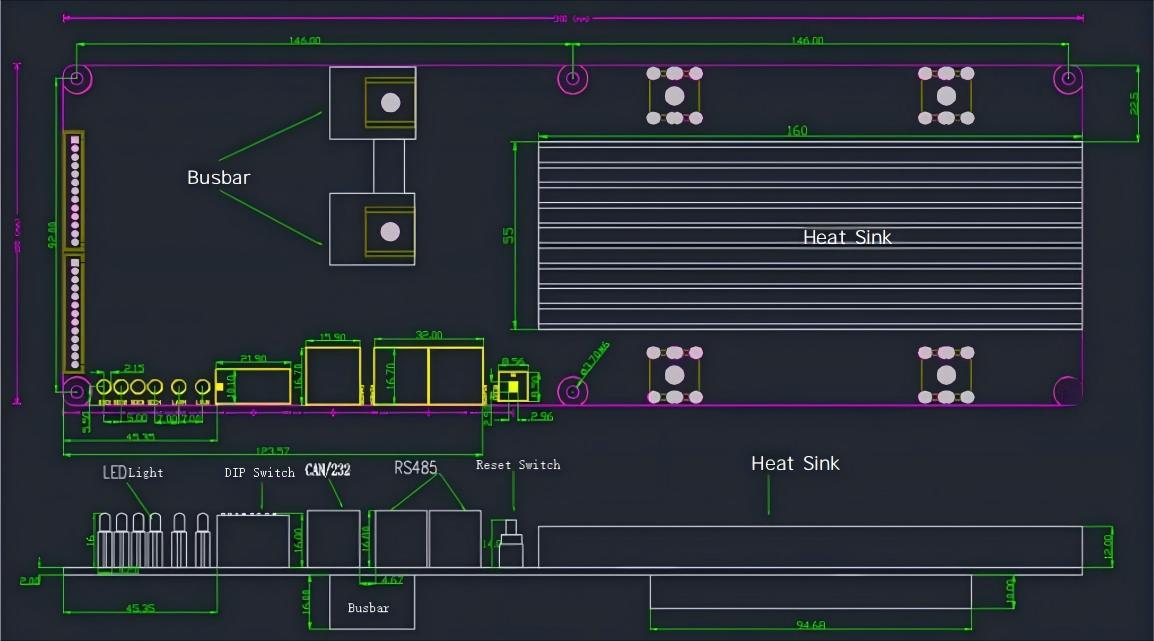

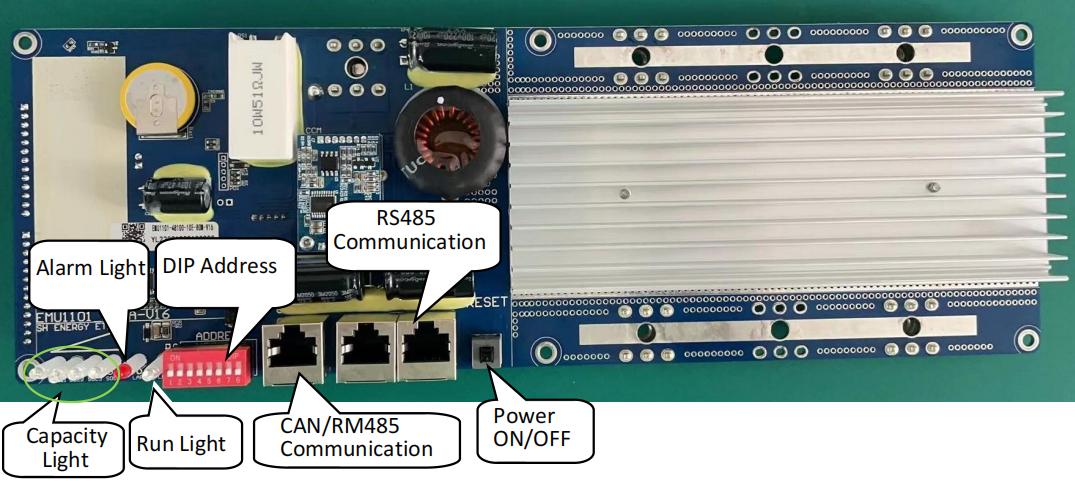

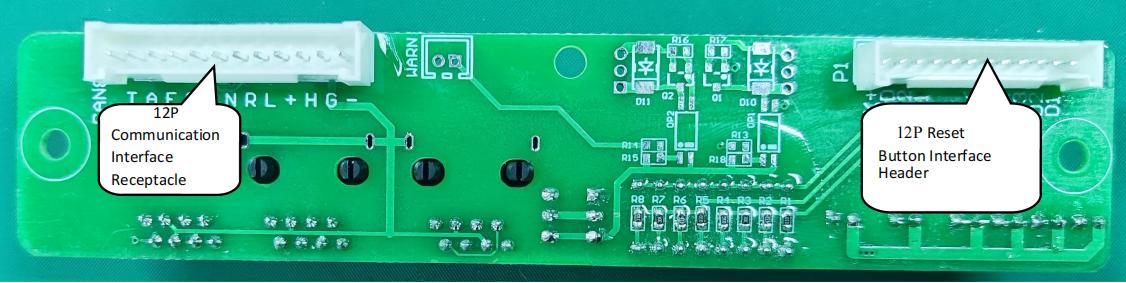

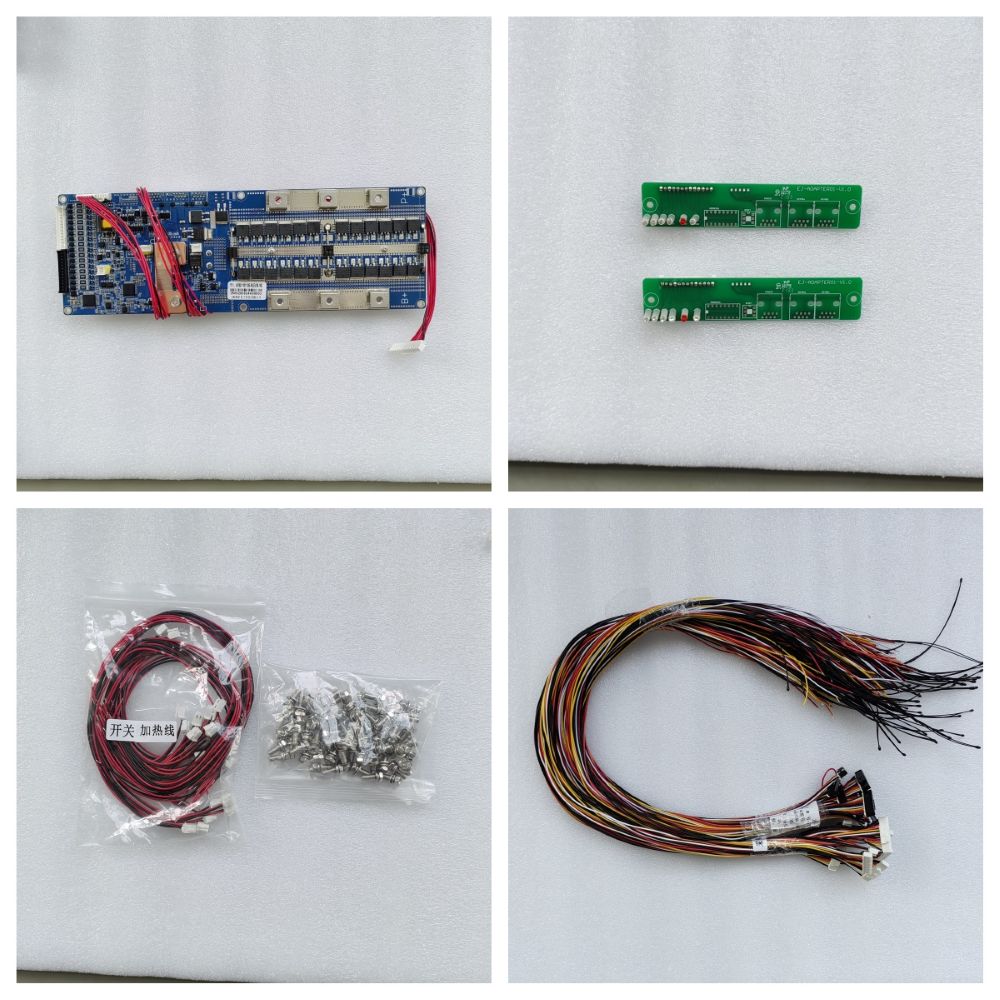

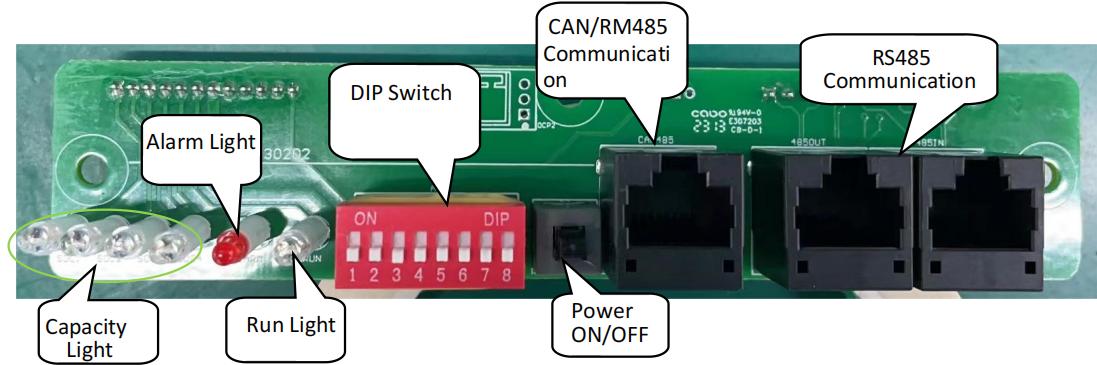

Dimension and Detail

Precautions

Battery Management Systems (BMS) cannot be used in series.

The withstand voltage of the BMS power components is 100V.

If the battery module is assembled using long wires or long copper busbars, impedance compensation must be implemented in consultation with the BMS manufacturer. Failure to do so may affect cell consistency.

Connecting external devices to the BMS's external switch is prohibited. Technical consultation and confirmation are required for any such needs. The company will not bear any responsibility for BMS damage resulting from non-compliance.

During assembly, ensure the protection board does not directly contact the cell surface to avoid damage. All assemblies must be secure and reliable.

During use, prevent wire ends, soldering irons, solder, etc., from contacting components on the circuit board, as this may damage the board. Additionally, take precautions against electrostatic discharge (ESD), moisture, and water ingress.

Operation must adhere to the specified design parameters and usage conditions. Exceeding values stated in this specification may damage the protection board.

After combining the battery pack and protection board, if no output voltage is detected or charging is impossible during initial power-up, verify the wiring connections are correct.

The company reserves the final right of interpretation.
