C&I Products - Cell

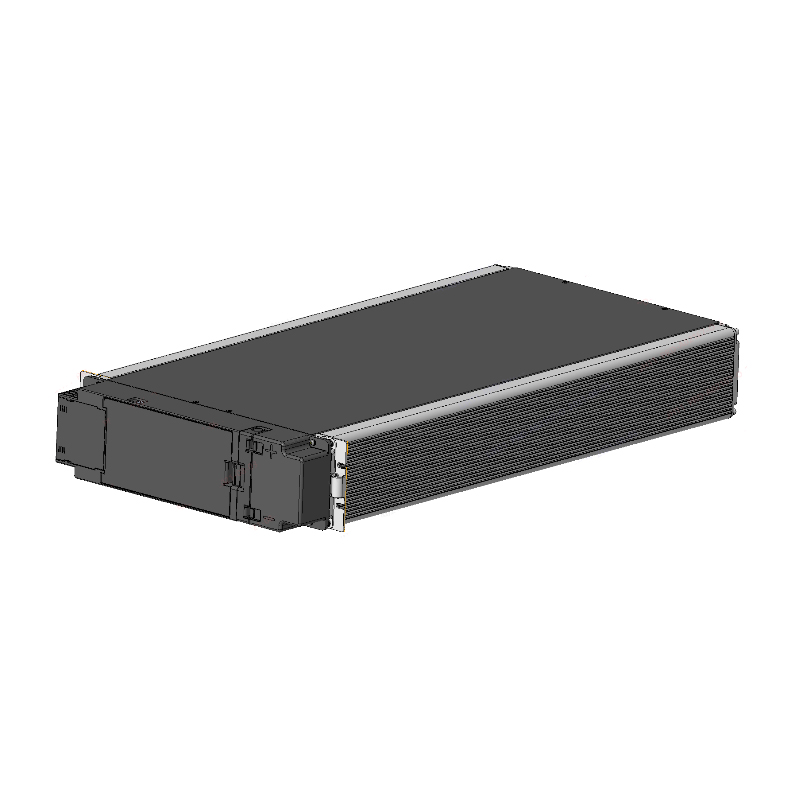

Battery Module
Security Design
➢ Connection detection
➢ Module short circuit protection
Maintenance Convenience Design
➢ Pre-maintenance interface, first-level BMS and Fuse
maintenance, without tools.
Concise Interface Design
➢ Hidden wiring harness design
Compatibility Design
➢ Module 3U, suitable for 19-inch cabinet
➢ Electrical selection compatible with 1000-1500V
High Voltage Box
Integrated Design
➢ HVB (BMS Control Box) includes BCU, IVU, can support expandable BAMS, ESU, and
also adds 24VDC, which can support black start.
➢ Maintenance Convenience Design
➢ Modular PCBA design with convenient expansion for level 2 and 3 (BAMS/ESU).
➢ Hot plug design, PCBA convenience maintenance.
Safety/Reliability Design
➢ Electronics/electrical components are easy to replace, 24VDC dual power backup,
improving system reliability.
➢ Insulation detection, loose connection detection.
Compatibility Design
➢ Module 3U, suitable for 19-inch cabinet
➢ Electrical selection compatible with 1000-1500V

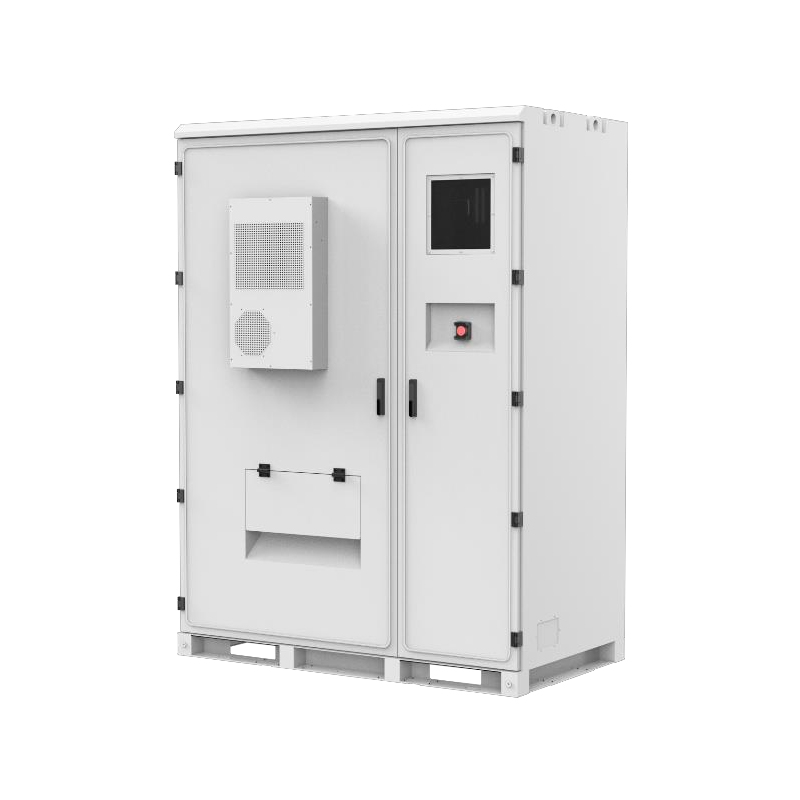

Outdoor Combiner Cabinet
DC bus: Collect the main circuits of multiple battery cabinets and connect to the PCS.
Auxiliary power supply: Provides power supply for air conditioning and BMS.
Reserved for upper-level communication: Reserved Ethernet switch position to support communication between PCS and EMS.
Cabinet Installation (0.5CP)
Advantages of Battery Grouping
➢Save on shipping costs, transport with batteries: Cabinets can be shipped with batteries,
including power connection lines with safe transportation voltage.
➢Save space, flexible placement: Supports back-to-back installation, side output,and does not
require pre-installed cable ducts/cable racks for battery cabinet installation, saving on site costs.
➢Save on labor, easy installation: Single cabinet installation is simple, and cabinet installation
is convenient, quickly supporting grid connection and saving on labor costs.
