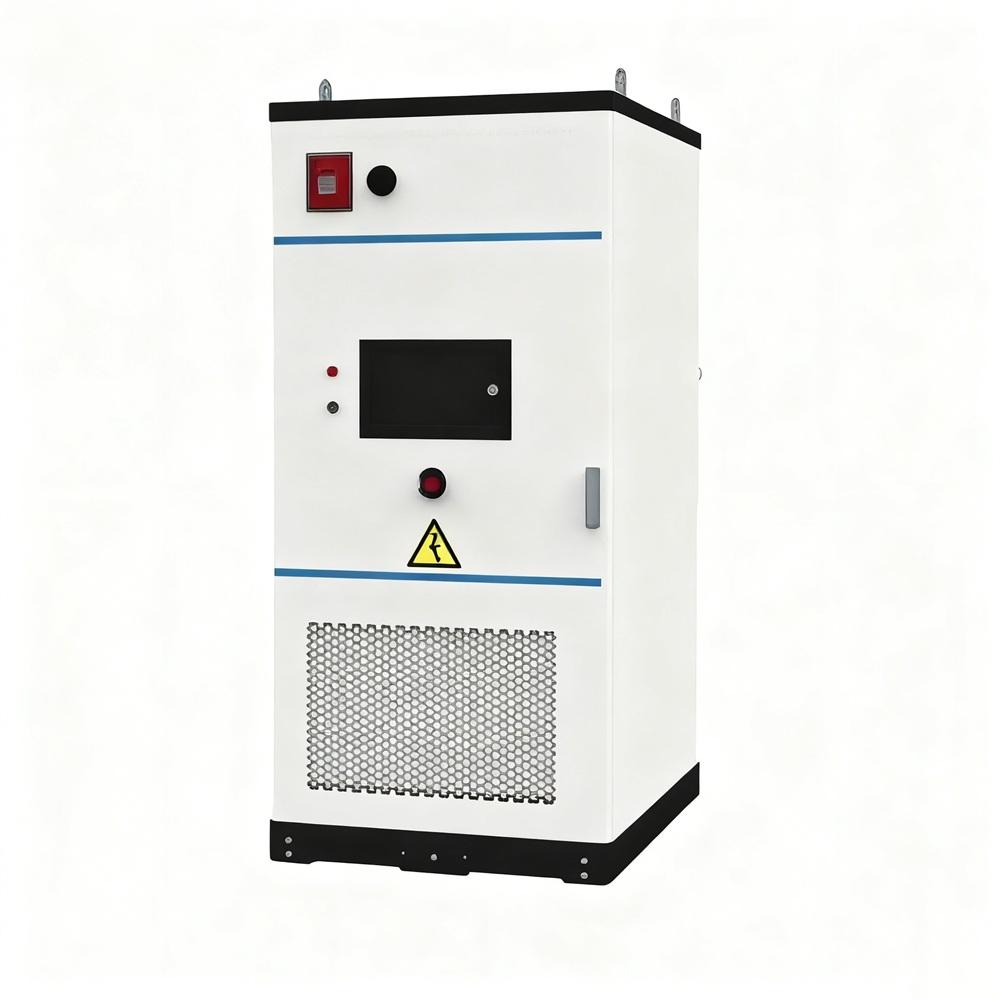

Description
Large-capacity string-type cluster management for more flexible and reliable, with long cycle life of high-security cell to ensure the safe and reliable operation of the system.
Real-time subsystem data monitoring and early warning, intelligent visualisation EMS, help operation and maintenance simple, visualisation.
Mobile emergency power station, V2V, V2H, microgrids, hybrid energy storage, etc.
| Project Name | Specifications | Remark |
| Cell Model | 3.2V/313Ah | |
| Group method | 1P52S | |
| Rated capacity | 313Ah | |
| Rated voltage | DC166.4V | |
| Size (width×height×depth) | 1111.2×246.44×810mm | |
| Operating voltage range | DC130~189.8V | |
| Rated energy | 260kWh | |
| Insulation resistance | >100MΩ | |
| Charging and discharging ambient temperature | 25±5℃ | Under guaranteed cycle life conditions |
| Standard weight | 300kg | |
| System composition | 1P260S | 5 battery boxes |
| Rated voltage | 832Vdc | |
| Operating voltage range | 650V~949V | |
| Rated power (Charge) | 125kW | |
| Rated power (Discharge) | 125kW | |
| IP protection rating | IPX4 | |
| Storage humidity | ≤ 85% | |
| Altitude | ≤ 2000m | >2000m (customizable) |
