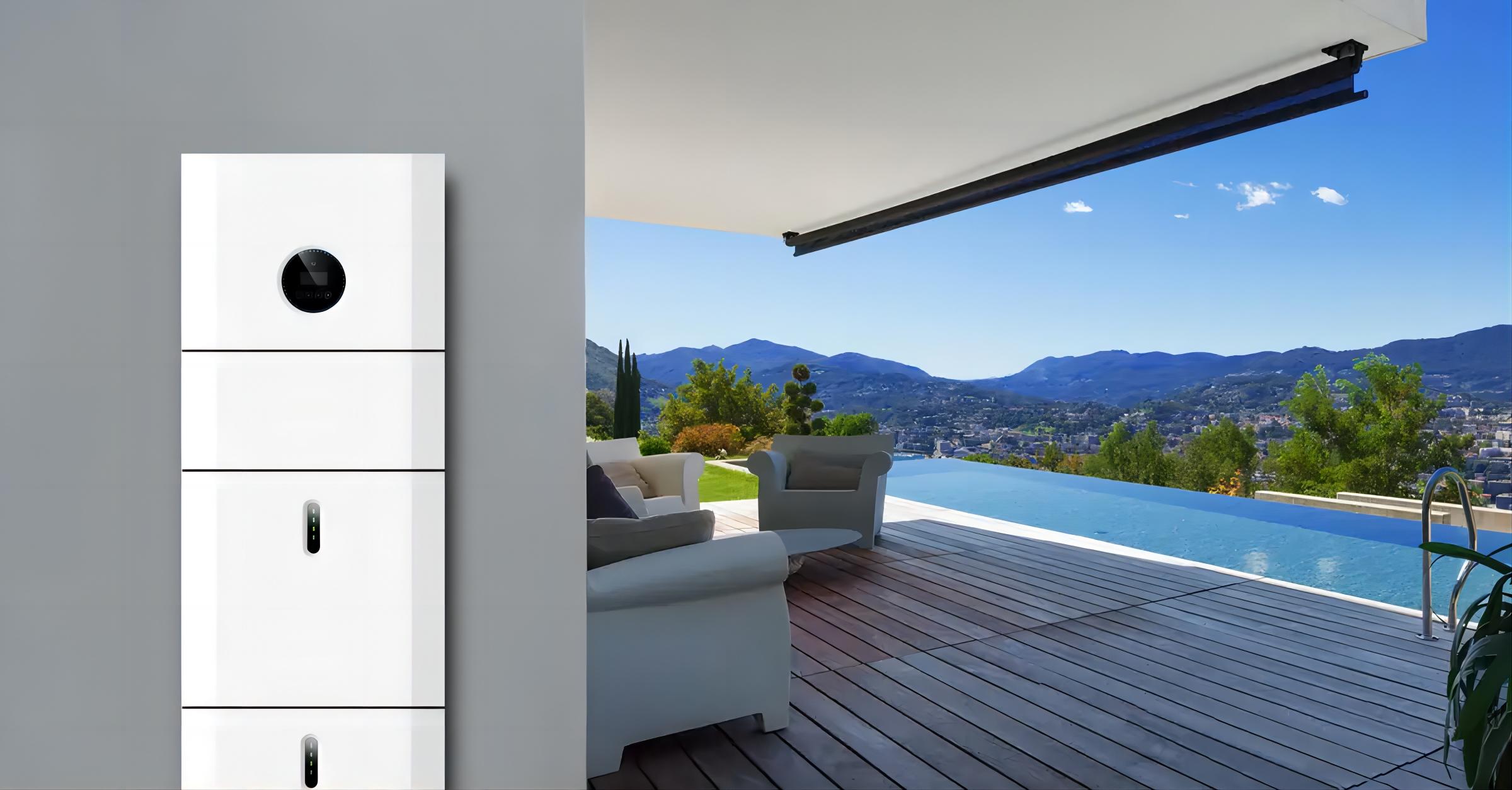

5.1Kwh/5kw LiFePO4 All-In-One Residential Energy Storage System

Details

5.1Kwh/5kw LiFePO4 All-In-One Residential Energy Storage System is the optimal choice for hybrid systems,which is designed with CATL Battery Solution + KSTAR Inverter Solution. The all-In-one single phase storage solution is safe, reliable

Description


5.1Kwh/5kw LiFePO4 All-In-One Residential Energy Storage System is the optimal choice for hybrid systems,which is designed with CATL Battery Solution + KSTAR Inverter Solution. The all-In-one single phase storage solution is  safe, reliable and higher yields.


Features



  • All in one design
  • High efficiency up to 97.6%
  • IP65 protection
  • String monitoring optional

  • Easy installation
  • Digital controller
  • DC/AC Surge protection
  • Reactive power controller






All In One Energy Storage System CATL Battery Solutions





Safety: CATL LFP Battery,stable and safe Module, pack, system, triple protection IP65, outdoor installation, away from living room
Simple: Modular design, single person can carry and install it.Plug and play, 30 min quick installation, Space saving;
Intercon-nection: Global cloud platform & Mobile APP, anytime and any where, Open API, support power internet applications






Battery Model
Physical
Battery Type LFP (LiFePO4)
Weight 54KG
Dimension (W x H x D) 540*490*240mm
IP Protection IP65
Warranty 5 Year Product Warranty,
10 Year Performance Warranty
Electrical
Energy Capacity 5.12kwh
Usable Capacity 4.6kwh
Depth of Discharge (DoD) 90%
Nominal Voltage 51.2V
DC Circuit Breaker 125A
Operating Voltage Range 44.8-56.5V
Internal Resistance <20mΩ
Cycle Life 10000cycle
Operation
Max. Charge/Discharge Current 50A/80A
Rated DC power 4096W
Max. Charge/Discharge Power 2825W/4096W
Operating Temperature Range 0 to 50℃ charging, -10 to 50℃ discharging
Humidity 0~95% (No condensation)
BMS
Modules Connection Max.8
Capacity 200/400/600/800Ah
Power Consumption <2W
Communication CAN & RS485
Monitoring Parameters System voltage, current, cell voltage, cell
temperature, PCBA temperature measurement
Certificate
Safety (Cell) Pack: IEC/EN 62619; UN38.3
Cell: IEC/EN 62619; UN38.3; UL1973







Hybrid Inverter Model E10KT
PV String Input
Max. Continuous PV Input Power 20kW
Max. DC Voltage 1100V
Nominal Voltage 720V
MPPT Voltage Range 140V-1000V
MPPT Voltage Range (Full Load) 420V-850V
Start Voltage 200V
Number of MPPT 2
Strings Per MPPT 1
Max. Input Current Per MPPT 15A
Max. Short-circuit Current Per MPPT 20A
AC Output (Grid)
Nominal AC Output Power 10kW
Max. AC Apparent Power 11kVA
Nominal AC Voltage 400Vac
AC Grid Frequency Range 50 / 60Hz±5Hz
Nominal Output Current 14.5A
Max. Output Current 16A
Power Factor (cosΦ) 0.8Leading-0.8Lagging *
THDi <3%
Battery Input
Battery Type LFP (LiFePO4)
Nominal Battery Voltage 51.2V
Charging Voltage Range 44-58V
Max. Charging Current 160A
Max. Discharging Current 200A
Battery Capacity 200/400/600/800Ah
AC Output (Backup)
Nominal AC Output Power 9.2kW
Max. AC Output Power 10kVA
Nominal Output Current 13.3A
Max. Output Current 14.5A
Nominal Output Voltage 400V
Nominal Output Frequency 50/60Hz
Output THDv (@Linear Load) <2%(Linear Load)
Efficiency
Max. PV Efficiency 97.60%
Euro. PV Efficiency 97.00%
Protection
Anti-islanding Protection Yes
Output Over Current Protection Yes
DC Reverse Polarity Protection Yes
String Fault Detection Yes
DC/AC Surge Protection DC Type II; AC Type III
Insulation Detection Yes
AC Short Circuit Protection Yes
General Specifications
Dimensions W x H x D 540*980*240mm
Weight 49kg
Operating Temperature Range -25℃~+60℃
Cooling Type Natural Convection
Max. Operation Altitude 2000m
Operation Humidity 0~95% (No Condensation)
IP Class IP65
Topology Battery Isolation
Communication RS485/CAN2.0/WIFI/4G
Display LCD/APP
