Details

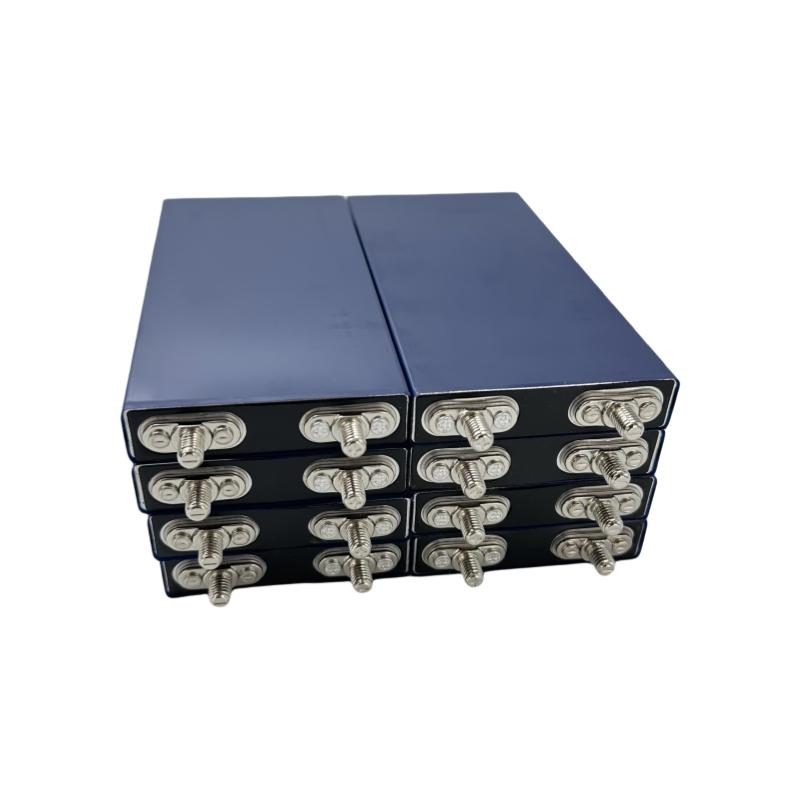

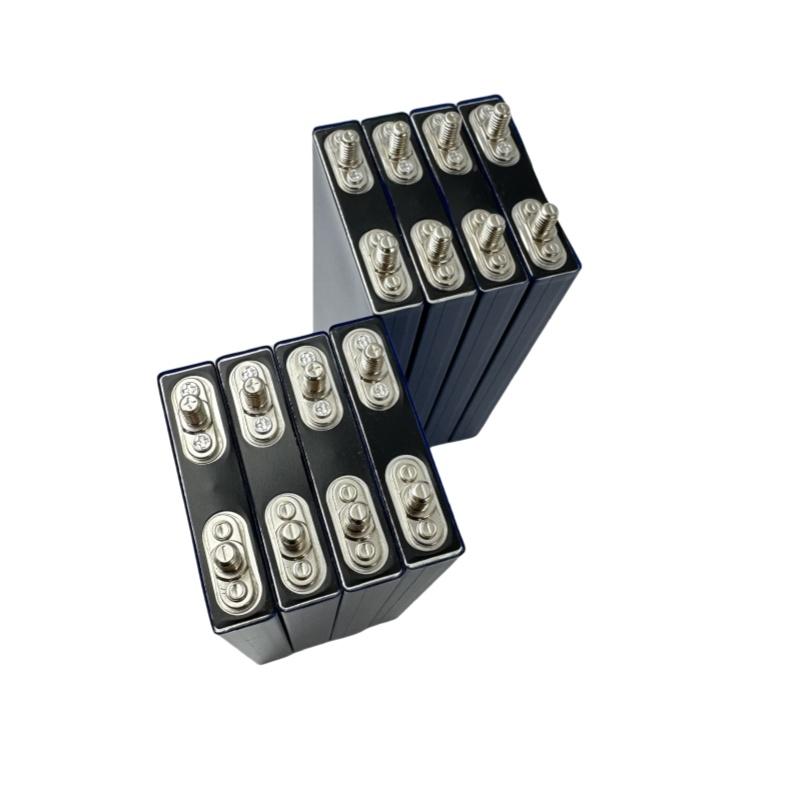

3.2V 10Ah lifepo4 battery lithium iron phosphate high rate prismatic lfp lithium power battery cell
Description
The 3.2V 10Ah High Rate LiFePO4 Battery Cells are designed for high-performance applications requiring rapid discharge and long-lasting power. We provide new Class A products, ensure product quality supply, contact us for a preferential quote!
Items | Criteria |
Shell | Aluminum Alloy 3003 |
Nominal Capacity | 10Ah |
Energy | 32Wh |
Nominal Voltage | 3.2V |
Open Circuit Voltage | 3.2-3.4V |
Internal Impedance | ≤6.0mΩ |
End of Charge Voltage | 3.65V±0.05V |
Std. Charge Current | 10A(1C) |
Std. Discharge Current | 10A(1C) |
Max. Continuous Charge Current | 20A(2C) |
Max. Continuous Discharge Current | 30A(3C) |
Max. Pulse Discharge Current(10s) | 50A(5C) |
Discharge cut-off Voltage | 2.5V |
Operating Temperature | 0~+45℃ |
-20~+55℃ | |
Storage Temperature | -10~+45℃ |
-10~+35℃ | |
Weight | ＜276g |
3.2V 10Ah prismatic power lithium lfp battery cells, can be widely used in communication station, UAV, Golf carts, electric forklifts, e-wheelchair, lawn mover, low speed vehicles, etc.
