Description

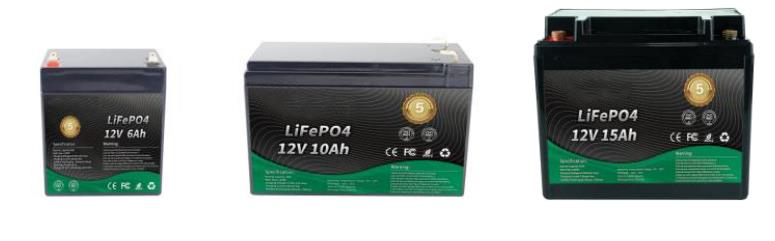

12V 6Ah/10Ah/15Ah LiFePO4 Battery Pack
| Model | 12-6 | 12-10 | 12-15 | |
| Basic Parameters | Nominal Voltage | 12.8V | 12.8V | 12.8V |
| Minimum Capacity@0.2C | 6Ah | 10Ah | 15Ah | |
| Wh | 76.8Wh | 128Wh | 192Wh | |
| Internal Impedance | ≤70mΩ | ≤70mΩ | ≤70mΩ | |
| Cycle Life | ≥3500 times, 0.2C charge and 0.5C discharge, the deep discharge capacity ratio is greater than 80% | |||
| Self-Discharge | ≤3% per month, room temperature 25 degrees | |||
|
Charging Standard |
Charging Voltage (Max.) | 14.6V±0.2V | 14.6V±0.2V | 14.6V±0.2V |
| Charging Type(CC/CV) | CC/CV | CC/CV | CC/CV | |
| Charging Current (Std. ) | 3A | 5A | 7.5A | |
| Charging Current (Max.) | 6A | 10A | 15A | |
| Discharging Standard | Discharging Current (Std. ) | 3A | 5A | 7.5A |
|
Continuous Discharging Current(Fast) |
12A | 20A | 30A | |
| Discharging Current (Max/Peak) | 18A(≤3S) | 30A(≤3S) | 45A(≤3S) | |
| Discharging Voltage (Min) | 10.0V | 10.0V | 10.0V | |
| Working Environment | Charging Temperature | 0°C to 45°C (32°F to 113°F) @60±25% Relative Humidity | ||
| Discharging Temperature | -20°C to 60°C (-4°F to 140°F) @60+25% Relative Humidity | |||
| Storage temperature | 0°C to 45°C (32°F to 113°F) @60+25% Relative Humidity | |||
| Dustproof and waterproof rating | IP65 | IP65 | IP65 | |
| Structural Parameters | Box | ABS | ABS | ABS |
| Dimensions(L*W*H) | 151*98*95 | 151*98*95 | 151*98*98 | |
| Weight | 0.8±0. 1KG | 1.2±0. 1KG | 1.8±0. 1KG | |
| Terminal | F2 | F2 | F2 | |
