Details

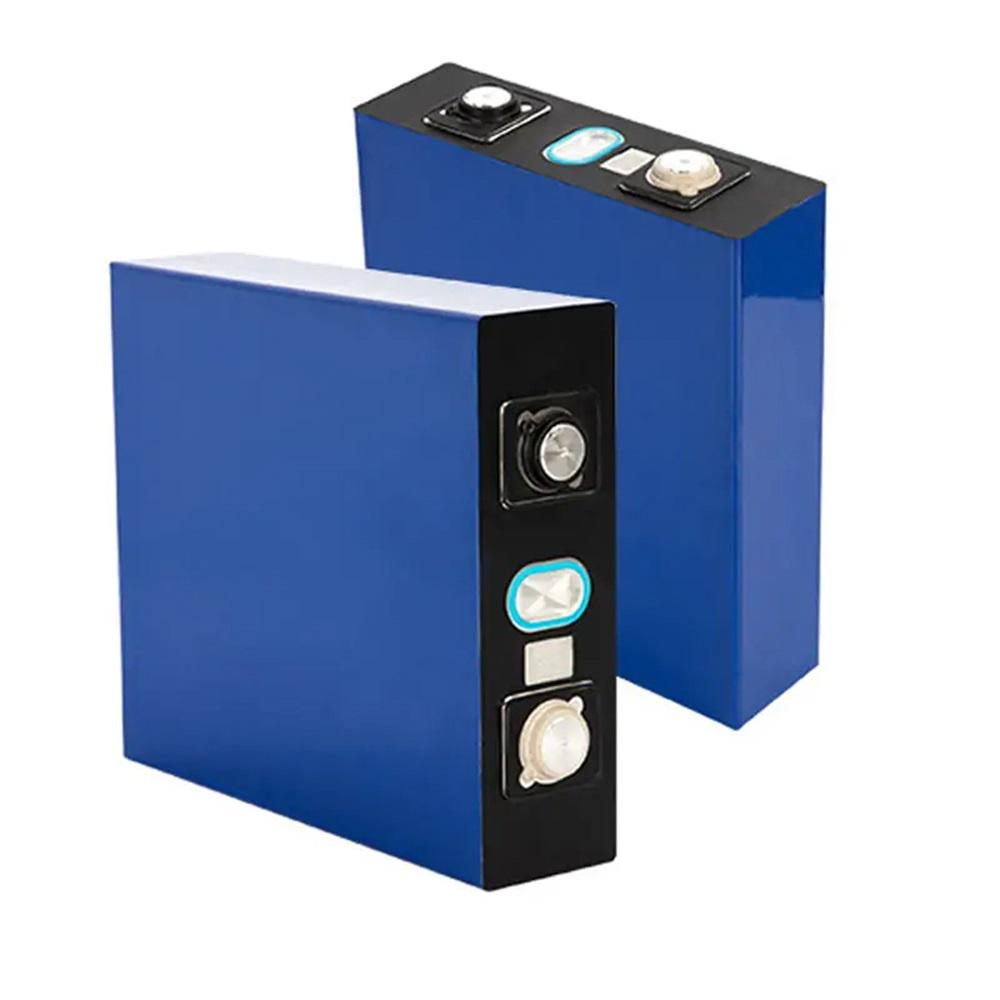

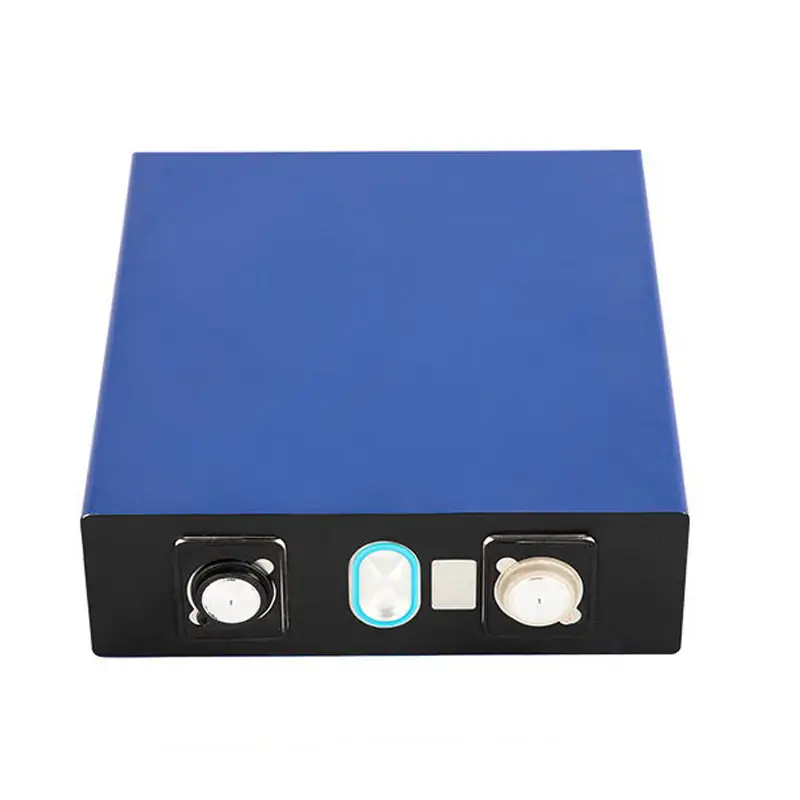

We provide brand new grade 3.2V 202Ah LiFePO4 LFP Prismatic Battery Cell for energy storage, solar system, RV, boat.
Description
LiFePO4 prismatic battery 3.2V use a new type of cathode material that provides several advantages over traditional Li-ion batteries. LiFePO4 batteries provide much higher specific capacity, superior thermal and chemical stability, enhanced safety, improved cost performance, enhanced charge and discharge rates, compact size, light weight, and enhanced cycle life.
Item | Parameters |
Battery Type | LiFePO4 |
Module | LP541173210-202Ah |
Nominal Capacity | 202Ah |
Nominal Voltage | 3.2V |
Internal Resistance | ≤0.4mΩ |
Weight | 3.9±0.1kg |
Max. Charging Current | 1C (Continuous), 2C(30s) |
Charging Voltage | 3.65V |
Max. Discharging Current | 1C (Continuous), 3C(30s) |
Discharging Cut-off Voltage | 2.5V(＞0℃), 2.0V(≤0℃) |
Operating temperature | Charging:-20℃~55℃ |
Discharging:-30℃~55℃ | |
Weight | 3.9kg ± 0.1kg |

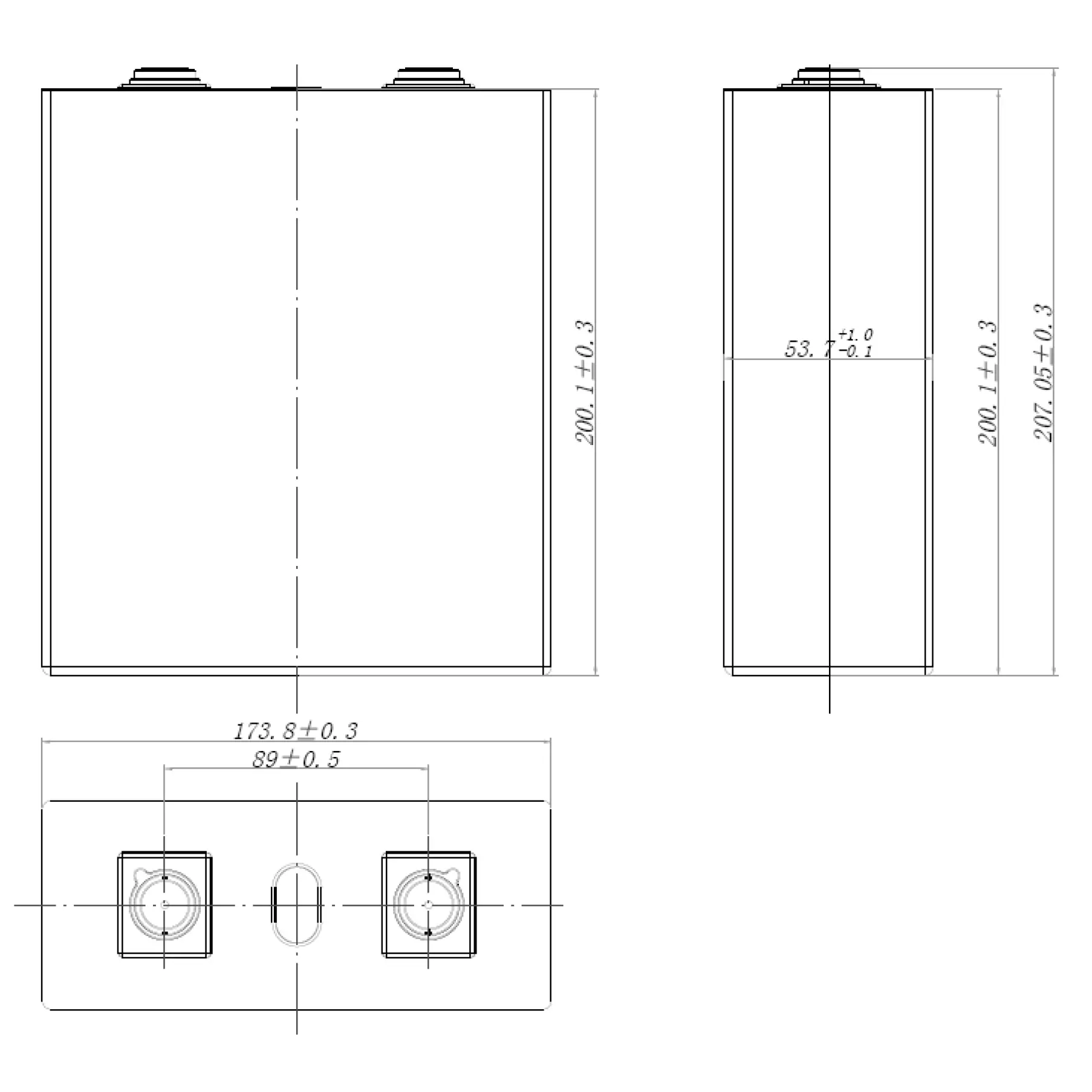

Dimension | 54*173*205mm |
Cycle life | ≥3500 cycles |
