Details

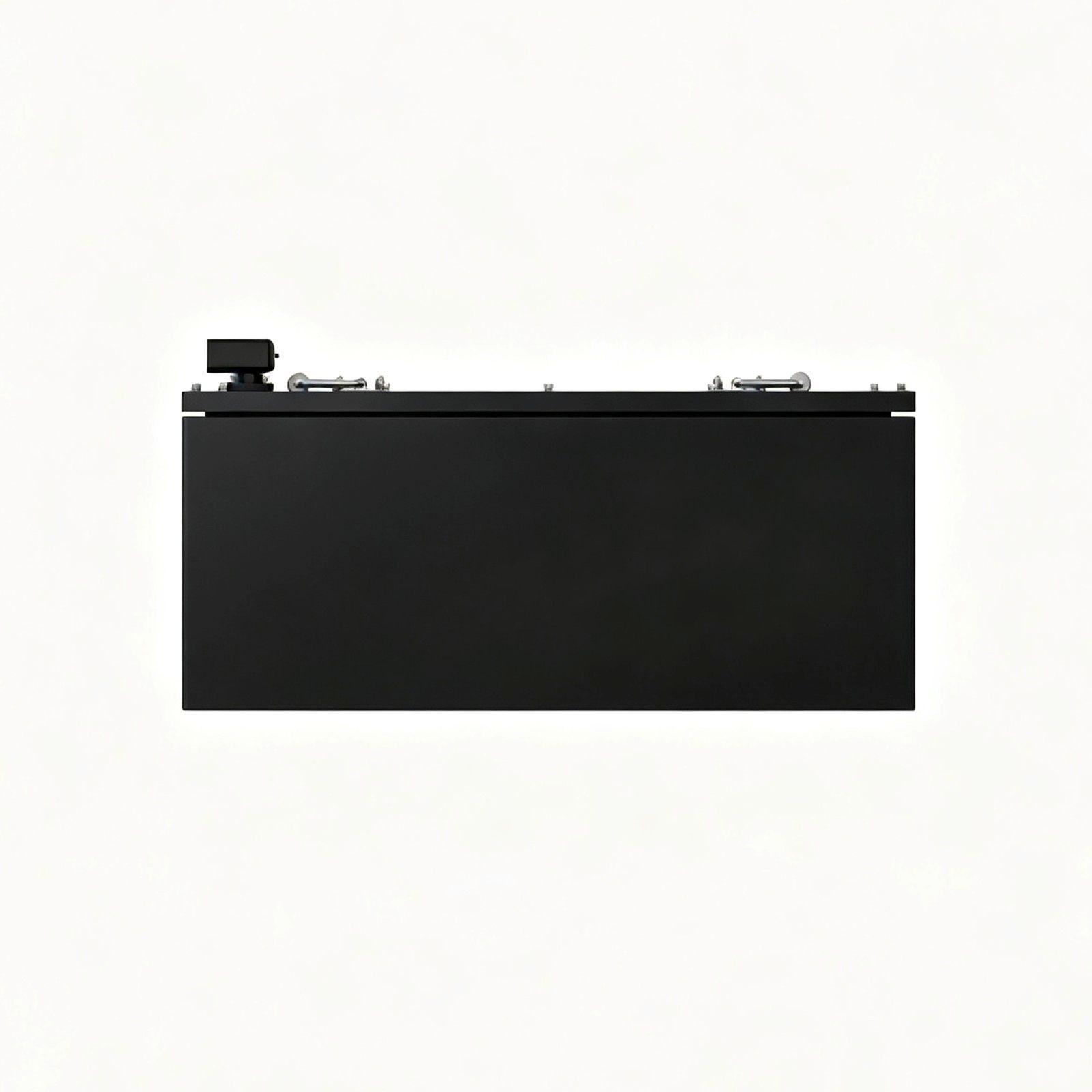

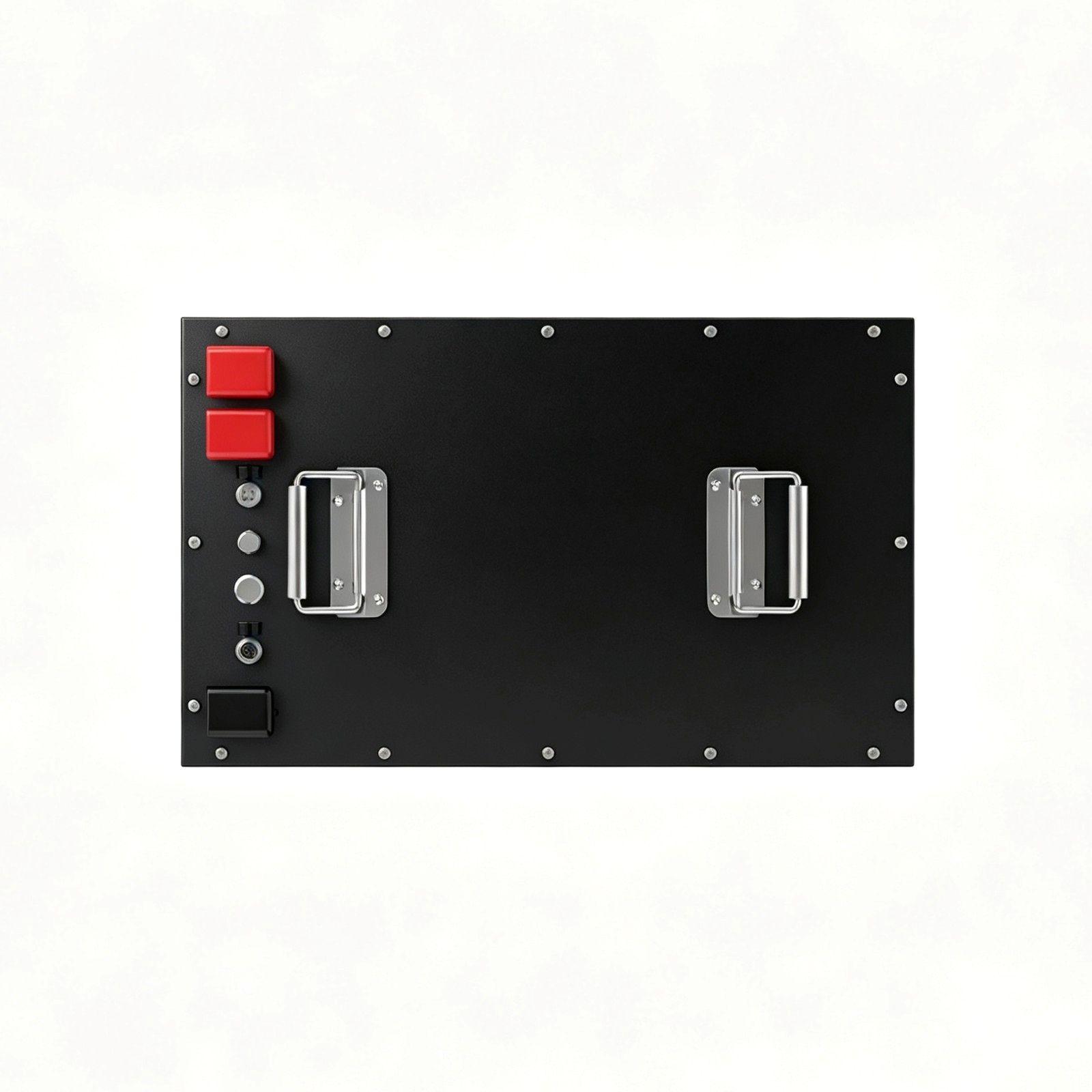

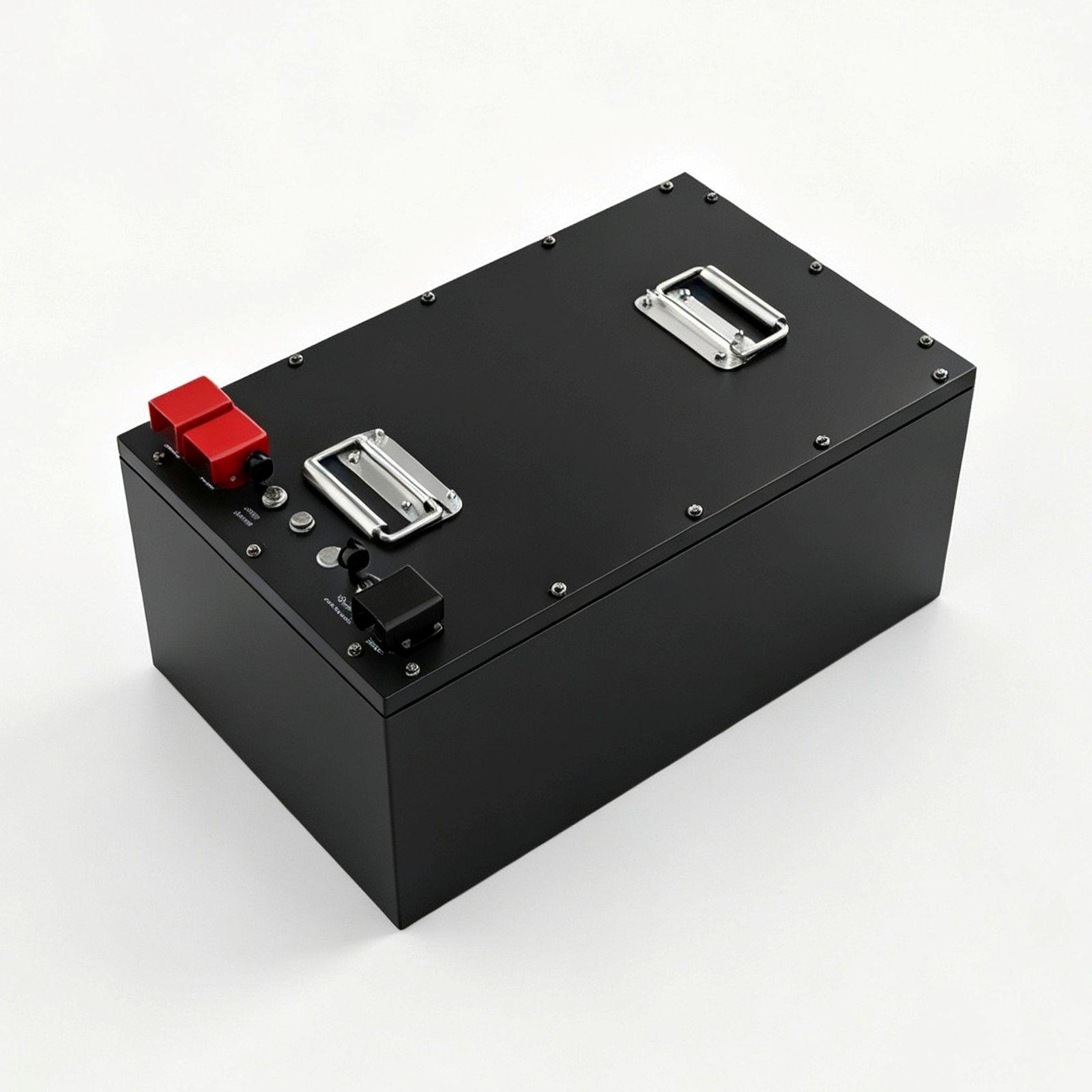

24V 230Ah Lithium LiFePO4 battery for aerial work platforms, scissor lifts, boom lifts, and vertical mast lifts
Description
24V 230Ah LiFePO4 aerial work platform batteries directly replace lead-acid batteries in scissor lifts, boom lifts, and vertical mast lifts. Maintenance-free, opportunity charging, and consistent lifting performance.
Proven safe chemistry
Longest life in its class
Highest capacity in its class
China-based cell development
Brand-new Grade A LiFePO4 cells
Certifications: UN38.3, UL1973, IEC62133, UL2580
| Item | Parameter |
| Rated Capacity | 230Ah |
| Nominal Voltage | 25.6V |
| Supply Voltage | 20V~20.9V Single battery:2.5V ~ 3.65V |
| System Capacity | 5,888Wh |
| Battery Group Solution | 8S1P A boxful |
| Storage Temperature | 0°C~+35°C |
| IP Protection Level | Battery system IP65 |
| Operating Temperature | Charge: 0°C~+55°C Discharge: -20°C~+60°C |
| Standard Charging Current is Recommended | ≤70A |
| Maximum Continuous Charging Current | 115A |
| Maximum pulse charging current (1S) | 172A |
| Continuous Discharge Current | 200A |
| Maximum Discharge Current (10S) | 300A |

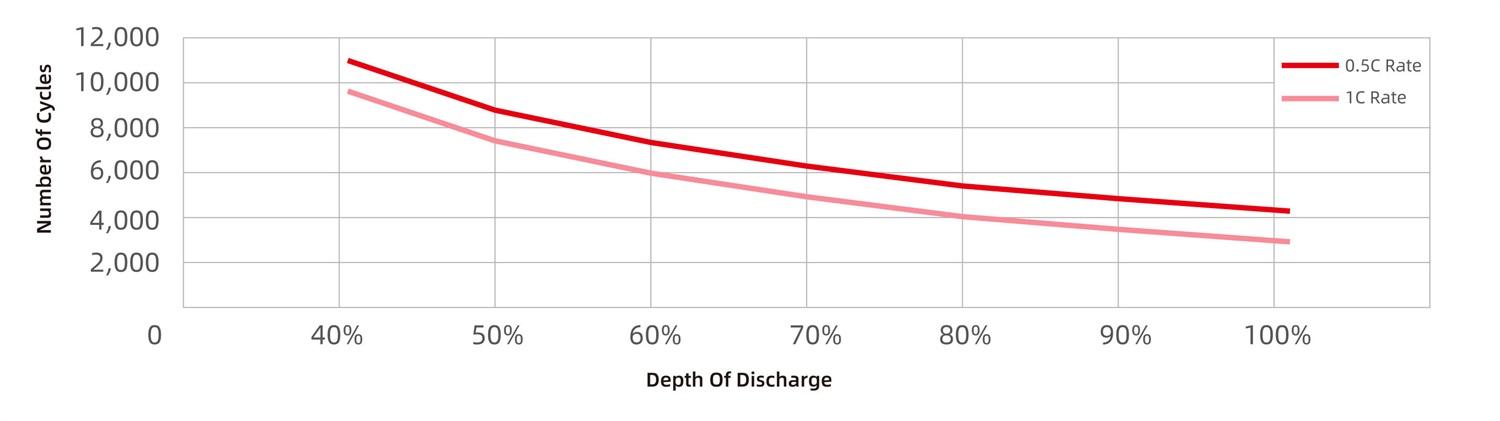

| Cycle Life | ≥4000@ 80%DOD |
| Battery System Weight | 66kg |

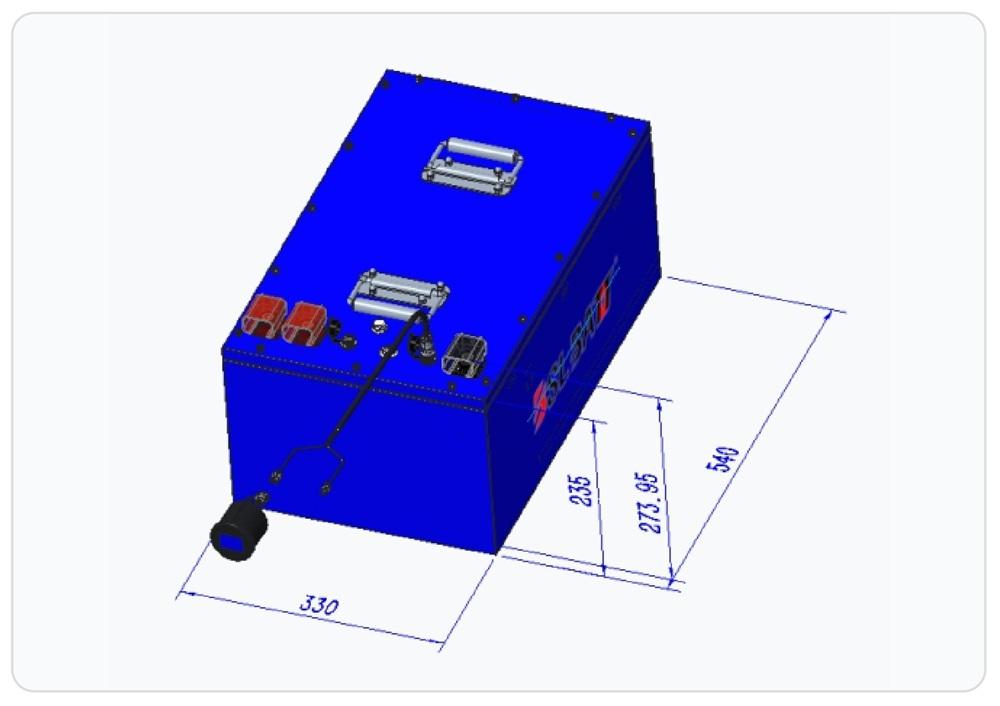

| Dimensions (inches) (mm) | 21.26*12.99*10.83(540*330*275) |
