Description
Light, powerful, and with a very long runtime, this Lithium Iron Phosphate (LiFePO4) battery is particularly suitable for cyclic use, where frequent charging and discharging is required. It features a built-in BMS. 100% of the capacity is available for your needs, with a very flat discharge curve and minimal voltage drop!
Lithium Iron Phosphate batteries offer many advantages over lead-acid batteries. They have a much faster charging capability, allowing you to utilize even the smallest amount of sunlight without being held back by battery internal resistance. A lead-acid battery, depending on its capacity, will be limited in charging power. With lithium, you can charge at the maximum power the controller can deliver. They are also unbeatable when discharging, easily withstanding very fast discharges.
When comparing the price per available ampere-hour (thanks to the very high depth of discharge of LiFePO4), you’ll find that the cost per usable Ah is only slightly higher than that of lead-acid batteries.
| Items | Parameters |
| Battery Pack Model | 25.6V 304Ah |
| Cell Model | 3.2V-304Ah |
| Full Charge Voltage | 29.2V |
| Discharge Cut-off Voltage | 20V |
| Maximum Continuous Charging Current | ≤100A |
| Maximum Continuous Discharging Current | ≤200A |
| Weight | Approximately 52kg |

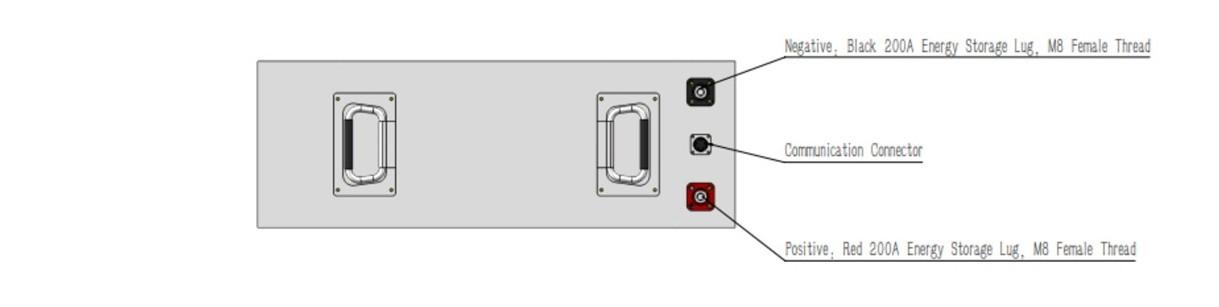

| Charge/Discharge Terminal | 200A-A/M8 Internal Thread |
| Communication method | CAN or 485 |
| Heating Logic | Enabled only when the charger is connected. A. Heating ON, charge/discharge OFF when ambient temp < setpoint (customer-defined). B. Heating OFF, charge/discharge ON when ambient temp > setpoint (customer-defined). |
