Details

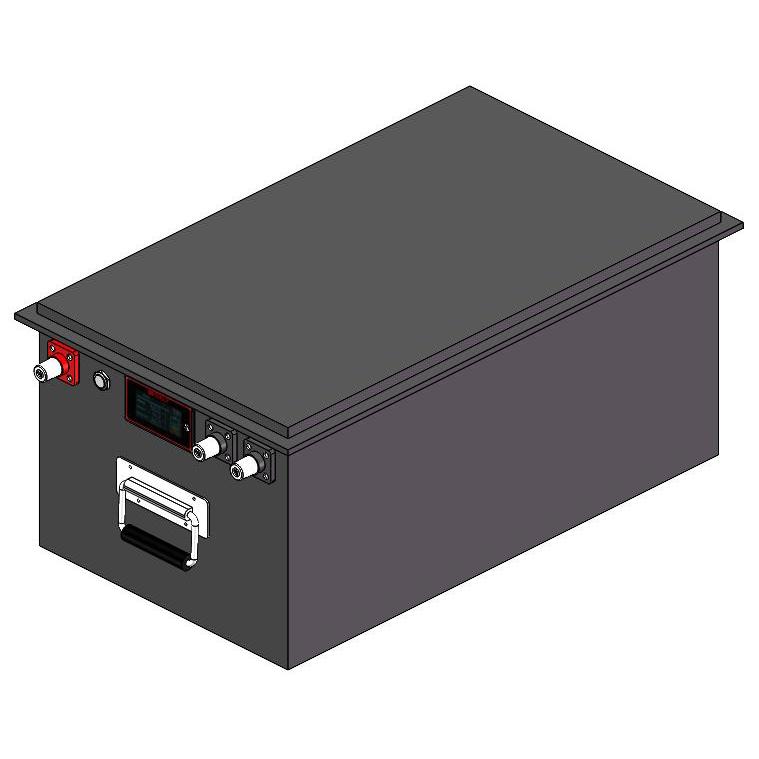

25.6V 472Ah 12kWh LFP Battery Pack designed specifically for the starting and parking power needs of Class 8 trucks, semi-trucks, etc.
Description
- Maintenance-free operation
- Long service life: more than 6,000 cycles
- Can be used as a heavy truck starting and parking battery
- High-quality LiFePO4 battery, safe and reliable
- Longer runtime, economical and environmentally friendly
- Uses brand new Grade A 472Ah LiFePO4 battery cells
| Items | Parameters |
| Battery model | 25.6V 472Ah (IFR-3.2V-8S1P) |
| Nominal voltage | 25.6V |
| Nominal capacity | ≥472Ah (At 0.5C discharge rate) |
| Discharge | Standard discharge current: 150A Max. discharge current: 200A (≤10min) Starting Current: Max. Withstand Current: 2000A Cut-off voltage: 24.8V |
| Charge | Charge Voltage: 28.4V Standard charging current: 150A Max. charging current: 200A (< 10 min) Charging mode: Constant Current/Constant Voltage Charge cut-off current: 9.4A |
| Operation Temperature | Charge: 0°C ~ +60°C Discharge: -20°C ~ +60°C |
| Storage Temperature | -20°C ~ +60°C |
| Discharging Inner Resistance | ≤ 15mΩ |
| Protection Function | Protection functions such as Overcharge, over discharge, over-current, short circuit, and equalization |
| Heating Function | Built-in 20A |
| One-Touch Engine Start | 60S |
| Output mode | Starting Energy Storage Terminal |
| Communication mode | CAN/UART |
| Case Material | Iron shell |
| Weight | About 80Kg |

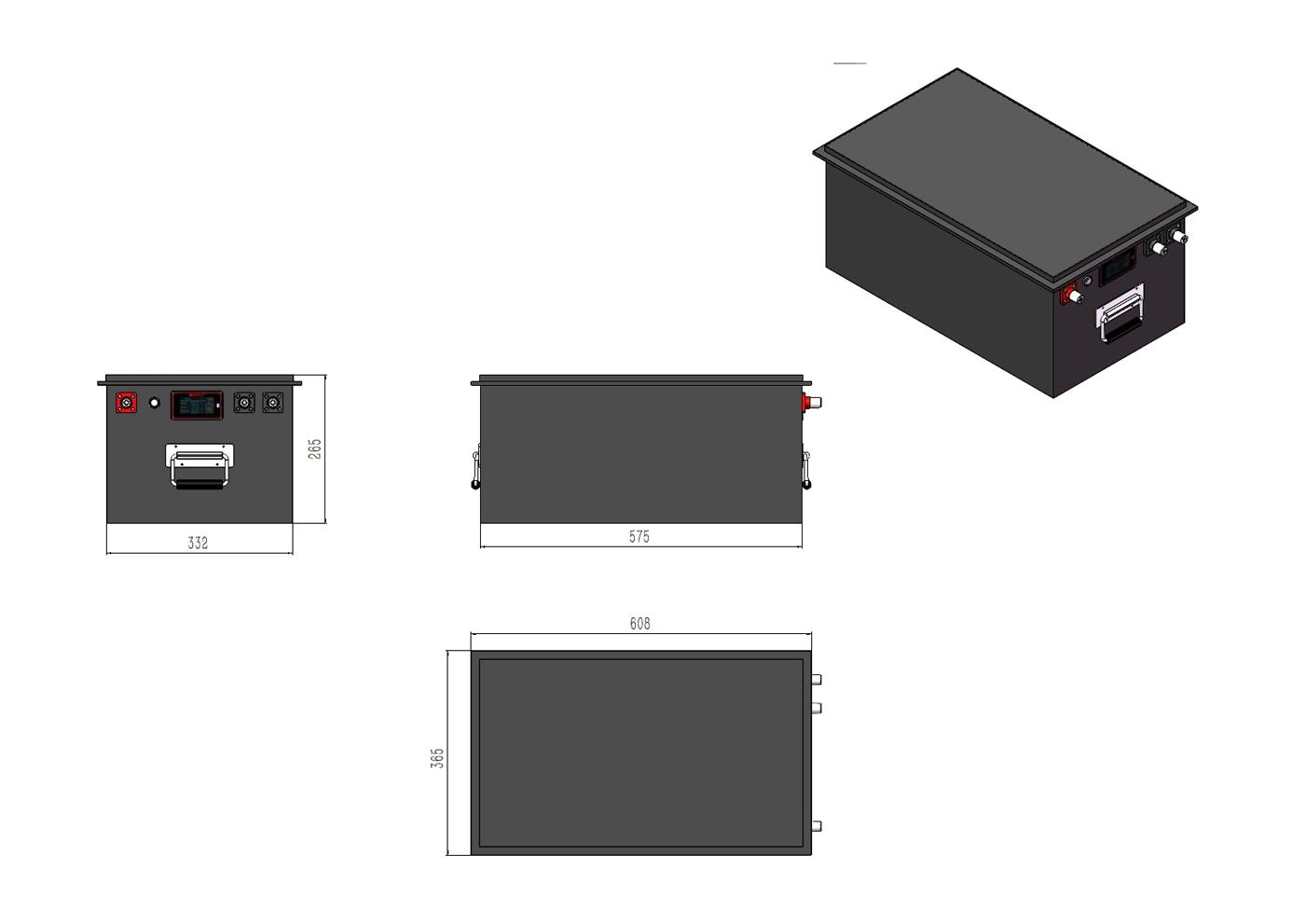

| Dimensions (L×W×H) | 608×365×265mm |
| Cycle | ≥6000 cycles, capacity retention rate 80% (1C charge-discharge) |
This 24V 472Ah Lithium LiFePO4 battery pack can power various electrical appliances inside the truck. It can easily run all kinds of on-board equipment, such as a parking air conditioner, on-board TV, car refrigerator, electric rice cooker, induction cooker, microwave oven, etc.
