Details

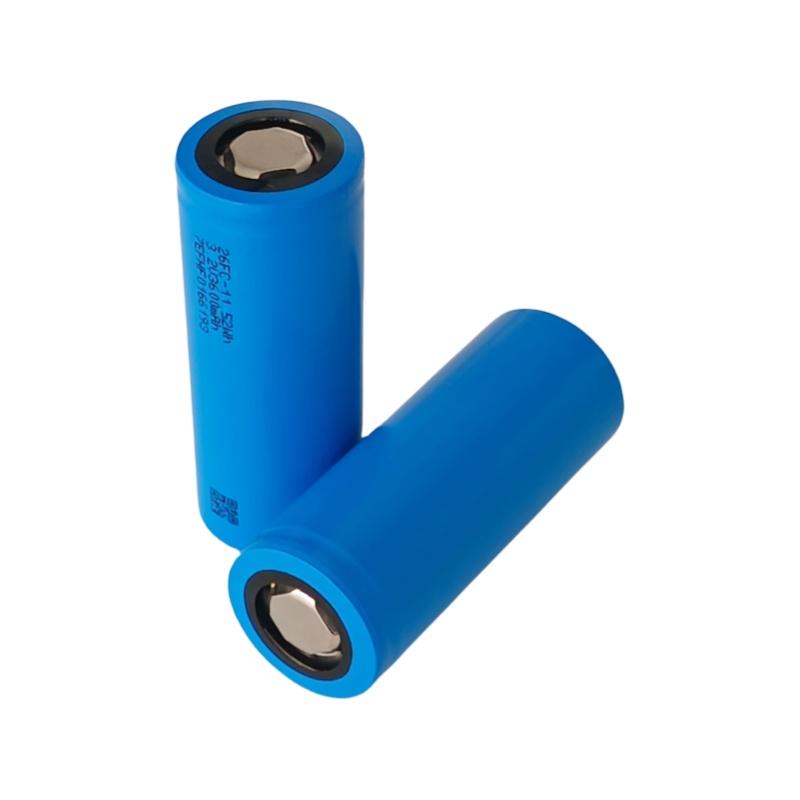

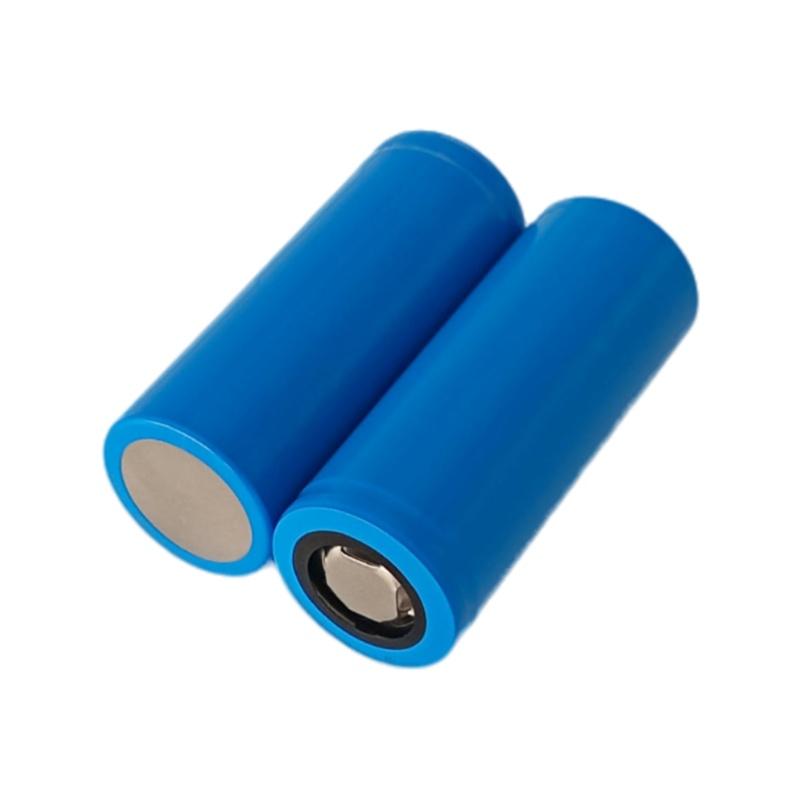

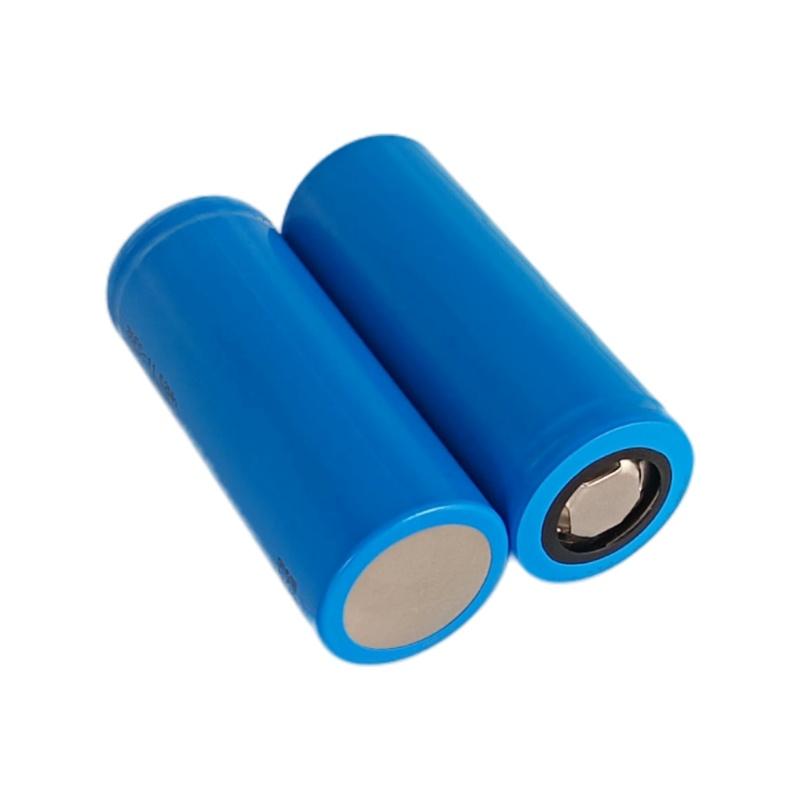

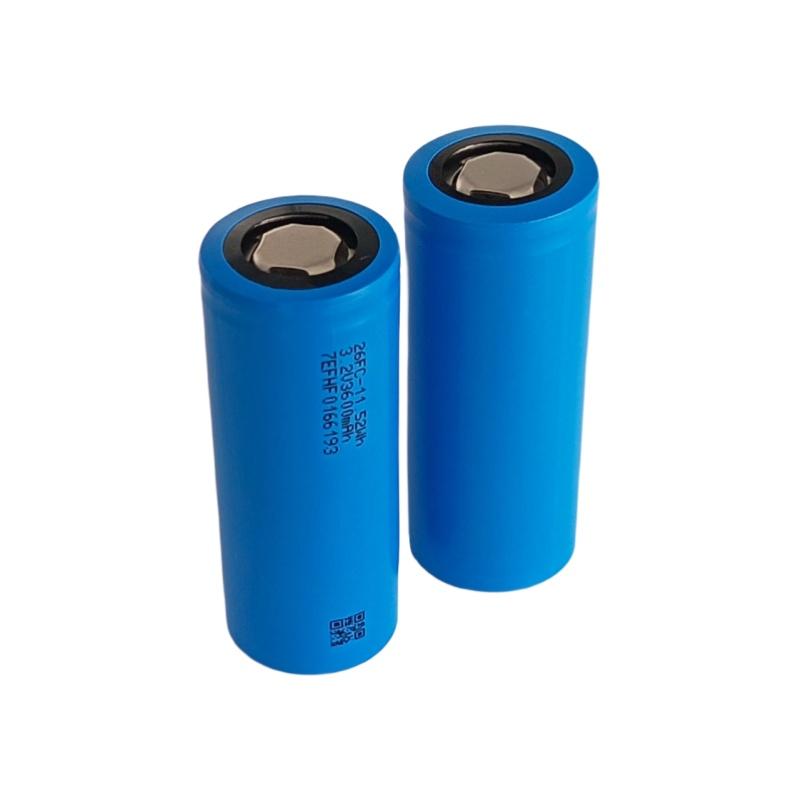

The JGNE 3.2V 3600mAh 26650 lifepo4 battery features high safety, long lifespan, good consistency and etc.
Description
The JGNE 26FC-11.52Wh lifepo4 battery with a capacity of 3600mAh and a nominal voltage of 3.2V. It features high safety, long lifespan, good consistency and etc. This battery has obtained the following certifications: CE, UN38.3, IEC62133, IEC62619, UL1973, UL9540A, GB36276, ROHS, REACH, 3C, Regulation (EU)No 2023/1542.
High Safety and Stability
Good Consistency
Environmental Benefits
Long Lifespan,Reliable
Lightweight, High-performance
| Item | Specification |
| Nominal Capacity | 3600mAh (0.2C, current value of 3600mA at 1C） |
| Nominal Voltage | 3.2V |
| AC Internal Resistance | ≤25mΩ (AC 1kHz measurement at 25±2℃) |
| Max. Charging Current | 3.6A@25℃ |
| Max. Continuous Discharge Current | 10.8A (25℃, not for cycle life) |
| Pulse Discharge Current | 20A, 5s |
| 25℃ Cycle Life | 7000@1C(50%DOD) 4000@1C(80%DOD） 2000@1C(100%DOD） |
| Working Temperature (Including Temperature Rise) | Charge:0~60℃ Discharge:-30℃~65℃ |
| Cell Weight | Approx. 84g(Including Casing) |
| Dimension | Height: 65.7±0.3 Diameter: ≤26.45 |

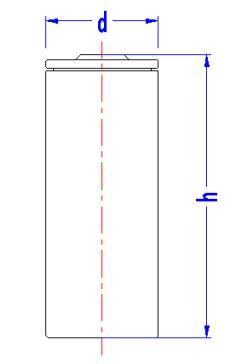

| Item | Dimension Including Casing (mm) |
| h | 65.7±0.3 |
| d | ≤26.45 |
Do not dissect the battery
Do not immerse the cell in water or seawater
Do not use or leave the cell at high temperature as fire or heater
Batteries must not be exposed to direct sunlight.
Do not reverse the position and negative terminals.
Do not connect the cell electrodes to an electrical outlet.
Do not short circuit the cell.
Do not transport or store the cell together with metal objects such as hairpins, necklaces, etc.
Do not strike, trample, throw, fall and shock the cell.
It is strictly prohibited to directly weld the steel shell of the battery, and to pierce the battery with nails or other sharp tools.
Do not use the cell in a location where static electricity and magnetic field is great.
