Details
IFR26700PE-4.0Ah 3.2V 4000mAh 26700 cylindrical lifepo4 battery cell is applied in many territories, such as UPS,electric bicycles,power tools, drones,e-scooters and more.
Description
IFR26700PE-4.0Ah 3.2V 4000mAh 26700 cylindrical lifepo4 battery cell features long cycle life, high safety, high consistency and etc. It is applied in many territories, such as UPS,electric bicycles,power tools, drones,e-scooters and more. The battery cell is certified to international safety standards including IEC 62133, UL 1642, CE, UN 38.3, RoHS, BIS, among others.
| Item | Specification |
| Nominal Voltage | 3.2V |
| Rated Capacity | 4000mAh |
| Max. Charge Current | 3C |
| Max. Discharge Current | 3C |
| Cycle Life | ≥4000 cycles |
| Weight | ≈92g |

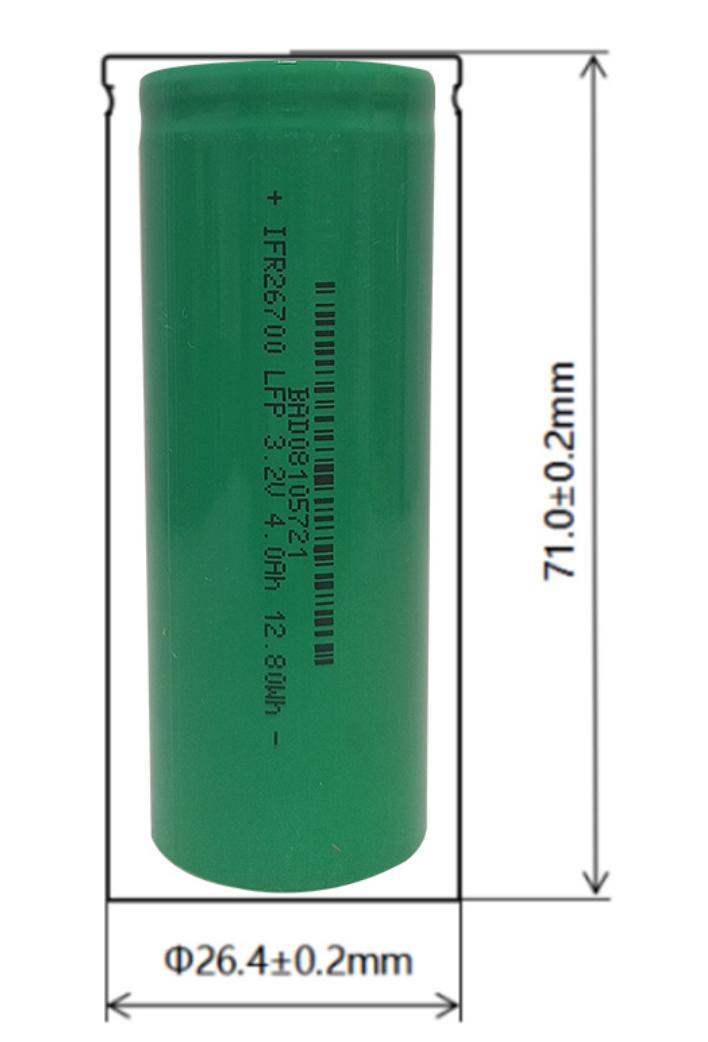

| Dimension(H*D) | 71.0*26.4(mm) |
| Standard Charge Voltage Upper Limit | 3.65V |
| Minimum Allowable Discharge Voltage | 2.0V |
| Standard Charge Current | 2000mA |
| Standard Discharge Current | 2000mA |
| Maximum Allowable Charge Temperature Range | 0~70℃ |
| Maximum Allowable Discharge Temperature Range | -20~70℃ |
(1) Safe Lithium-ion Battery:
Puncture and crush resistant - no fire, no explosion.
Overcharge, over-discharge, and drop resistant - no leakage, no fire, no explosion.
(2) High-Temperature Resistant & Long Cycle Life Battery:
High-temperature cycle life at 50°C: ≥2000 cycles.
Room temperature cycle life: ≥4000 cycles (100% DOD).
(3) High Consistency and Reliability:
Utilizes a fully automated battery production line and mature manufacturing technology.
(4) Suitable for High Charge/Discharge Rates (3C/3C):
Features a dual-tab structure design and carbon-coated foil technology, resulting in very low internal resistance.
(5) Flexible Modular Design:
Cylindrical cells are easy to assemble into small or irregularly shaped battery packs, while also providing good heat dissipation.
Electric Transportation & Light-Duty Vehicles: Ideally suited as the power unit for electric bicycles, e-scooters, golf carts, and electric wheelchairs, providing reliable power for green mobility.
Industrial & Energy Storage Systems (ESS): Demonstrates stable performance in solar energy storage systems, Uninterruptible Power Supplies (UPS), power systems, and industrial equipment like electric forklifts, ensuring uninterrupted critical operations.
Professional & Household Tools: Capable of meeting the demanding requirements for high discharge rates and durability in power tools, drones, robotic vacuum cleaners, and various consumer electronics.
