Details
Gotion 3.2V 15Ah 32135 cylindrical lithium lifepo4 battery cell, individual pricing for large-scale projects and wholesale demands is available.
Description
Capacity of 15,500mAh
Utilizes lithium iron phosphate (LiFePO4) chemistry for enhanced safety, minimizing the risk of explosion or combustion from impacts, overcharging, or short circuits.
Enables rapid charging and high-current discharge, supporting continuous discharge at 1C.
Boasts a cycle life of 2000 times at 80% Depth of Discharge (DOD).
Facilitates efficient charge and discharge cycles.
Offers higher energy density compared to lead-acid batteries.
Provides faster charging times and reduced self-discharge.
| Parameter | Specification |
| Dimension | 33.6mm(d) * 139.7mm(h) |
| Weight | 268g |
| Nominal Capacity | 1500mAh |
| Nominal Voltage | 3.2V |
| AC Resistance | 1.5mΩ<R<3mQ |
| DC Resistance | <8mΩ |
| Operating Temperature | Charge: -20～55℃ |
| Discharge: -30～60℃ | |
| Regular charge(Slow charge)Current | 3A(0.2C) |
| Regular charge(Slow charge)Voltage | 3.65V |
| maximum pulse discharge rate/C | 4500mA(3C) |

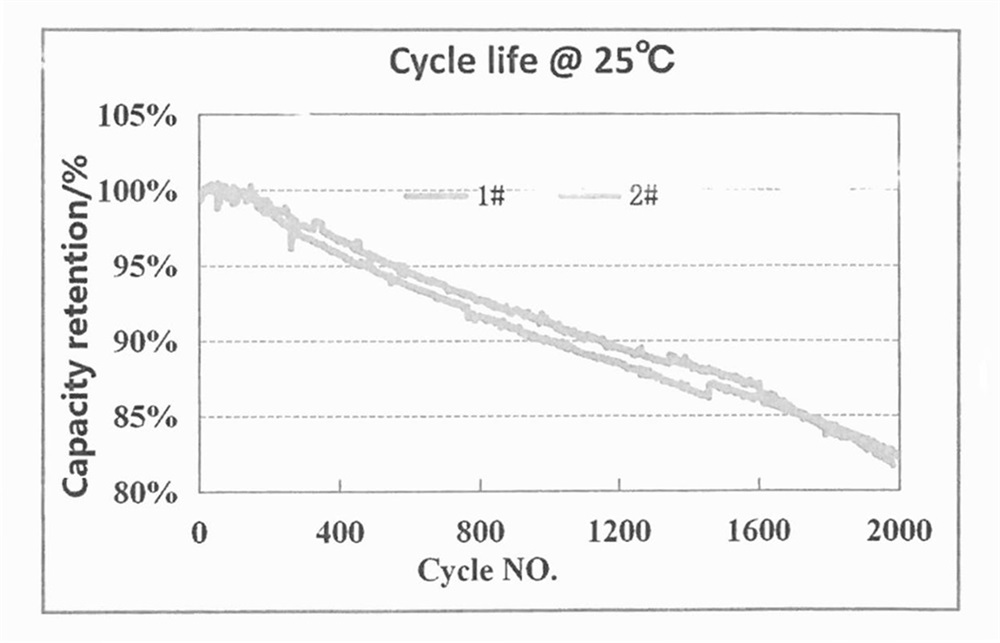

| Room Temperature Cycle Life | 2000 times |
