Headway 38120HP 8Ah 15C High Discharge Rate Lithium Iron Phosphate LiFePO4 LFP Lithium Cylindrical Battery Cell
Description
Headway LiFePO4 Battery is a high power lithium iron phosphate battery. There are 10Ah 38120 Headway Battery, 38120hp 8ah Headway Battery, 15Ah/17ah 40152S Headway Battery, 16Ah 40160 Headway Battery.

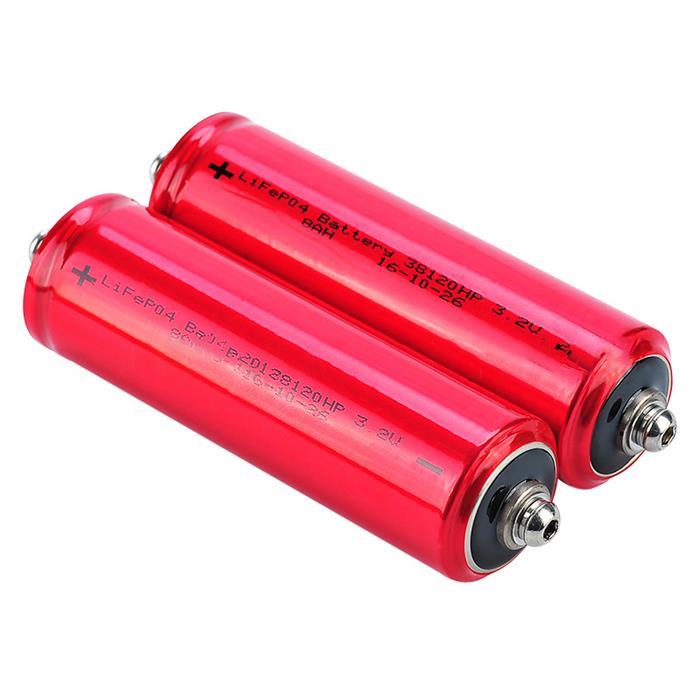

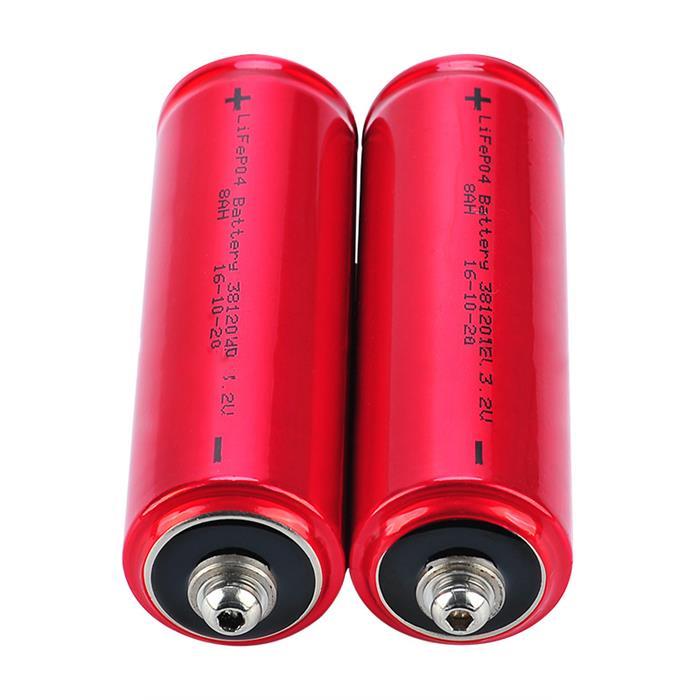

Headway 38120Hp 3.2V 8Ah LiFePO4 Battery cell is kind of high power lithium lifepo4 battery with maximum 15C continuous discharge rate and more than 2000 times cycle life, used for EV and other with high discharge rate demand. For more information on Headway LiFePO4 Battery, and connectors and holders of Headway Battery, please Contact Bess.
1. Super high cycle life
2. Higher energy density
3. Safety, no explosion
4. Lighter and smaller
5. No memory effect
6. Higher peak power
7. Wider operation temperature
Item | Parameters |
Nominal capacity | 8Ah@1C |
Minimum capacity | 7.5Ah@1C |
Nominal voltage | 3.2V |
Charging cut-off voltage | 3.65±0.05 V |
Discharging cut-off voltage | 2.5±0.05 V |
Charging current | Standard charging current: 3C |
Max. charging current: 10C (T≥10℃) | |
Max. charging current: 3C (10℃≥T≥0℃) | |
Max. charging current: 0.1C (0℃≥T≥-10℃) | |
Discharging current | Standard discharging current: 5C Max. continuous discharging current: 15C Max. pulse discharging current: 30C (30S) |
The surface temperature of the cell rises | 5C Continuous discharging: ≤15℃ 10C Continuous discharging: ≤25℃ |
Operating temperature | Charge: 0～45℃ Discharge: -20～60℃ |

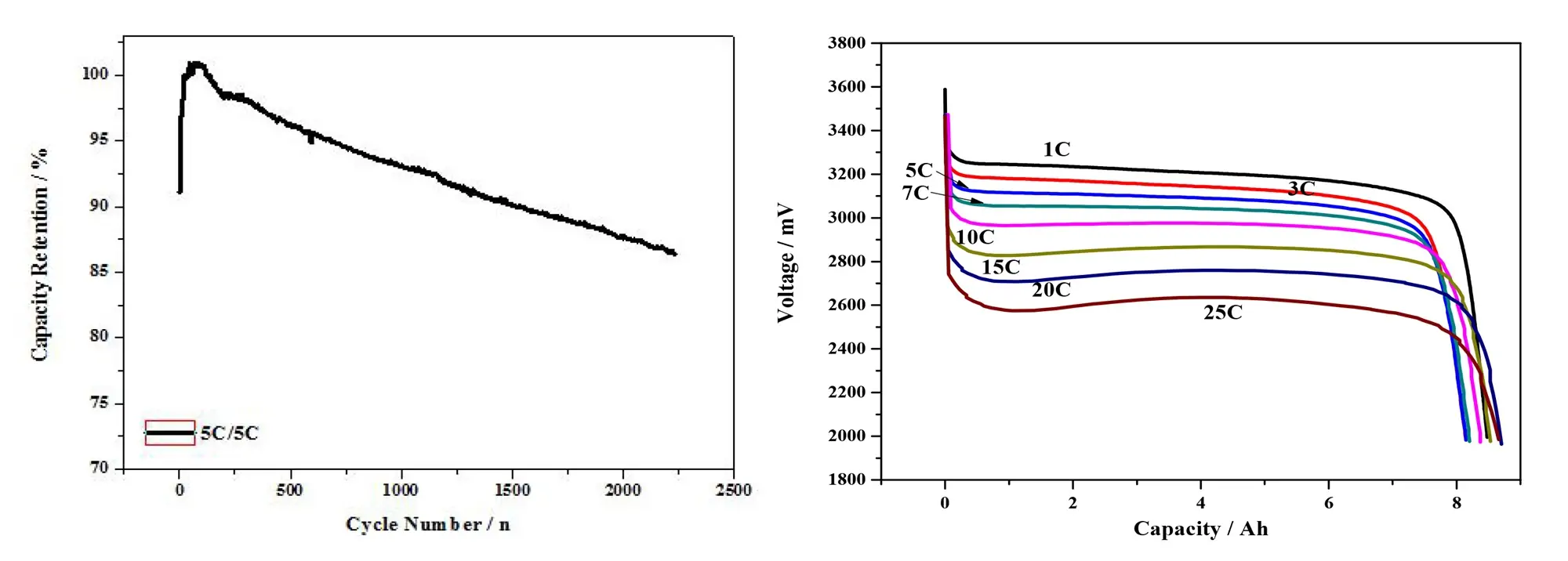

Cycle life | ≥2000 cycles 80%DOD |
Storage humidity | 0～90%RH |
Internal resistance | ≤2.5mOhm(AC，1000HZ) |

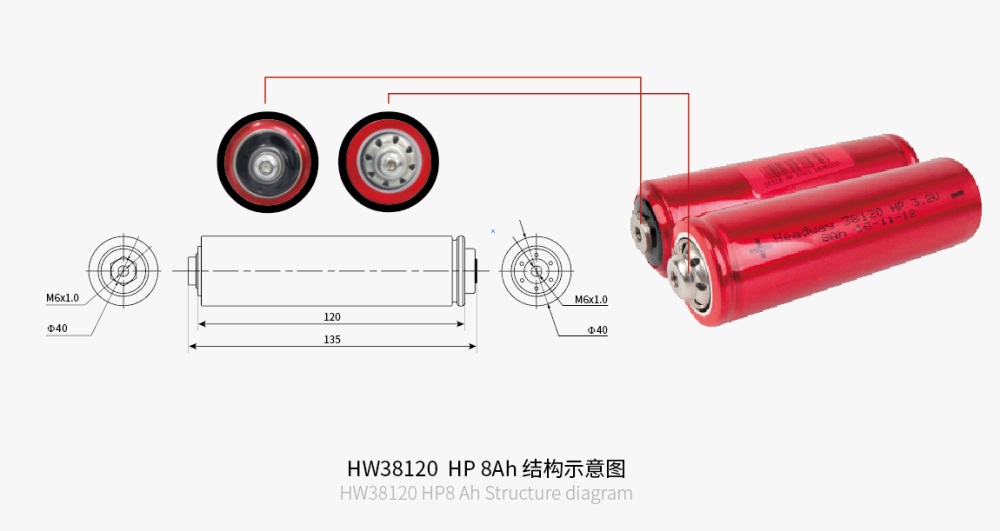

Dimension | 136mm(H)*38.5mm(D) |
Weight | 330±5g |

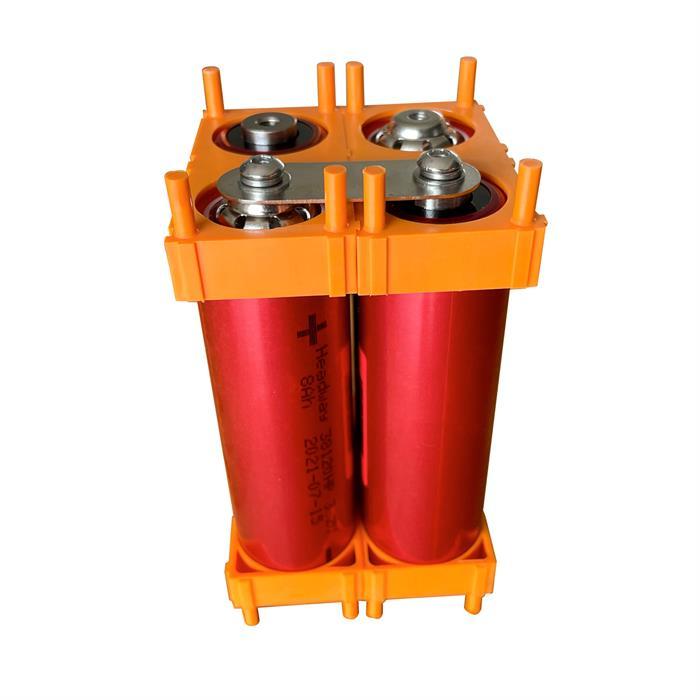

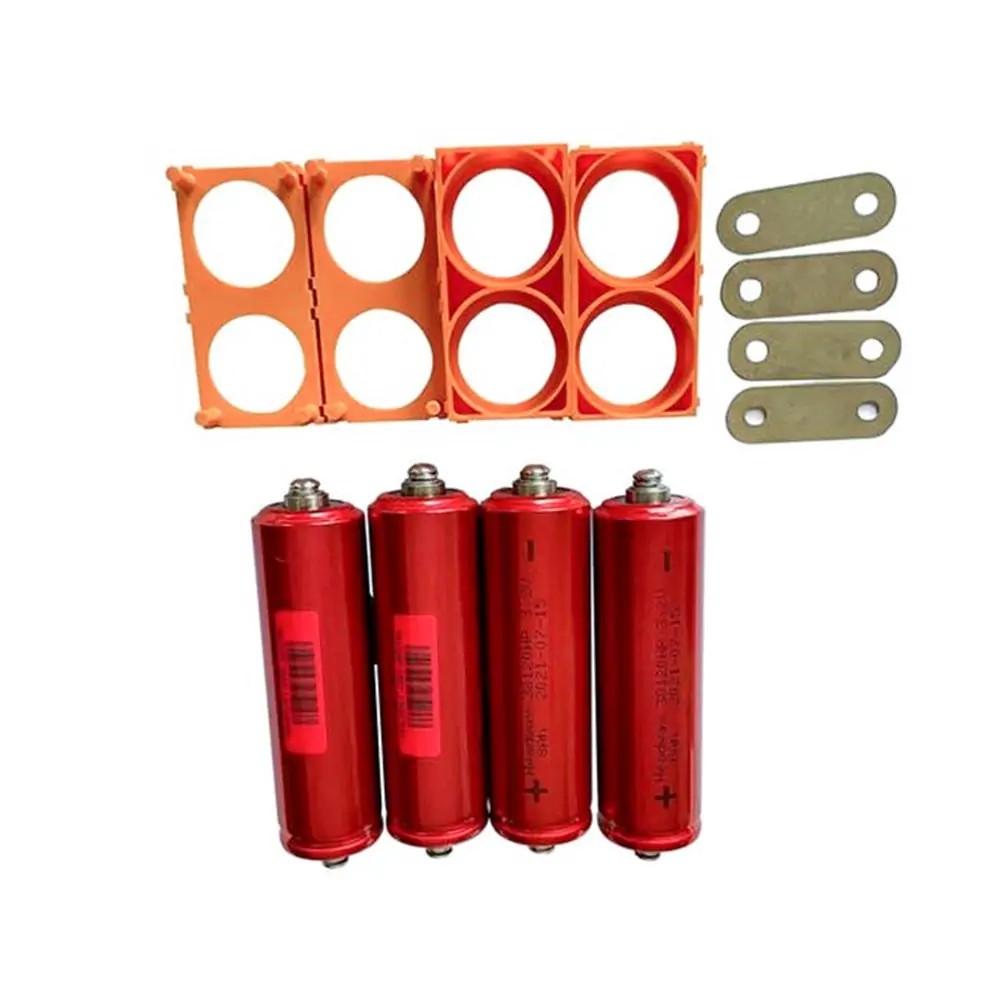

We provide the holders and busbars for the easy connection of 38120hp LiFePO4 Battery Cells
The Iron LFP Battery is a versatile battery that can be used in a variety of applications. It is the perfect solution for both residential and commercial energy storage systems. The Iron LFP Battery is ideal for:
1. Home energy storage
2. Commercial energy storage
3. Telecommunications backup power
4. Emergency backup power
5. Uninterrupted Power Supply (UPS)
6. Off-grid solar power systems
7. Peak shaving
8. Grid stabilization
To prevent the possibility of the cell from leaking, heating, explosion, please observe the following precautions:
Don’t immerse the cell in water
Don’t use and leave the cell near a heat source such as fire or heater
When charging, use a cell charger specifically for that purpose
Don’t reverse the positive and negative terminals
Don’t discard the cell in fire or heater
Don’t connect the cell to an electrical outlet directly
Don’t discard the cell in fire or heater
Don’t connect the positive and negative terminal directly with metal objects
Don’t transport and store the cell together with metal objects such as necklaces, hairpins
Don’t directly solder the cell
Don’t pierce the cell with a nail or other sharp object
