Details

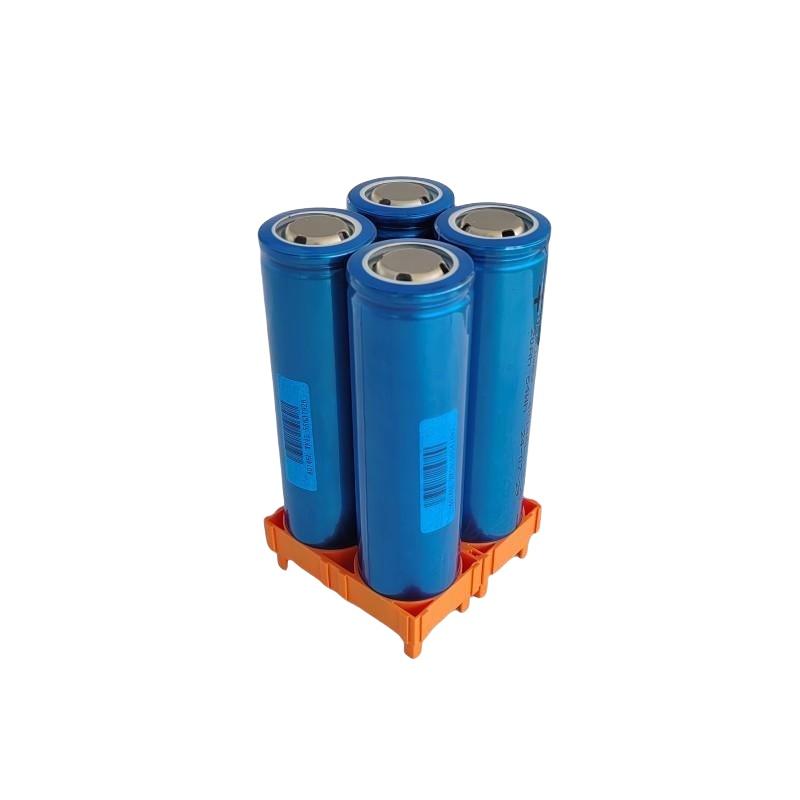

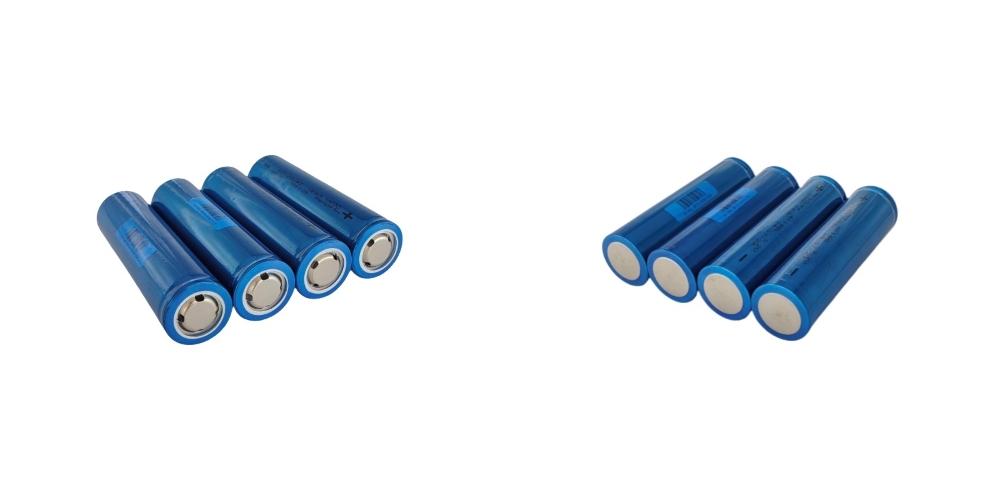

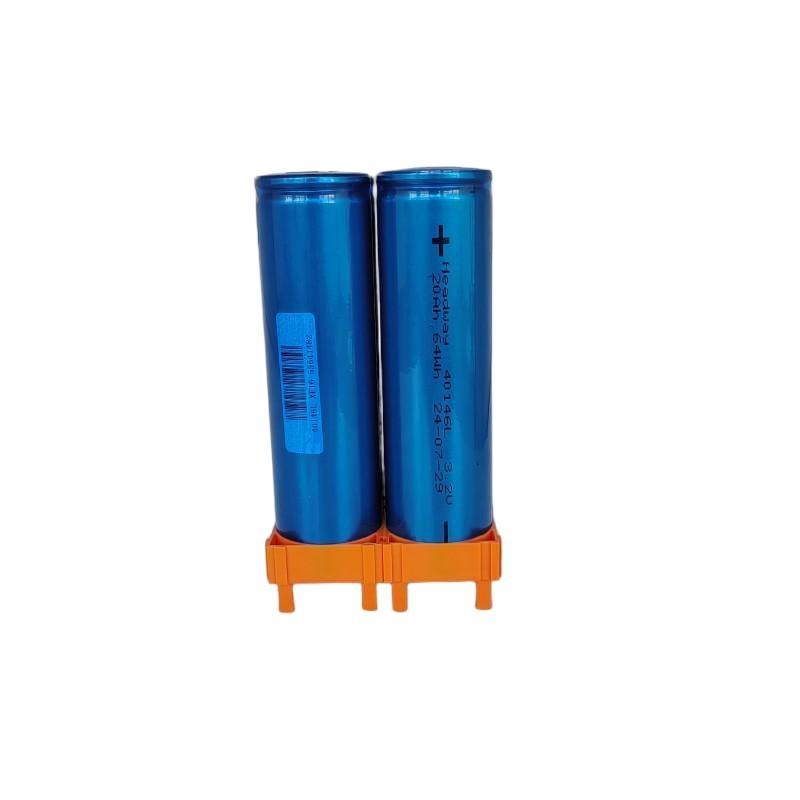

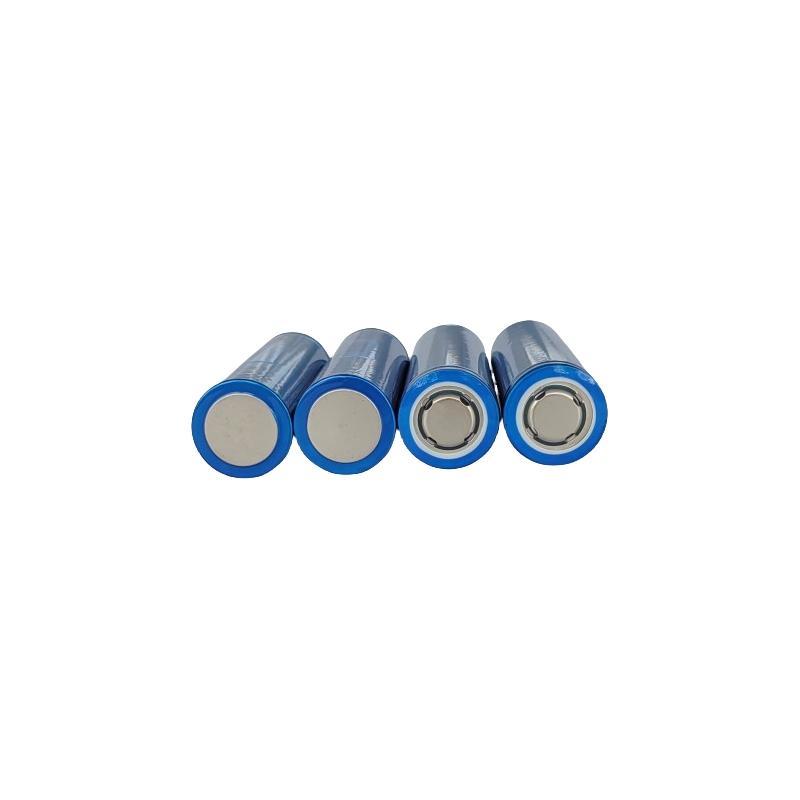

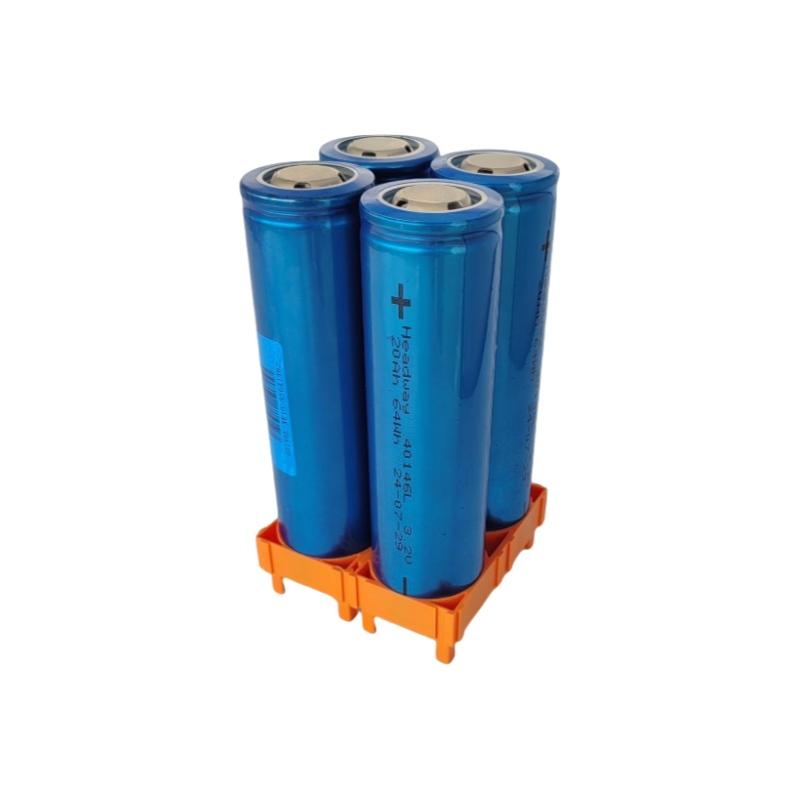

Headway 40146L 3.2V 20Ah cylindrical lithium battery suitable for household appliances, consumer electronics, electric bicycles/scooters, electric vehicles, electric wheelchairs, power systems, solar energy storage systems.
Description
| Parameter | Specification |
| Nominal Capacity | 20Ah@0.2C |
| Minimum Capacity | 19.5Ah@0.2C |
| Nominal Voltage | 3.2V |
| Max Charging Voltage | 3.65±0.05 V |
| Discharge Ending Voltage | 2.5±0.05 V |
| Charge Current | Standard charge: 0.5℃ Max charge:2C when T≥10℃ Max charge:1C when 10℃≥T≥0℃ Max charge:0.1C when 0℃≥T≥-10℃ |
| Discharge Current | Standard discharge:1C Max discharge:3C Max instant discharge:6C |
| Recommended Charge and Discharge Cell Surface Temperature | Charge:0～45℃Discharge:-20～60℃ |
| Maximum Allowable Charge and Discharge Cell Surface Temperature. Charging and Discharging at these Conditions Will Shorten Cell Cycle Life. | Charge:60℃ Discharge:75℃ |
| Humidity Range | 0～90%RH(none condensing) |
| Internal Resistance | ≤4mOhm(AC Impedance, 1000HZ) |
| Cell Dimension | Height:146mm Max Diameter:41mm Max |
| Weight | 445±10g |
| Parameter | Specification | |
| Discharge RateCapability | discharge capacity at 1C | ≥19.2Ah |
| discharge capacity at 3C | ≥18.6Ah | |
| discharge capacity at 5C | ≥18Ah | |
| Cycle Life | discharge capacity of 3000 the cycle @ 100% DOD | ≥16Ah |
| High-Low TemperatureDischarge Performance(0.5C Discharge) | discharge capacity at -10℃ | ≥16Ah |
| discharge capacity at 0℃ | ≥15Ah | |
| discharge capacity at 60℃ | ≥19.4Ah | |
| StoragePerformance | residual capacity after 28d storage | ≥19.2Ah |
| recover capacity after 28d storage | ≥19.6Ah | |
To prevent the possibility of the cell from leaking, heating, explosion, please observe the following precautions:
Don’t immerse the cell in water;
Don’t use and leave the cell near a heat source such as fire or heater; When charging, use a cell charger specifically for that purpose;
Don’t reverse the positive and negative terminals; Don’t discard the cell in fire or heater;
Don’t connect the cell to an electrical outlet directly; Don’t discard the cell in fire or heater;
Don’t connect the positive and negative terminal directly with metal objects;
Don’t transport and store the cell together with metal objects such as necklaces, hairpins; Don’t directly solder the cell;
Don’t pierce the cell with a nail or other sharp object;
Don’t leave the cell with low SOC for long time, it should keep the cell with around 50% for long term storage (less than 6 months). Should charge the cell to 50% SOC after each 6 months.
