Details
48V 100ah lithium battery pack 100ah 5kwh server rack lifepo4 solar batteries for evs, UPS, backup power, ess, etc
Description
The EVL NE-48D100-NP 48V 100Ah server rack lithium LiFePO4 solar battery is the perfect option for off-grid energy storage systems. We designed a brand-new 48V 100Ah LiFePO4 battery pack using our high-quality 10Ah LiFePO4 individual cells. It is an energy storage system for homes with a capacity of 5 kWh. The 48V lithium battery bank with LiFePO4 technology meets the highest safety standards and has an exceptional cycle life, and it is optimized through a proprietary manufacturing process and battery architecture. The state-of-the-art Battery Management System (BMS) provides comprehensive protection features and real-time monitoring.
Longer Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead-acid batteries. This helps minimize replacement costs and reduce the total cost of ownership.
Lighter Weight: It is about 40% of the weight of a comparable lead-acid battery and is a “drop-in” replacement.
Higher Power: Delivers twice the power of a lead-acid battery, even at high discharge rates, while maintaining high energy capacity.
Wider Temperature Range: -20℃ ~ 60℃
Superior Safety: Lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short-circuit conditions.
No Memory Effect: Supports partial state of charge (PSOC) operation, allowing for frequent charge/discharge cycles without performance degradation.
| Model | NE-48D100-NP | |
| Electrical Characteristics | Nominal Voltage | 48V |
| Nominal Capacity | 100Ah | |
| Energy | 4800Wh | |
| Internal Resistance | ≤100mΩ (without BMS) | |

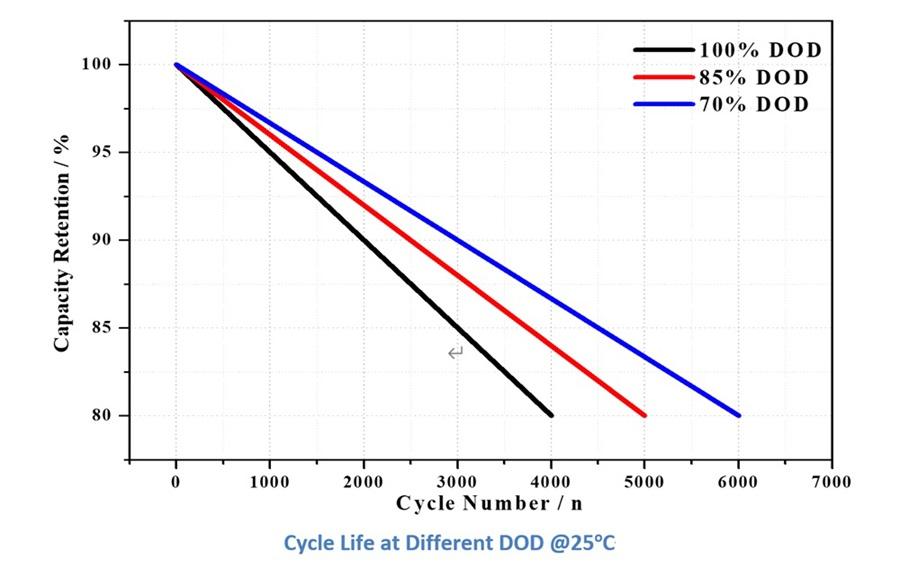

| Cycle Life | ≥5000 cycles（25℃ 80%DOD） | |
| Design Life | ≥10 years @25℃ | |
| Self-Discharge (90 days) | ≤5%，@25℃ | |
| Efficiency of Charge | ≥98% | |
| Efficiency of Discharge | ≥100% @ 0.2C ≥96% @ 0.5C | |
| Charge | Charge Voltage | 54.0V±0.5V |
| Charge Mode | 0.2C to 54.0V, then 54.0V charge current to 0.02C (CC/CV) | |
| Max. Charge Current | 100A | |
| Charge Cut-off Voltage | 56.25V±0.2V | |
| Discharge | Max. Continuous Discharge Current | 100A |
| Discharge Cut-off Voltage | 42V±0.2V | |
| Environmental | Charge Temperature Range | 0℃~60℃ |
| Discharge Temperature Range | -20℃~60℃ | |
| Optimum Operation Temperature | 5℃~45℃ | |
| Storage Temperature | 0℃~45℃, ≤85% relative Humidity | |
| Water Dust Resistance | IP20 | |
| Mechanical | Case | Iron (Insulation painting) |
| Dimensions (including the handles) | 442*450*156mm | |
| Weight | 45kg | |
| Gravimetric Specific Energy | 107Wh/kg | |
| Others | Method | 15S Cylindrical cells |
| Protocol | RS485 (3 Nos) / RS232/CAN | |
| SOC Light | 4 * LED | |
| LCD Screen | Optional, the default setting is no screen | |
Overcharge protection
Overdischarge protection
Overcurrent protection
Temperature protection
Short-circuit protection
Cell balancing
It is suitable for electric vehicles, solar/wind energy storage systems, UPS, backup power, telecommunications, medical equipment, lighting, etc.
