Details

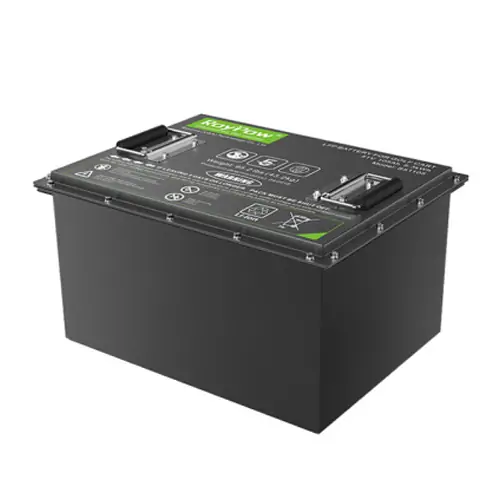

Lithium Golf Cart 48V/51.2V 105Ah LiFePo4 Battery Pack with IP67 Waterproof for lead-acid batteries replacement.
Description
PET can bear 850kg, avoid bulging
CCS vehicle-grade craft, integrated wires

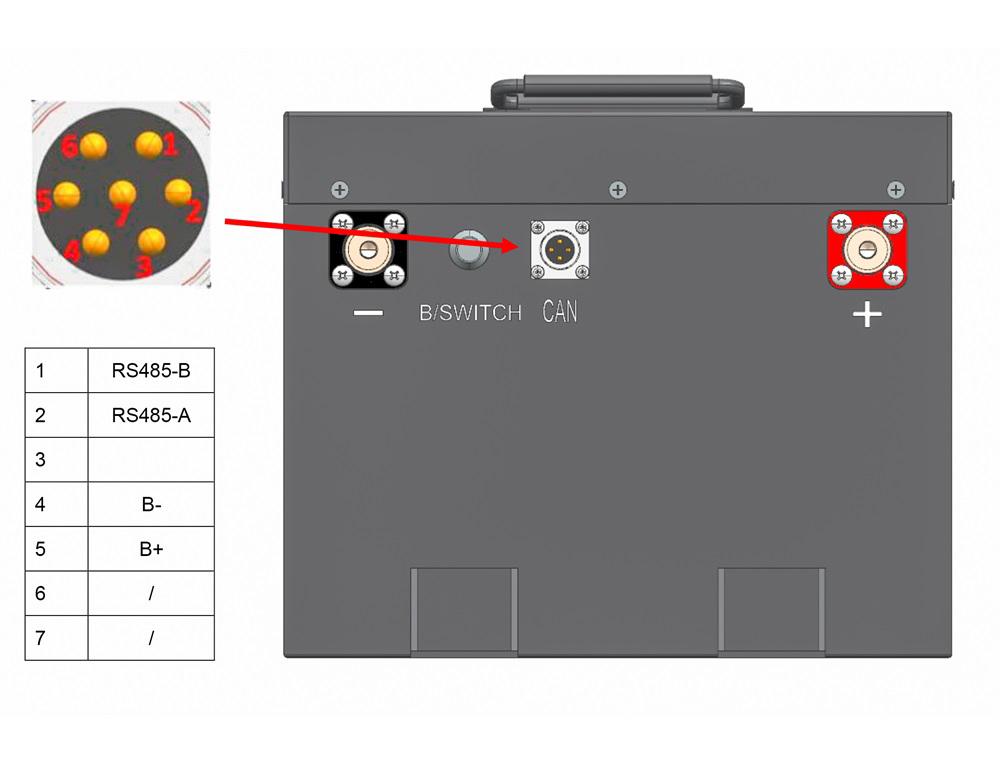

Support RS485/CAN/Bluetooth etc
3-4mm metal plates on both side
Reserve 1mm width for potential bulging
Distributed sampling system to solve sampling impedance problem
WATERPROOF IP67
| Item | Specification |
| Cell Model | 16S1P |
| Communication Function | RS485/ Bluetooth APP |
| Way to Work | Use alone or in parallel |
| Rated Capacity | Typical 105Ah |
| Nominal Voltage | 51.2V |
| Discharge Cut-off Voltage | 44.8V |
| Charging Voltage | 58.4V |
| Internal Resistance | ≤10mΩ |
| Standard Charge | Constant current 0.5C5A charge to 58.4V, then constant voltage 58.4V to current below 0.5A cutoff. |
| Standard Discharge | Constant Current 1.0C5A end voltage 44.8V |
| Fast Charge | Constant current 1.0C5A charge to 58.4V, then constant voltage 58.4V to current below 0.5A cutoff. |
| Fast Discharge | Constant Current 1.5C5A end voltage 44.8V |
| Maximum Continuous Charge Current | 1.0C5A |
| Maximum Continuous Discharge Current | 1.5C5A |
| Discharge Pulse Current | 300A |
| Operation Temperature Range | Charge: 0~55°C Discharge: -20~65°C |
| Weight | Approx: 49.0Kg |

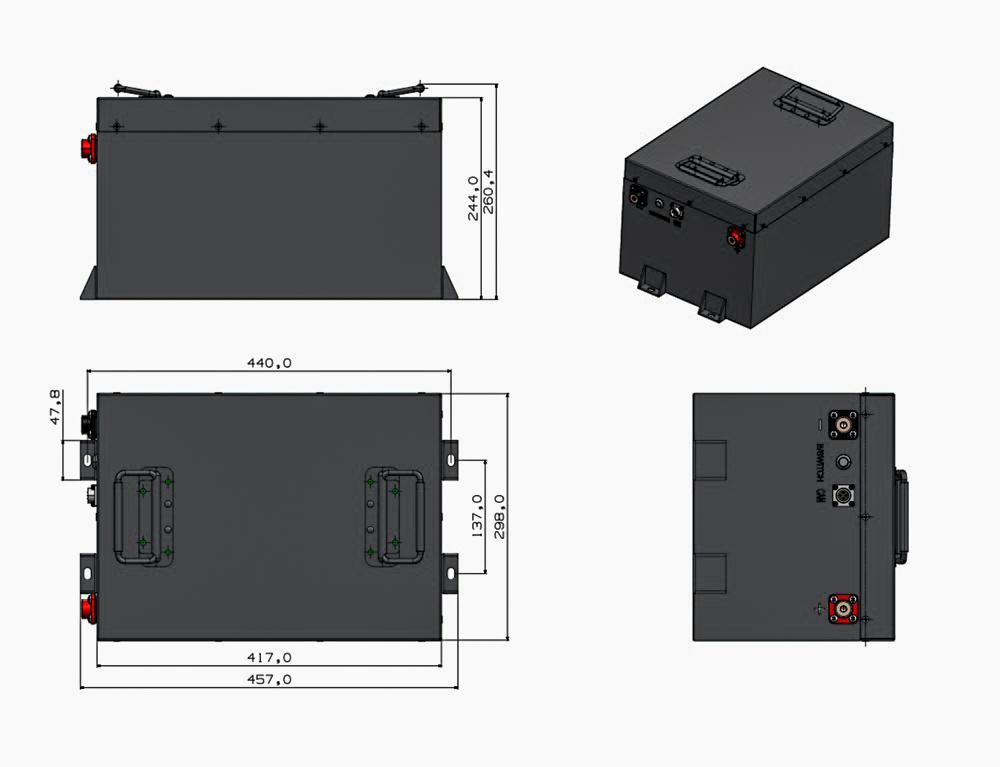

| Dimension (HWT) | 457298260.4±5mm |
| Energy Extension | Same voltage and batch |
| Ingress Protection | IP65 |
