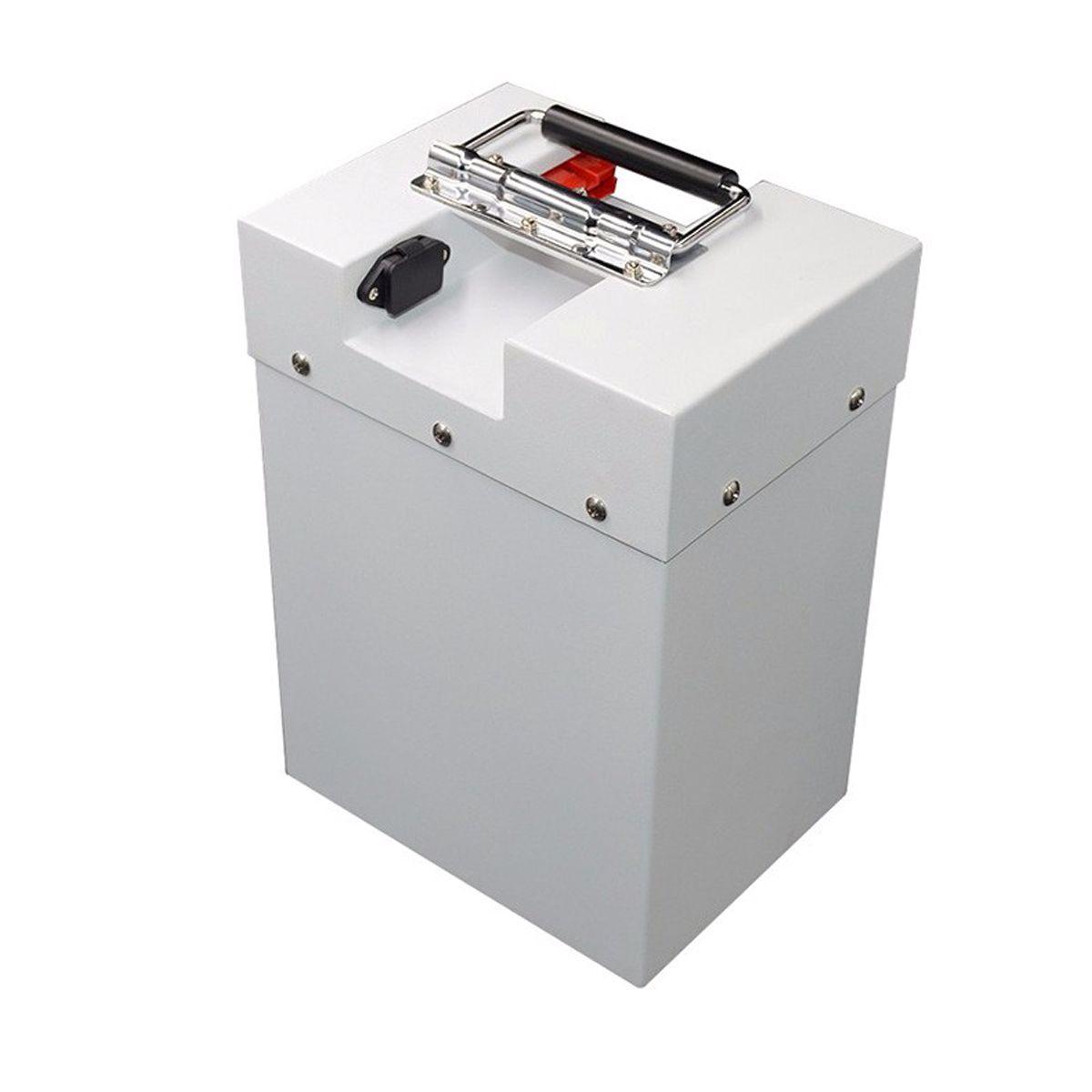

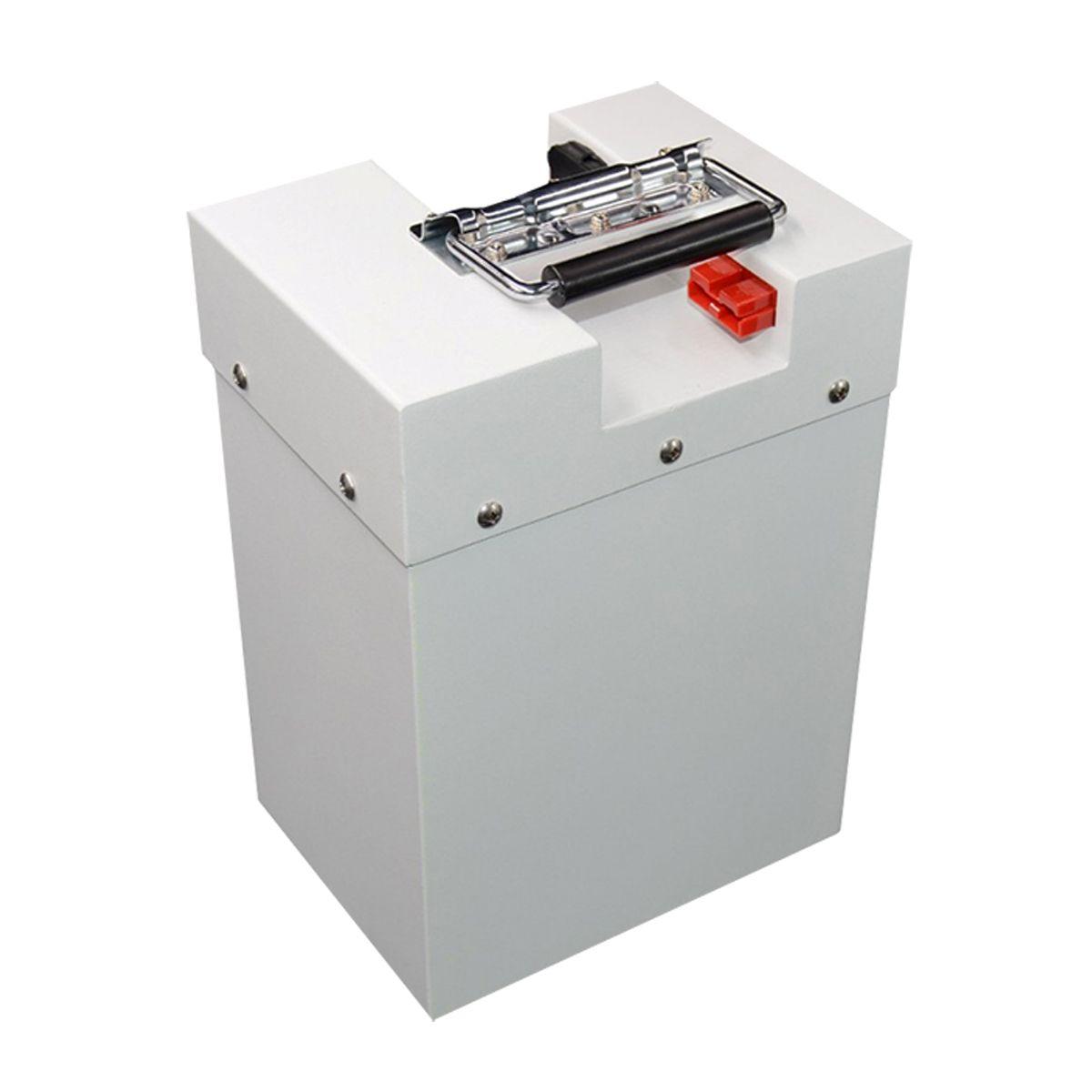

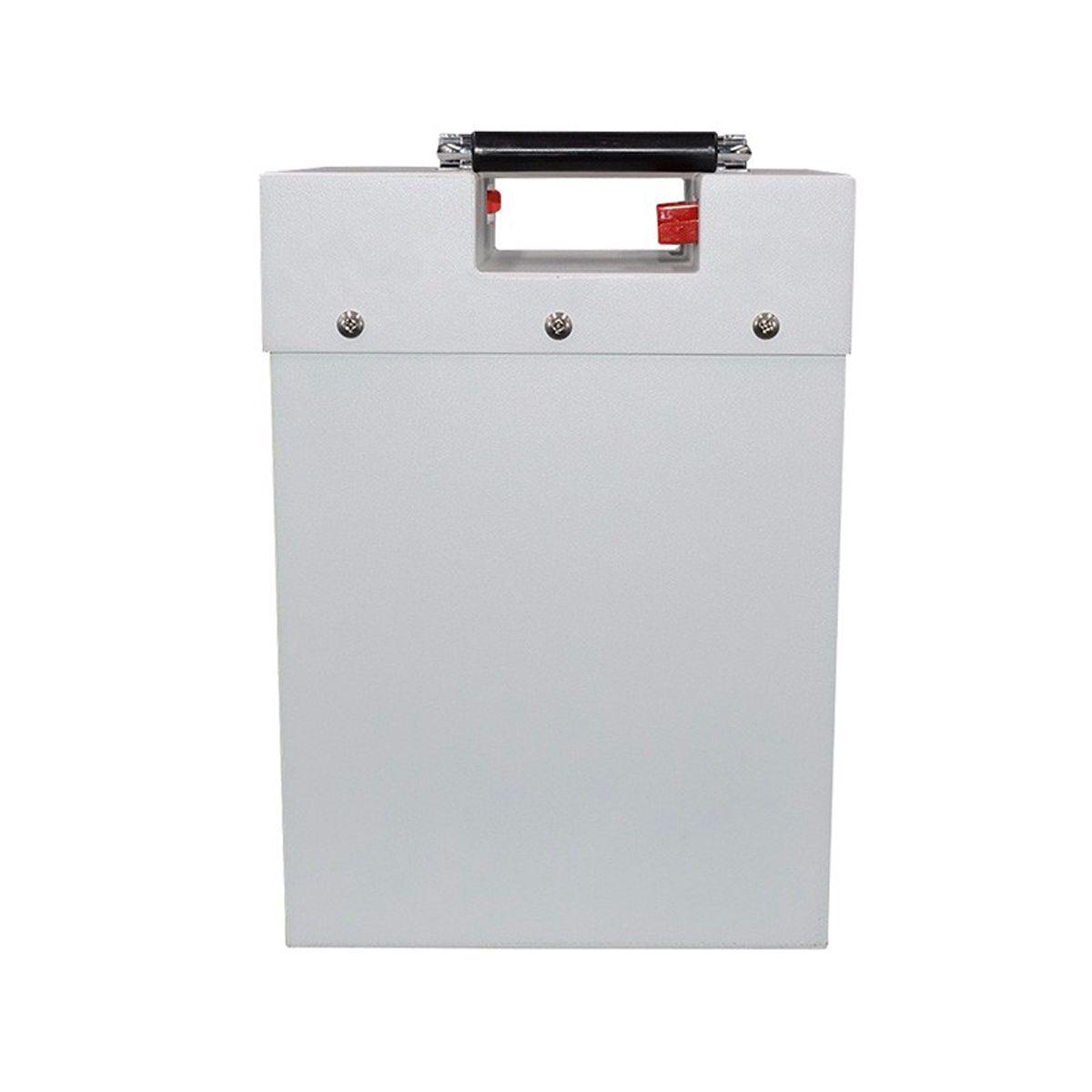

48v 40ah lithium lifepo4 battery pack for electric tricycles/trikes, e-bikes, golf carts, etc.
Description
This 48V 40Ah LiFePO4 battery pack provides 1920Wh of total energy, purpose-built for low-speed electric vehicles, sightseeing carts, golf carts, AGVs, and backup power systems. Leveraging stable LiFePO4 cell chemistry and an integrated intelligent BMS, it delivers an ideal balance of outstanding safety, long service life, wide operating temperature range, and maintenance-free operation.
| Item | Parameters |
| Nominal DC Voltages - V | 48V |
| Rated Capacity - Ah | 40Ah |
| Energy - Wh | 1920Wh |
| Battery Chemical | LiFePO4 |
| Max continuous discharge current - A | 40A |
| Peak discharge current - A & Sec | 80A-Sec |
| Max continuous charge current - A | 20A |
| BMS/PCB | Build-in BMS |
| Protection | Over-Voltage Over-Current Over-Temperature Short - Circuit |
| Operation Temperature - °C / °F | -20～60°C -4～140°F |
| Charge Temperature - °C / °F | 0～45°C 32～113°F |
| Storage Temperature - °C / °F | -10～45°C 24～113°F |
| Dimension - mm | 213×164×298mm |
| Dimension - Inches | 8.38×6.45×11.73 Inches |
| Weight - Kg | 16Kg |
| Weight - Lbs | 35.27Lbs |
| Enclosure Material | SECC |
| Terminal | Customization |
| Communication | Blue-Tooth |
| Maintenance | Maintenance Free |
| Application | Electric Vehicle / Back-up Power, etc |
It is suitable for electric tricycles/trikes, e-bikes, electric vehicles, sightseeing vehicles, AGVs, golf carts, low-speed cars, etc.
