Details

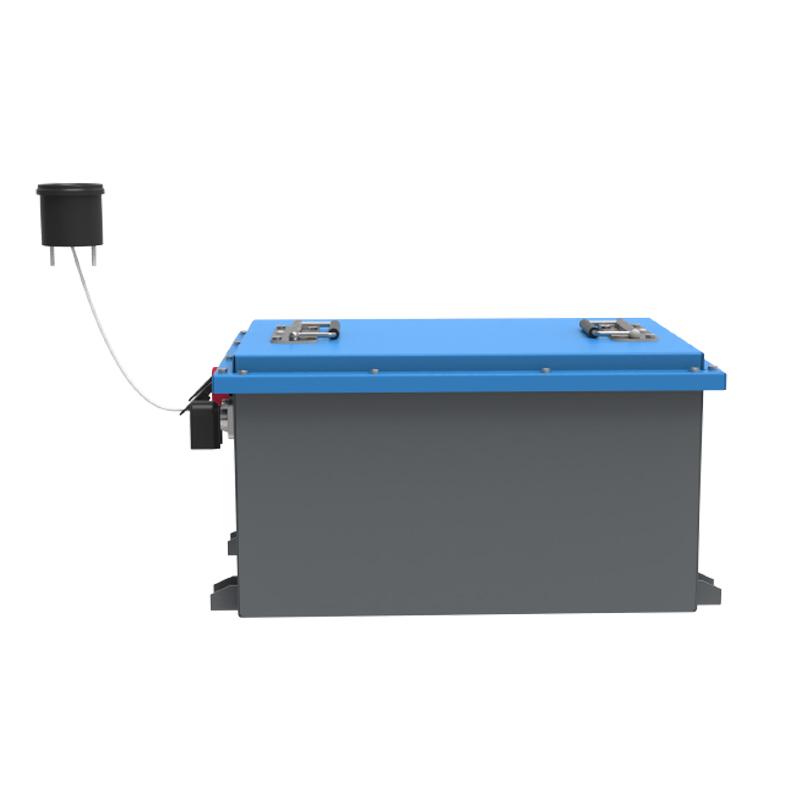

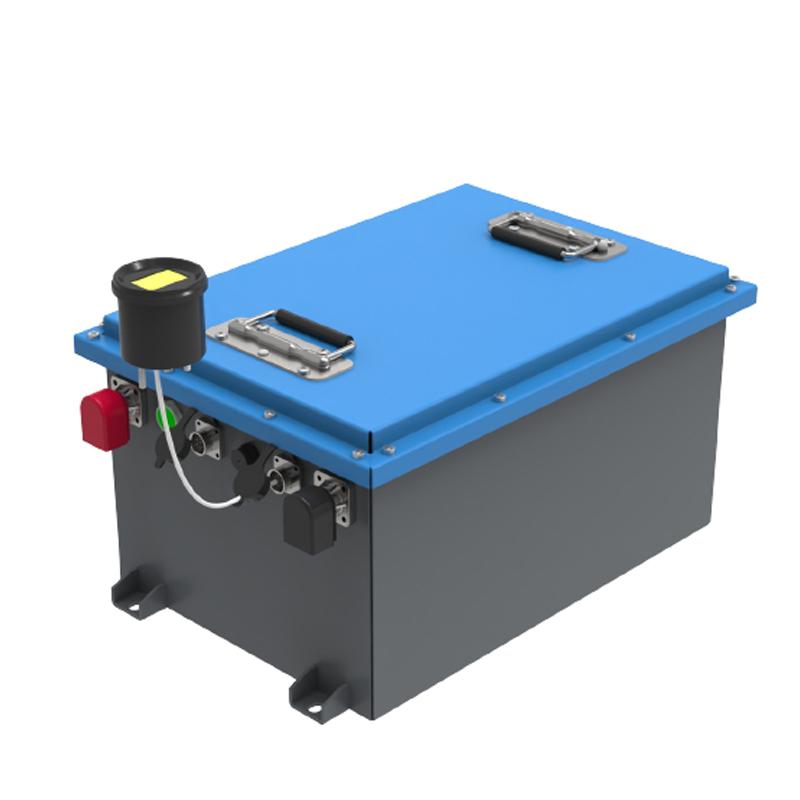

51.2V 105Ah LiFePO4 golf cart battery pack with 4000+ deep cycles, IP67, extreme thermal stability, high-rate discharge for slopes, smart BMS. Compatible with Club Car, E-Z-GO & other golf carts.
Description
Safety & Stability in Extreme Environments
Adopting LiFePO4 cathode chemistry with a 350–500°C thermal runaway threshold, the cells maintain explosion-proof performance during nail puncture and physical collision, eliminating fire hazards for on-road golf cart deployment.
Heavy Shock & Harsh Weather Resistance
IP67 sealed outer casing paired with an internal honeycomb shock-absorbing framework. Validated through 100,000 km of simulated road spectrum durability testing, it reliably operates on gravel roads, inclined slopes, and other rough off-road terrains.
Extended Service Life & Cost Efficiency
The battery supports ≥4000 full-depth discharge cycles (100% DoD) with a 7–8 year operational lifespan. Total battery replacement expenditure drops by 60% compared to conventional lead-acid golf cart batteries.
High-Power Discharge & Slope-Climbing Output
The 51.2V 105Ah battery outputs a peak instantaneous power of 5.38 kW. It boosts climbing torque by 40% (compared to lead-acid alternatives) to sustain stable power output when traversing slopes up to 30°.
Multi-Layer Safety Protection
Equipped with an onboard indicator panel that sends low-state-of-charge reminders. The integrated smart BMS implements automatic cutoff protection against overcharging, deep overdischarge, overcurrent, and abnormal voltage.
Broad Cross-Model Voltage Compatibility
The product lineup covers 51.2V, 64V, and 76.8V rated voltage platforms and is natively plug-and-play compatible with Club Car, E-Z-GO, and other mainstream commercial golf cart chassis.
| Parameter Item | 51.2V/105AH Specification Value |
| Nominal Voltage (V) | 51.2 |
| Nominal Capacity (Ah) | 105 |
| Electric Quantity (kWh) | 5.376 (note: screenshot text typo 5376, corrected to realistic 5.376 kWh matching feature 5.38kW) |
| Weight (Kg) | 40 |
| Operating Voltage (V) | 44–58 |
| Charging Voltage (V) | 58.4 |
| Recommended Charge Current (A) | ≤55 |
| Rated Operating Current (A) | 105 |
| Max Operating Current (A) | 150 |
| Charging Temperature (°C) | 0–55 |
| Discharging Temperature (°C) | -20–55 |
| Storage Temperature (°C) | 0–45 |
| Chemical System | LiFePO4 |
| Warranty Clause | 5 Years or 10,000 Hours of Service (whichever comes first) |
| Primary Applicable Equipment | Golf Cart |
