Description
• Cell: highly automated, intelligent, and digitalized production
• Module: highly automated production
• Cell: prismatic aluminum shell + explosion-proof valve combination cover, passed multiple safety certifications
• Structure: fixed in a detachable manner for easy installation and maintenance
• Linkage Mechanism: the detection switch is linked to the BMS in real time.
• High-Speed Communication: ensures safe system operation and real-time early warning without delay
• Boost remote supply
• Mixed use of new and old batteries, lithium batteries, and lead-acid batteries
• More than 5,000 cycles
| Parameter | Value |

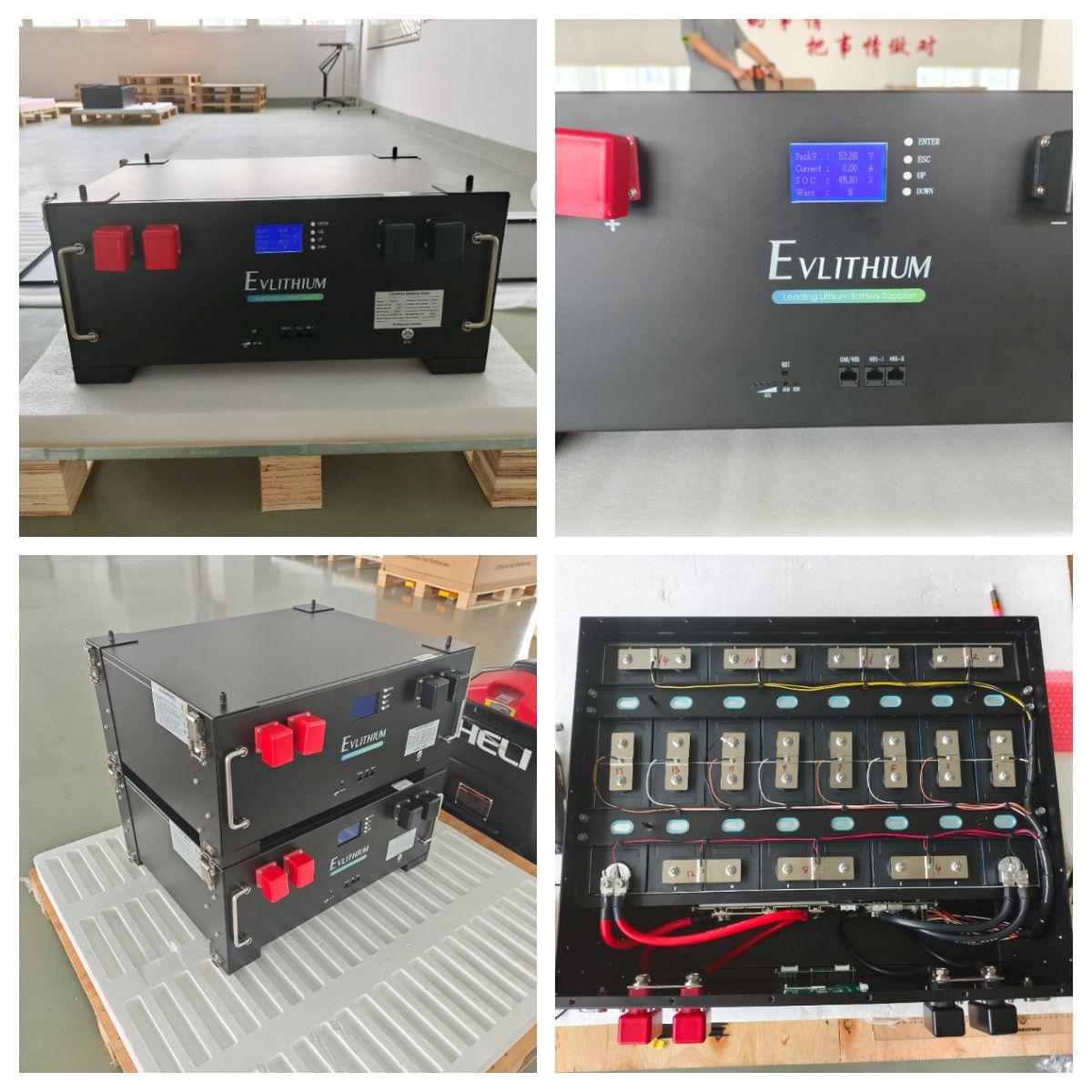

| Battery Pack Model | 51.2V 314Ah |
| Cell Model | CALB-3.2V-314Ah |
| Full Charge Voltage | 58.4V |
| Discharge Cut-off Voltage | 40V |
| Maximum Continuous Charging Current | 150A |
| Maximum Continuous Discharging Current | 300A |
| Weight | Approximately 116kg |
| Charge/Discharge Terminal | 300A-A/M10 Internal Thread |
| Communication method | CAN/485 |
