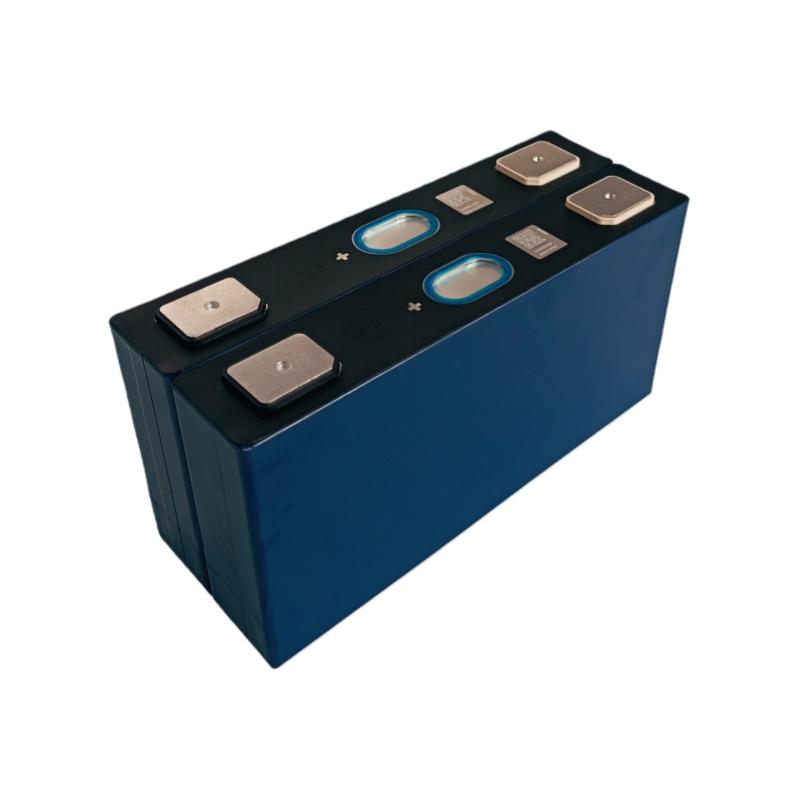

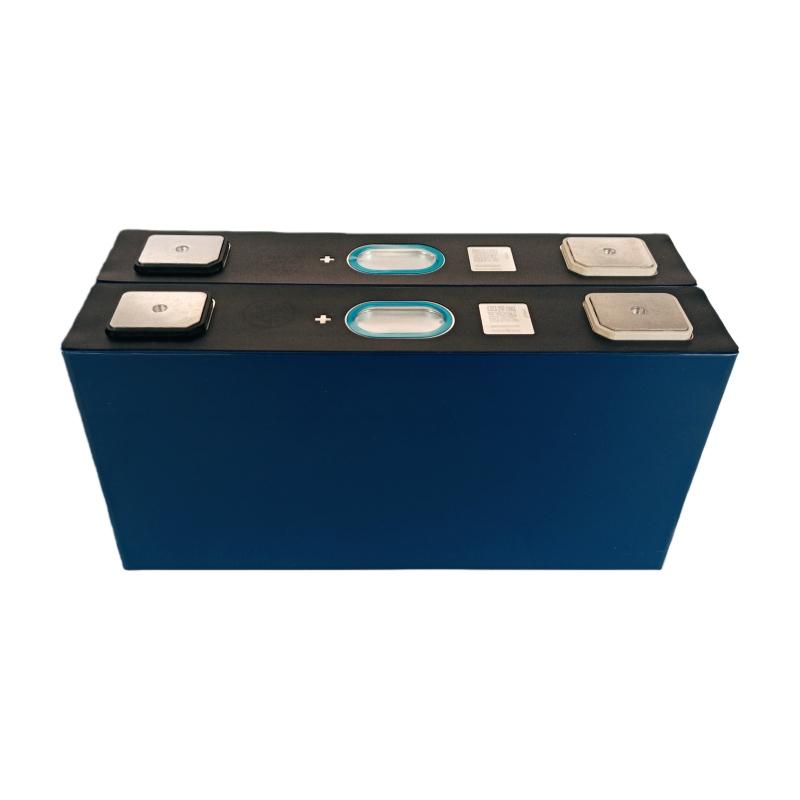

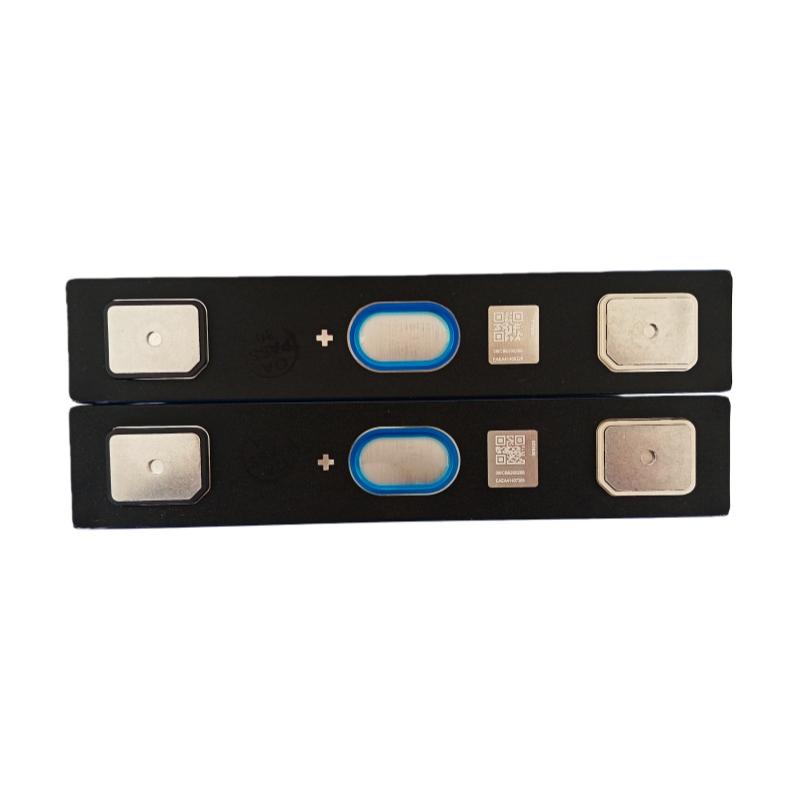

rept 3.2V 65Ah 1.2C charge rate 2C discharge rate LiFePO4 power battery cell with excellent low temperature performance for EV PHEV REEV
Description
Energy Density: 170Wh/kg
Fast Charging (10%~80%): 1.2C
High continuous discharge rate: 2C
Excellent low-temperature performance: ≥70% * Nominal capacity@ -20℃
Long cycle life: ≥5500 cycles@70%DOD
| Item | Specification | Comment |
| Typical Capacity | 65Ah@1.0C 66Ah@0.33C | 25±2℃ |
| Typical Voltage | 3.17V@1.0C 3.22V@0.33C | 25±2℃ |
| Operating Voltage | 2.0V~3.65V 1.8V~3.65V | -5℃＜T≤60℃ -30℃≤T≤-5℃ |
| Standard Discharging Current | 65A | 25±2℃ |
| Maximum Continuous Discharging Current | 130A | 25±2℃ |
| Maximum Discharging Power | 1180W | @10s，50%SOC |
| Standard Charging Current | 21.7A | 25±2℃ |
| Maximum Continuous Charging Current | 87.8A | 25±2℃ |
| Maximum Charging Power | 385W | @10s，97%SOC |
| Operating Temperature | -20℃＜T≤55℃ -30℃≤T≤60℃ | Charge Discharge |
| Storage Temperature | -30℃~60℃ | Storage ambient humidity ＜95%ROH, no condensation |

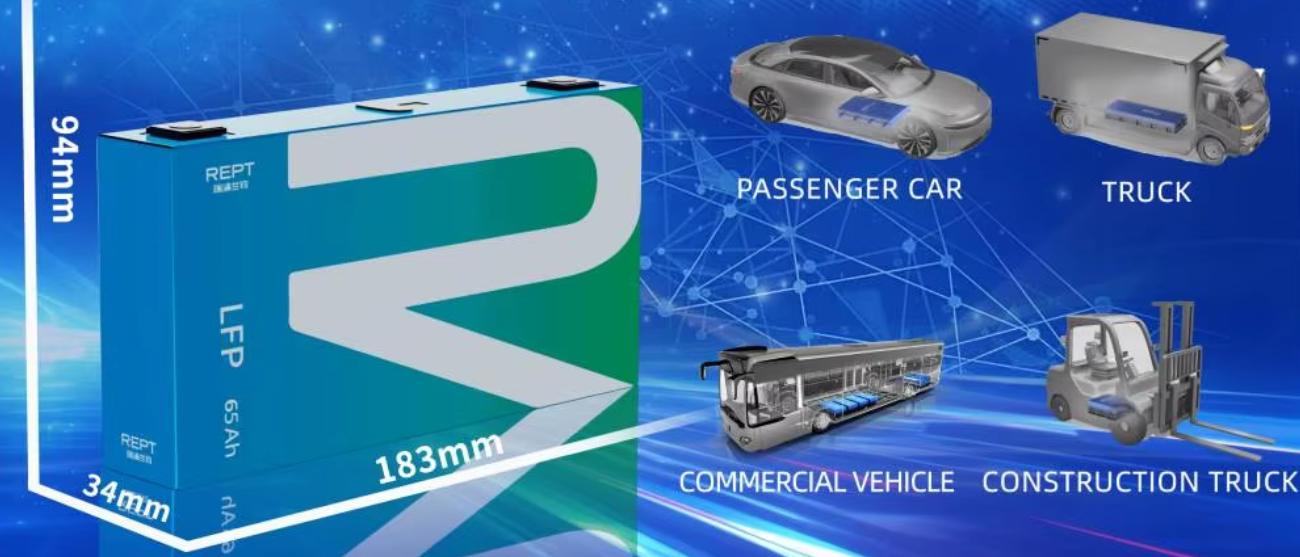

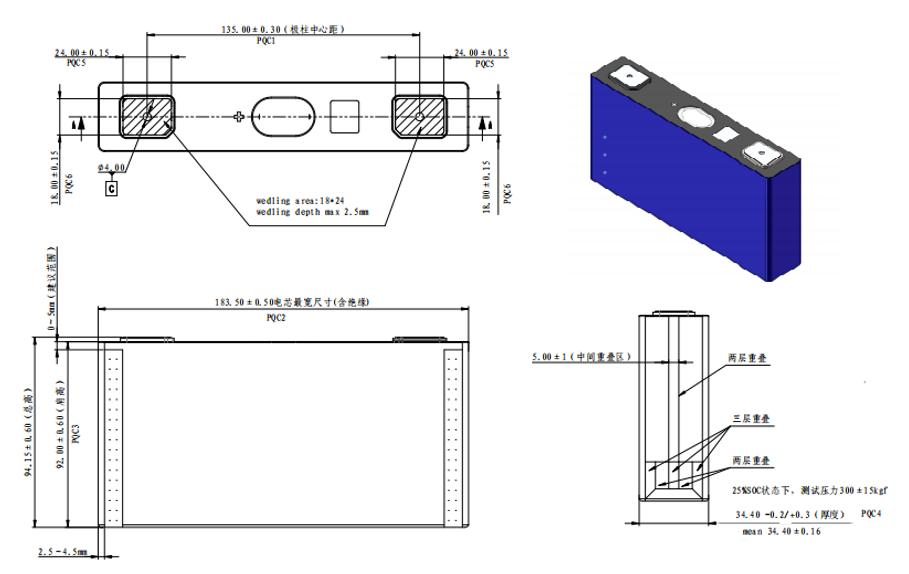

| Typical Dimension | Thickness: 34.40-0.2/+0.3mm Width: 183.50±0.5mm Shoulder Height: 92.00±0.6mm Total Height: 94.15±0.6mm | @3000±150N，25%SOC |
| Cathode Material | LiFePO₄ | |
| Cell Weight | 1253±13g | |
| Energy Density | 170Wh/kg 366Wh/L | @1/3C，25±2℃ @1/3C，25±2℃ |
| Cell Internal Resistance ACR （1 kHz） | ≤0.70mΩ | 20%-50%SOC |
ULTRA LONG LIFE CYCLE
Long life cycle, long cycle, long calendar life warranty period, low internal resistance, high discharge rate
Provide core technologies and professional solutions for consumer power, energy storage, logistics networks, and renewable energy applications
Keep the cell out of reach of children
Do not weld the battery directly
Do not throw the battery into water or make it wet
Do not connect positive and negatives with metal cover
Do not make the cell short circuit, over-charge or over-discharge
Do not use or store the cell near the heat source (such as fire or heater)
Do not connect the position (+) and negative (-) terminals in the opposite way
Do not put the battery together with coin, metal jewelry and other metal objects
Do not hit, throw or subject the battery to mechanical vibration and free fall
Mixed use of different types, brand of battery are forbidden
Do not connect the negative pole with the shell which is positive
Do not disassemble or modify the battery in any way
Do not puncture the battery by nail or other sharp objects. Hammering and crush the battery is forbidden
Risk of fire, explosion, and burns. Do not disassemble, crush, heat the cell or dispose it into fire
Replace the battery manufactured by the same manufacture only. Mixed use of battery from other manufacture might cause fire and explosion
