Details

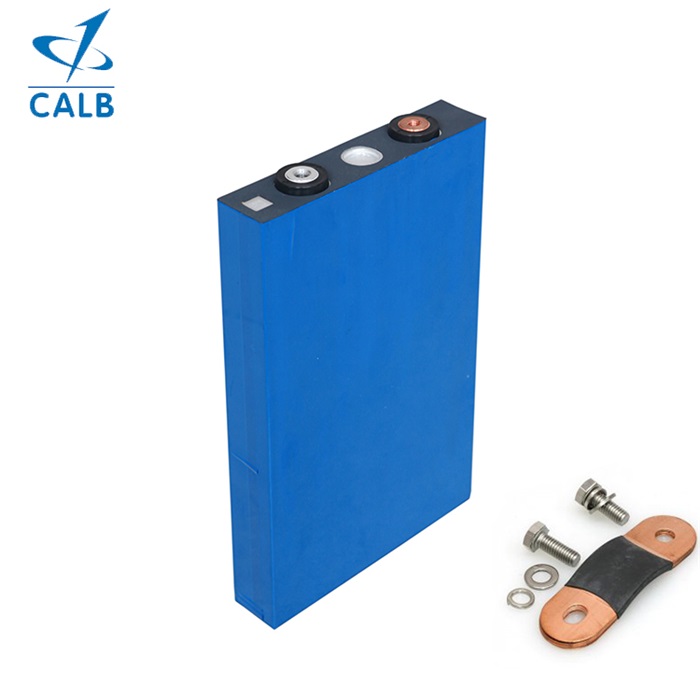

CAM72 battery cell is a 72Ah LiFePO4 battery cell produced by CALB.With aluminum alloy shell CAM72 is 40% smaller and 25% lighter.
Description

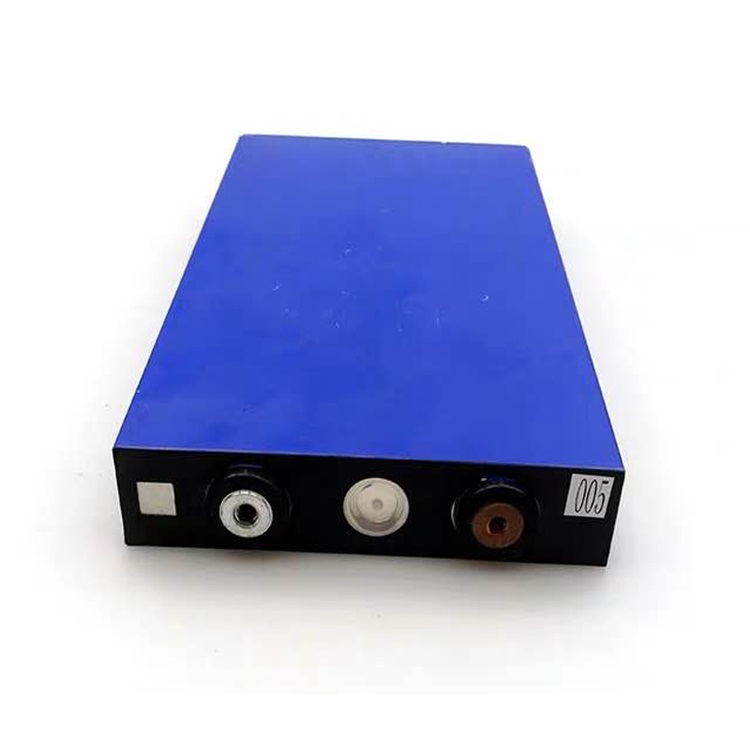

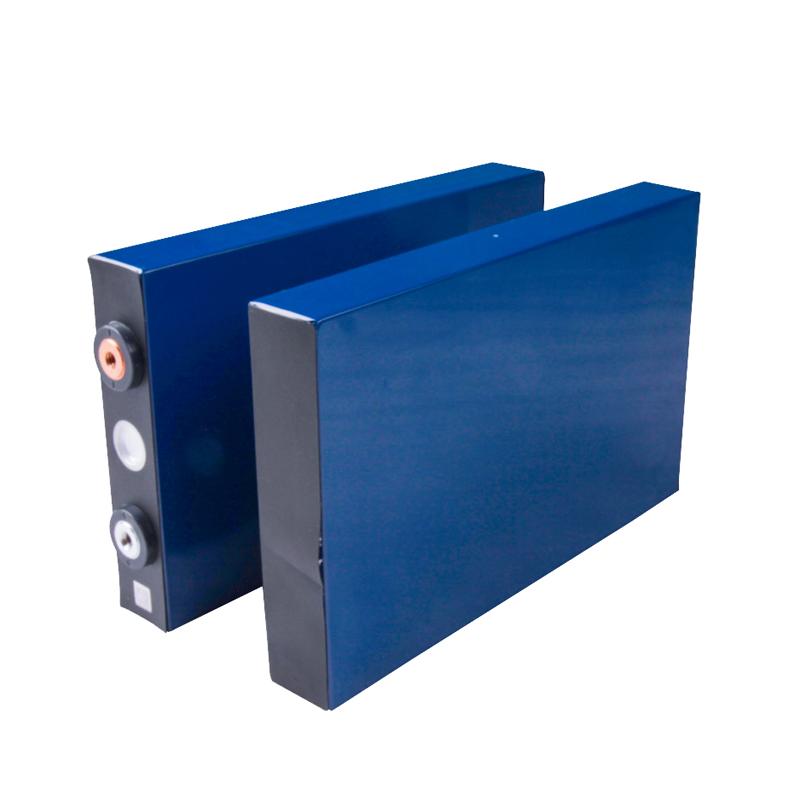

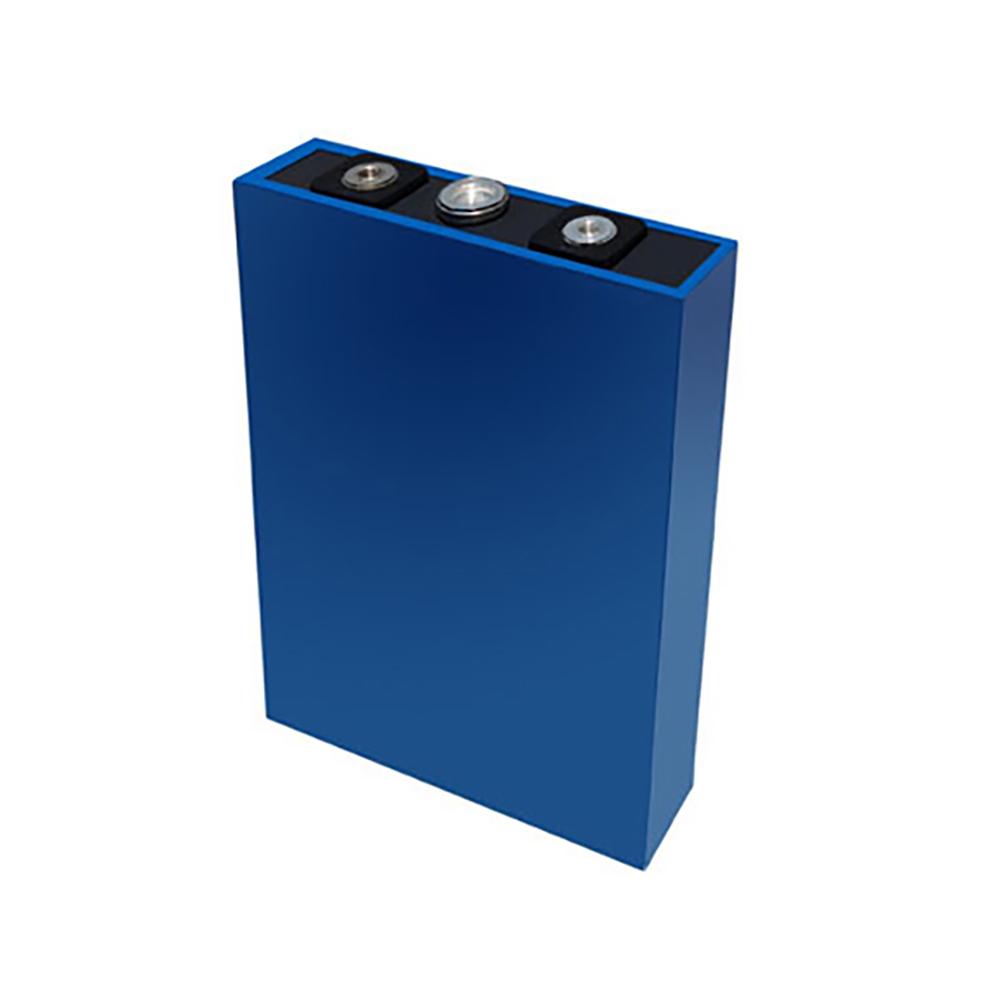

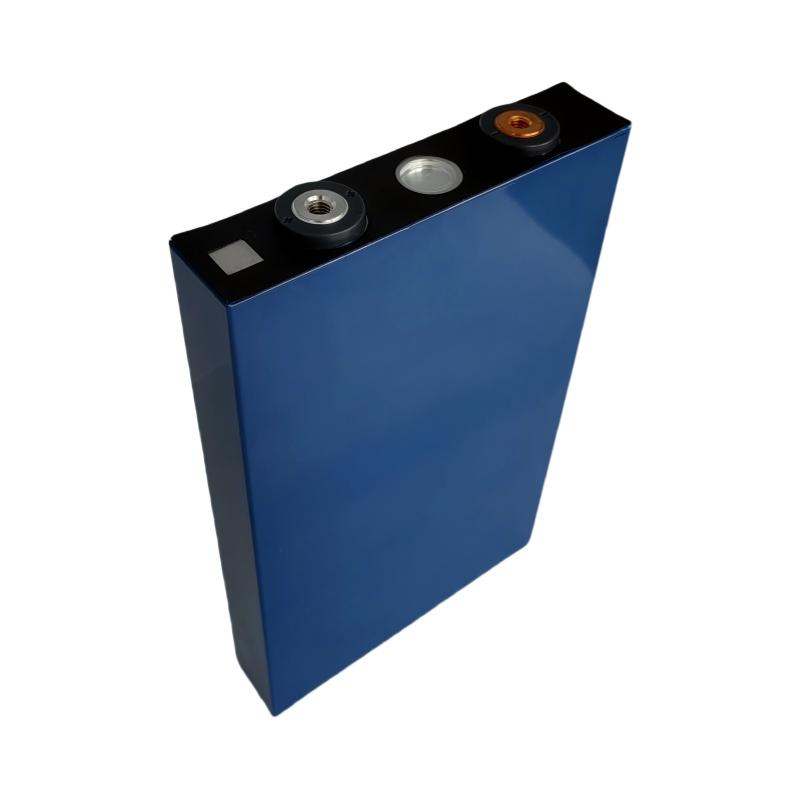

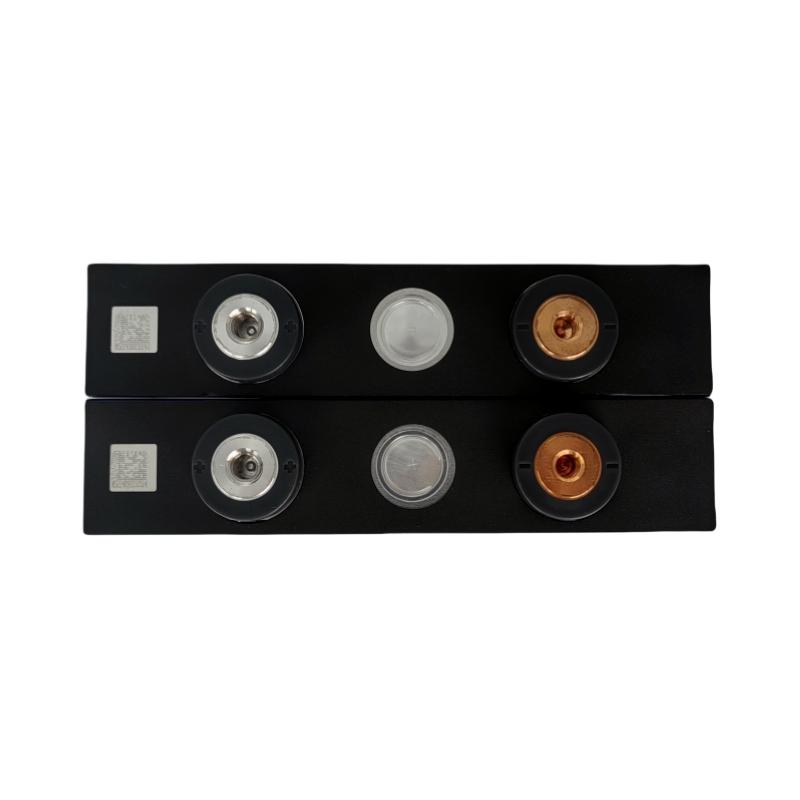

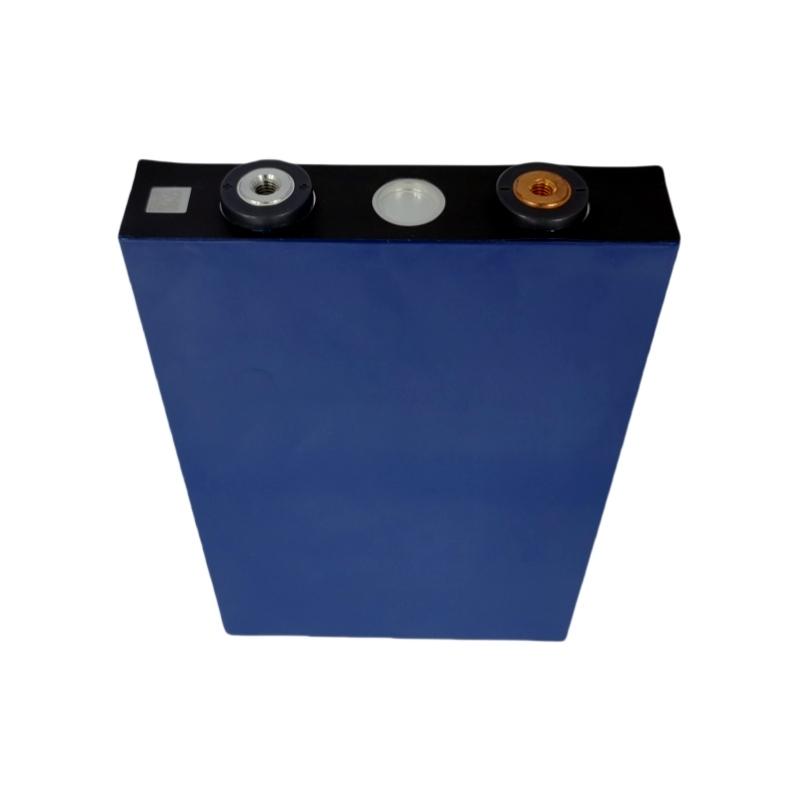

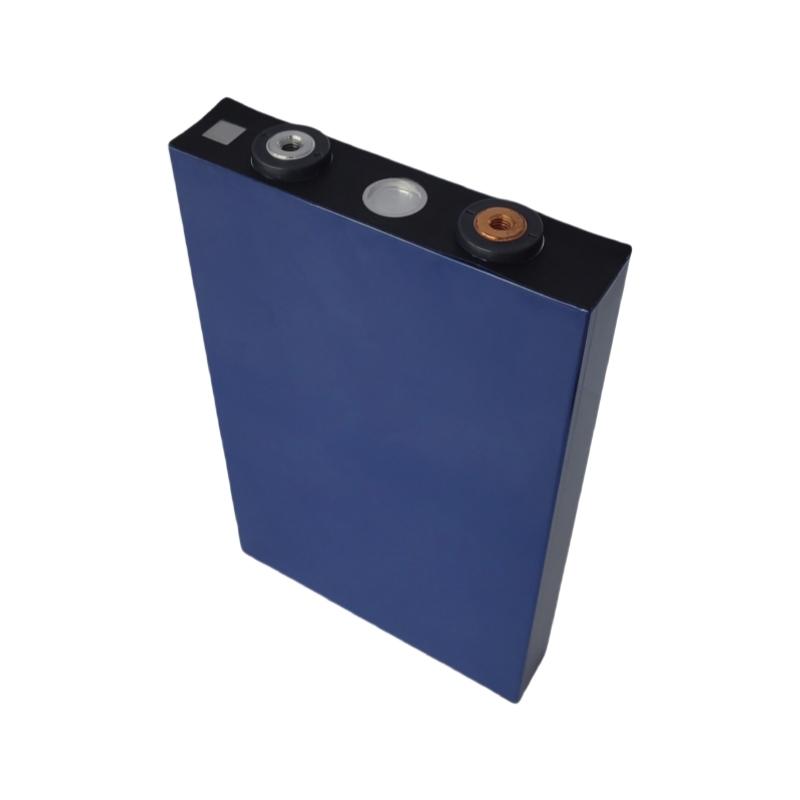

CAM72(135F72) battery cell is a 72Ah LiFePO4 battery cell produced by CALB from Luoyang, China. The brand new designed CAM72 with aluminum alloy shell is 40% smaller and 25% lighter than previous CA series cells.
Energy density of CAM72 cell is as much as 121wh/kg and the cycle life is more than 3,000 times. Qualified for RoHS &CCC with high safety, CAM72 is widely used in high speed electric vehicle, high power renewable energy integration, UPS and other power power applications.
Model: CAM72(L135F72)
Nominal capacity: 72Ah
Work voltage: 2.5~3.65V
Internal Resistance（Ac. 1kHz）: 0.1~0.5mΩ

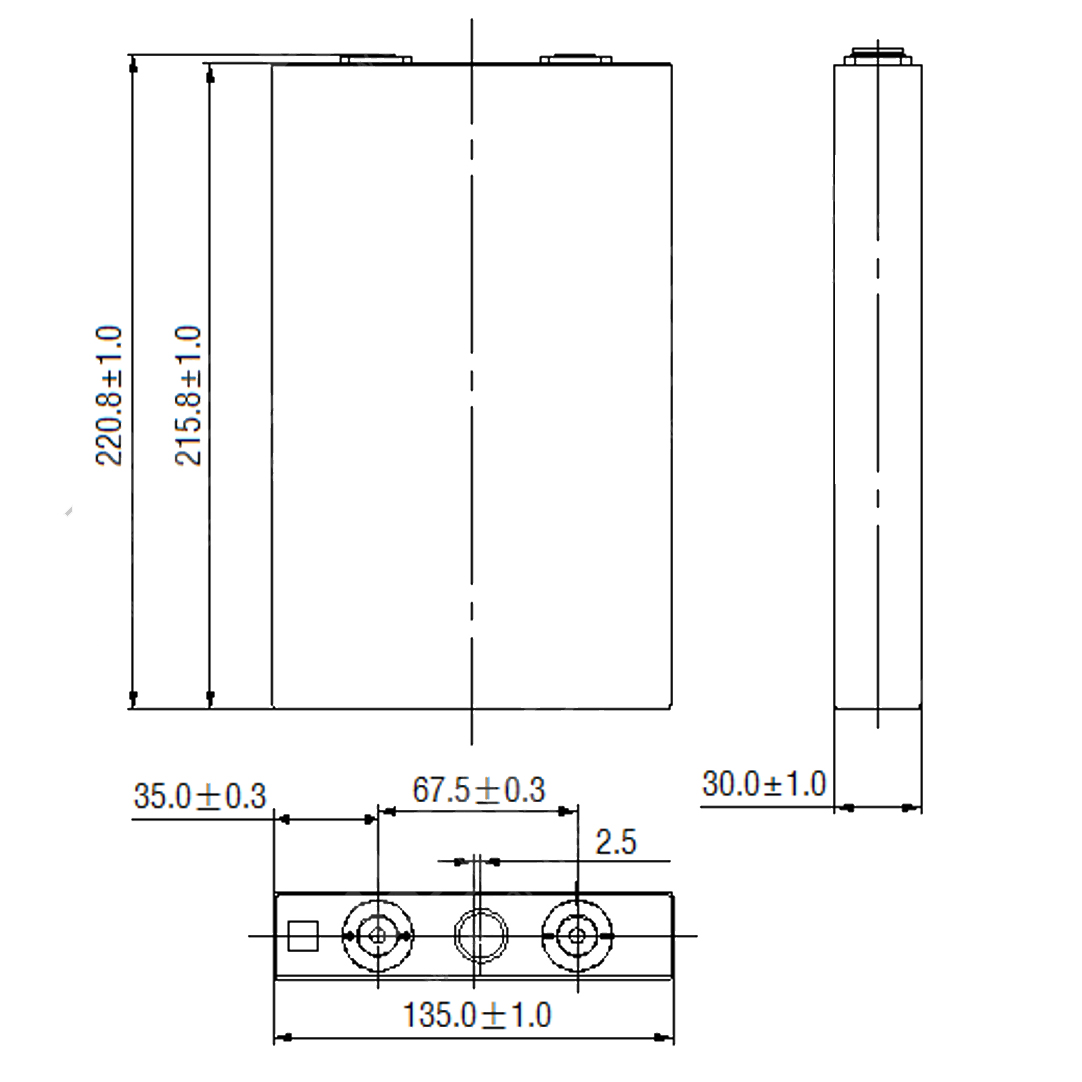

Dimension: 135(L)*30(W)*220.8(H)mm
Weight: 1.78±0.1kg
Item | Parameter |
Nominal Capacity | 72Ah |
Minimal Capacity | 72Ah |
Work Voltage | 2.5~3.65V |
Internal Resistance（Ac. 1kHz） | 0.1~0.5mΩ |
Charging Time | Standard Charge: ~4h |
Fast Charge: ~1h | |
Recommended SOC Window | SOC: 10%~90% |
Max. Constant Discharging Current | 72A |
Max. Constant Discharging Current（Long Pulse） | 144A (3min) |
Maximum Pulse Discharging Current（Short Pulse） | 216A (30s) |
Recommended SOC Window | 10%~90% |
Operating Temperature | Charging: 0~45°C Discharging: -20~55°C |
Weight | 1.78±0.1kg |
Shell Material | Aluminium |
Cycle Life | ≥2000 cycles |

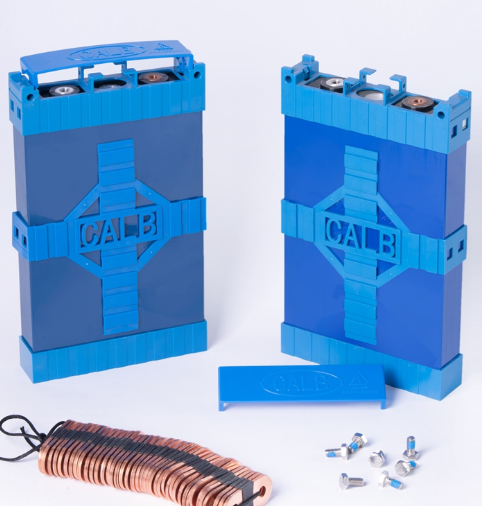

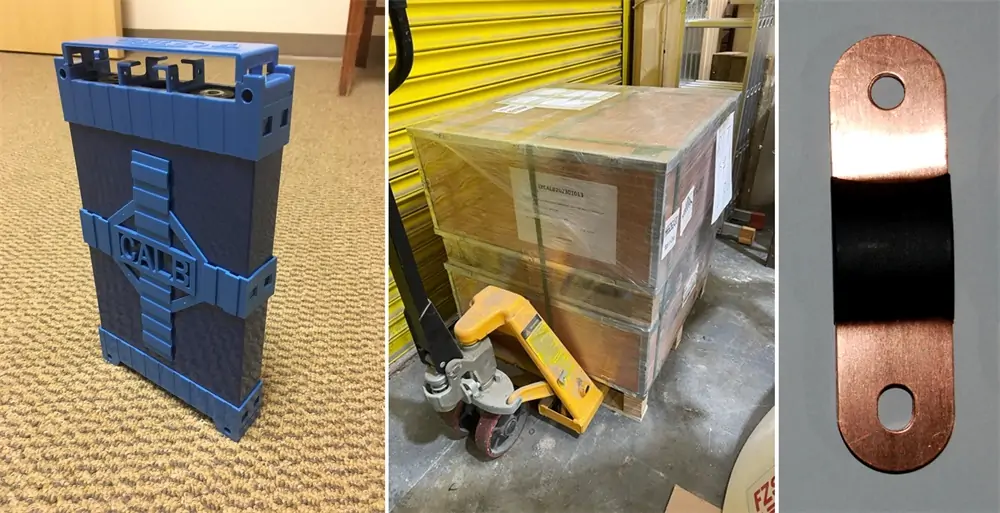

If you need a CAM72 battery pack, we will provide you with battery holders, busbars and other accessories.

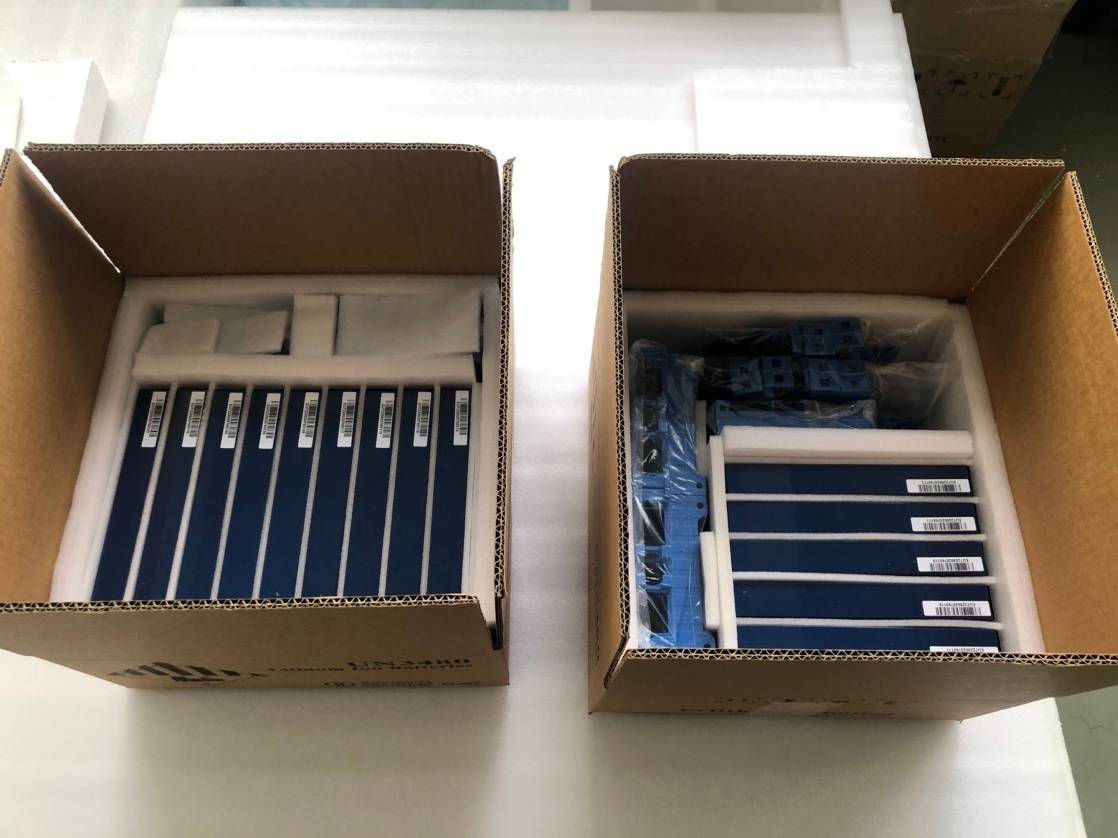

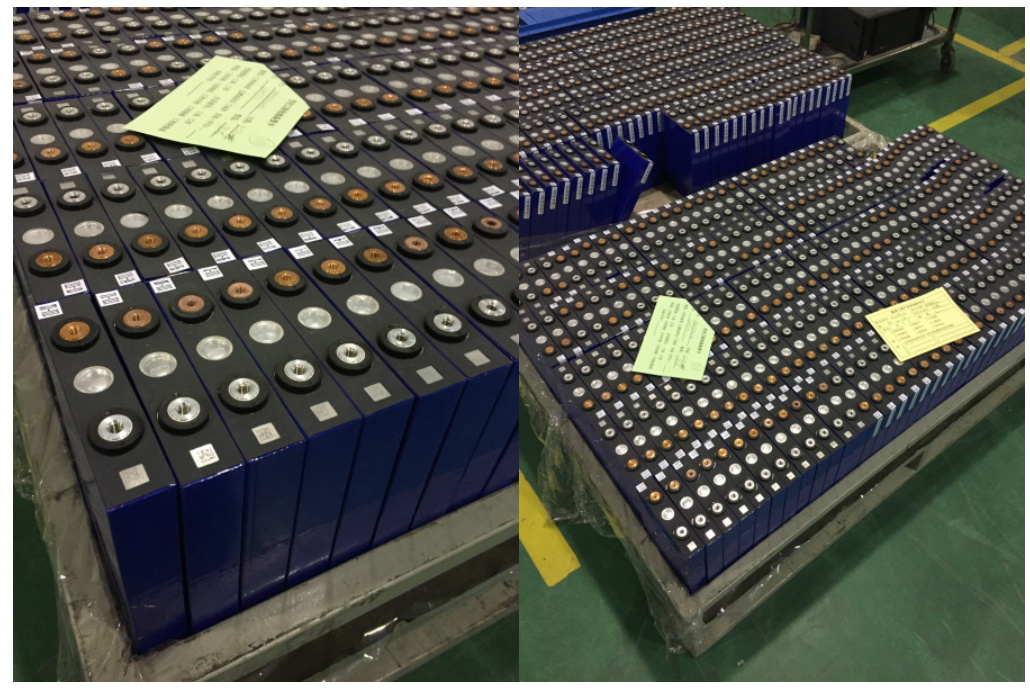

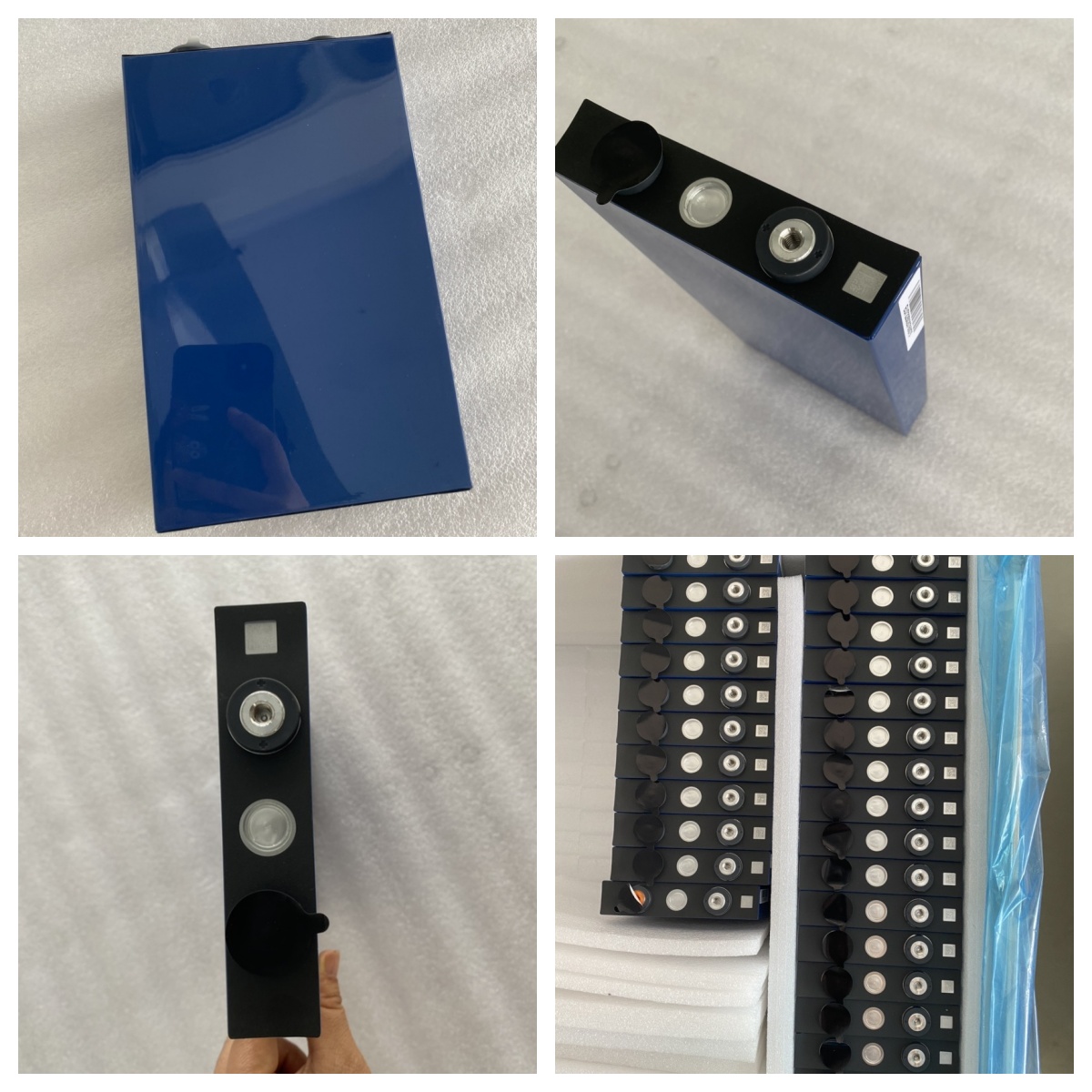

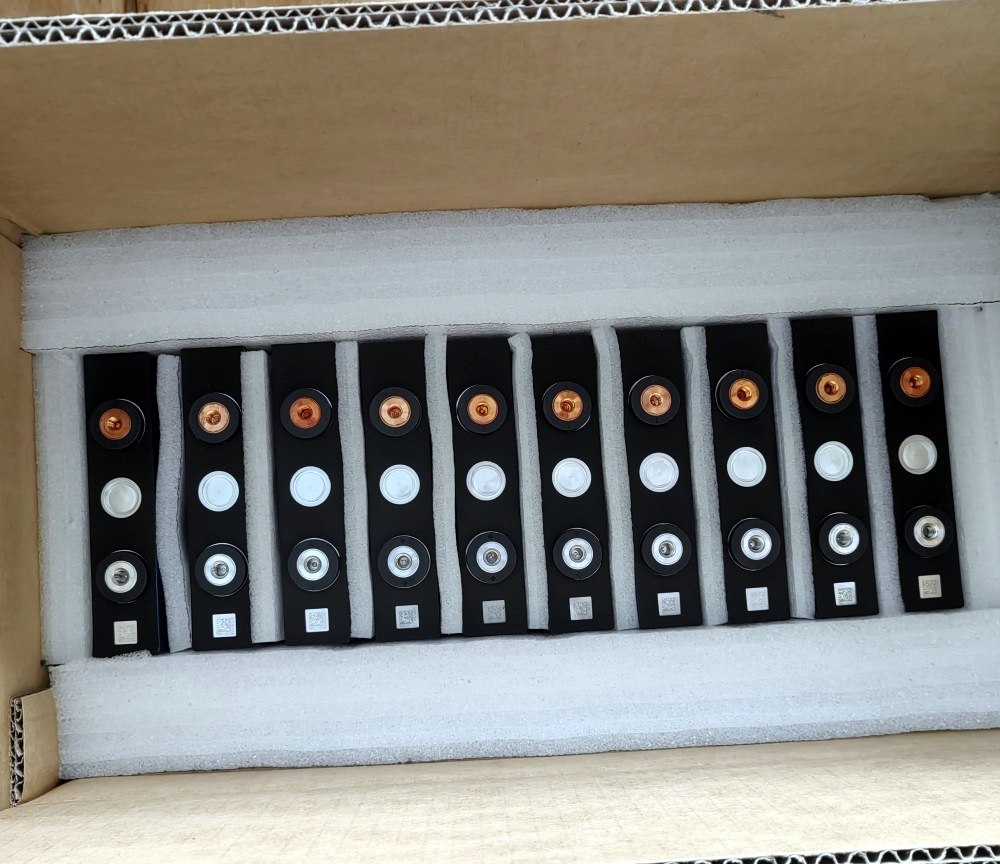

Here are lots of CAM72 L135F72 LiFePO4 cells in stock. just Contact BESS to get them

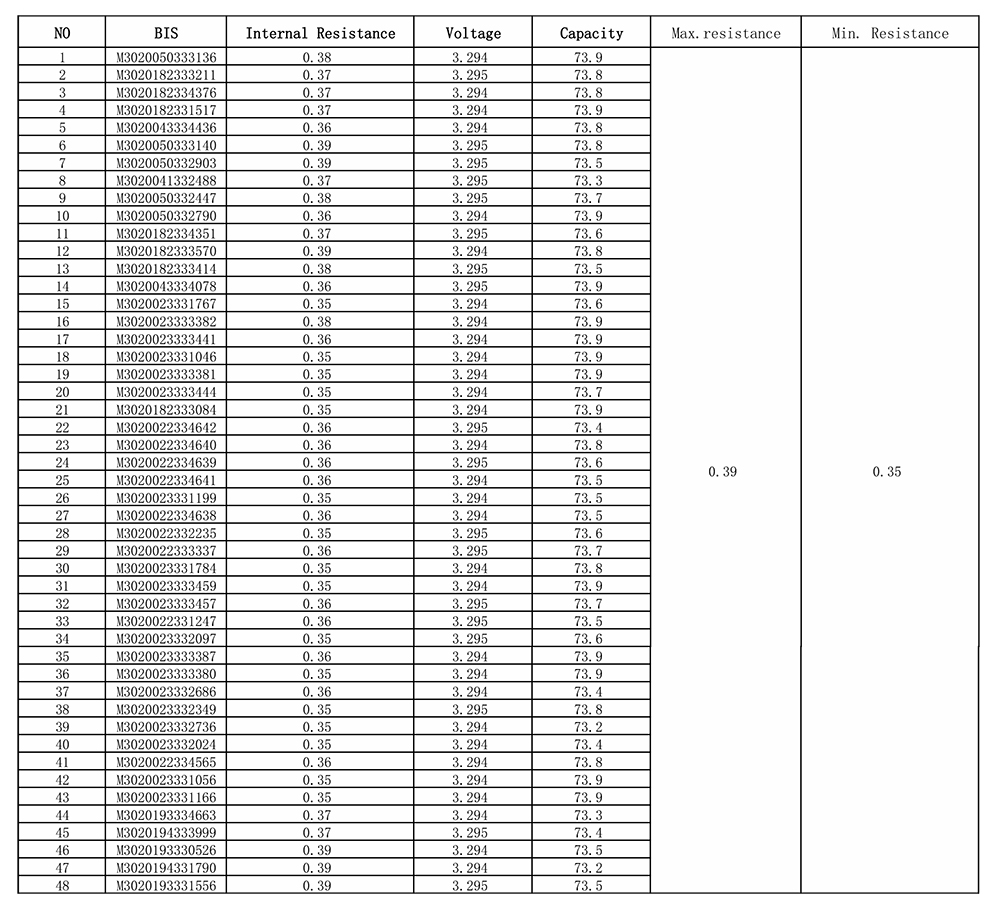

We will provide the test report and certificate of each cells at the time of shipment.
