Description

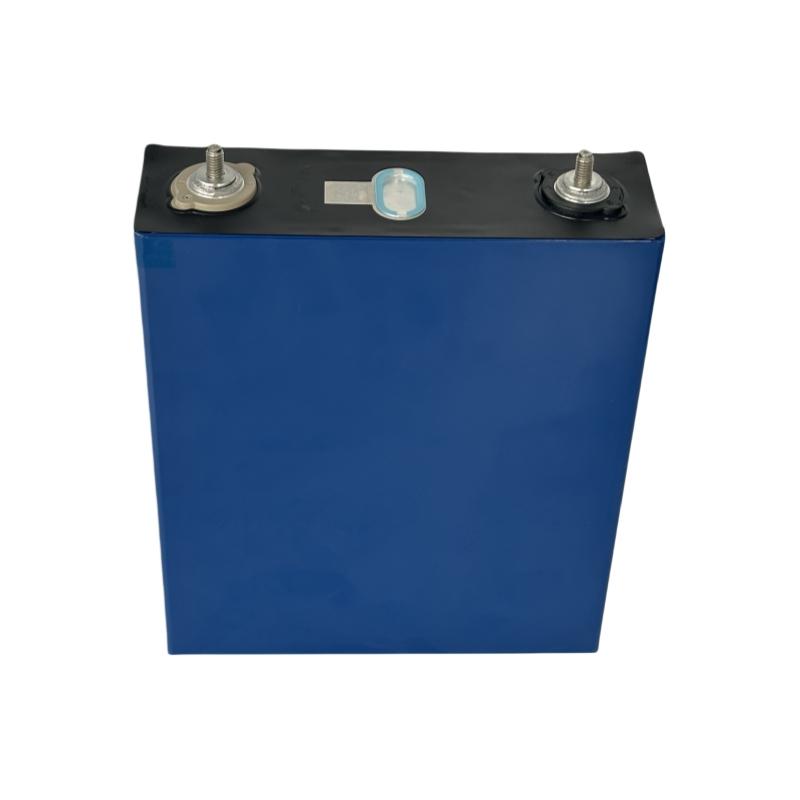

CALB (China Aviation Lithium Battery) is a well known and respected manufactor of LiFePO4 cells,We can now supply three new models that were produced by CALB.

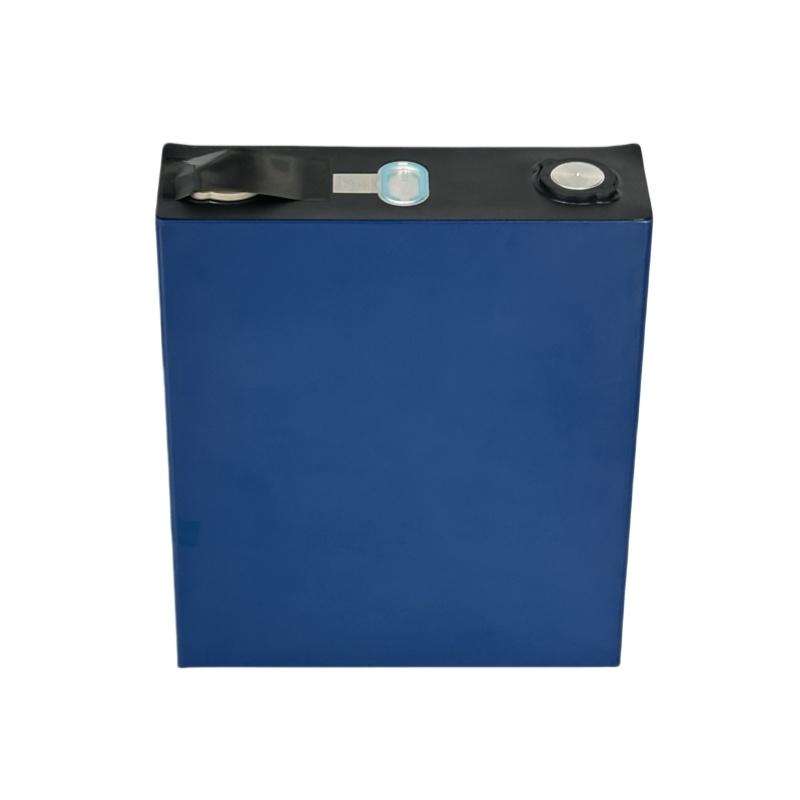

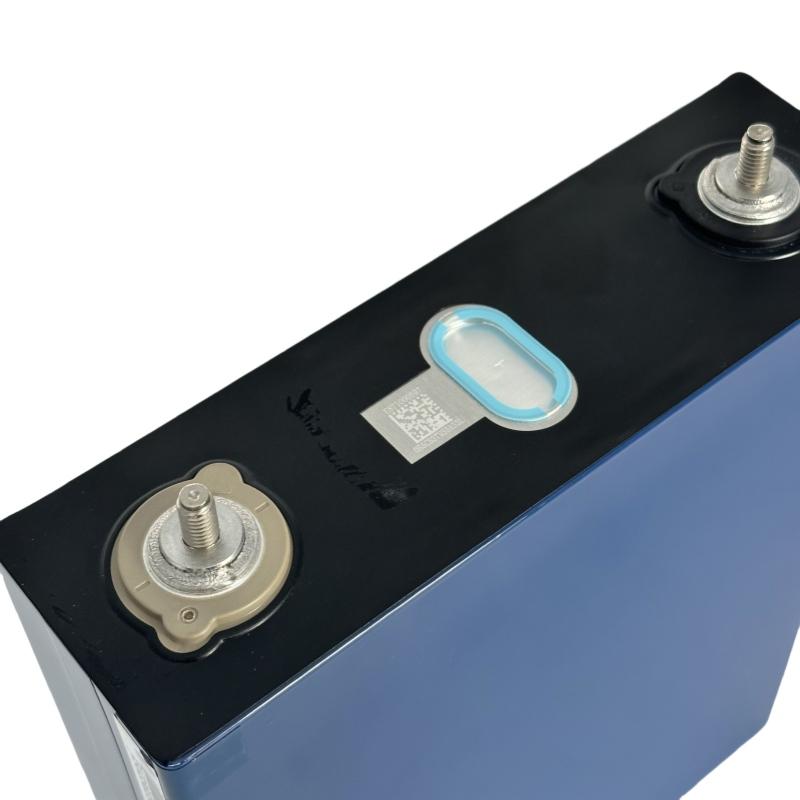

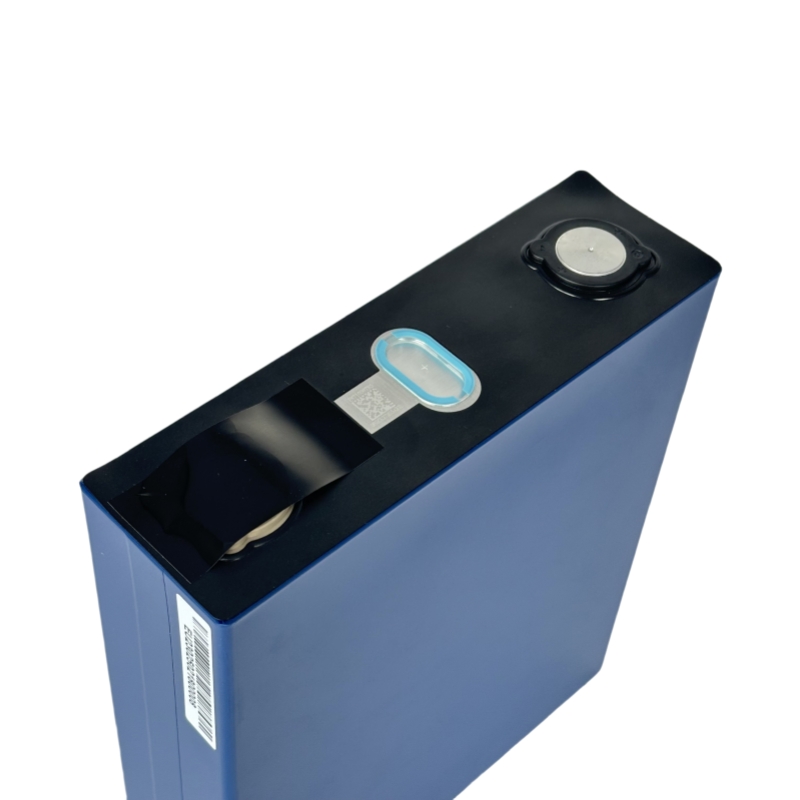

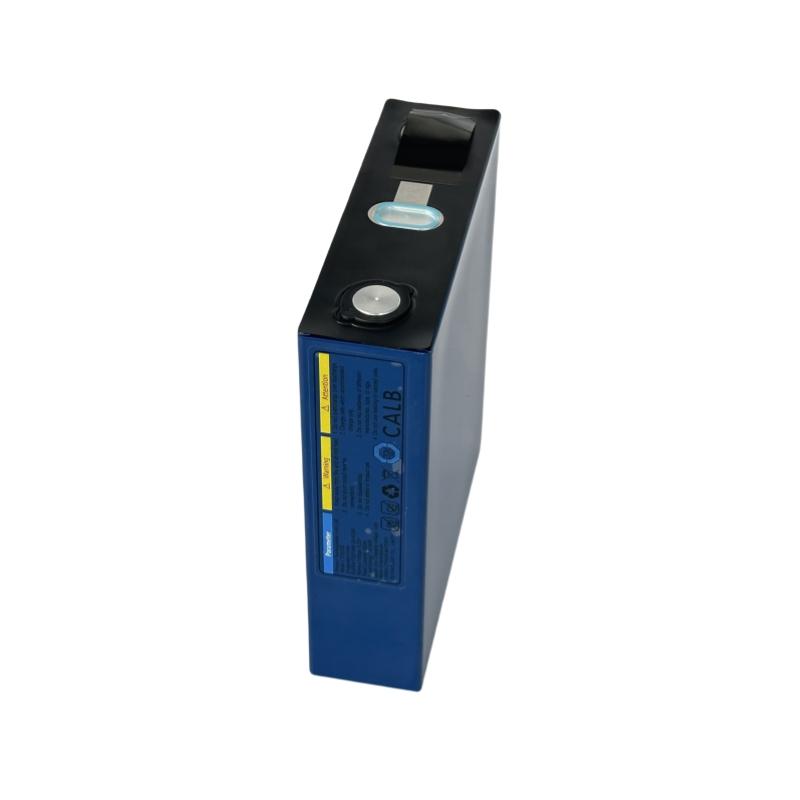

They are both high quality prismatic lithium ion batteries have the shell of aluminum, they have high-rate charging and discharging performance, high energy density, long cycle life and a wide working temperature range. CALB 68Ah 80Ah 176Ah 230Ah LiFePO4 Lithium Battery can be widely used in RV/ solar system/ yacht/ golf carts/ energy storage and solar system.
-Qualified for RoHS & CCC with high safely
-More than 4000 cycles under the designed working condition
-Anti-explosion safely valve applied
-Ceramic membrane technology applied to enhance safety
-High energy density:176wh/kg
-High charge/discharge rates
Items | Parameter | |
Module | CALB L173F230 | |
Nominal Voltage | 3.2V | |
Nominal Capacity | 230Ah | |

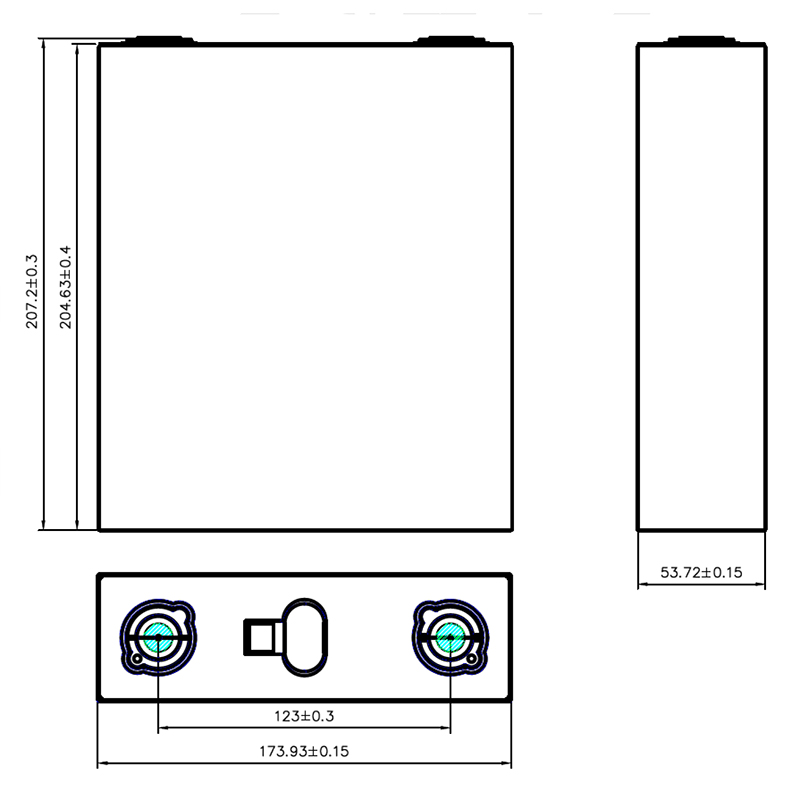

Dimension | 173.4*53.7*207.2mm | |
Internal Resistance | 0.3mΩ | |
Charging Time | Standard Charge | ~4h |
Fast Charge | ~1h | |
Max. Continuous Charge/Discharge Current | 230A(1C) | |
Operating Temperature | Charging Temperature | 0~55°C |
Discharging Temperature | -36~65°C | |
Weight | 4.17±0.16kg | |
Shell Material | Aluminum | |
Cycle Life | ≥4000 cycles | |

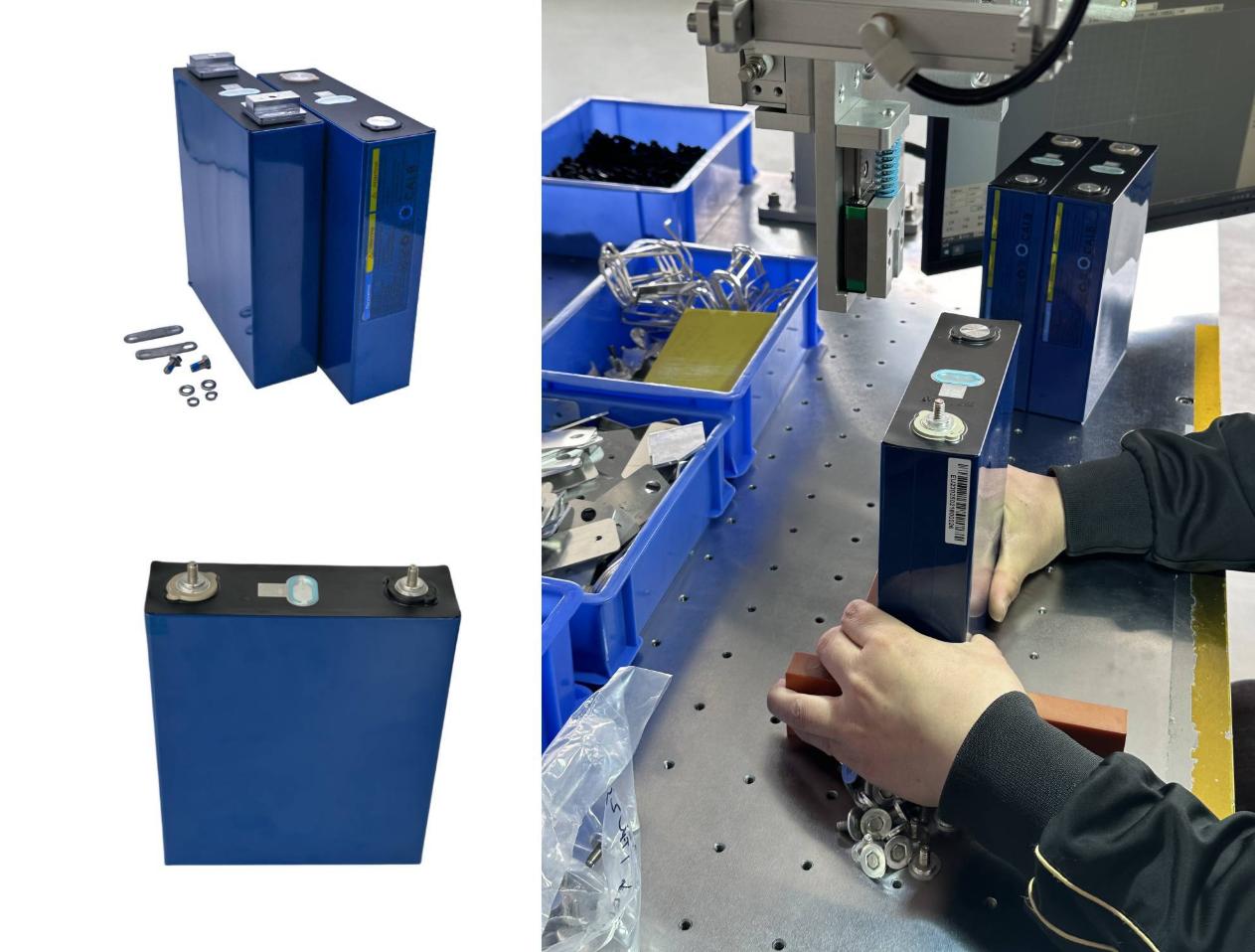

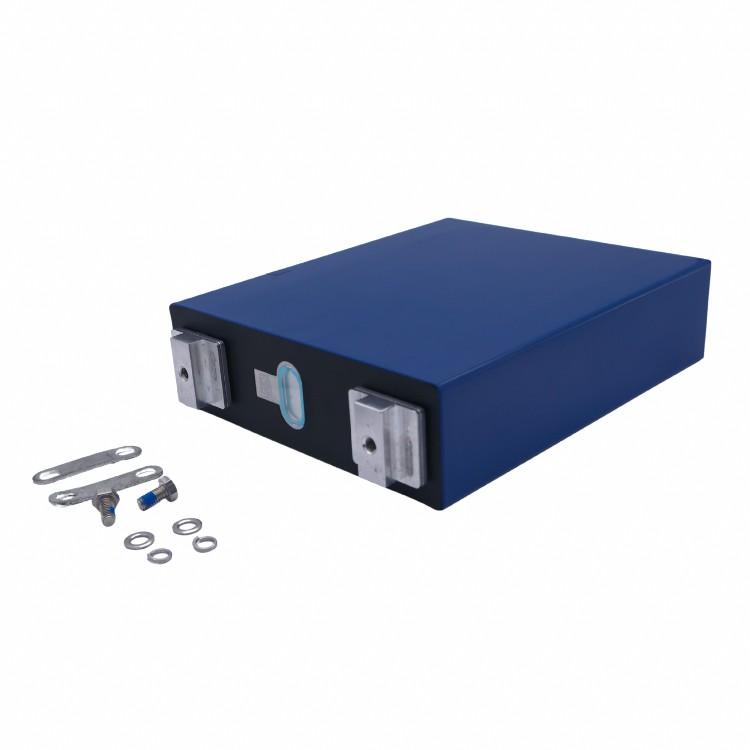

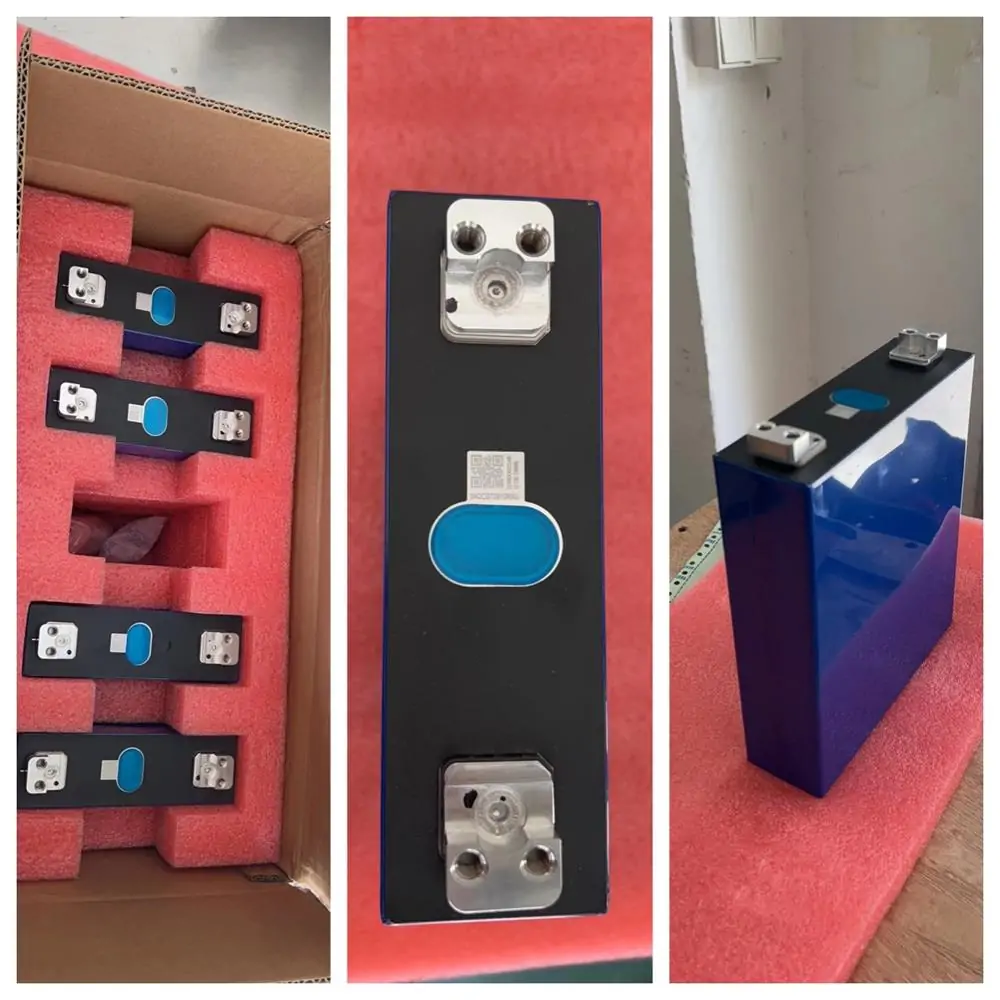

We offer pole welding services, please state your requirements if required.
