Description

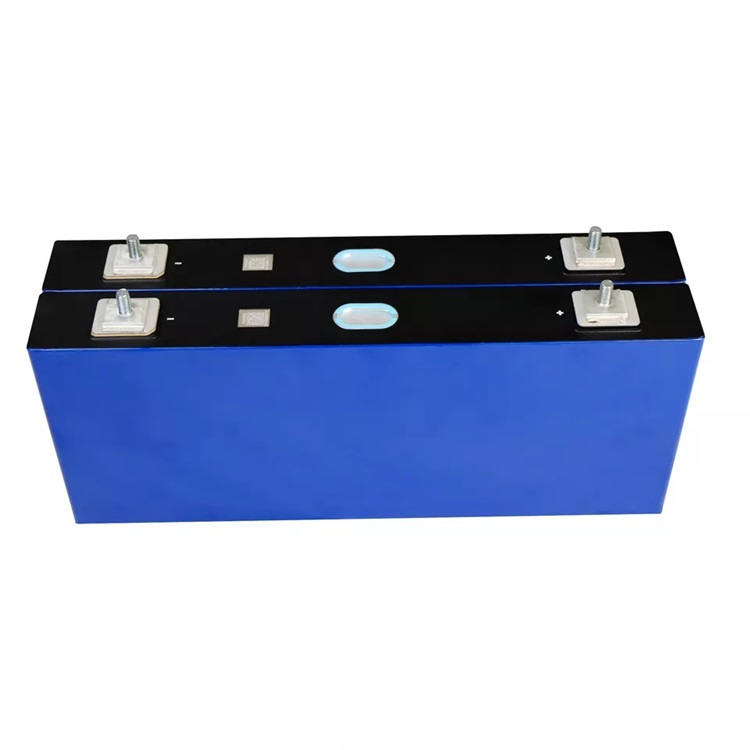

Brand new CALB 3.2V 177Ah LiFePO4 Prismatic Cell with Aluminum shell supports welded or bolted connections, long cycle life, high energy density, and wide operating temperature range, suitable for energy storage, solar system, EV, RV, yacht, etc.
Item | Specification | |
Rated Capacity | 177 Ah (1C discharge) | |
179 Ah | ||
Rated Voltage | 3.20 V (1C discharge) | |
3.22 V | ||
Rated Energy | 566.4 Wh | |
576.38 Wh | ||
Cell Weight | 3.2±0.07 kg | |
Mass Energy Density | 180 Wh/kg | |
Cell Volume | 1.41L (without terminal) | |
Volume Energy Density | 408 Wh/L | |
Alternating Current Resistance | 0.2~0.4mΩ | |
Temp Range | Charging Temperature | -20~55°C |
Discharge Temperature | -30~55°C | |
Storage Temperature | -40~60°C | |
Fast Charging Time | ≤75min 0-80% SOC | |
Voltage Range | 2.5~3.65 V 0°C<T≤50°C | |
2.0~3.65 V -30°C≤T≤0°C | ||
Dimension | 300*37.8*124.4mm | |

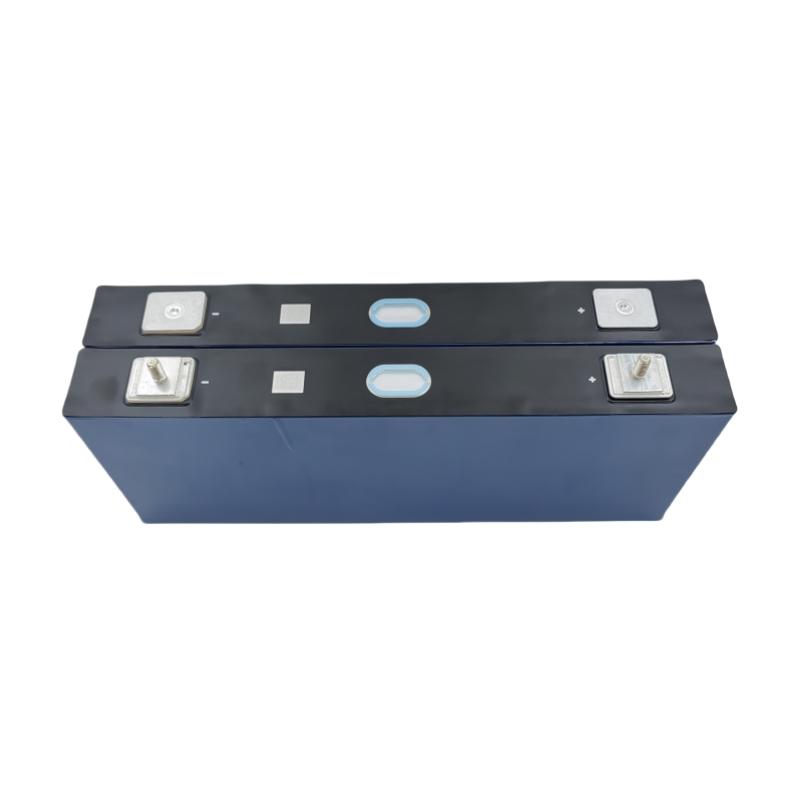

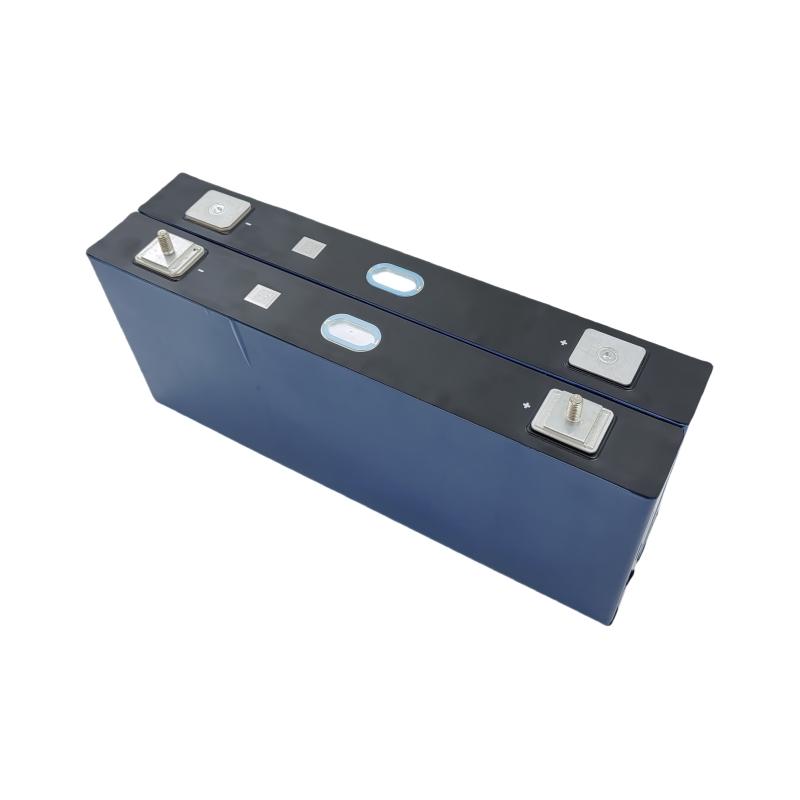

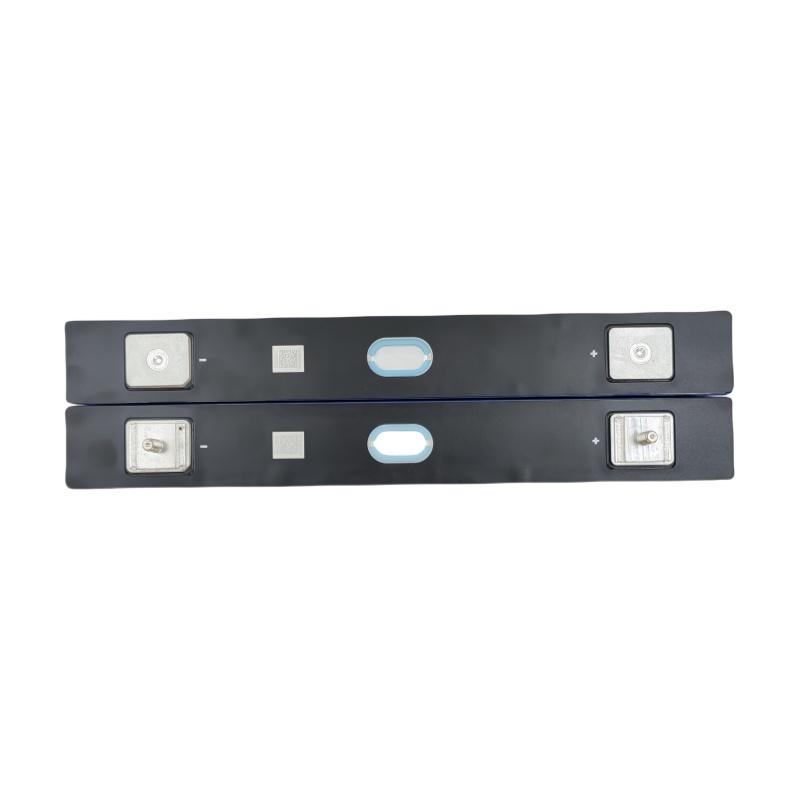

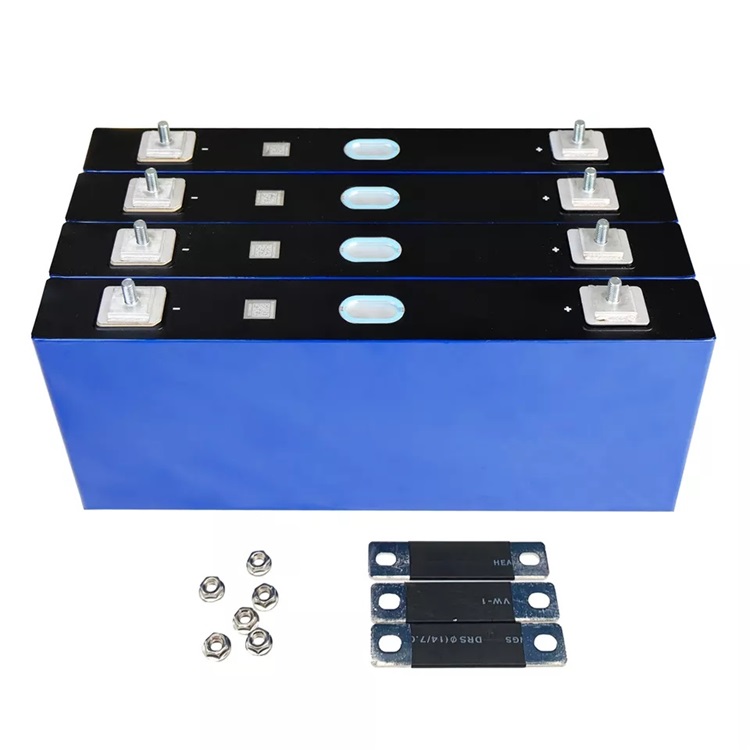

We provide brand new A grade CALB L1300F177A LiFePO4 Cells with welded terminals, and free busbars.
1. EV, e-scooter, electric golf car, electric vacuum sweeper.
2. Electronic toy, model airplane, remote control.
3. Communication equipment: Cordless telephone, inter-phone.
4. Modality equipment and consumer electronics.
5. Decorative lighting, Solar lamps, torch, emergency light, solar street light and power supply.
