Details

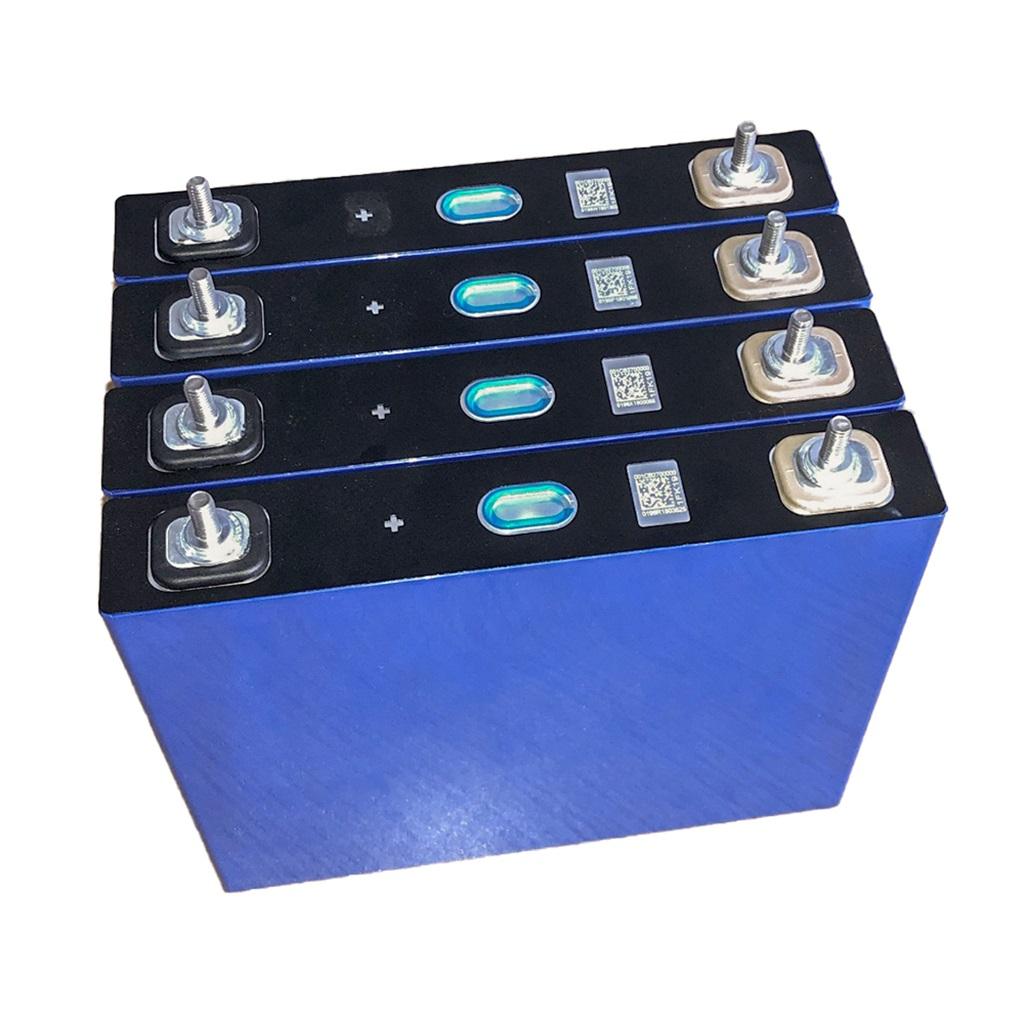

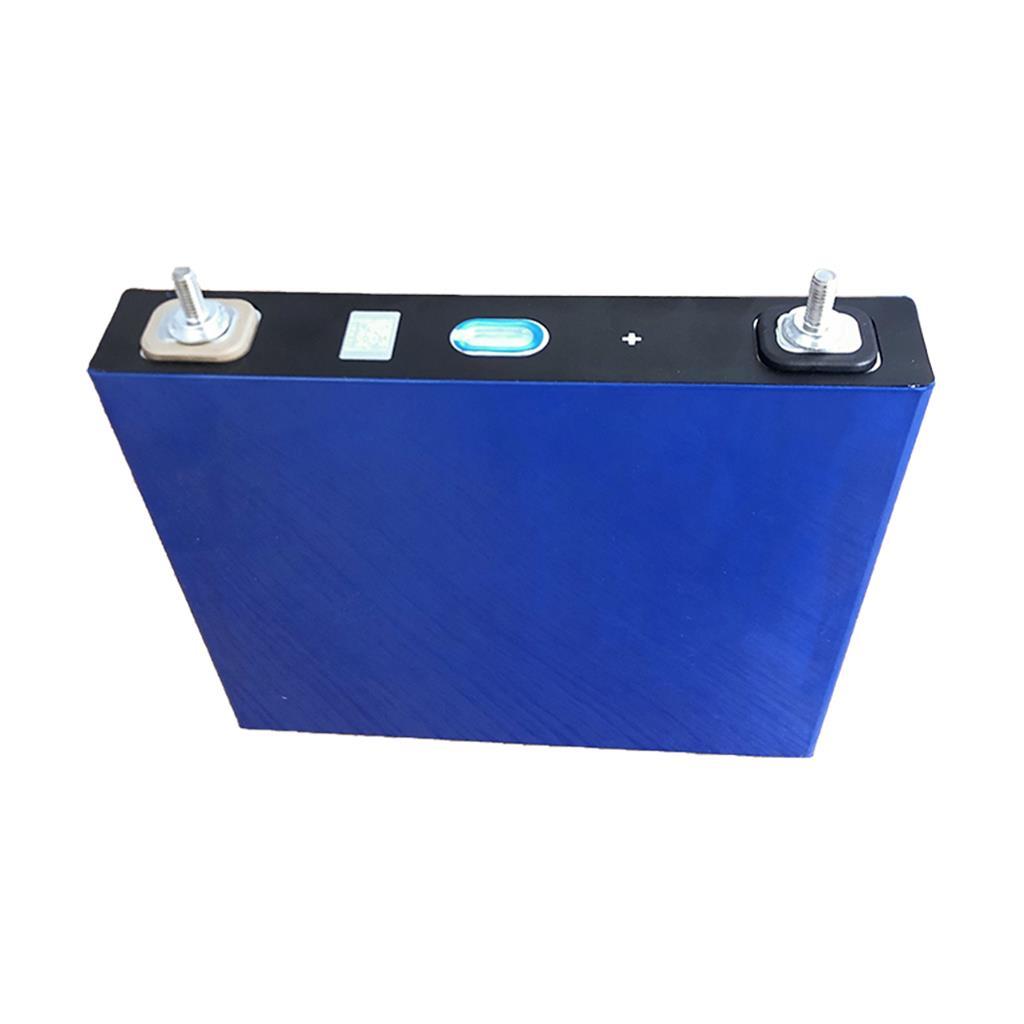

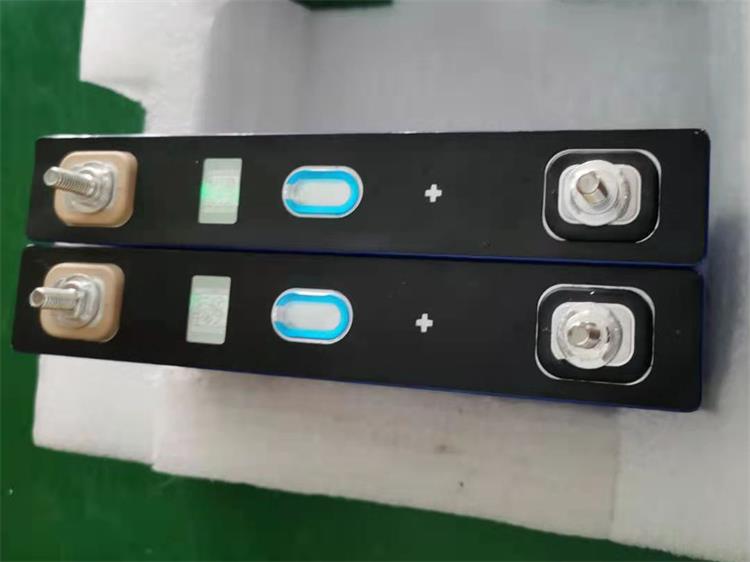

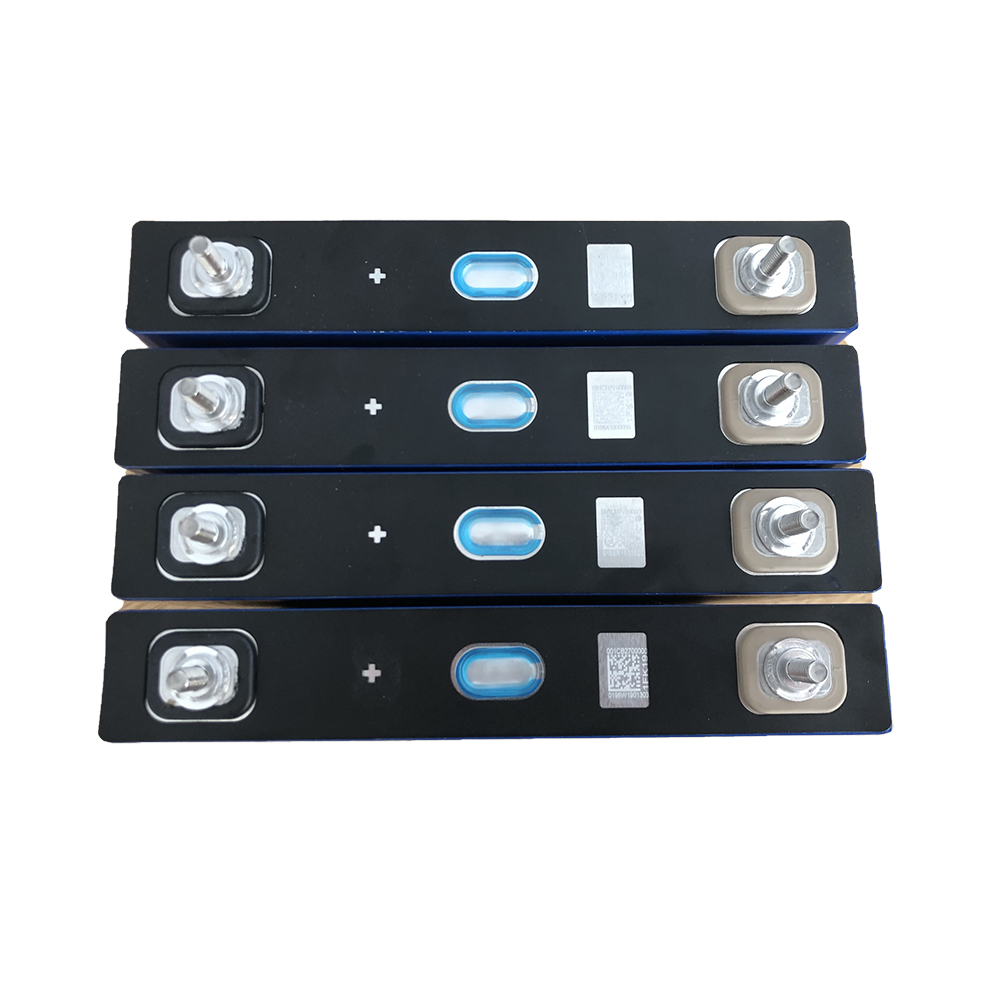

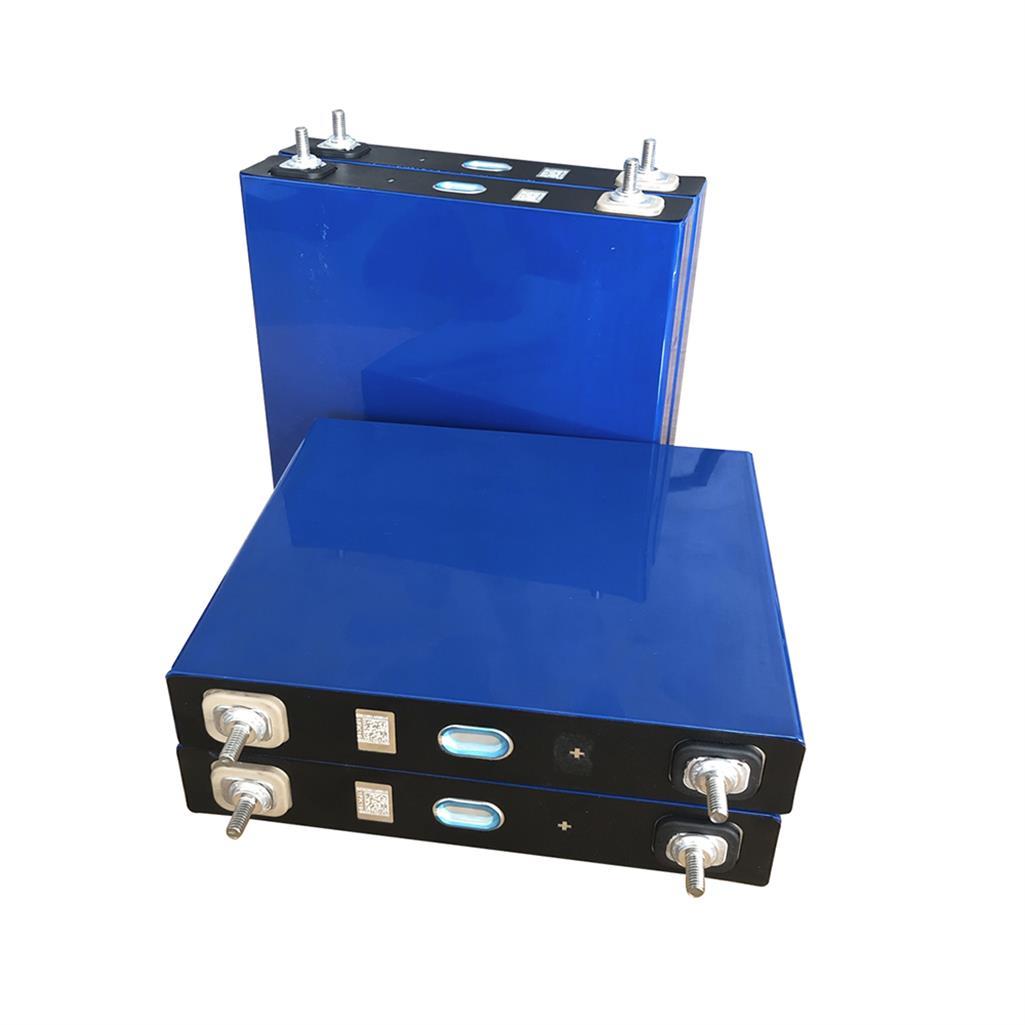

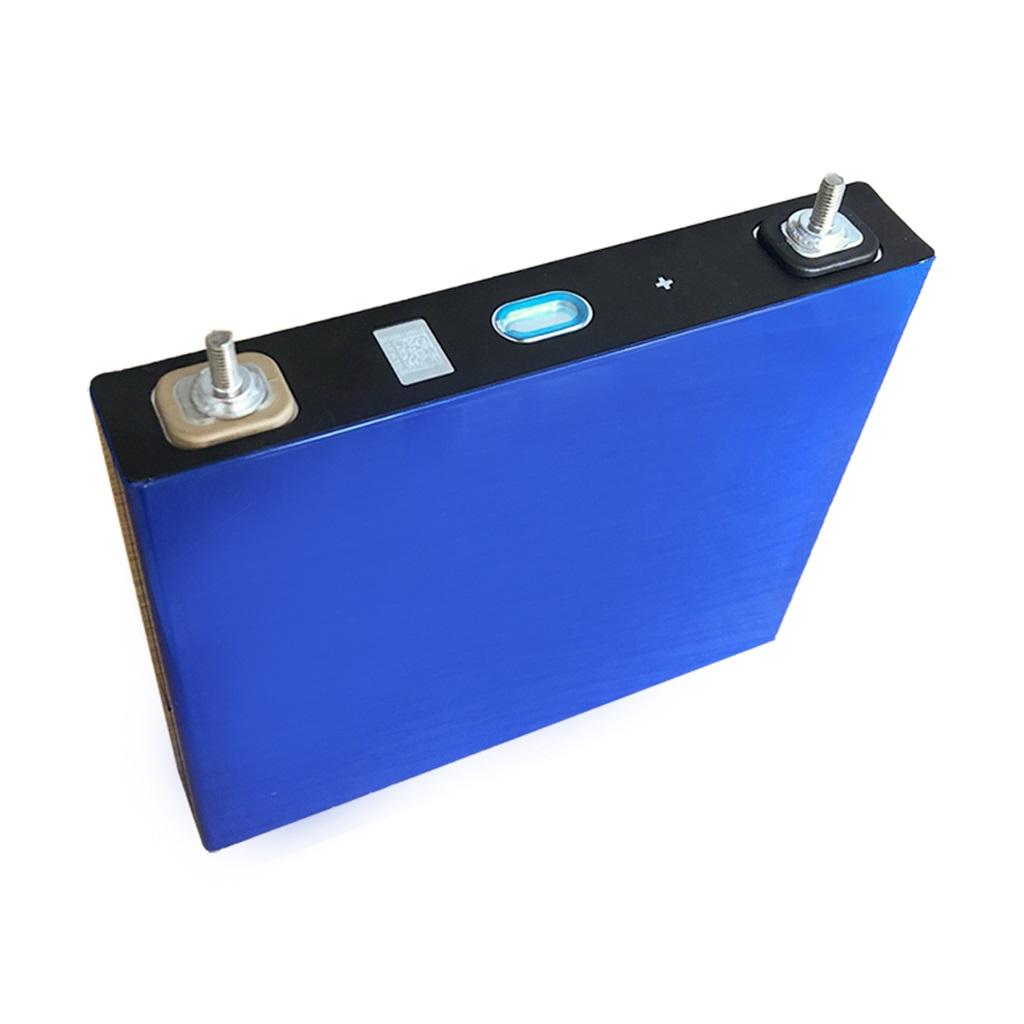

CATL 3.2V 100Ah LiFePO4 Prismatic Battery specially customized Cell With Screws,long cycle life, high energy density,wide operating temperature range.
Description
Module:001CB270
Nominal Voltage:3.2V
Nominal Capacity:100Ah
Internal Resistance:0.39±0.05mΩ
Dimension: 200.33*172.2*33.22mm±0.5mm
Weight:2.27±0.30Kg
Items | Parameters |
Typical capacity | 100 Ah |
Operating voltage | 2.5~3.65V |
Impedance (1KHz) | 0.39±0.05mΩ |
Shipping capacity | 40±1Ah |
Residual capacity | ≤3.5% |
Operating Temperature range | Charging: 0~55℃, Discharging: -30~55℃ |
Storage Temperature | -30~60℃ |
Standard charge current | 0.5C |
Max. continuous charge current | 1C |
Standard discharge current | 0.5C |
Maximum discharge current (continuous) | 1C |

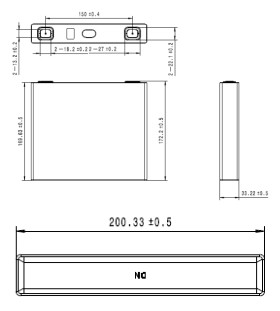

Typical dimension(W*H*T) | 200.33*172.2*33.22±0.5mm |
Weight | 2.27±0.30Kg |

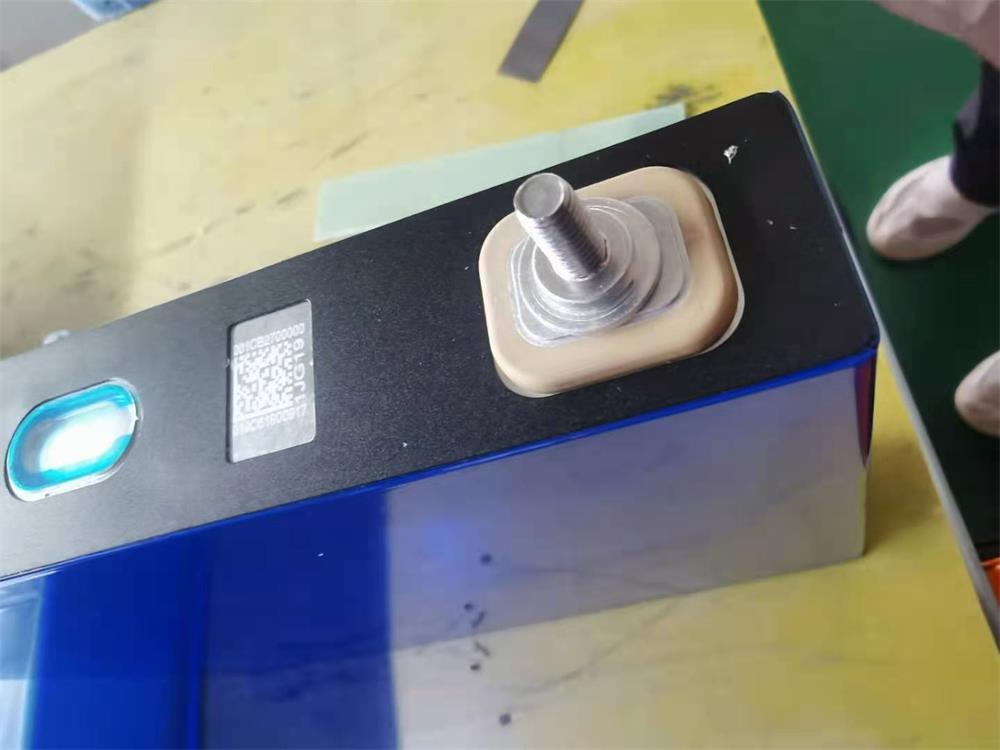

Now we provide the specially customized CATL 3.2V LiFePO4 100Ah Battery Cell with screws for easy connection. It has the performance of long cycle life, high energy density and a wide operating temperature range.
