CATL 3.2V 280Ah LiFePO4 Battery Prismatic Cell

  • CATL 3.2V 280Ah LiFePO4 Battery
  • CATL 3.2V 280Ah LiFePO4 Battery

Details

CATL 3.2V 280Ah LiFePO4 battery Lithium iron phosphate cell has a super long cycle life of more than 12000 times and has a stable performance used for ESS.

Description

CATL (Contemporary Amperex Technology Co. Limited) is a Chinese battery manufacturer that produces lithium-ion batteries for electric vehicles and energy storage systems. The CATL 280Ah battery is a high-capacity lithium-ion battery that is designed for use in energy storage systems.

CATL 3.2V 280Ah LiFePO4 battery is a new model with an aluminum case produced by CATL, a leading lithium battery supplier from China; this battery cell has a super long cycle life of more than 12000times, have a stable performance used for ESS(energy storage system). All the cells we provide are brand new grade A with test report and all kinds of certifications.

Specification

Item

Parameter

Nominal Capacity

280Ah

Nominal Voltage

3.2V

Internal Resistance

≤0.18mΩ

Charging (CC-CV)

Continuous Charging Current

1C

Maximum Charging Current

3C

Charging Upper Limit Voltage

3.65V

Discharging

Continuous Discharging Current

1C

Maximum Discharging Current

3C

Discharging Cut-off Voltage

2.5V

Recommended SOC Usage Window

SOC: 10%~90%

Operation Thermal Ambient

Charging

0°C ~ 65°C

Discharging

-35°C ~ 65°C

Storage Thermal Ambient

Short-term (within 1 month)

-20°C ~ 65°C

Long-term (within 1 year)

-20°C ~ 55°C

Storage Humidity

<70%

Battery Weight

Around 5.34kg

Shell Material

Aluminum

Cell Dimensions

207x174x72mm

CATL 3.2V 280Ah Battery Cell Performance

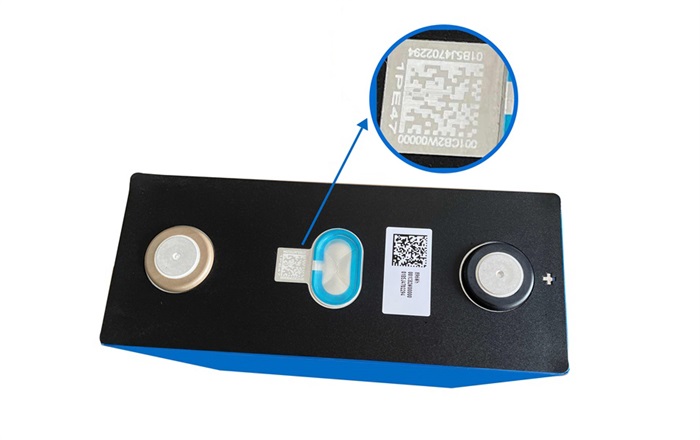

1. This model is 280Ah model, With intact QR code and brand new grade A cell.

2. The CATL 280ah cell's terminal has been welded with bolts for easy connection, and we provide free busbars.

3. The cell has a maximum cycle life of 12000times.

4. All batteries are tested before shipment, and the test report is provided

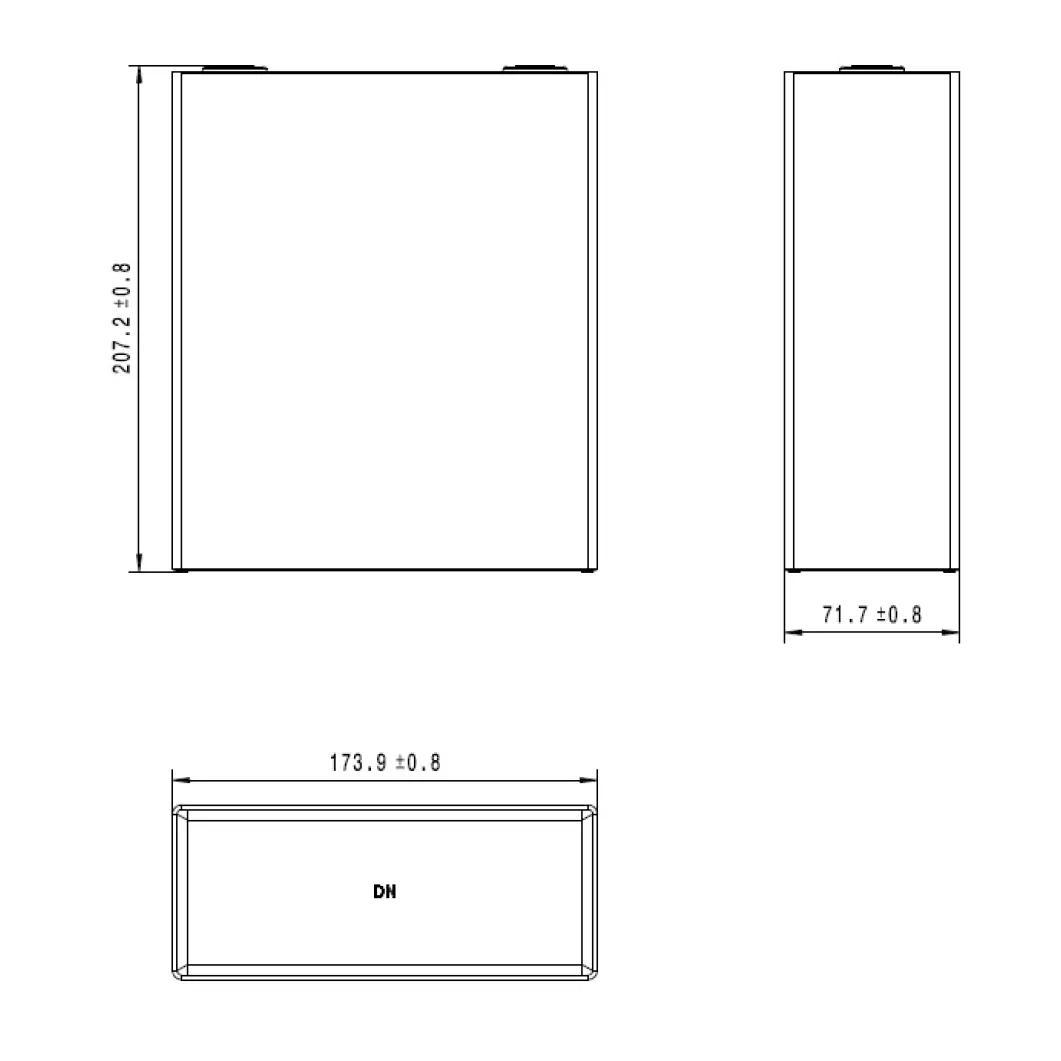

Dimension and Detail

CATL 3.2V 280Ah LiFePO4 Battery

CATL 3.2V 280Ah LiFePO4 Battery

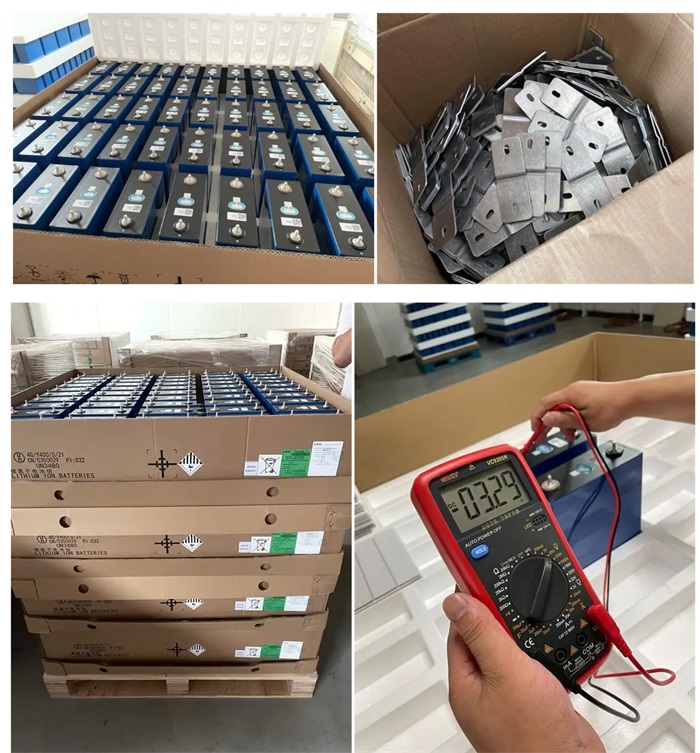

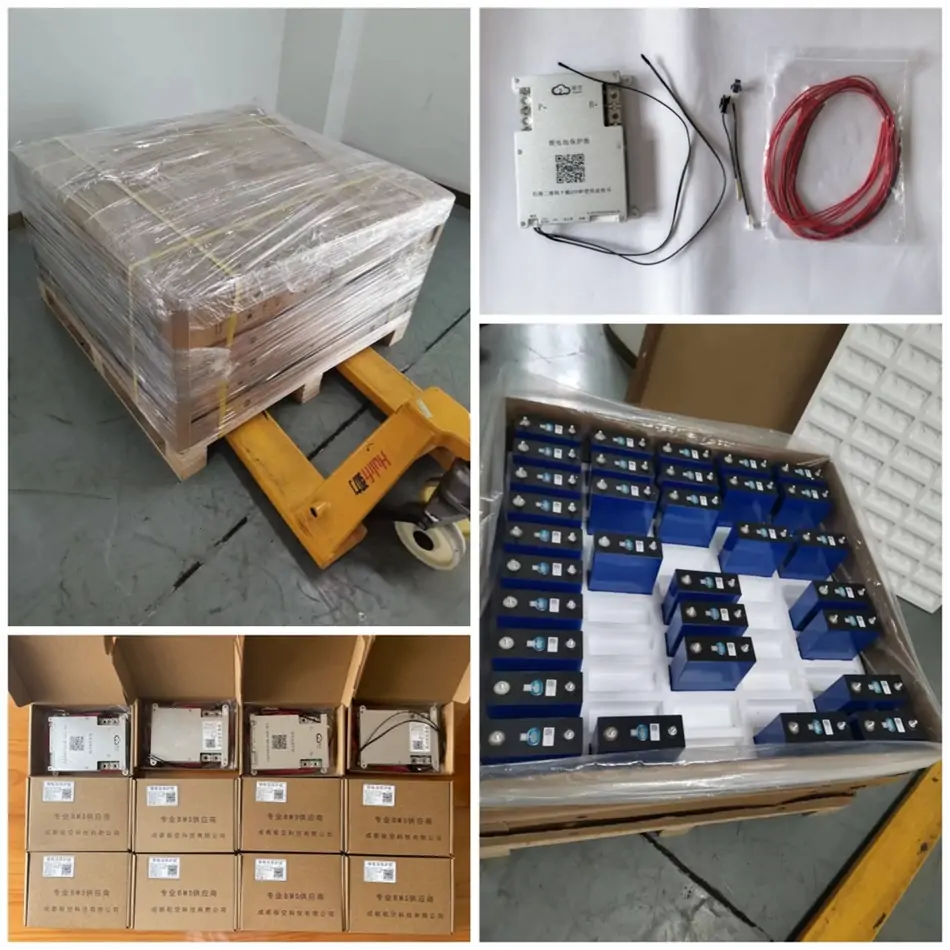

Newly Updated Shipment Records for CATL 3.2V 280AH lifepo4 battery Cells Orders
