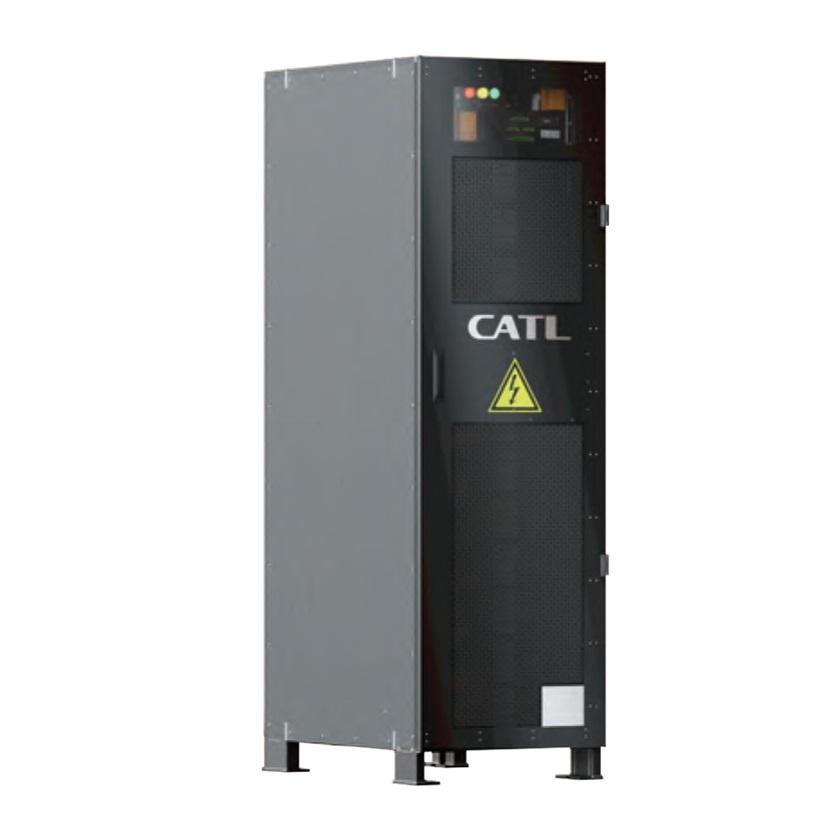

CATL UPS Lithium-ion LiFePO4 Backup Battery Rack

UPS Backup Battery Solution

• LFP batteries with high thermal stability

• Dual redundancy for BMS control and protection: shunt trip by contactor control and molded case circuit breakers
• Dual redundancy for short circuit protection: magnetic trip by fuse protection and molded case circuit breakers

• Dual redundancy of auxiliary power to reduce the risk in case of AC power interruption
• Black start in case of power outrage in the grid

• Exit the faulty cabinet only to improve system availability

• A temperature rise of about 20℃ at the highest discharging rate, with only natural cooling needed to meet the use requirements
• Simple and reliable system

• Available for three-wire and two-wire UPS systems

• Available for a wide voltage range configuration of 320 - 691V, compatible with UPS of high and low-voltage platforms
• Available for a wide energy range configuration of 32.768-49.152kWh for individual racks, reducing excessive configuration

• Available for whole rack transportation, reducing packaging materials, transportation costs, and on-site installation and commissioning costs and time

• Available for bulk transportation, with flexible shipment of the rack body and spare parts
