Details

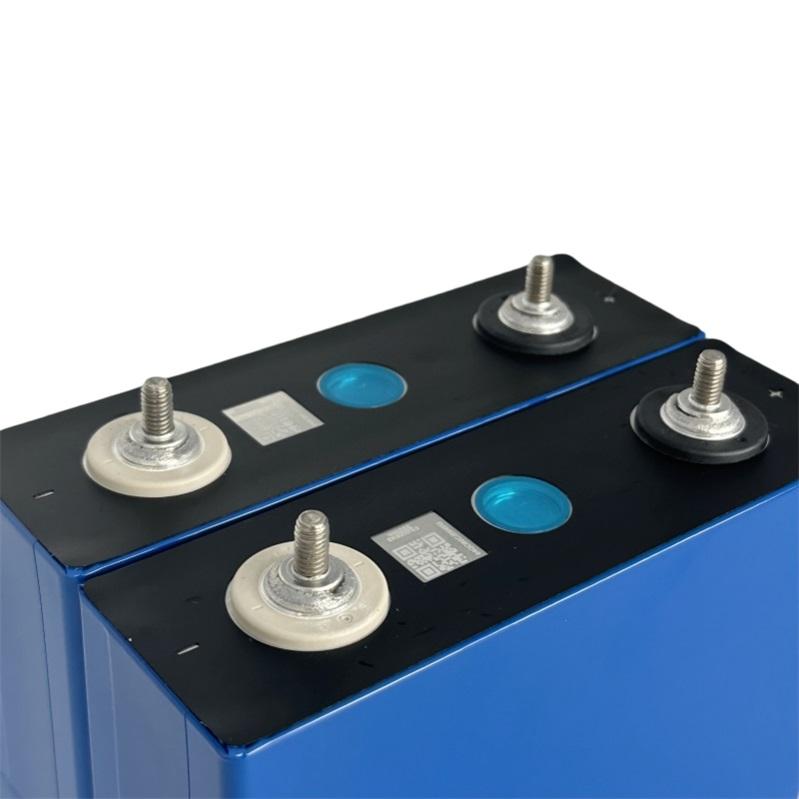

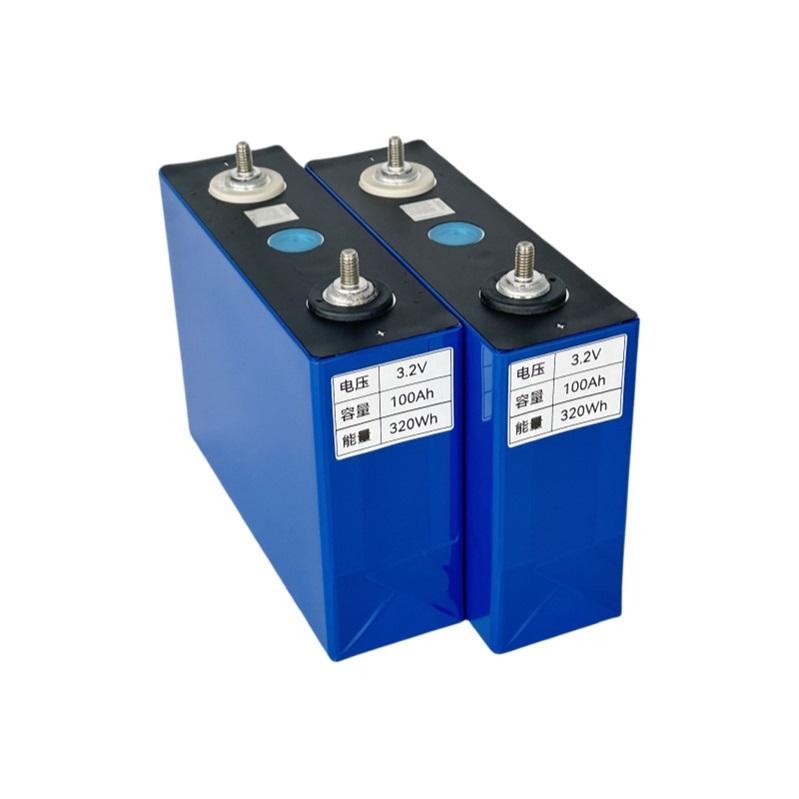

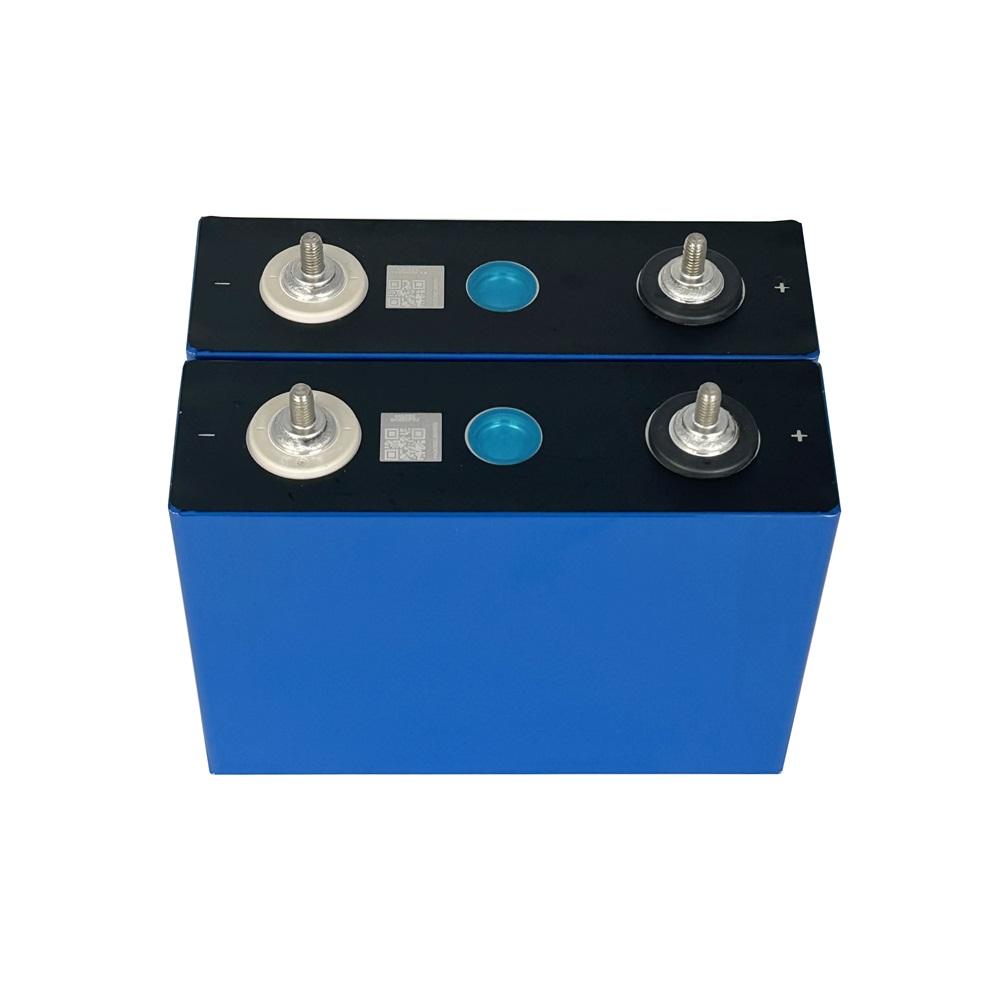

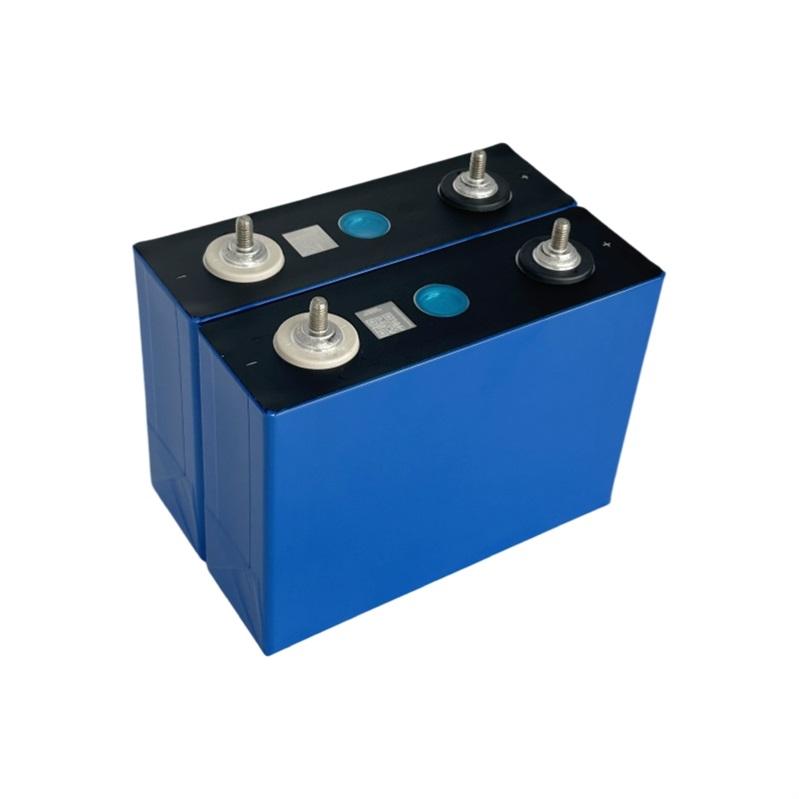

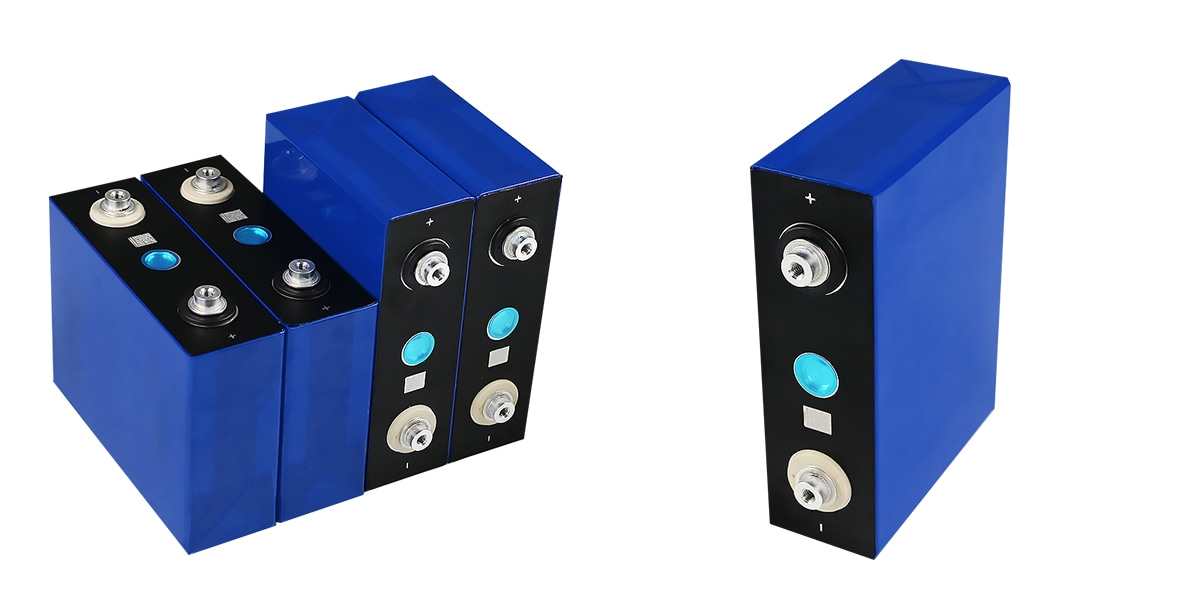

EVE LF100LA 3.2V 100Ah 320wh prismatic LFP cell with Aluminum Shell ≥4000 cycle Rechargeable for RV,EV,Golf carts,ESS,and solar system.etc.The battery can be used as lead-acid to lithium
Description

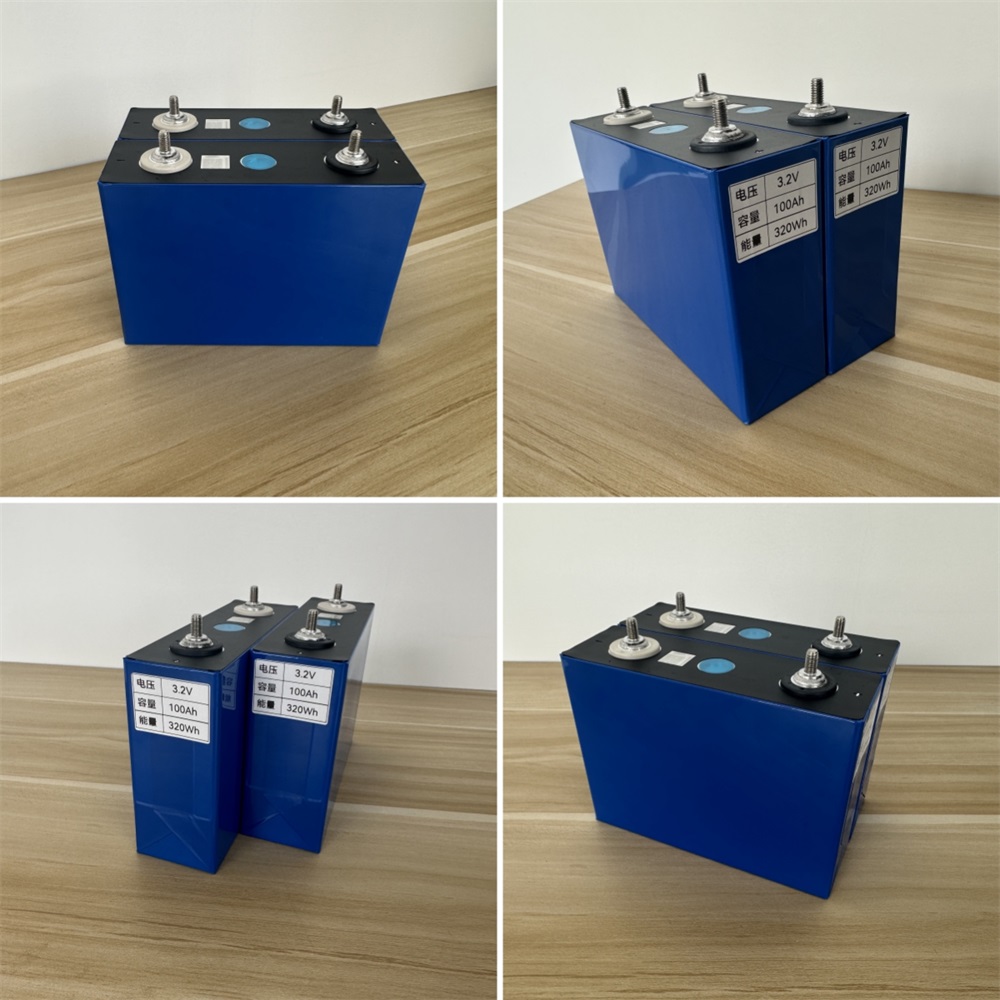

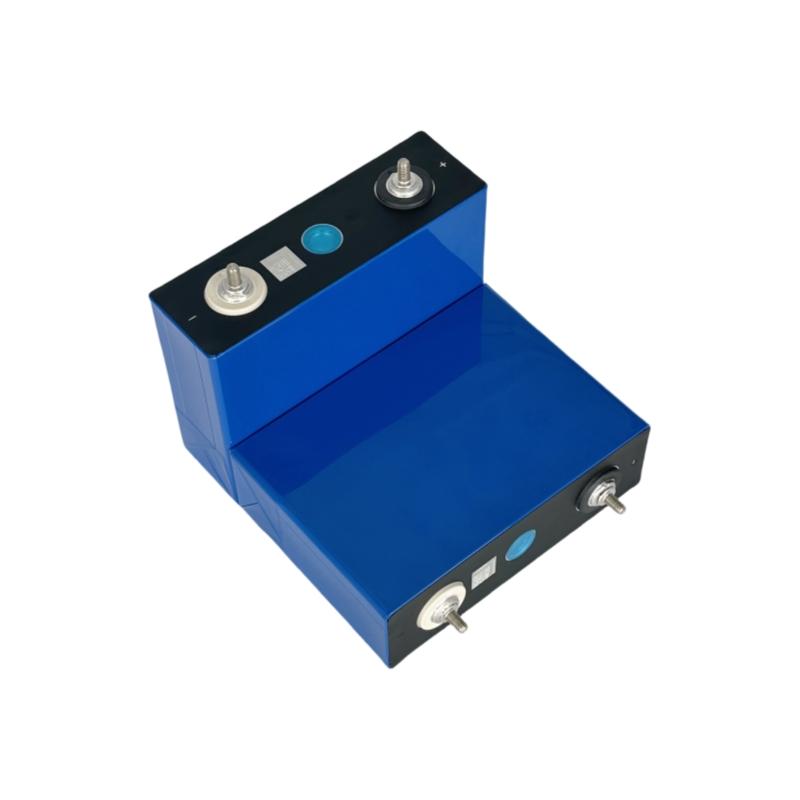

EVE LF100LA prismatic 3.2v 320wh 100ah lifepo4 LFP lithium cell with Aluminum Shell ≥4000 cycle Rechargeable for RV, EV, Golf Carts, ESS, and solar system. etc. The battery can be used as lead-acid to lithium.
Intelligent factory design, and high-performance consistency.
Square aluminum shell structure, high precision explosion-proof valve, high safety performance.
Low internal resistance, high discharge rate, and stable discharge platform.
Long cycle life, capacity retention rate over 80% after 4000 cycles at 1C/1C. Green environmental protection
Parameter | Specification |
Battery Brand | EVE |
Battery Model | LF100LA |
Min. Capacity | 100Ah |
Min. Energy | 320wh |
Initial internal resistance | ≤0.5mΩ |
Nominal Voltage | 3.2V |
Charging Cut-off Voltage | 3.65V |
Discharging Cut-off Voltage | 2.5V (T>0℃), 2.0V (T≤0℃) |
Standard Charge Current | 50A(0.5C) |
Max. Constant Charge/discharge Current | 100A 1.0C |
Max. Pulse charging/discharging Current | 200A 2C(30s) |
Cycle Life | 4000 Cycles @80% DOD |
Charging Temperature | 0℃~55℃ |

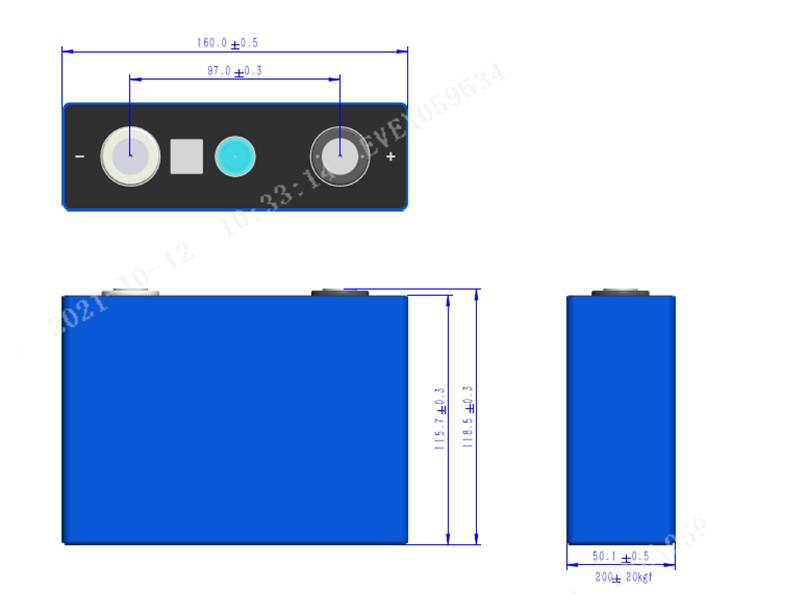

Dimension | 118.5+0.50*160+0.50*50.1+0.5mm |
Weight | 1.98+0.05 kg |
Encapsulation mode | U-shaped capsule |
Discharging Temperature | -20℃~55℃ |
Each weld service includes a complimentary set of busbars, bolts, and washers per cell.

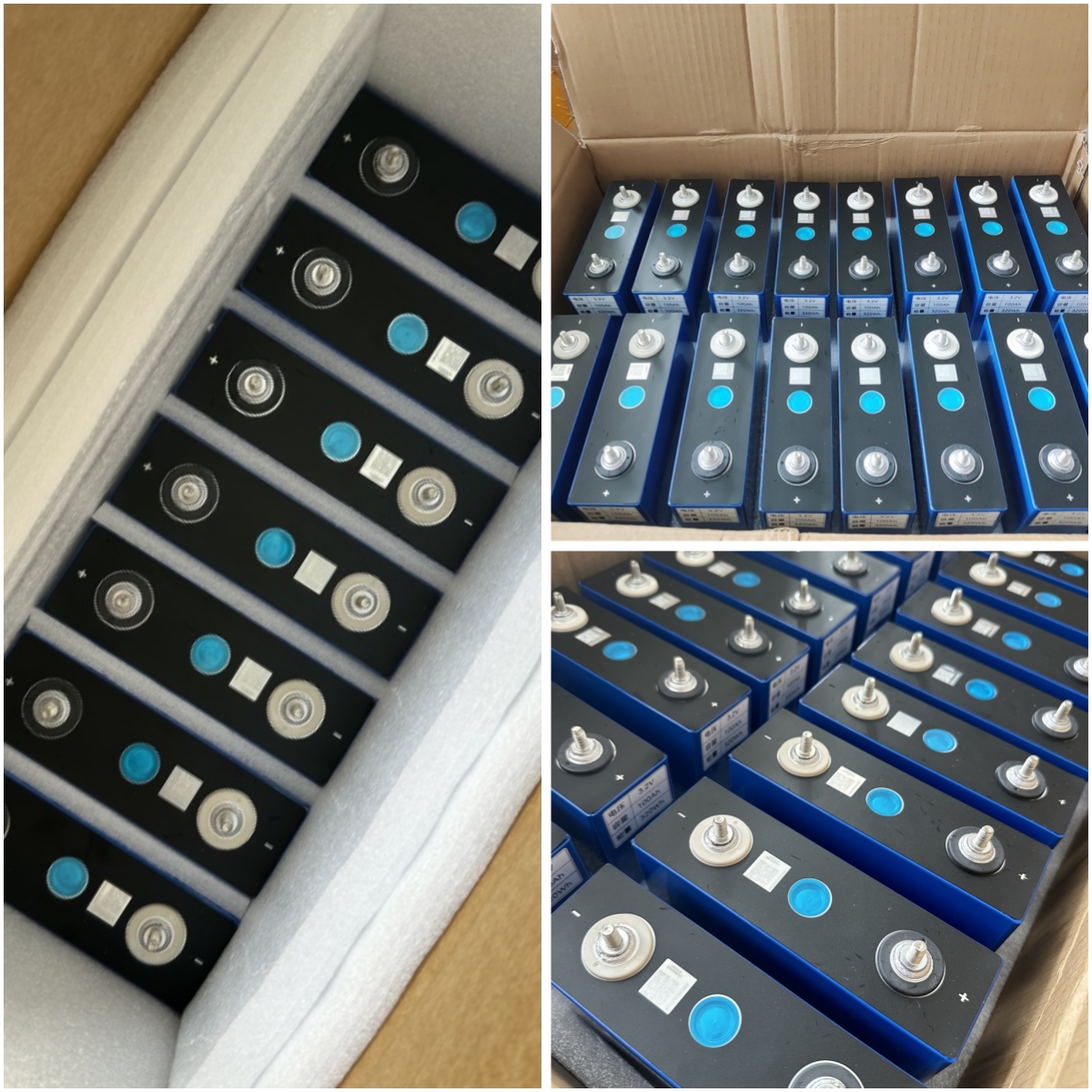

Prior to delivery, we ensure all cells are matched in terms of capacity, voltage, and resistance.

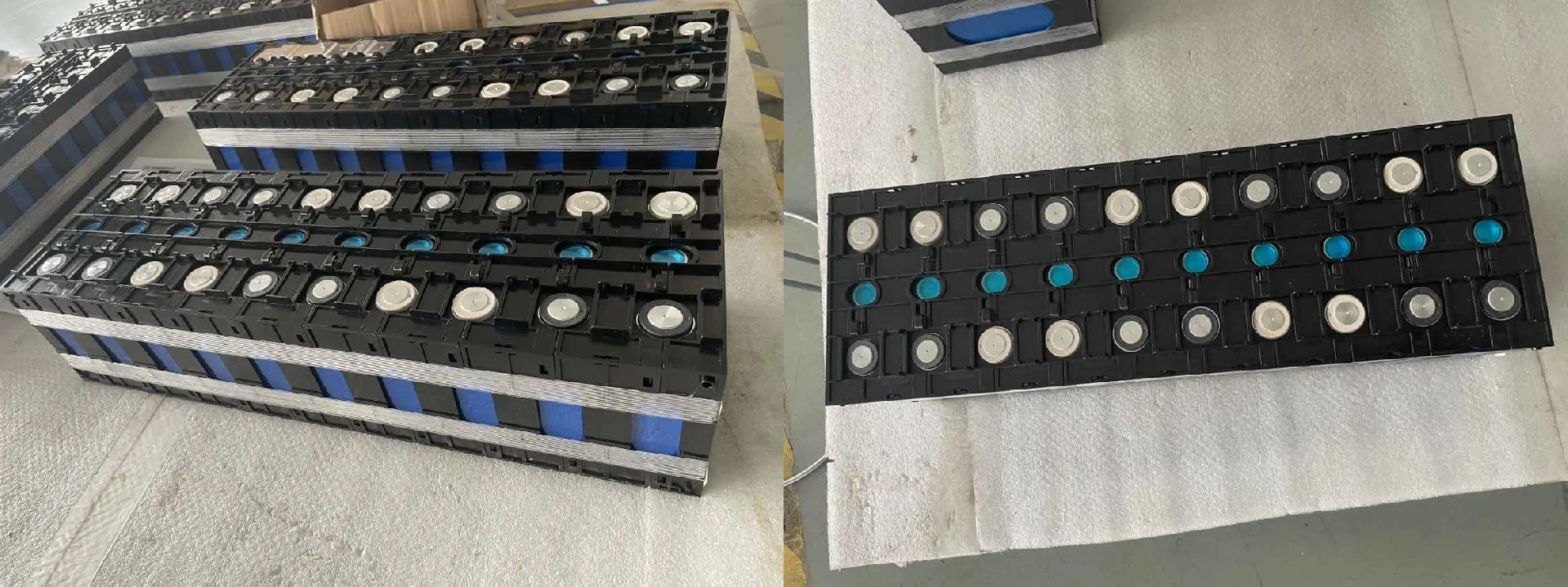

Additionally, we offer customized plastic holders for effortless connection in constructing battery modules.
It is strictly forbidden to immerse the battery in water, when it is not in use, it should be placed in a cool and dry environment. It is forbidden to use and leave the battery next to heat and high temperature sources, such as fire, heater, etc.
Please use a special charger for lithium-ion batteries when charging.
During usage, it is strictly prohibited to reverse the positive and negative terminals of the battery.
Do not throw the battery in the fire or heater.
It is forbidden to use metal to directly connect the positive and negative terminals of the battery to short-circuit.It is forbidden to transport or store the battery with metal, such as hairpins, necklaces, etc.
It is forbidden to knock or throw, step on, or bend the battery.
lt is forbidden to directly weld the battery or pierce the battery with nails or other sharp objects is forbidden to use or place the battery under high temperatures (under hot sunlight, otherwise it may cause the battery to overheat fail to function, and shorten its life.
It is forbidden to use it in places with strong static electricity and strong magnetic fields; otherwise it will easily damage battery safety protection device and bring hidden dangers of safety.
If the battery leaks and the electrolyte splashes on the skin or clothes,immediately wash the affected area with running water.If the battery leaks and the electrolyte enters the open parts of the human body such as the eyes, mouth, nose, etc., immediately rinse the eyes with a large amount of water and send to a doctor for treatment immediately, otherwise it will cause serious harm to the human body.
If the battery emits peculiar smell, heat, discoloration, deformation, or any abnormality during use, storage, or charging immediately remove the battery from the device or charger and stop using it.
