Details

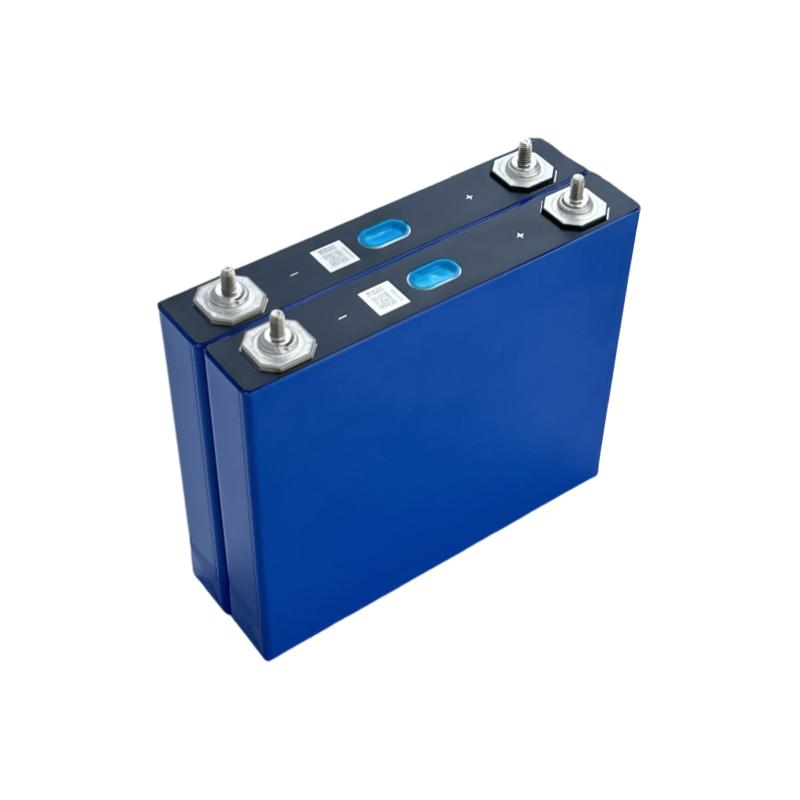

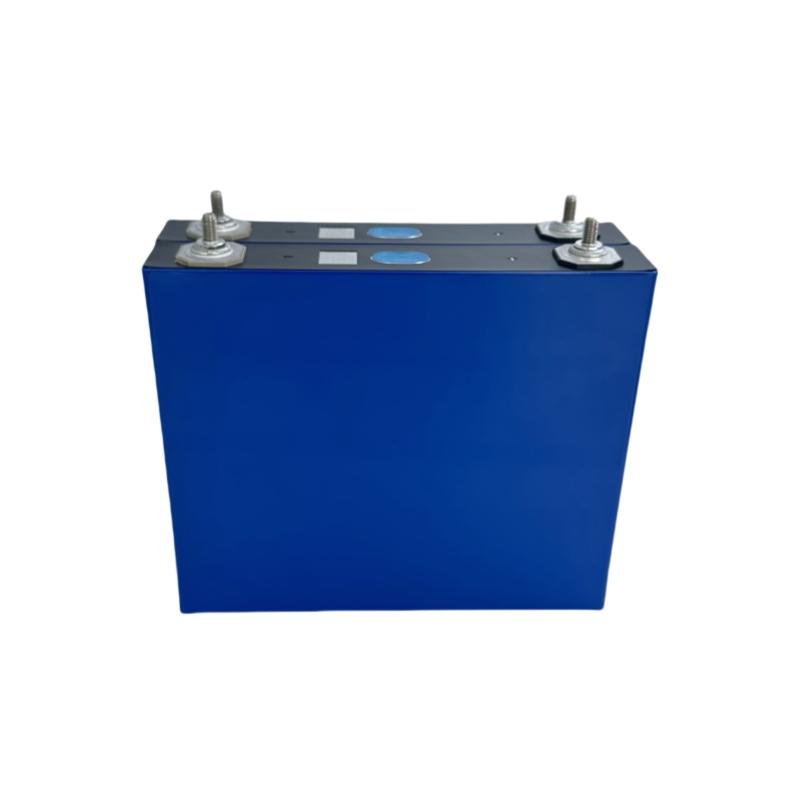

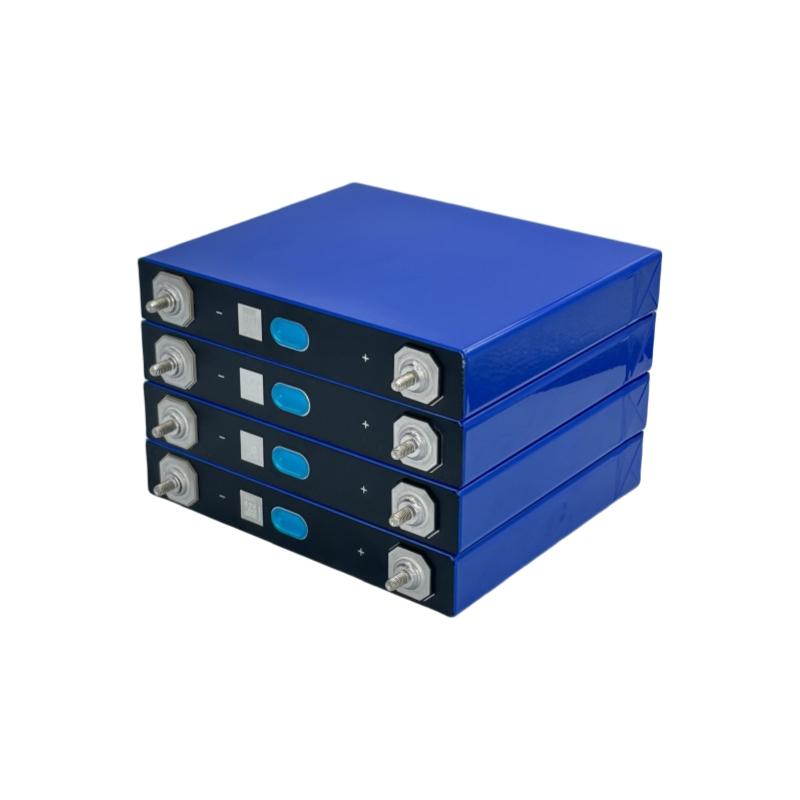

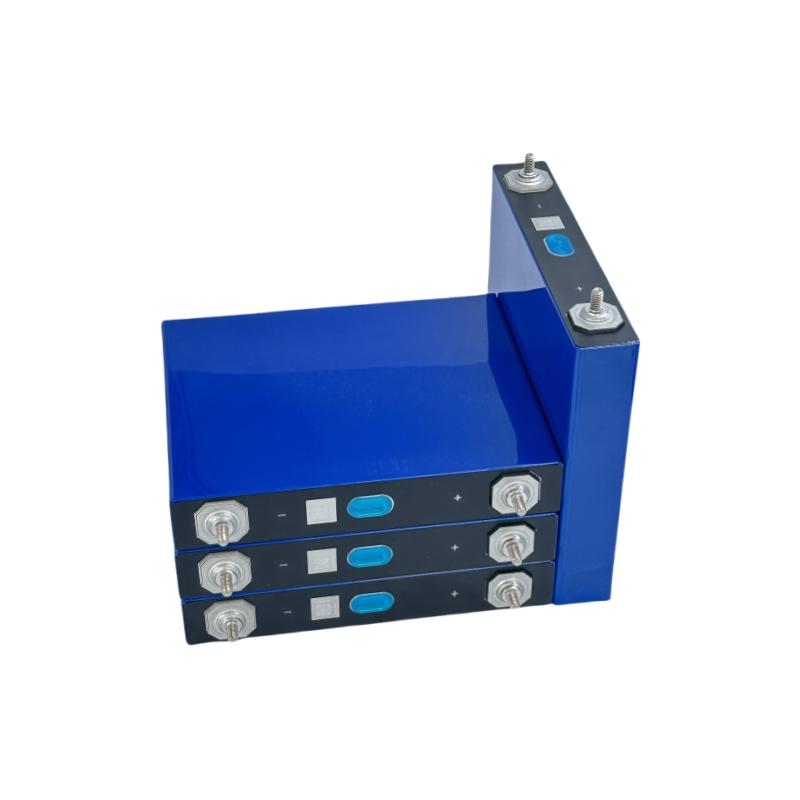

EVE LF125P 3.2V 125Ah lifepo4 prismatic cells 3C high discharge rate for Commercial vehicles, heavy trucks, light trucks
Description

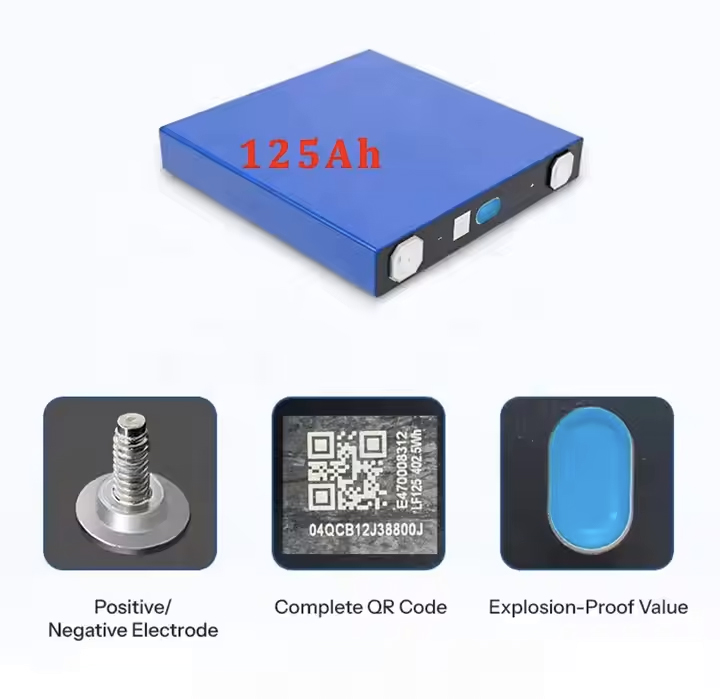

Automated:Automated production / Product consistency
Ultra-Safe:Explosion-proof / No leakage
Stable:Low IR / High CR / Discharge steadily
Customized Custom-made:Customer Demand Customization
Super Long:Ultra-long life cycle
Environmentally Friendly:Passed environmental system certification
Parameter | Specification |
Nominal Capacity | 125Ah |
Nominal Voltage | 3.22V |
Initial IR | 0.40mΩ±0.05mΩ |
Weight | 2390g±71g |
Charging Cut-off Voltage | 3.65 V |
Discharging Cut-off Voltage | 2.5 V T>0℃;2.0V T≤ 0℃ |
Charging Temperature | -10℃~65℃ |
Discharging temperature | -35℃~65℃ |
Storage Temperature | -20℃~45℃ |
Model Name | LF125P |
Cycle Life | 4000 Cycles |
Standard Charging/Discharging Current | 125A |
Maximum continues Charging/Discharging current | 375A,3C 25±2°C |
Maximum instantaneous Charging current | 500A,30s,≤ 40% SOC,25℃± 2℃ |
Maximum Instantaneous Discharging Current | 625A,30s,≥ 30% SOC,25℃±2℃ |

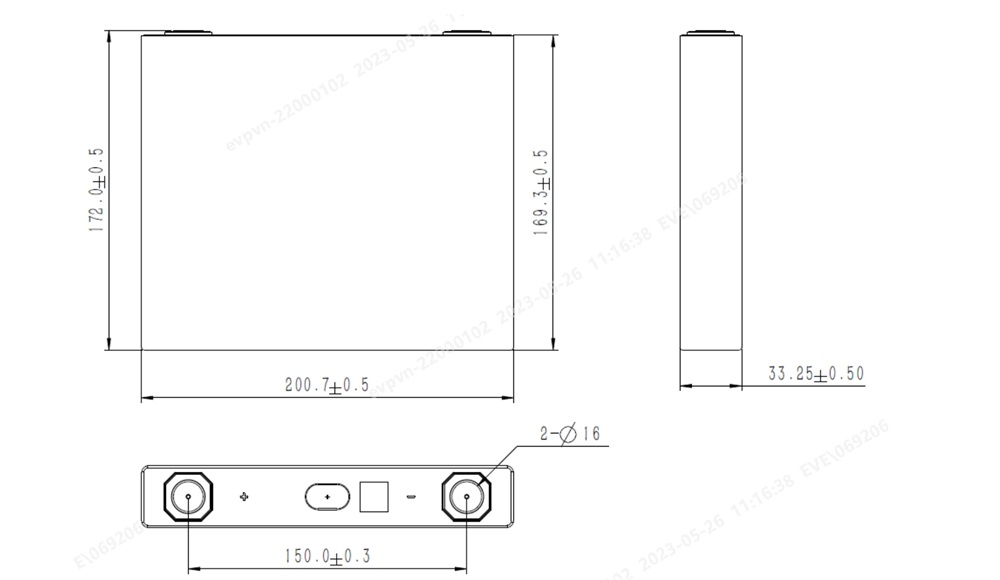

Height(H) with terminal | 172.00 mm±0.50 mm |
Height(h) without terminal | 169.30 mm±0.50 mm |
Length | 200.70 mm±0.50 mm |
Thickness | 33.25 mm±0.50 mm |

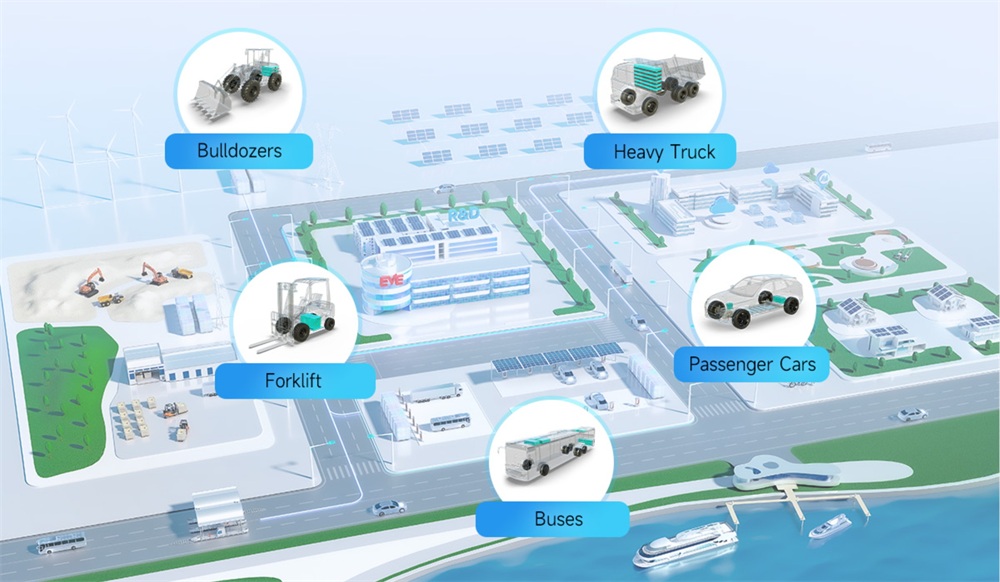

Excavators, heavy trucks, forklifts, passenger cars,bulldozers, heavy trucks, forklift, buses, and passenger cars

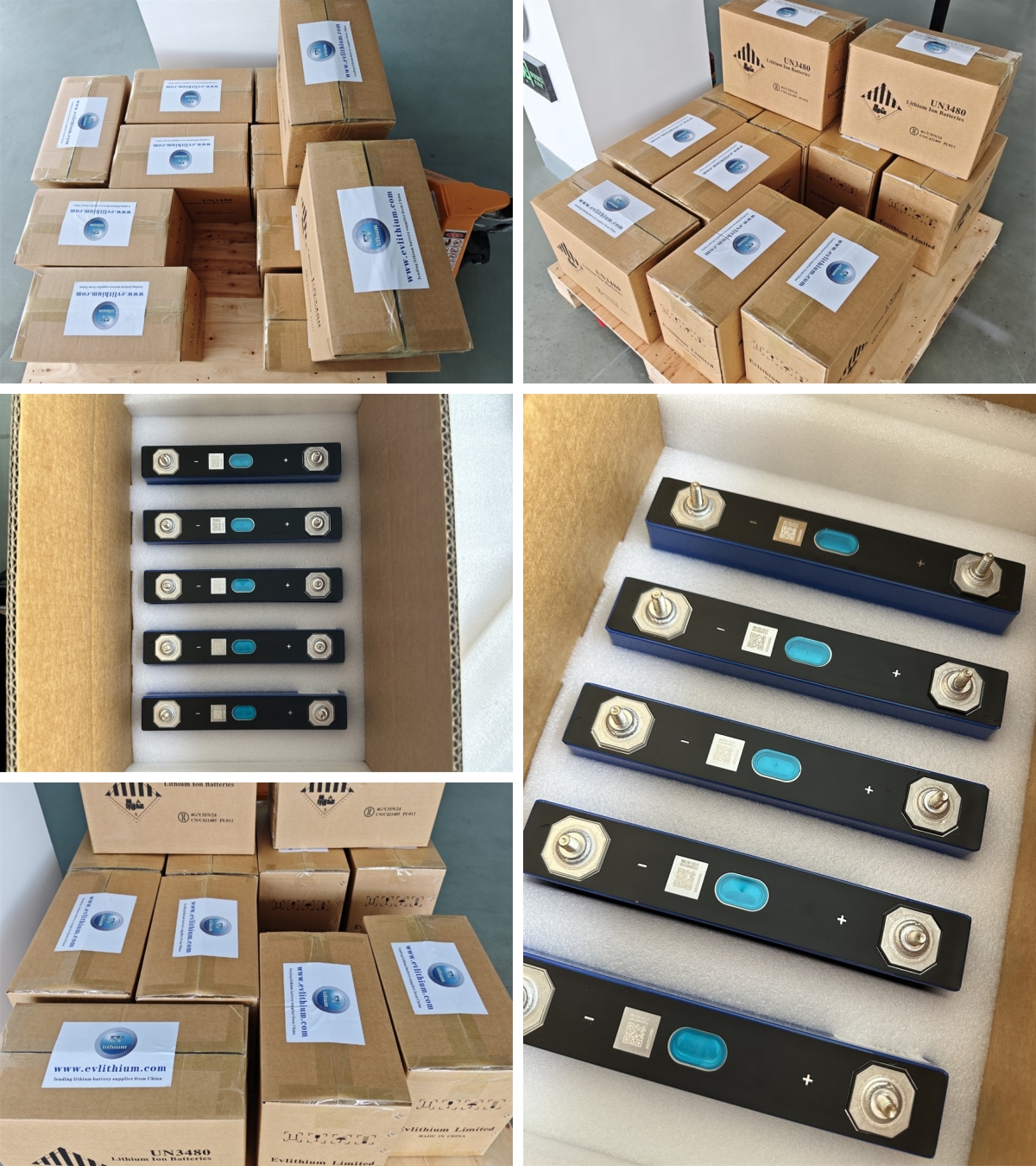

It is not allowed to ship with inflammable, explosive, and corrosive articles in the same vehicle during transportation, and stacking is prohibited during large package transportation; The product shall not be exposed to rain, snow and other liquid substances without any protection, or suffer mechanical damage;
While handling, lift trucks or special tools shall be used to load and unload products; Handle with care, do not throw or squeeze, which may cause cell damage or personal injury. It is strictly prohibited to put cells together with corrosive substances such as acid and alkali.
