Brand New Grade A EVE LF304 3.2V 304Ah prismatic lithium iron phosphate LFP lithium lifepo4 battery cell for electric vehicle,power tools,e-scooters,RV,yacht,energy storage, etc.
Description
Brand New Grade A EVE LF304 3.2V 304Ah prismatic lithium iron phosphate LFP lithium lifepo4 battery cell for electric vehicle, power tools, e-scooters, RV, yacht, energy storage, etc.
A Grade, New, with all test report
Highly safe, no fires, no explosions.
High Power Performance
High Energy Density
High Gravimetric and Volumetric Power Density
Long Cycle life
Items | Parameters |
Model Number | EVE-LF304 |
Nominal Voltage | 3.2V |
Nominal Capacity | 304Ah |
Cycle Life(25°C) | >3500 cycles |
Cycle Life(45°C) | >1800 cycles |
Working Voltage | 2.5-3.65V |
Internal Resistance | ≤0.5mΩ |
End of discharge Voltage | 2.5V |
Charge Method | CC/CV |
Standard Charge/Discharge Current | 0.5C/0.5C |
Continuous Charge/Discharge Current | 1C/1C |
Pulse Charge/Discharge Current（30s） | 2C/2C |
Recommended SOC window | 10%-90% |
Charging Working Temperature | 0℃-60℃ |
Discharging Working Temperature | -30℃-60℃ |

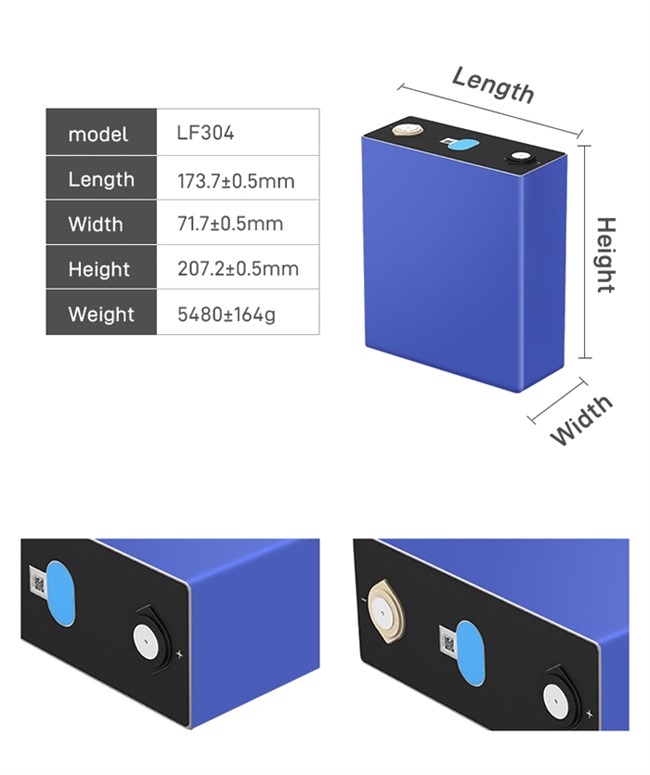

Dimensions(mm) | L173.5*W72.0*H208.8mm |
Weight | 5.49KGS |
Shell Material | Aluminum |
