EVE LF50L 3.2V 50Ah LiFePO4 Battery Prismatic LFP Cell

  • EVE LF50L 3.2V 50Ah LiFePO4 Battery
  • EVE LF50L 3.2V 50Ah LiFePO4 Battery
  • EVE LF50L 3.2V 50Ah LiFePO4 Battery
  • EVE LF50L 3.2V 50Ah LiFePO4 Battery

Details

Brand new Grade A quality EVE LF50L 50ah lifepo4 battery prismatic lfp cell

Description

Brand new Grade A quality EVE LF50L 3.2v 50ah lifepo4 battery, perfectly flat without bulge, with excellent voltage and impedance.

Specification

Item

Specifications

Battery Type

LFP

Rated Capacity

50Ah; 0.5C 25℃±2℃ 2.5-3.65V

Rated Energy

160Wh; 0.5C 25℃±2℃ 2.5-3.65V

Nominal Voltage

3.2V; 0.5C 25℃±2℃ 2.5-3.65V

ACR

≤0.5mΩ; AC 1kHz 25%SOC

Weight

1060±50 g

Charging Cut-off Voltage

3.65V

Discharging Cut-off Voltage

2.5 (0℃<T≤65℃)

2.0 (-20℃<T≤0℃)

Standard Charging/Discharging

Current

0.5C/0.5C; 25℃±2℃

Maximum continuous

charging/discharging current

1C; 25℃±2℃

Cycling Performance

5000 Cycles 0.5C/0.5C; 25℃ Standard Cycle

2000 Cycles 0.5C/0.5C; 45℃ Standard Cycle

Operation

Temperature

0~65℃; Charging temperature

-20~65℃; Discharging temperature

Energy Efficiency

25℃, Energy Efficiency

Dimension

Terminal Height(H): 100.2±0.5mm

Shoulder Height(h): 97.6±0.5mm

Width (L): 148.6±0.8mm

Thickness(T): 39.7±0.5mm (200kgf; Delivery SOC)

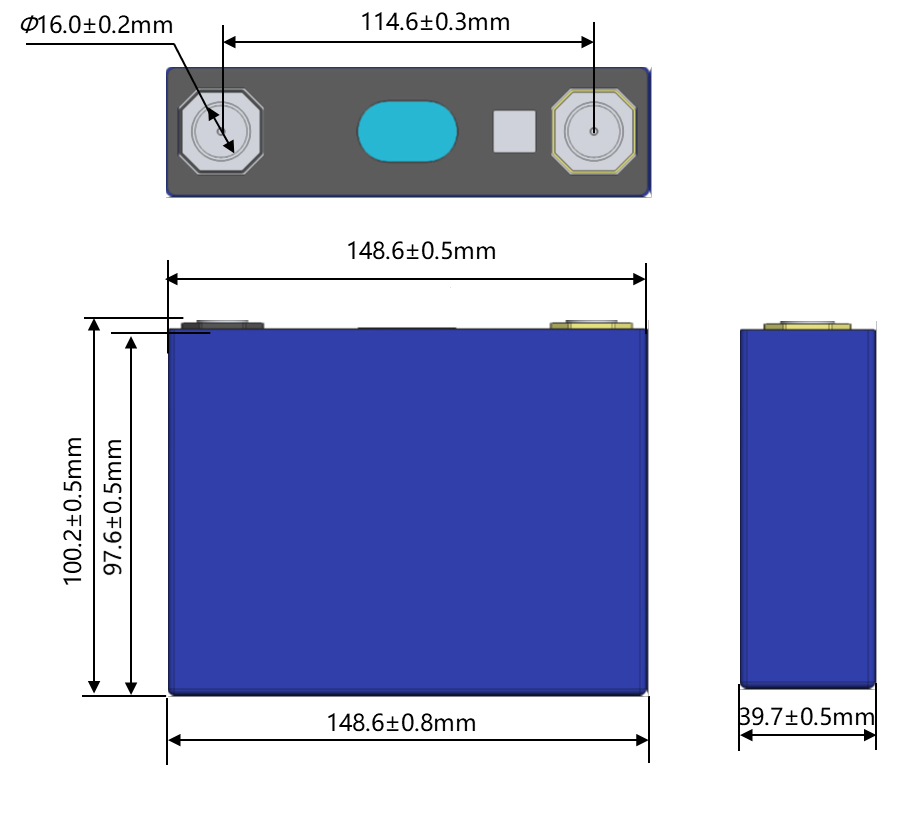

Dimension and Detail

Dimension of EVE LF50L 3.2V 50Ah LiFePO4 Battery

EVE LF50L 3.2V 50Ah LiFePO4 Battery

Attentions

1. Do not immerse the battery in water and keep it dry when not using;

2. Do not strike, throw or subject the battery near a fire or in extremely hot conditions

3. Charge with specified charge according to charging requirement

4. Do not reverse the positive (+) and negative (-) terminals;

5. Do not put the battery into a fire or apply direct heat to it

6. Do not short-circuit the battery by connecting wires or other metal objects to the positive (+) and negative (-) terminals;

7. Do not ship or store the battery metal objects, such as necklaces, hairpins, etc

8. Do not knock, throw, tread, bend, etc

9. Do not directly solder the battery terminals;

10. Do not pierce the battery casing with a nail or other sharp object.

EVE LF50L 3.2V 50Ah LiFePO4 Battery
