Details

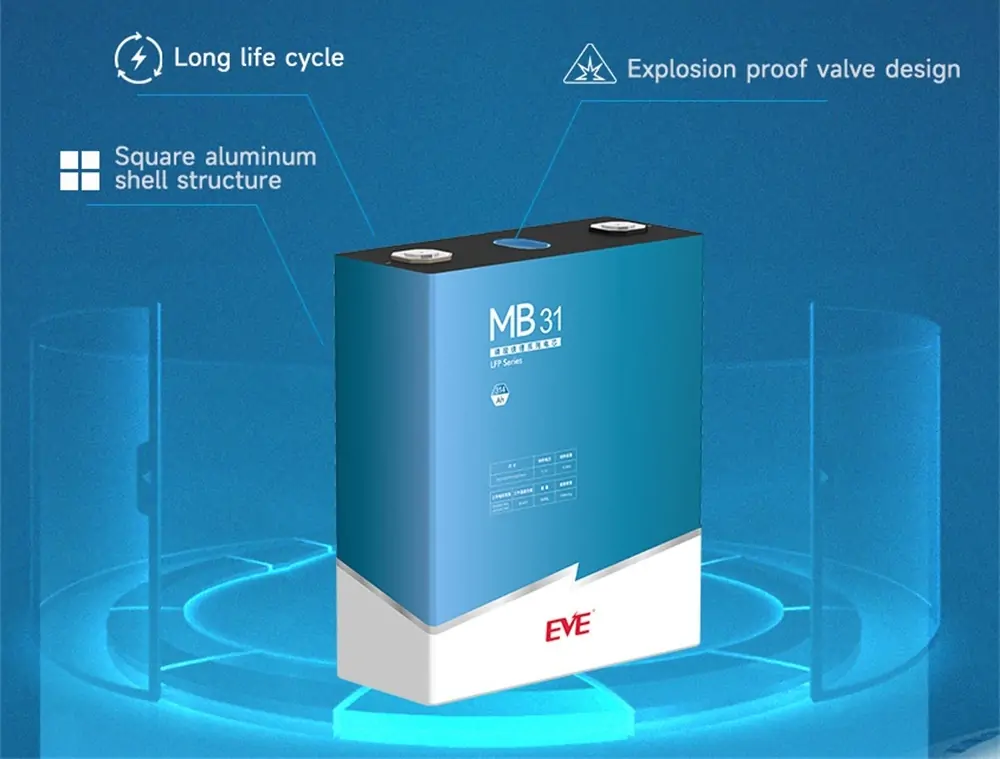

EVE MB31 3.2V 314Ah LiFePO4 Battery Prismtaic LFP Cell with long life cycle of up to 8000 cycles for ess
Description
Automated: automated production/Product consistency
Ultra-Safe: Explosion-proof / No leakage
Stable: Low IR / High CRD/ Discharge Steadily
Customized: Customer Demand Customization
Super Long: Ultra-long life cycle
Environmentally Friendly: Passed environmental/system certification
| Item | Specification |
| Nominal Capacity | 314Ah |
| Nominal Voltage | 3.2V |
| Initial IR | 0.18mΩ±0.05mΩ |
| Weight | 5 600g±300g |
| Charging Cut-off Voltage | 3.65V |
| Discharging Cut-off Voltage | 2.5V T>0℃ 2.0V T≤0℃ |
| Charging Temperature | 0~60℃ |
| Discharging Temperature | -30~60℃ |
| Storage Temperature | 0~35℃ |
| Model Name | MB31 |
| Cycle Life | 8000 Cycles |
| Standard Charging Power | 0.5P |
| Standard Discharging Power | 0.5P |

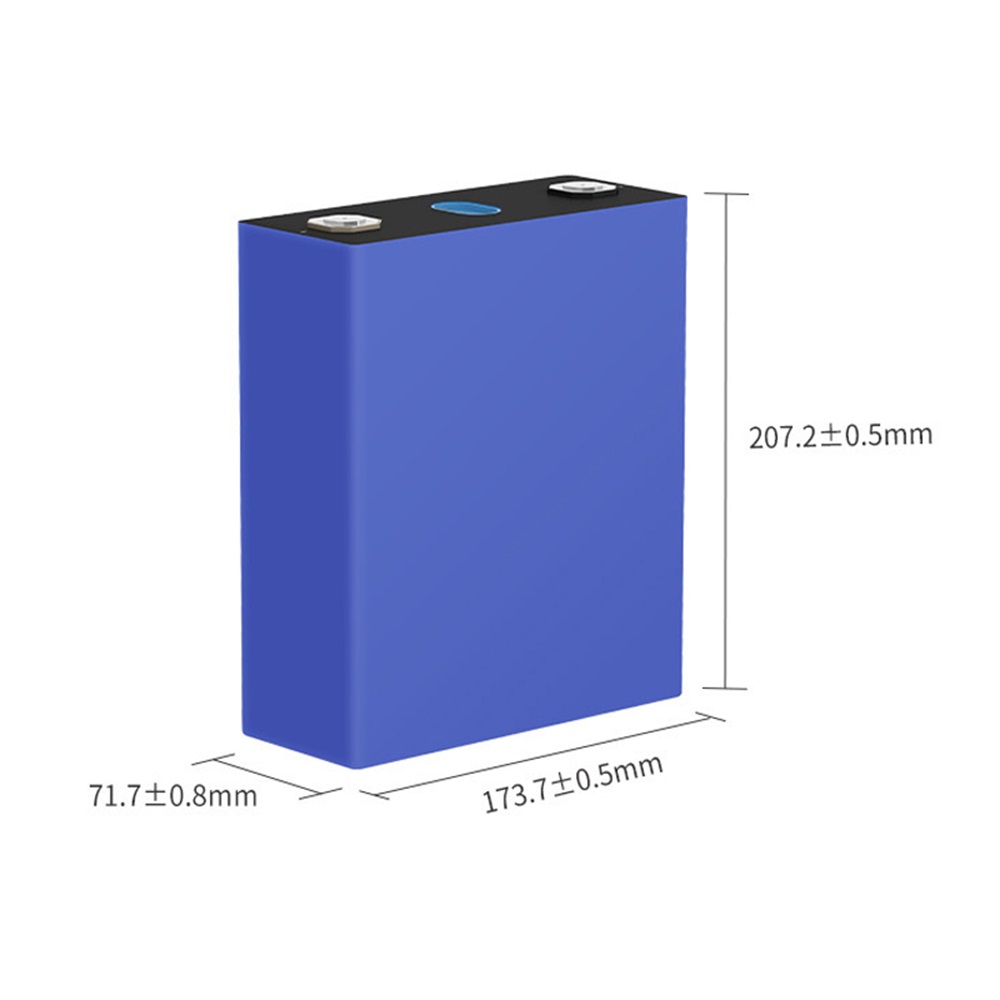

| Height(H) with terminal | 207.2mm±0.5mm |
| Height(h) without terminal | 204.6mm±0.5mm |
| Length | 173.7mm±0.5mm |
| Thickness | 71.7mm±0.8mm |
Long Life Cycle
Ultra-Safe
Square aluminum shell structure | Explosion-proof | No leakage
Stable
Low Internal Resistance√ | High Charge Rate√ | Discharge Steadily√
The Prismatic LFP Cell is widely used in the following scenarios.Please consult online customer service for specific models
