Details
GanFeng GFB 3.2V 173Ah 41173204-173Ah Lithium LiFePo4 LFP Prismatic Battery Cell.Welding terminal post service is available. Please specify your requirements when placing an order if needed.
Description
Industrial lithium cell with high energy density, made on the safe LiFePO4 technology, capacity 173Ah, Nominal voltage 3.2V, and operational voltage is 2.8-3.65V. This battery cell is suitable for all traction applications, including passenger cars. It fully complies also for stationary applications, such as energy storage.
Low weight, High capacity
Extended Cycle life
Low Self Discharge
Superior Cranking Power
Completely Sealed
Environmental
| Item | Parameter |
| Nominal Capacity | 173Ah(25±2℃) |
| Typical Voltage | 3.2V |
| Impedance Resistance (1KHz) | ≤0.40mΩ |
| Standard Charge / Discharge Current | 0.5C/0,5C |
| Standard Charge Voltage | 3.65V |
| Discharge Cut-off Voltage | 2.50V(0℃＜T≤60℃) 2.00V(-20℃≤T≤0℃) |
| Max. Continuous Charge / Discharge Current | 1C/1C |
| Standard Charge / Discharge Temperature | 25±2 ℃ ambient temperature |
| Optimum Charging and Discharge Temperature | 20~30℃ |
| Operating Charging Temperature | 0~60℃ |
| Operating Discharging Temperature | -30~60℃ |
| Storage Temperature | -30℃-45℃(One month) -20℃~35℃(Six months) |
| Self-Discharge | ≤3.5%/monthFresh cell after 3 months, 40%SOC, 25±2°C Storage |

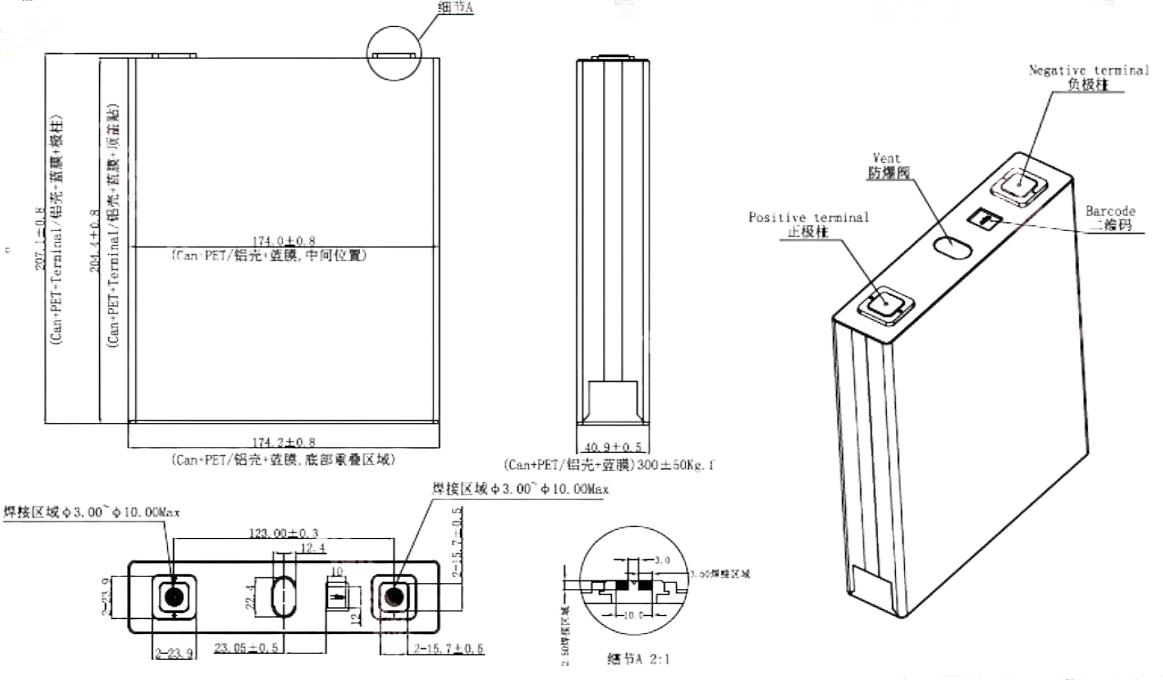

| Dimension（W*T*H） | 174.2±0.8*40.9±0.5*207.1±0.8mm |
| Weight | 3.23±0.10Kg |
| Cycle Life at 25℃ | 3000 Cycles@138.4Ah, 1C, 25±2°C |
1.Do not expose to, dispose of the battery in fire.
2.Do not put the battery in a charger or equipment with wrong terminals connected.
3.Avoid shorting the battery
4.Avoid excessive physical shock or vibration.
5.Do not disassemble or deform the battery.
6.Do not immerse in water.
7.Do not use the battery mixed with other different make,type,or model batteries.
8.Keep out of the reach of children.
