Details

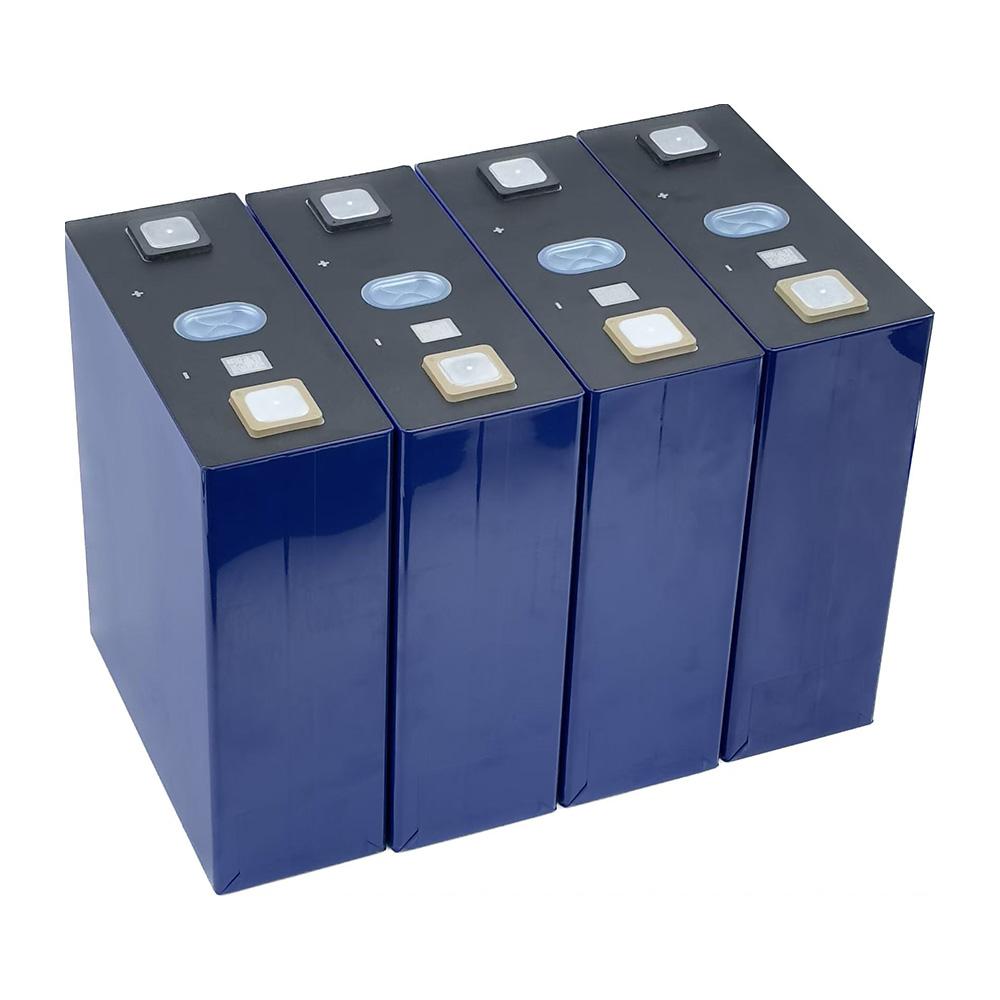

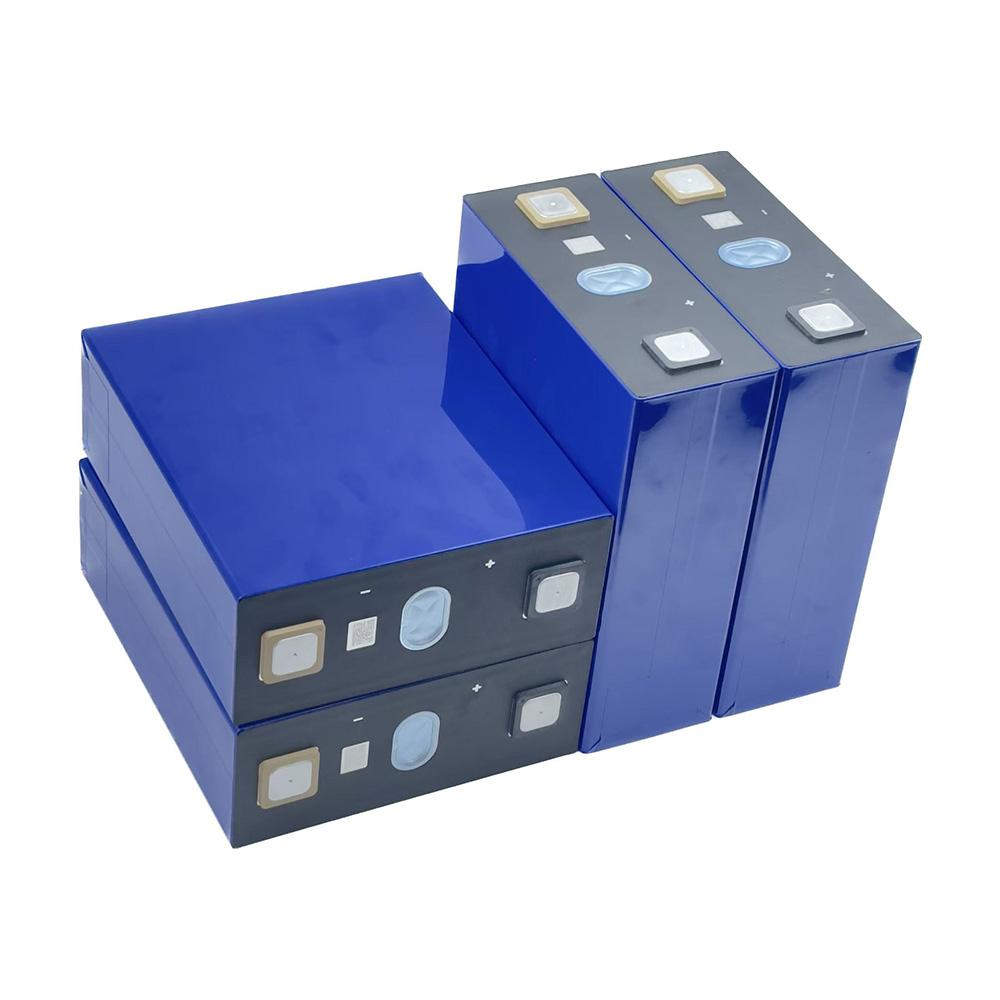

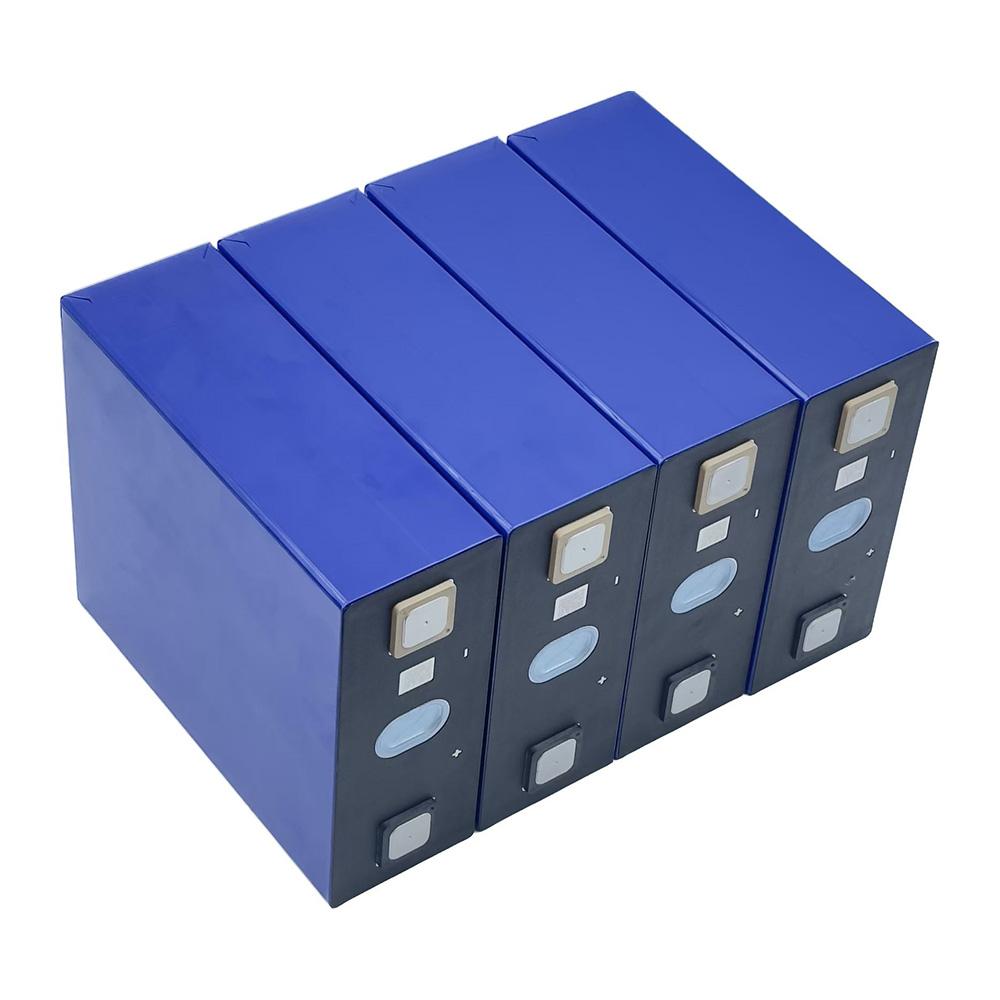

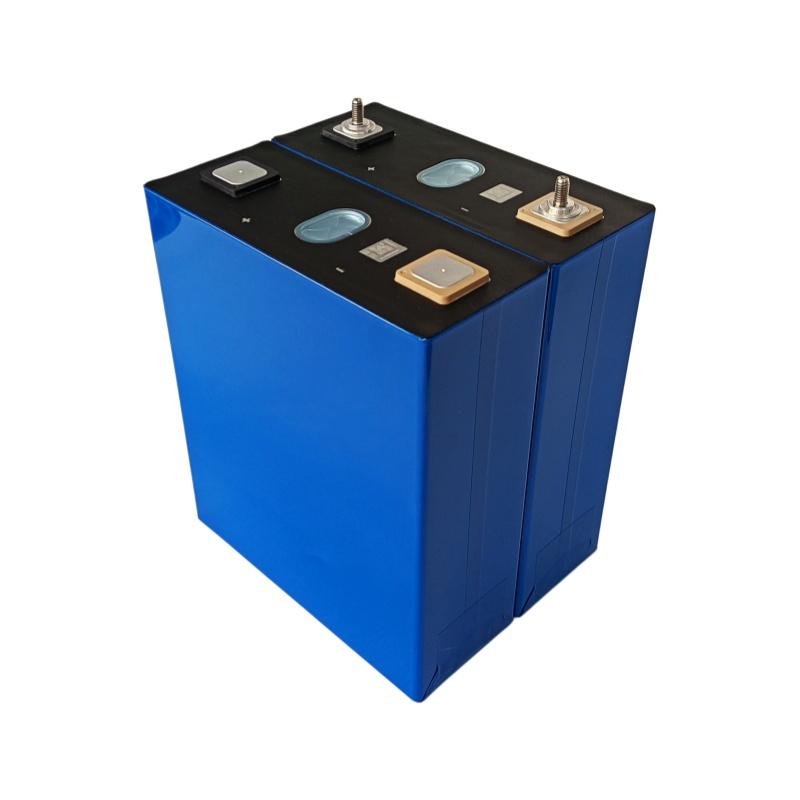

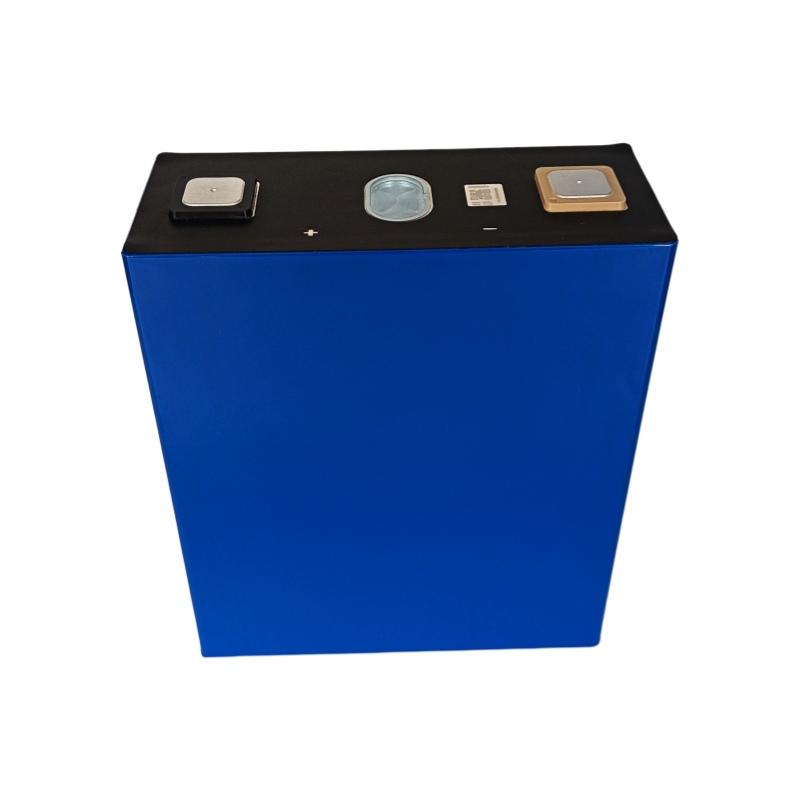

Ganfeng GFB 3.2V 280Ah LiFePO4 Battery Cell Ideal for high capacity, high safety and long life applications.
Description
Industrial lithium cell with high energy density, made on the safe LiFePO4 technology, capacity 280Ah, Nominal voltage 3.2V, and operational voltage is 2.8-3.65V. This battery cell is suitable for all traction applications, including passenger cars. It fully complies also for stationary applications, such as energy storage.

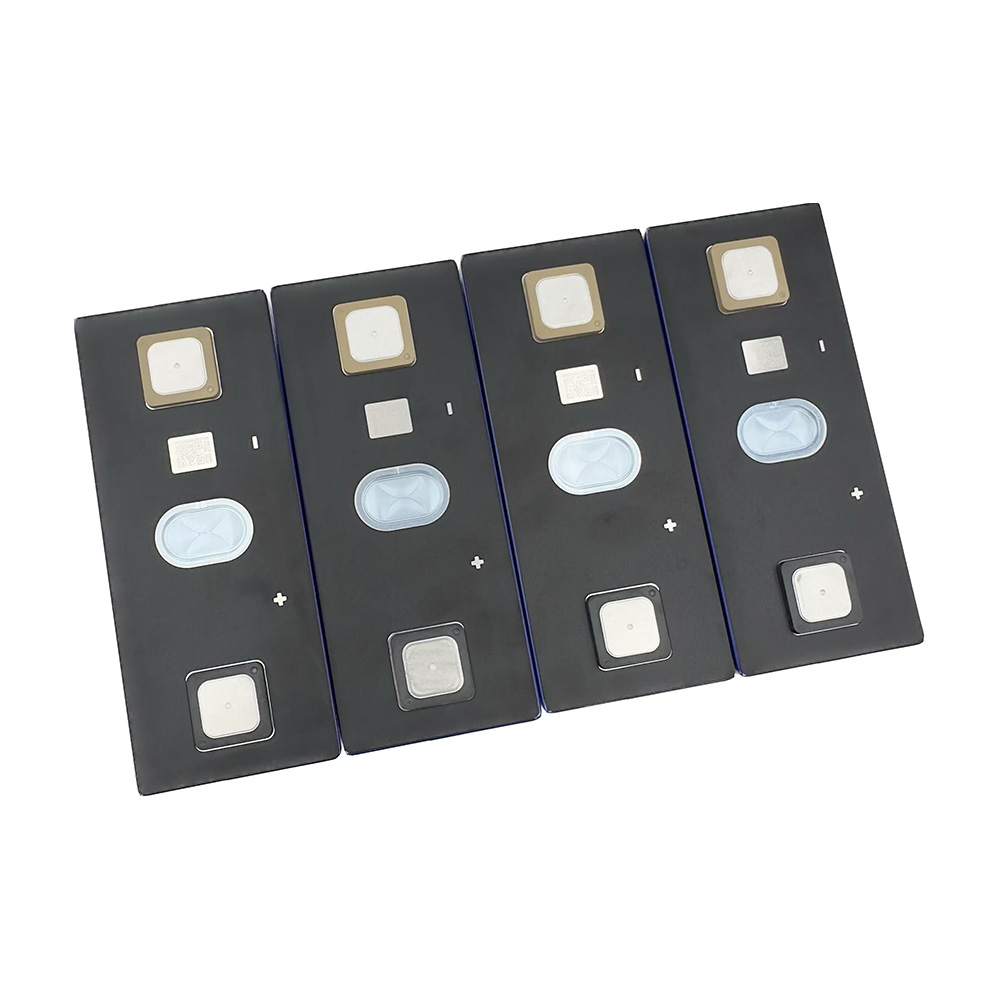

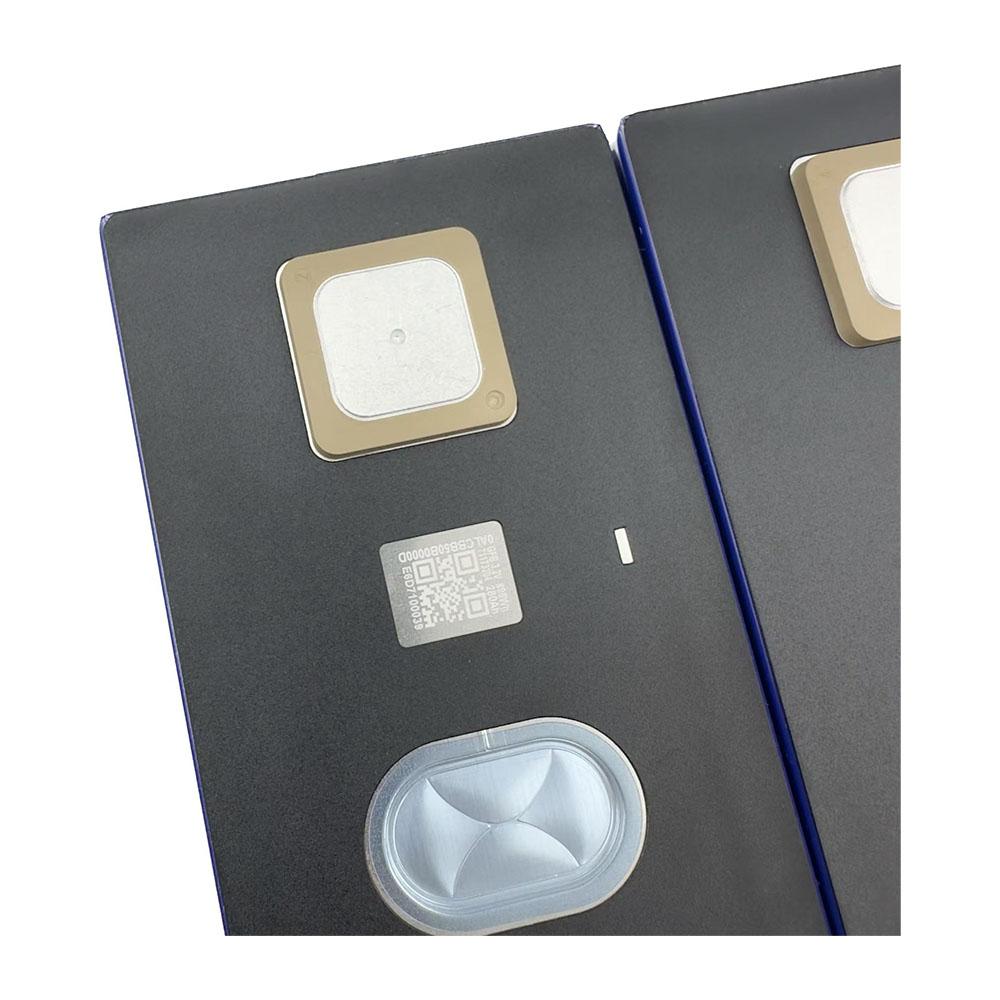

This is a Ganfeng 3.2V 280Ah LiFePO4 battery, 100% authentic A-grade and brand new, complete with factory QR code for verification.
We test each battery for voltage, internal resistance, and capacity before shipping.
Parameter | Specification | Remarks |
Typical Capacity | 280.0Ah | At a 1C discharge current (25±2℃) |
Operating Voltage | 2.50V~3.65V | 0℃＜T≤60℃ |
2.00V~3.65V | -20℃≤T≤0℃ | |
Impedance (1KHz) | ≤0.25mΩ | At a fresh state |
Shipping Capacity | 3~30%SOC | / |
Operating Temperature (Charging) | 0~60℃ | / |
Operating Temperature (Discharge) | -20~60℃ | / |
Weight | ≤5.6Kg | N.A. |
Self-discharge | ≤3.5%/month | Count after fresh cell need standard charge to 50%SOC and storage at 25±2°C for 3 month |
Standard Charge Current | 0.5C | 25±2℃ |
Standard Charge Voltage | Cell max voltage 3.65V | 25±2℃ |
Standard Discharge Current | 0.5C | 25±2℃ |
Maximum Discharge Current (Continuous) | 1.0C | N.A |
Maximum Discharge Current (Long Pulse) | 2.0C | 120 Seconds duration maximum followed by a ‘zero current rest period’ of same duration. |
Maximum Discharge Current (Short Pulse) | 3.0C | 60 Seconds duration maximum while cell temperature ≤ 50°C and SOC˃40%SOC; 10 seconds duration maximum while cell temperature ≤ 50°C and SOC≤40%SOC. |
Discharge Cut-Off Voltage | 2.50V | 0℃＜T≤60℃ |
2.00V | -20℃≤T≤0℃ | |
Standard Discharge Temperature | 25±2℃ | N.A |
Cycled Capacity | Cap. Retention*≥ 196Ah | Within 6000 cycles, 0.5C charge and discharge, temp. : 25±2°C 300±20Kgf preload. |
This is a Ganfeng 3.2V 280Ah LiFePO4 battery, 100% authentic A-grade and brand new, complete with factory QR code for verification.

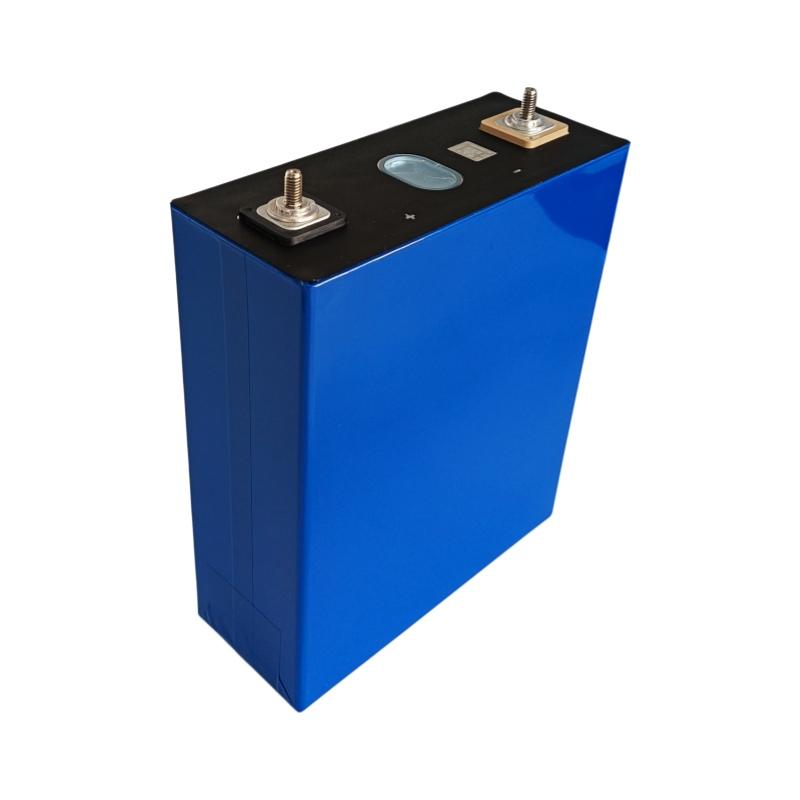

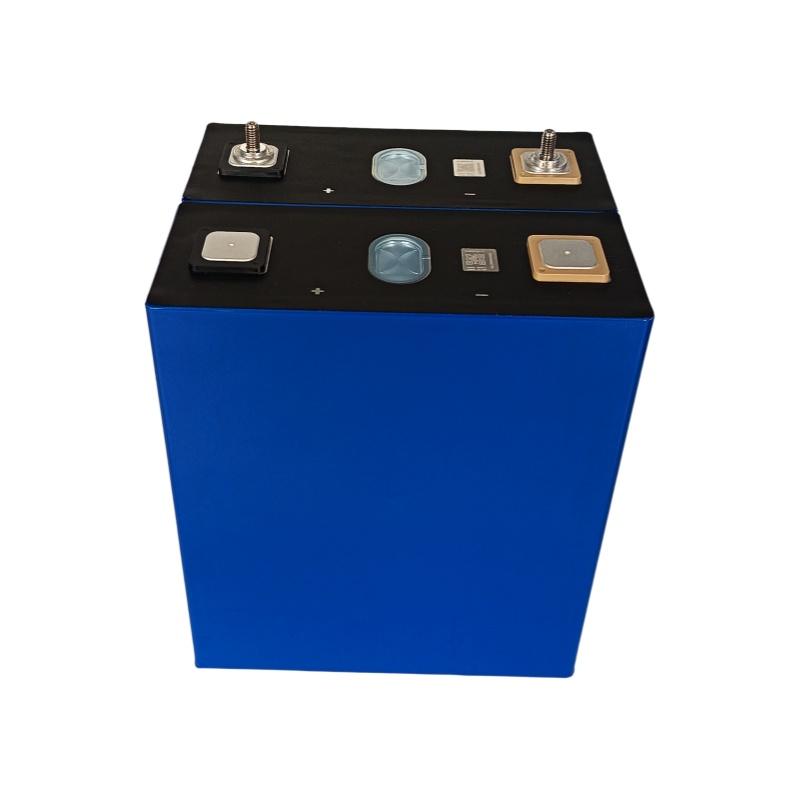

Price includes busbars and bolts. Each battery comes with one bus bar and two bolts (e.g., if you order 4 batteries, you'll receive 4 cells with 4 bus bars and 8 bolts). For additional parts, please contact us online. Thank you!
Bus bar dimensions: 90x20x2mm (copper plated with nickel); screw size: M6.

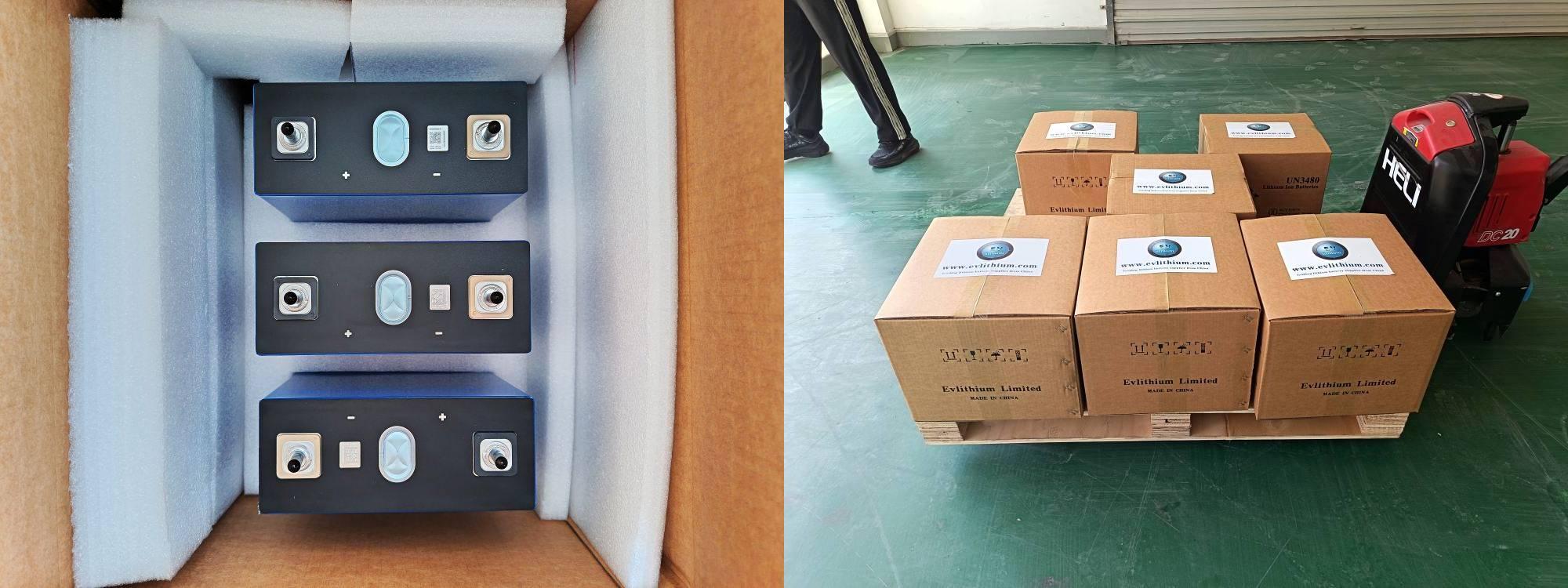

We test each battery for voltage, internal resistance, and capacity before shipping.
The 3.2V 280Ah lithium iron phosphate battery cell of Ganfeng Lithium Battery has significant advantages in capacity, safety, life, charging speed, etc., and is the ideal choice for high-capacity, high-safety, long-life applications.
1. High energy density: Can provide a high energy output. Its large capacity is still sufficient to meet the needs of most high-power applications.
2. High security: Excellent thermal and chemical stability. Extreme conditions significantly reduce the occurrence of thermal runaway and fire, such as power tools, electric vehicles and energy storage systems.
3. Long life: 280Ah large capacity and high life characteristics, so that it can maintain stable performance in long cycle use.
4. Wide temperature working range: Lithium iron phosphate battery has a wide operating temperature range, can work stably in a variety of environments, and is suitable for a variety of complex environmental conditions.
5. Fast charge and discharge performance: It has good charge and discharge efficiency, and can realize fast charge and high discharge rate.
6. Go green: The material is relatively environmentally friendly, does not contain toxic heavy metals (such as nickel, cobalt), and has good recyclability.
7. Low self-discharge rate: With a low self-discharge rate, it can maintain a long time of power stability without use.
8. Wide range of applications: The cells are widely used in electric vehicles (EVs), power tools, solar energy storage systems, UPS uninterruptible power supplies (UPS), and other applications with high power and high capacity requirements.
Electric forklift/electric vehicle/two-wheeled/three-wheeled/four-wheeled/ATV/Environmental protection vehicle) Pollutant discharge vehicle/sweeper/cutting green vehicle energy/base station/energy storage/RV/patrol vehicle/hand operation/inverter power storage battery pack
