Description

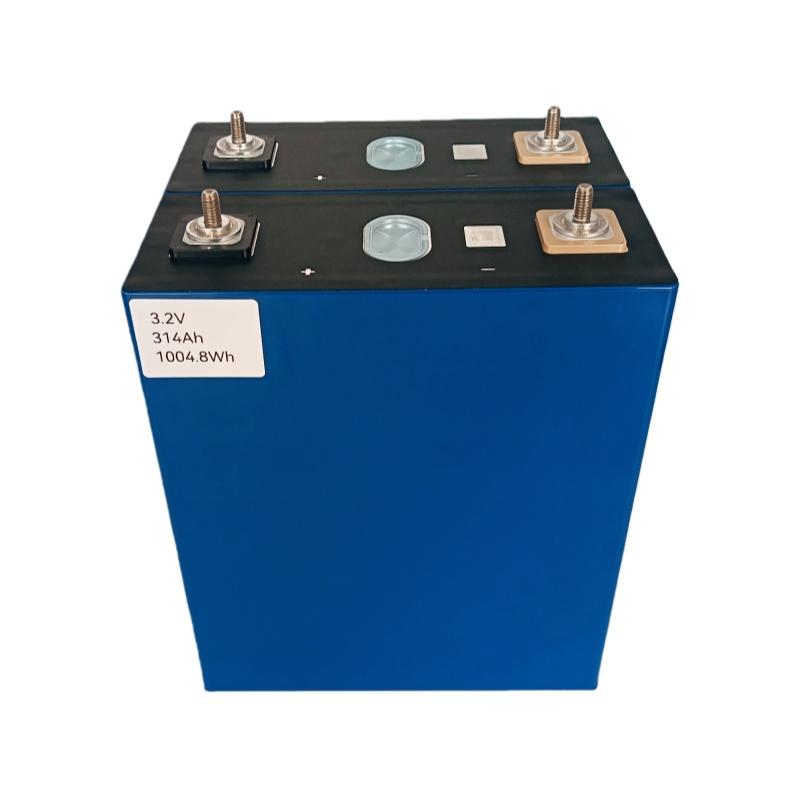

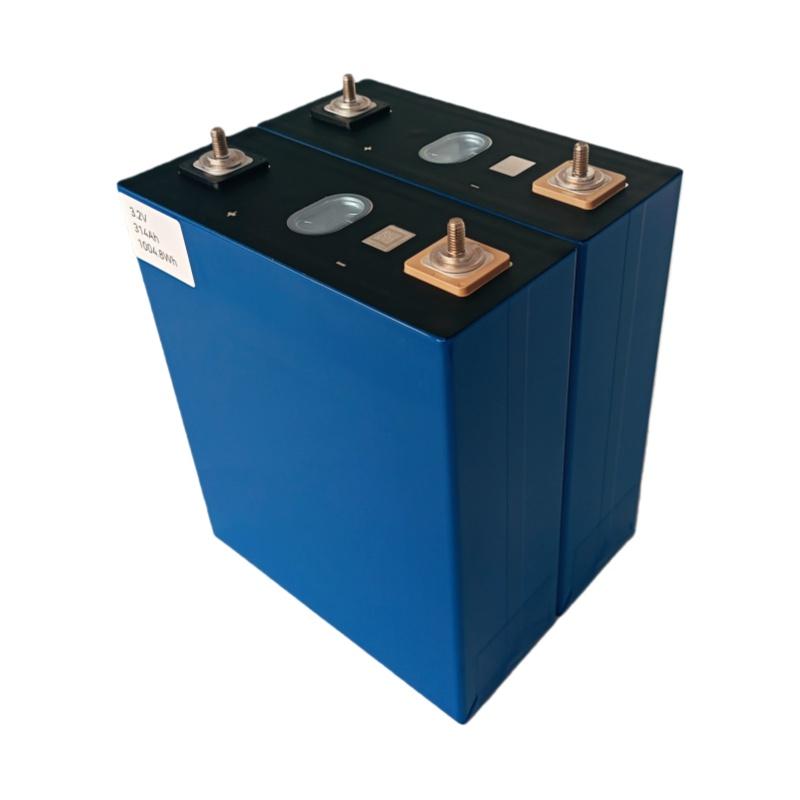

This ganfeng lithium battery has a capacity of 314Ah and a nominal voltage of 3.2V. It is designed to provide high energy density and long cycle life. It's also known for its high safety performance and reliability.
| Parameter | Specification |
| Nominal Capacity | 314.0Ah |
| Impedance (1KHz) | ≤0.25mΩ |
| Shipping SOC | 5%~40% SOC |
| Operating temperature (charging) | 0~60℃ |
| Operating temperature (discharge) | -30~60℃ |
| Optimum charging and discharge temperature | 20~30℃ |
| Storage temperature | -30℃-45℃ One month -20℃~35℃ Six months |
| Weight | 5.65±0.15Kg |
| Self-discharge | ≤3.5%/month |
| Cell dimension | 174.2(W)*71.8(T)*207.1(H)mm |
| Standard charge current | 0.5C |
| Maximum charge current (continuous) | 1.0C |
| Standard charge voltage | Cell max voltage 3.65V |
| Standard charge temperature | 25±2℃ ambient temperature |
| Absolute charge temperature (Cell temperature) | 0~60℃ |
| Absolute charge voltage | 3.65V max. |
| Standard discharge current | 0.5C |
| Maximum discharge current (continuous) | 1.0C |
| Discharge cut-off voltage | 2.50V, 0℃＜T≤60℃ 2.00V, -20℃≤T≤0℃ |
| Standard discharge temperature | 25±2℃ |

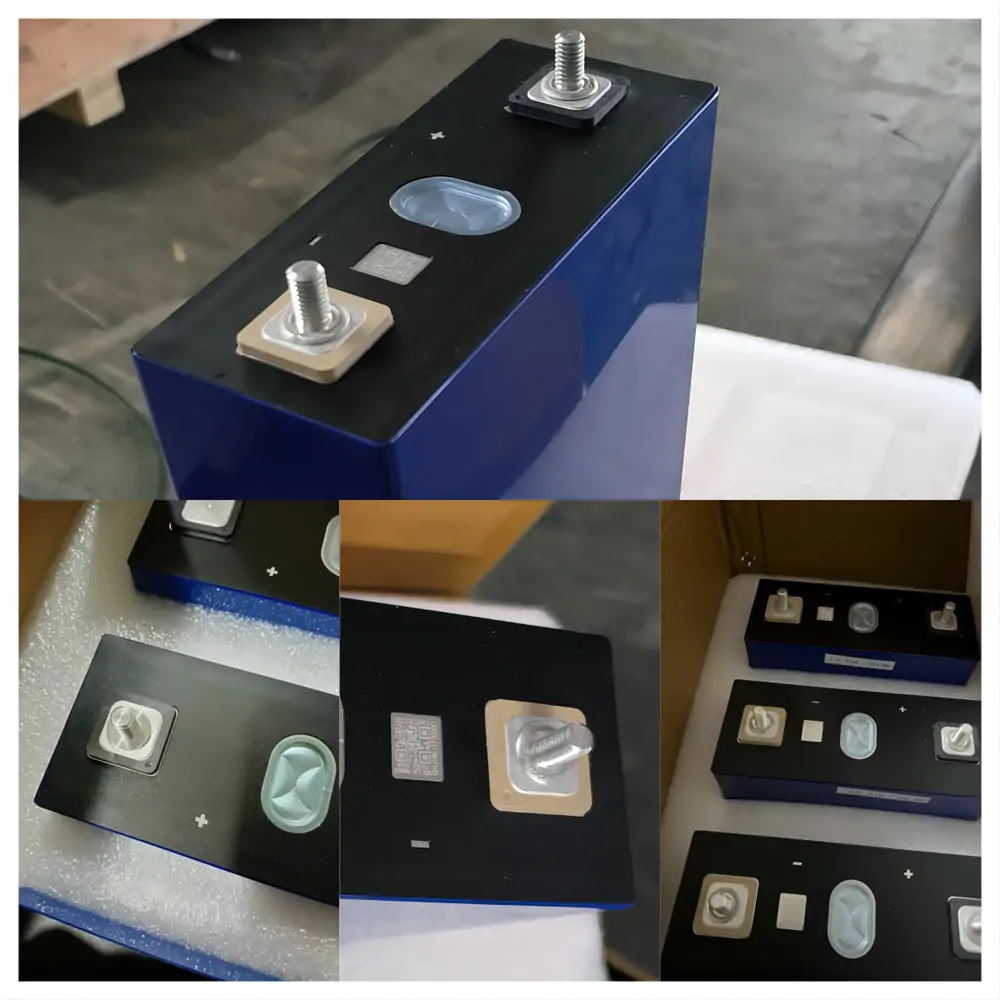

We can provide weld the M8 threads for those batteries and provided the busbars for easy connection.
Inquire more product details from the: Lithium Ion Battery Suppliers
