Details

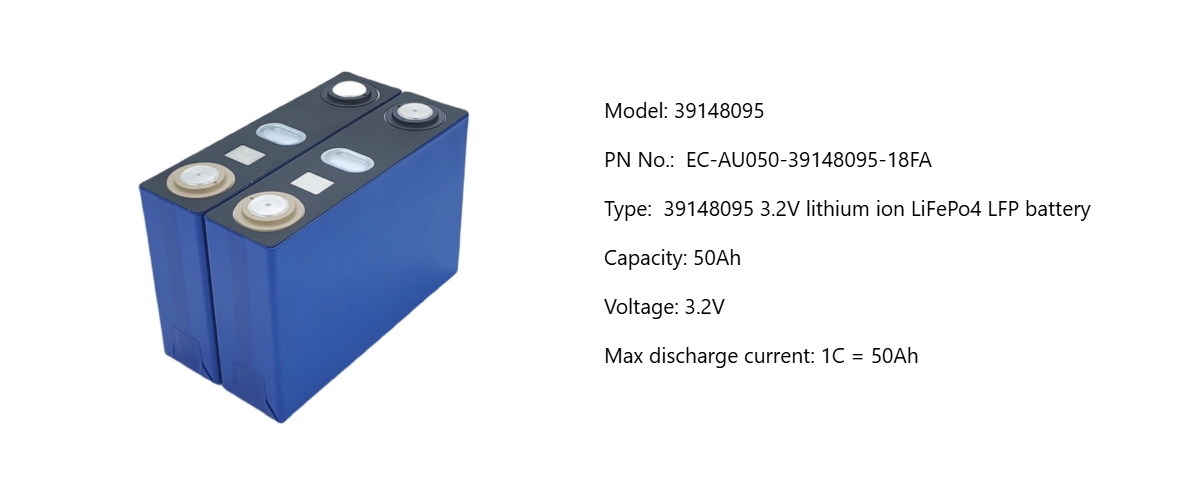

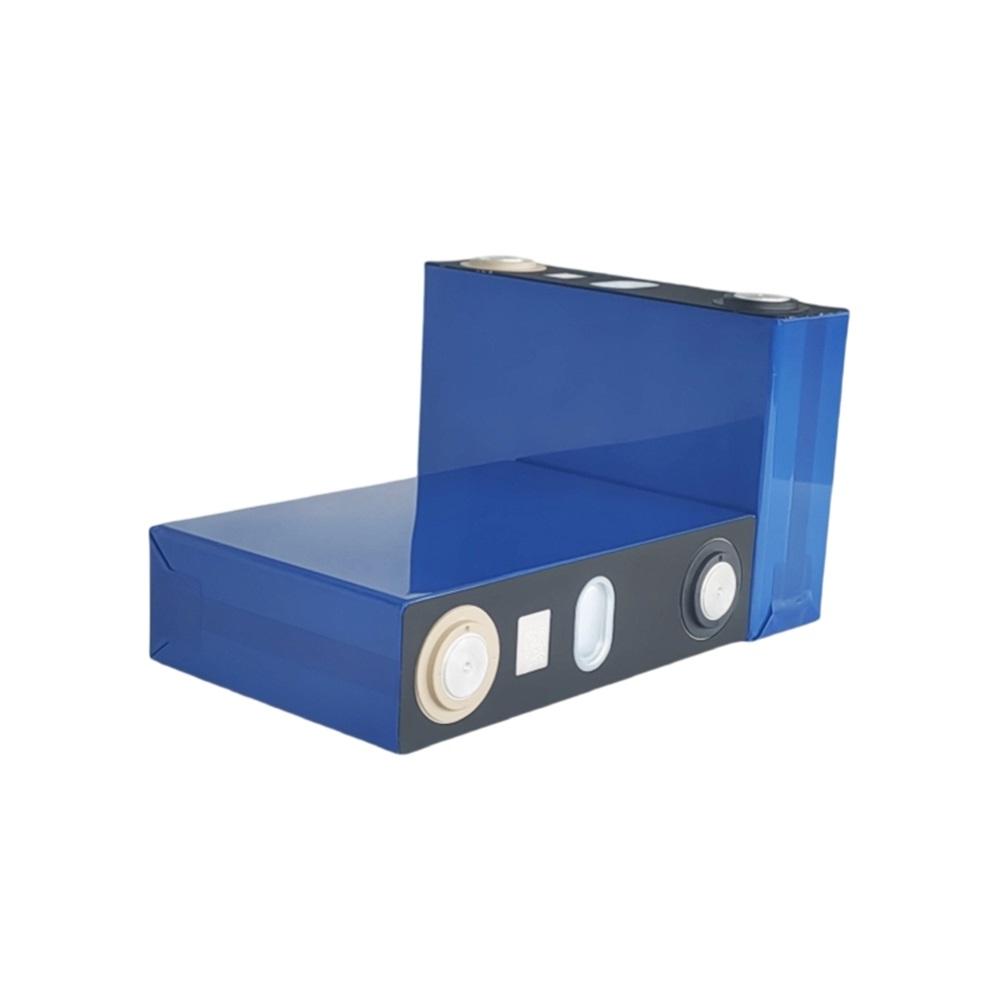

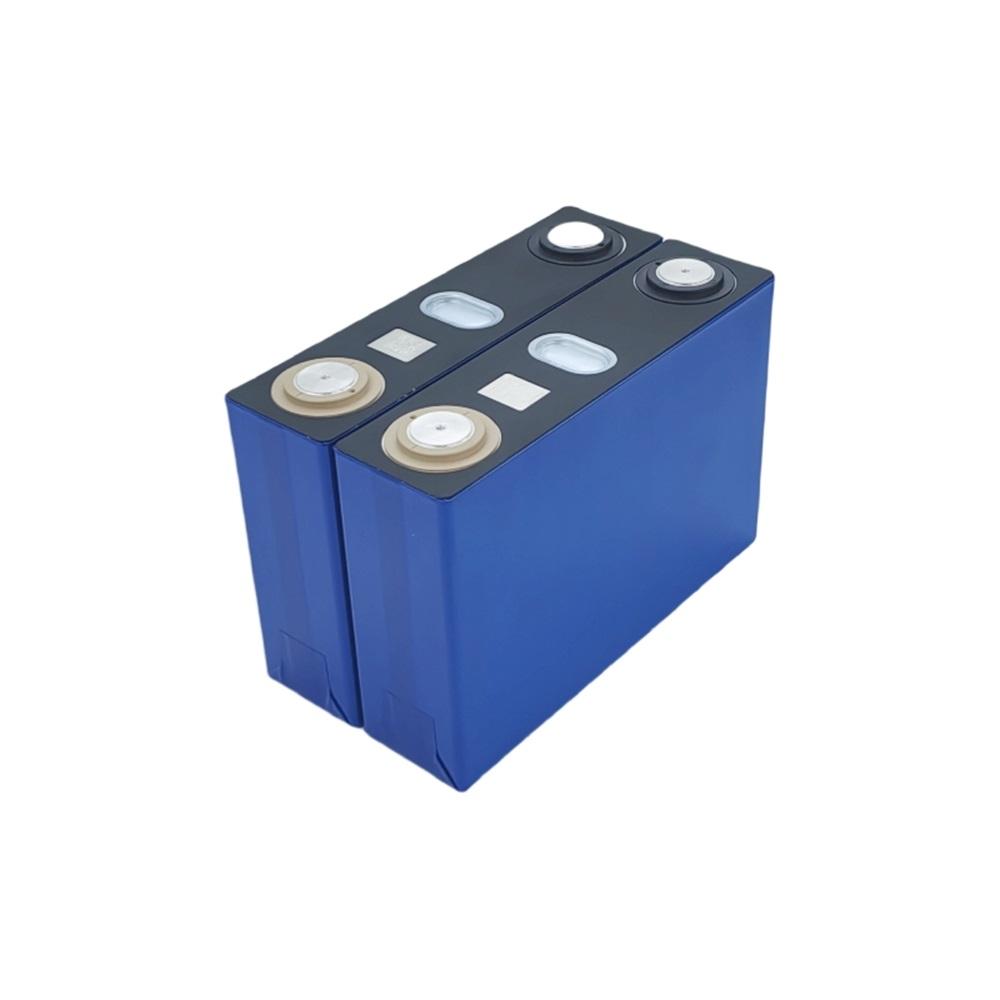

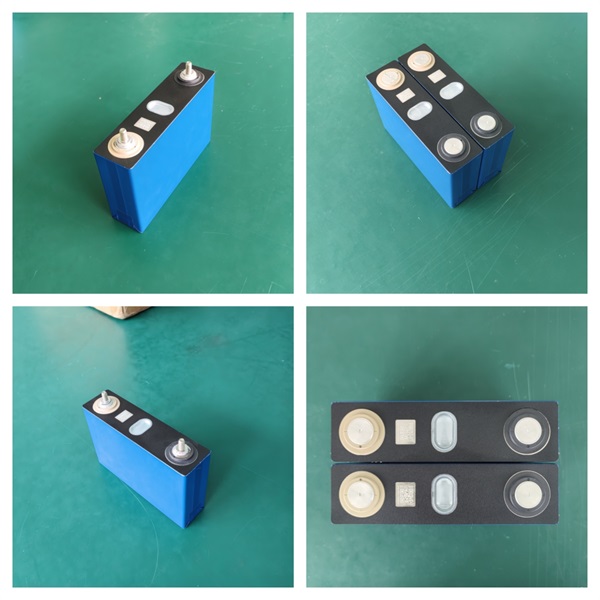

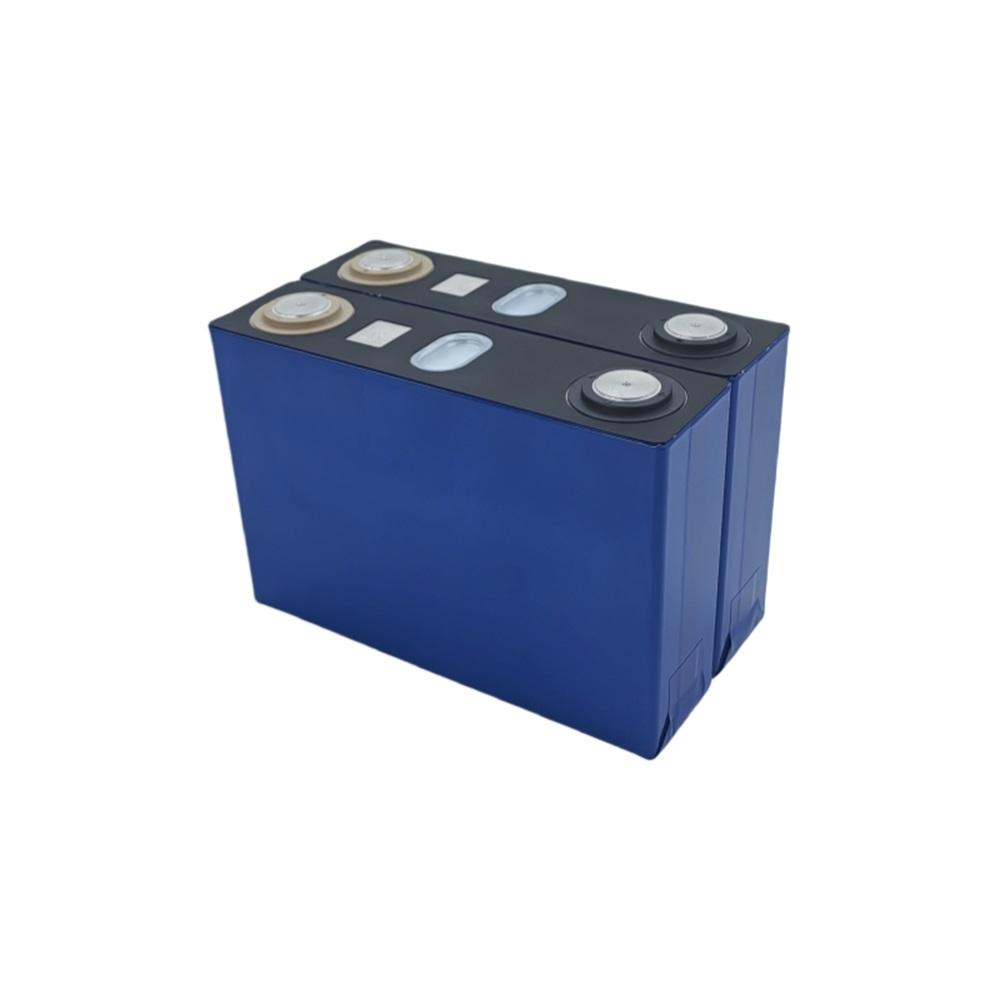

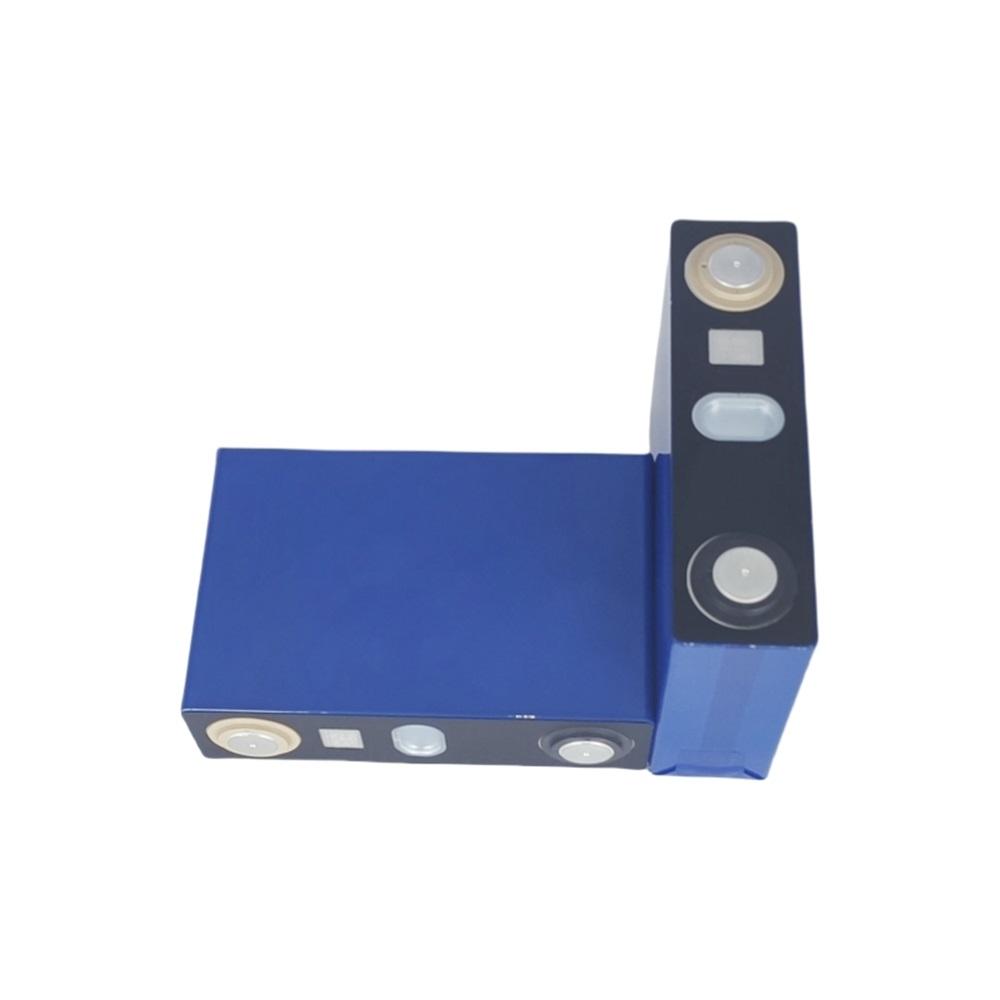

GanFeng Prismatic LiFePo4 3.2V 50Ah LFP battery cell. Welding terminal post service is available. Please specify your requirements when placing an order if needed
Description
Grade A quality GanFeng LiFePo4 GFB 3.2V 160Wh 50Ah prismatic battery. Welding terminal post service is available. Please specify your requirements when placing an order if needed.
1.High capacity and stable discharge voltage; Longer working time with high performance
2.Light weight with small size; Outstanding discharge properties and small internal resistance
3.No memory effect, good discharge ability and high load and resist high temperature; Pollution free for environmental protection
4.100%Authentic originalli-ion rechargeable battery; Bulid in anti-explosion protection and circuit protection
5.Long cycle life more than 2500 times; Good consistency,low self discharge
| Item | Parameter |
| Nominal Capacity | 50Ah(25±2℃) |
| Typical Voltage | 3.2V |
| Impedance Resistance (1KHz) | 0.3~0.5mΩ |
| Standard Charge / Discharge Current | 0.5C/0,5C |
| Standard Charge Voltage | 3.65V |
| Discharge Cut-off Voltage | 2.50V(0℃＜T≤60℃) 2.00V(-20℃≤T≤0℃) |
| Max. Continuous Charge / Discharge Current | 1C/1C |
| Standard Charge / Discharge Temperature | 25±2 ℃ ambient temperature |
| Optimum Charging and Discharge Temperature | 20~30℃ |
| Operating Charging Temperature | 0~60℃ |
| Operating Discharging Temperature | -30~60℃ |
| Storage Temperature | -30℃-45℃(One month) -20℃~35℃(Six months) |
| Self-Discharge | ≤3.5%/monthFresh cell after 3 months, 40%SOC, 25±2°C Storage |

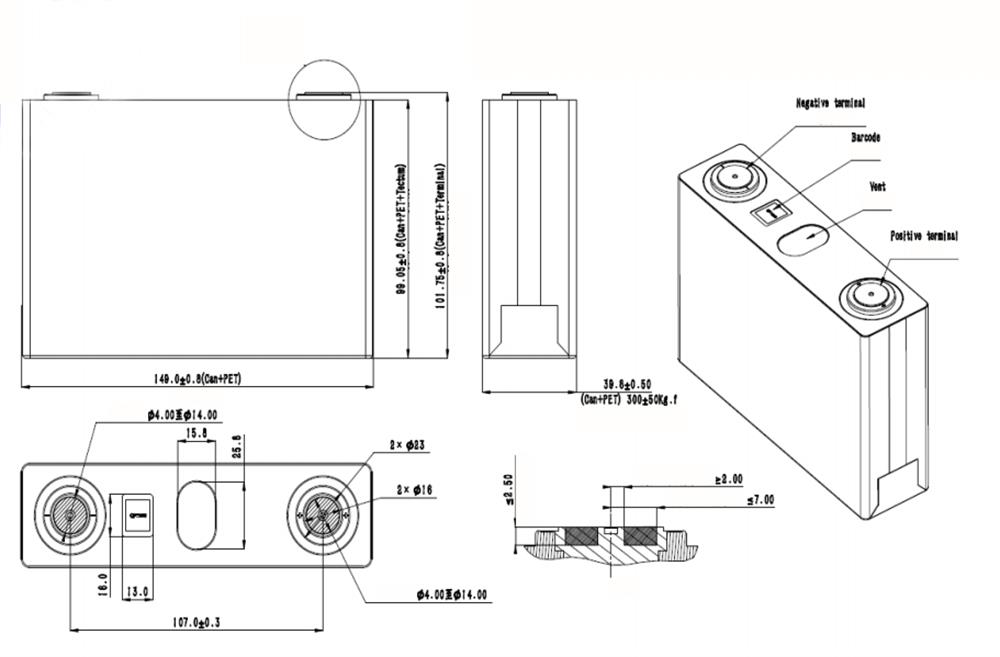

| Dimension | 101.75±0.8*39.8±0.5*149.0±0.8mm |
| Weight | 1.15±0.05Kg |
| Cycle Life at 25℃ | 4000 Cycles@80%, 1C, 25±2°C |
Widely used in electric sprayer, solar power general, energy storage devices, telecom base station, solar street light, UPS, ESS and so on.
1.Do not expose to,dispose of the battery in fire.
2.Do not put the battery in a charger or equipment with wrong terminals connected.
3.Avoid shorting the battery
4.Avoid excessive physical shock or vibration.
5.Do not disassemble or deform the battery.
6.Do not immerse in water.
7.Do not use the battery mixed with other different make,type,or model batteries.
8.Keep out of the reach of children.
