Details
Gotion IFP54173205 3.2v 230Ah lithium lfp battery for electric tools/bicycle/motorcycle/energy storage,home solar power system,etc.
Description
Gotion 3.2V 230Ah lifepo4 battery is widely used for electric tools/ bicycle/ motorcycle/ energy storage, home solar power system, etc
1. Qualified for UN38.3/MSDS, RoHS, CE, TUV, UL with high safety

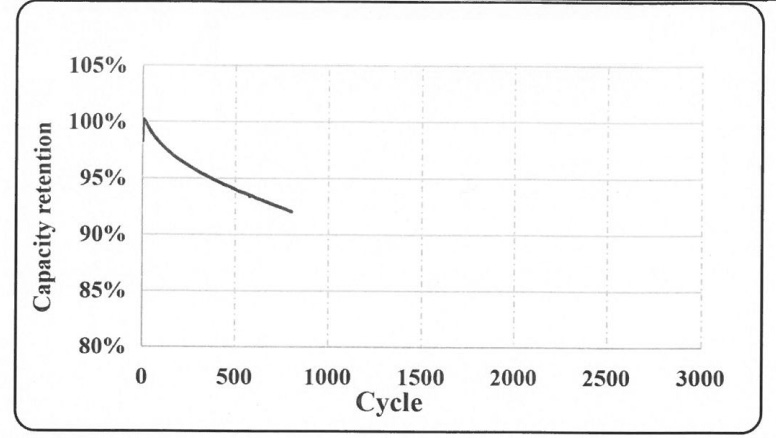

2. More than 3000 cycles under the designed working condition
3. The integral safety valve is used to enhance safety
4. High Energy Density
Parameter | Specification |
Cell Type | LiFePO4 |
Nominal Capacity | 230Ah |
Nominal Voltage | 3.2V, 0.33C |
Charge/Discharge Voltage Range | 2.0V～3.65V, T>0℃ |
1.8 V～3.65V, T≤0℃, forbid continuous charging | |
Weight | 4150g±124g |
Weight Energy Density | 178Wh/kg, 0.33C |
Volume Energy Density | 382Wh/L, 0.33C |
ACR | 0.2m2≤R≤0.4mΩ, 25°C±2℃ |
DCR | <0.8mΩ, 50%SOC@3C30S,25±2℃ |
Optimum Working Temperature | 10～35℃ |
Charge Temperature Range | 0～55℃ |
Discharge Temperature Range | -30～60℃, cell temperature≤60℃ |

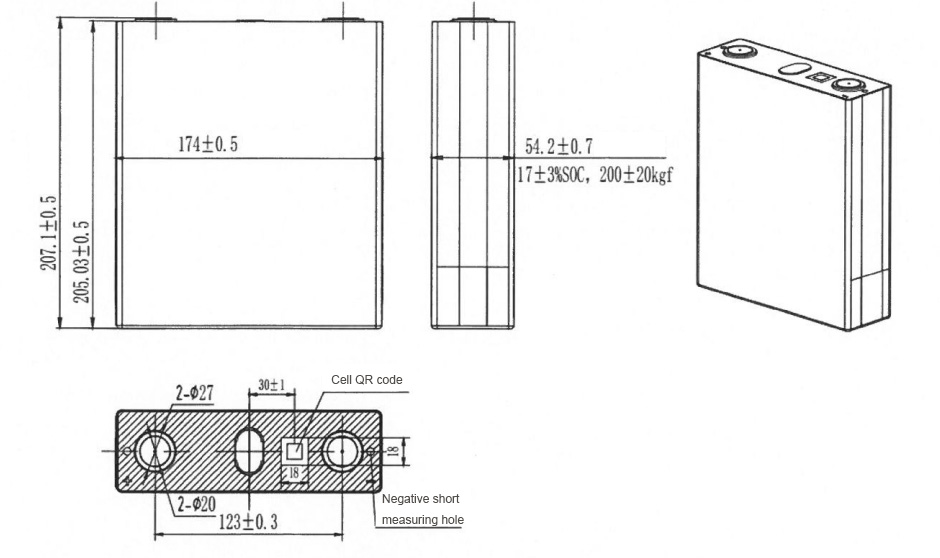

Dimensions (L x W x H) | (54.2±0.7)x(174±0.5)x(207.1±0.5)(mm) |
