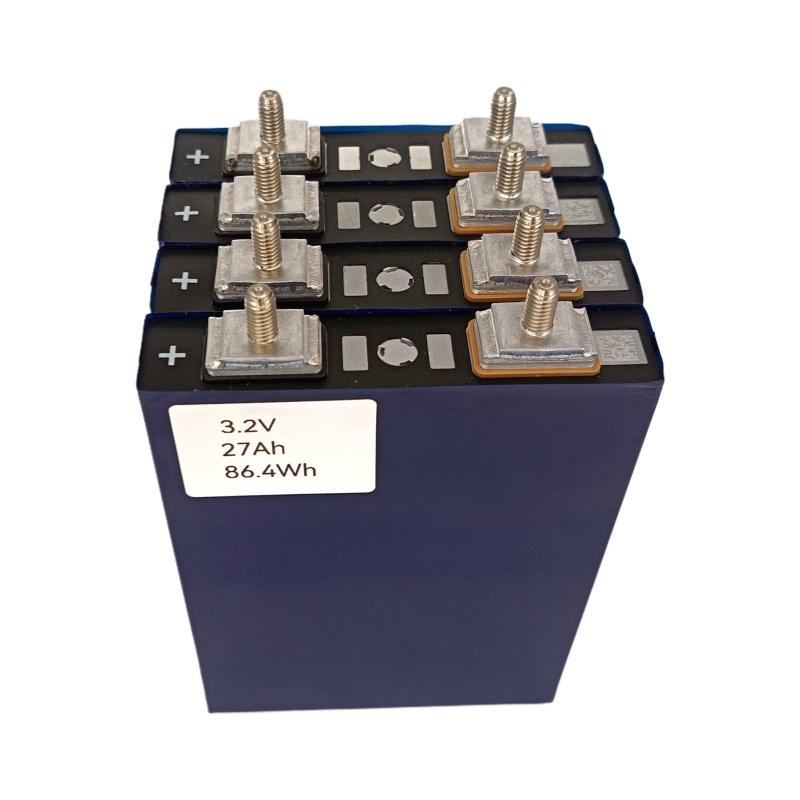

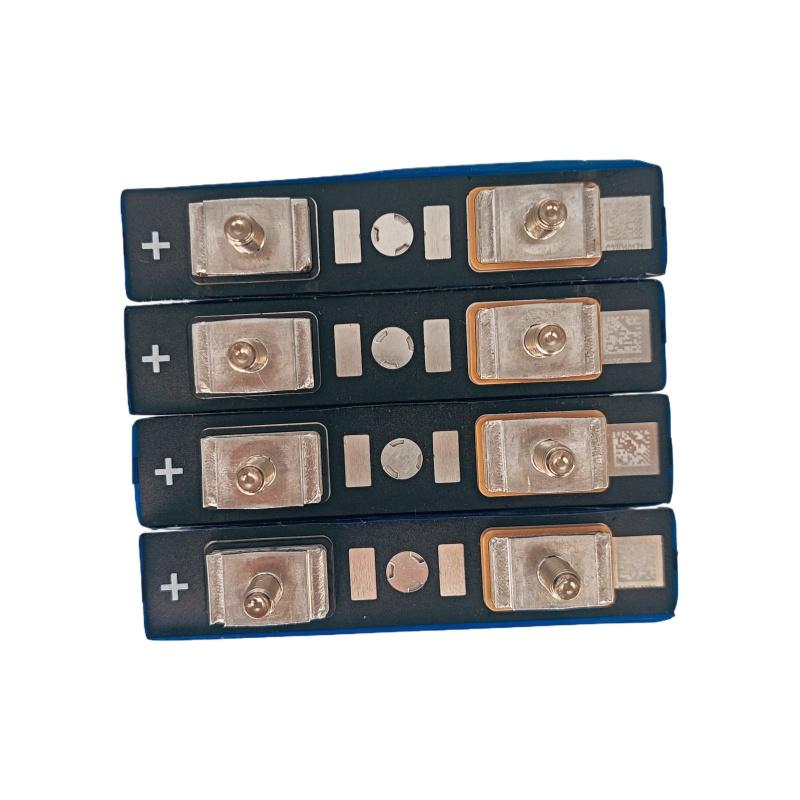

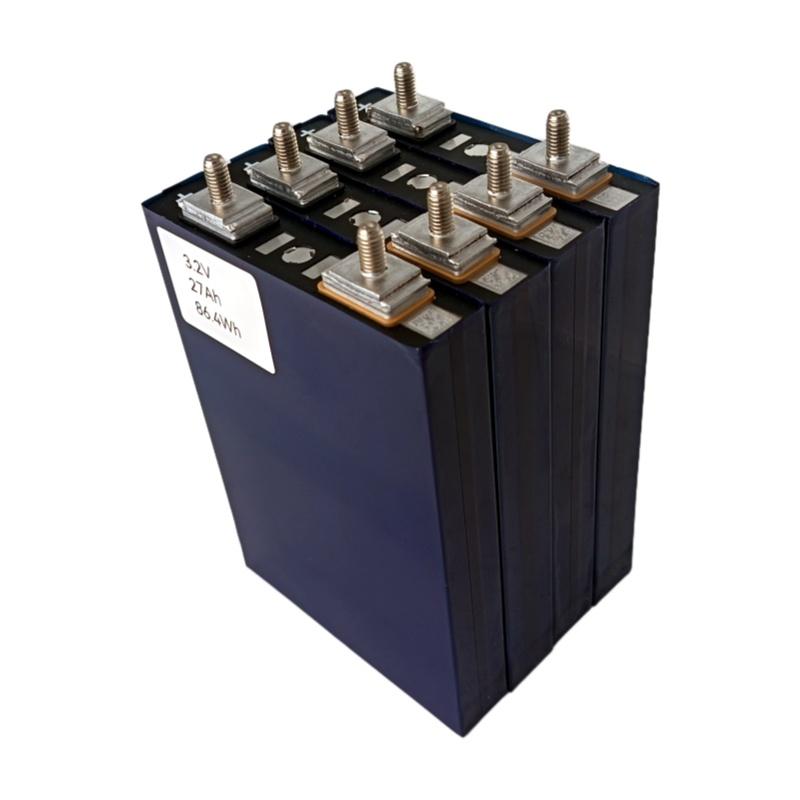

Gotion battery IFP20100140A-27Ah 3.2V 27Ah Prismatic LiFePO4 Battery Cell for electric tools/ bicycle/ motorcycle/ scooter energy storage,home solar power system,etc.
Description
Gotion IFP20100140A-27Ah 3.2V 27Ah Prismatic LiFePO4 LFP Battery Cell, max continuous discharge rate 6C, widely used in electric tools/ bicycle/ motorcycle/ scooter energy storage, home solar power system, etc.
1. Qualified for UN38.3/MSDS, RoHS, CE, TUV, UL with high safety
2. More than 5000 cycles under the designed working condition

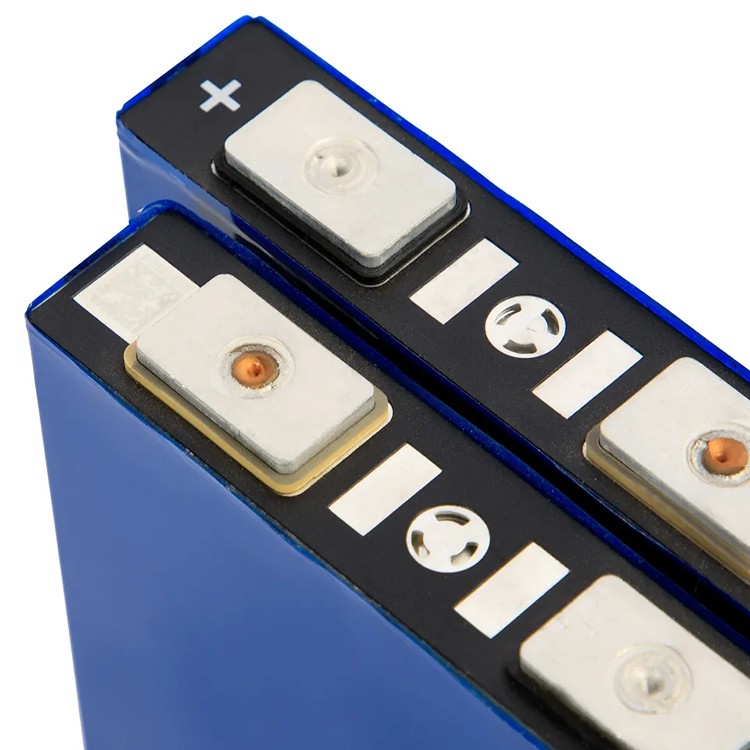

3. Integral safety valve is used to enhance safety
4. High Energy Density
| Parameter | Specification | Remark |
| Nominal Voltage | 3.2V | / |
| AC Internal Resistance | 0.9mΩ±0.3mΩ | / |
| DC Internal Resistance | ≤3.0mΩ | 50%SOC(5C/10s，25℃) |
| Rated Capacity | 27.0Ah | 1C standard charge and discharge, 25℃ |
| Operating Voltage | 2.0V～3.65V | / |
| Energy Density | ≥140Wh/kg | 0.33C discharge |
| Optimum Charging/Discharge Temperature Range | 10℃～35℃ | / |
| Storage Temperature Range | -40℃～60℃ | |
| Max Continuous Discharge Current | 4C | Single battery at 15℃ ~ 35℃ 1C constant current constant pressure full,set aside 1 h to 6C discharge to termination voltage 2.0V, and single electric pool temperature rise < 30℃ |
| Max Pulse Discharge Current | 6C～10s | 20℃～35℃ |

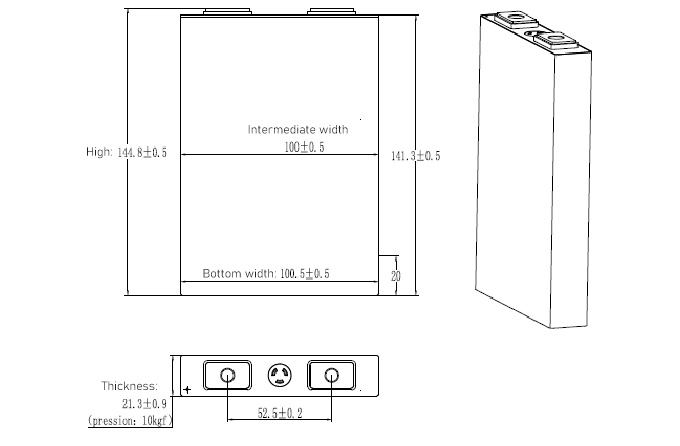

| Dimension | (21.3±0.9)×(100.5±0.5) ×(144.8±0.5)mm | (T×W×H)mm |
| Weight | 605g±18g | / |

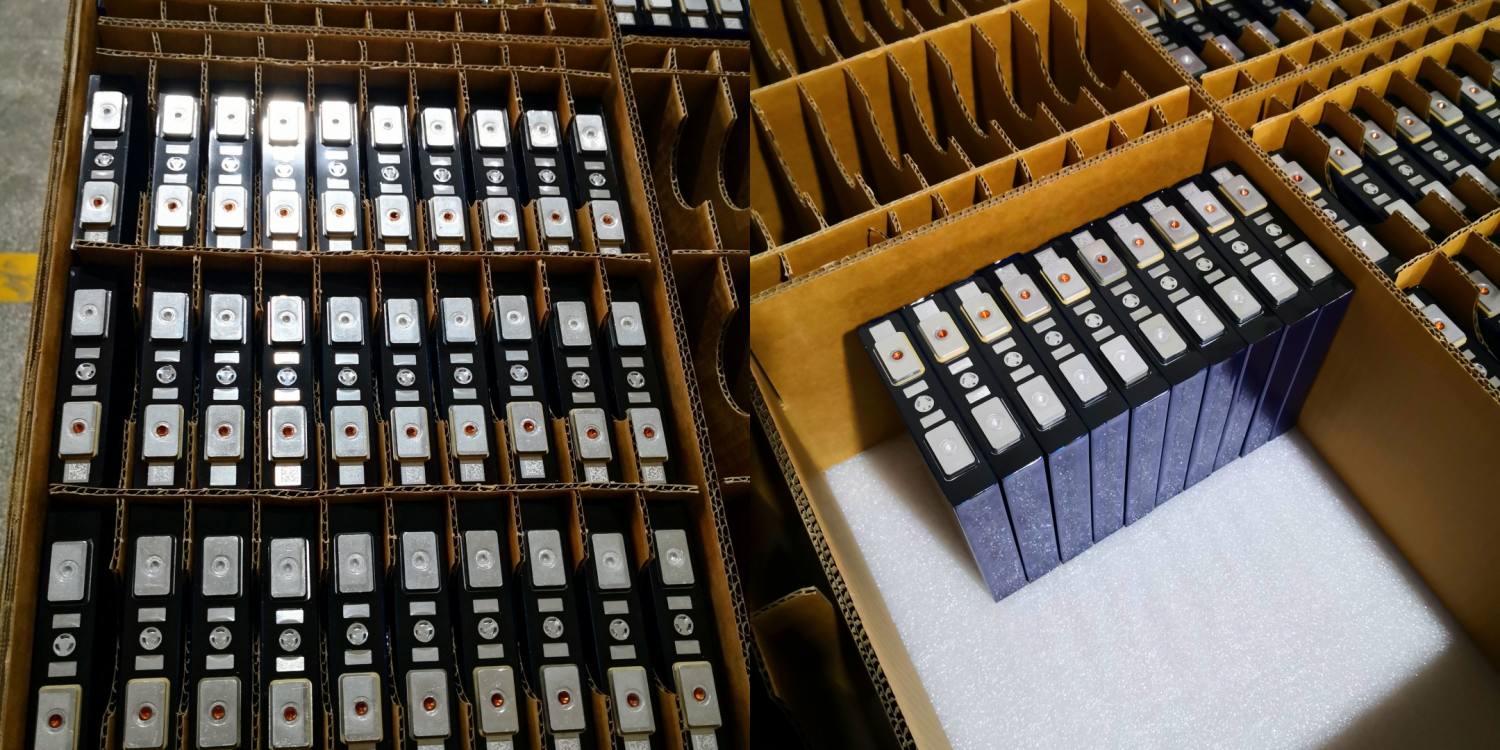

We are spot trader for Gotion 3.2V Lithium iron phosphate battery cells. To provide you with reliable and efficient power solutions that you can trust.
Gotion IFP20100140A-27Ah is used in toys, power tools, household appliances, consumer electronics, ships, golf carts, submarines, electric bicycles/scooters, electric vehicles, electric wheelchairs, power systems, solar energy storage systems, uninterruptible power supplies, electric forklifts, energy storage ESS home energy storage electric vehicles.
