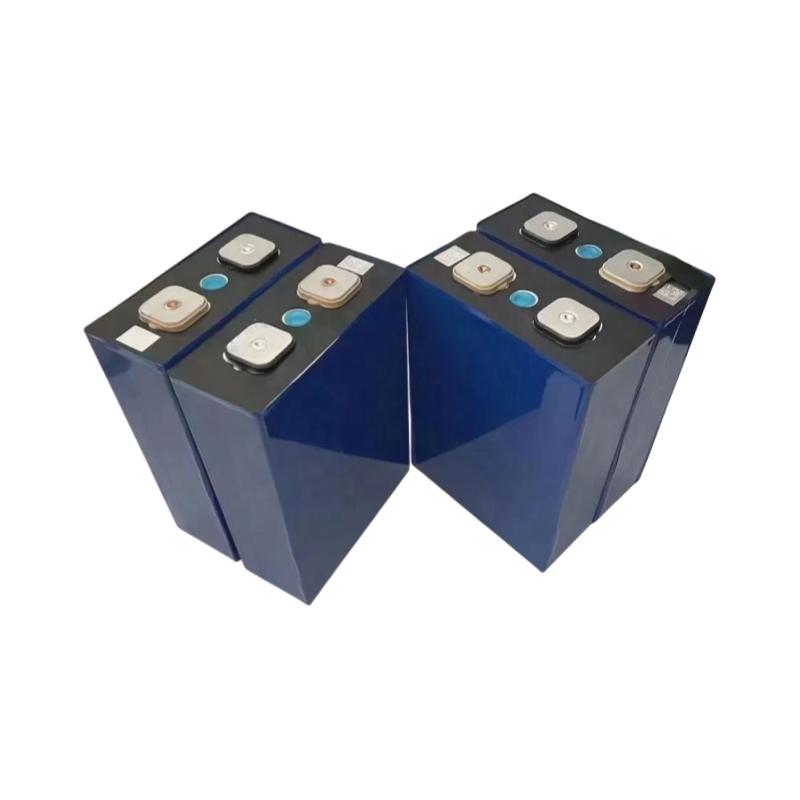

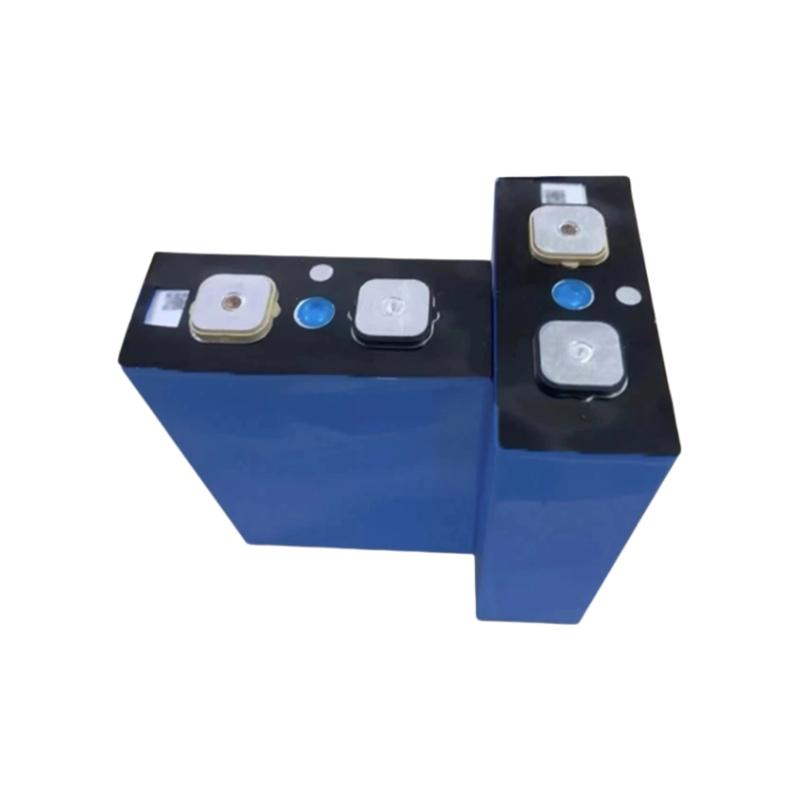

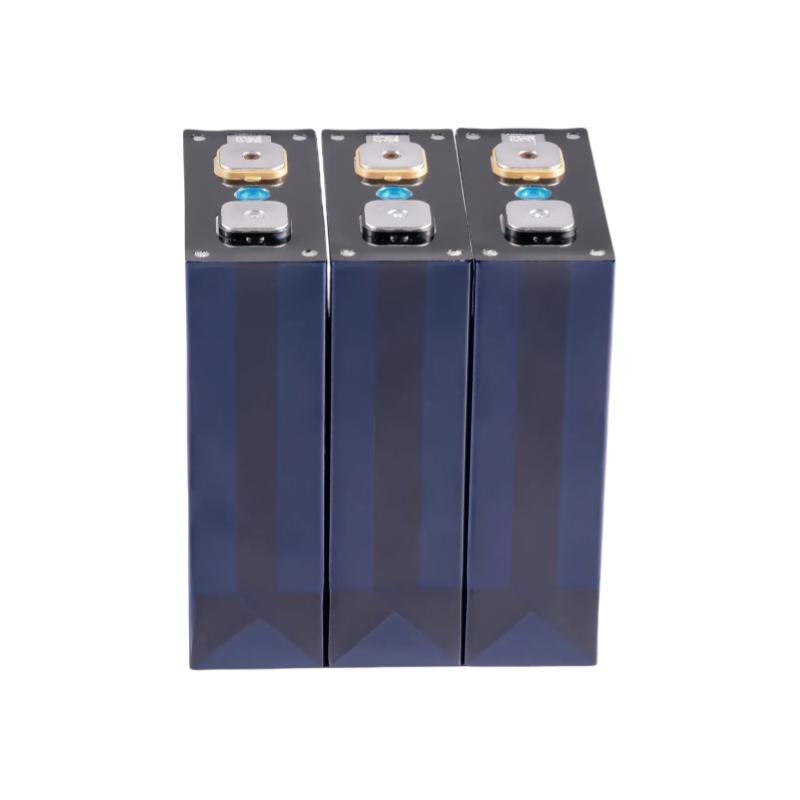

Gotion IFP42100140A-67Ah 3.2V 67Ah LiFePO4 Battery Lithium-ion LFP Cell

  • Gotion 3.2V 67Ah LiFePO4 Battery
  • Gotion 3.2V 67Ah LiFePO4 Battery
  • Gotion 3.2V 67Ah LiFePO4 Battery
  • Gotion 3.2V 67Ah LiFePO4 Battery

Details

Gotion IFP42100140A-67Ah 3.2V 67Ah LiFePO4 Battery features high energy density, long cycle life, excellent safety performance and etc.

Description

Gotion 3.2V 67Ah lithium-ion battery cell is an excellent lithium iron phosphate (LiFePO4) battery cell designed for electric vehicles, energy storage systems and industrial power supplies. It has high energy density, long cycle life and excellent safety performance. Its stable output and efficient charging and discharging characteristics can meet the needs of multiple scenarios and are an ideal choice for electric vehicles and energy storage equipment.

Product Advantage

High energy density: The capacity of a single battery cell is 67Ah, which supports efficient energy storage and maximizes the endurance performance.

Long cycle life: The cycle life exceeds 4,000 times, and it still maintains excellent performance under 80% DOD conditions, which is suitable for long-term use scenarios.

Excellent safety performance: It uses lithium iron phosphate positive electrode material, has excellent thermal stability, and has passed many international safety tests (such as short circuit, overcharge, acupuncture, etc.).

Fast charging and discharging capability: Supports 2C discharge and 1C fast charging, greatly improving the use efficiency, suitable for applications with high power requirements.

Green and environmental protection: No heavy metal components, in line with RoHS and environmental protection requirements, is an important part of clean energy solutions.

Wide temperature adaptability range: The operating temperature range is -20°C to 55°C, suitable for stable operation in a variety of complex environments.

Specification

Item

Specifications

Battery Type

LFP

Combination Mode

IFP42100140A-67Ah

Nominal Capacity

67Ah

Nominal Voltage

3.2V

Charge Voltage Range

2.0V~3.65V; T>0℃

Discharge Voltage Range

1.8V~3.65V; T≤0℃

Weight

1235g±37g

Weight Energy Density

175Wh/kg; 0.33C

Volume Energy Density

350Wh/L; 0.33C

ACR

0.33mΩ≤R≤0.47mΩ; Fresh cell (17%±3%SOC)

DCR

1mΩ≤R≤2mΩ; 50%SOC@3C30S, 25±2C

High Temperature Cycle Life

1000 cycles

Room Temperature Cycle Life

2500 eycles

Calendar Life

10 years; 25±2℃, 50%SOC,80%EOL

Dimension

(100.24±0.2)×43.2×(144.9±0.5)mm

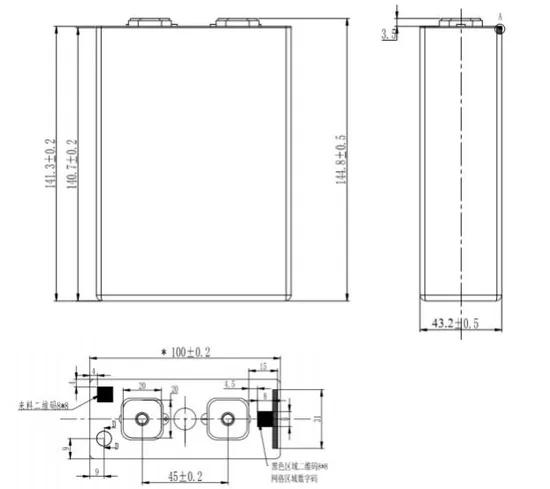

Dimension

Dimension of Gotion 3.2V 67Ah LiFePO4 Battery

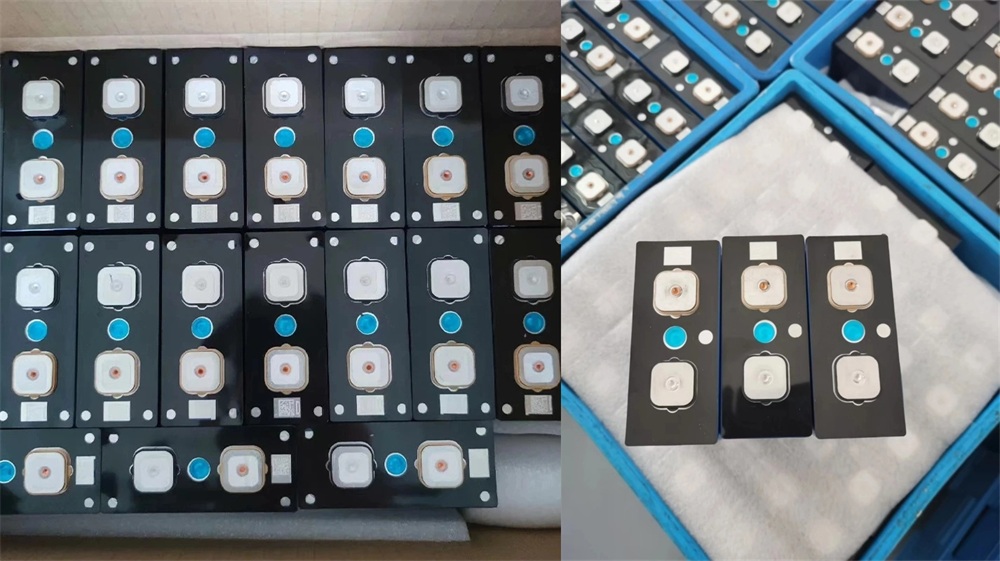

Gotion 3.2V 67Ah LiFePO4 Battery

Application
