Details

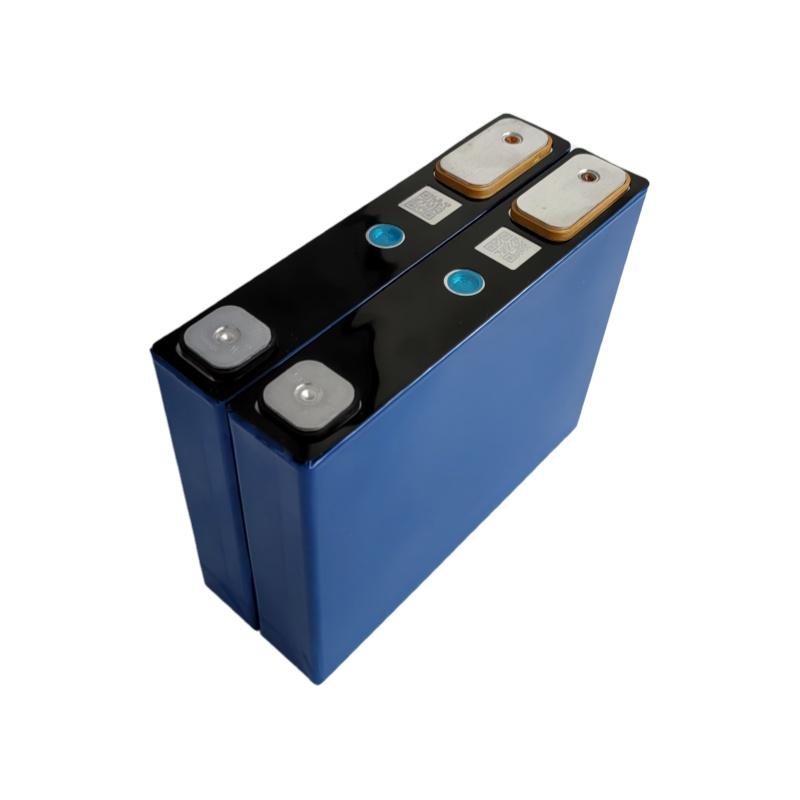

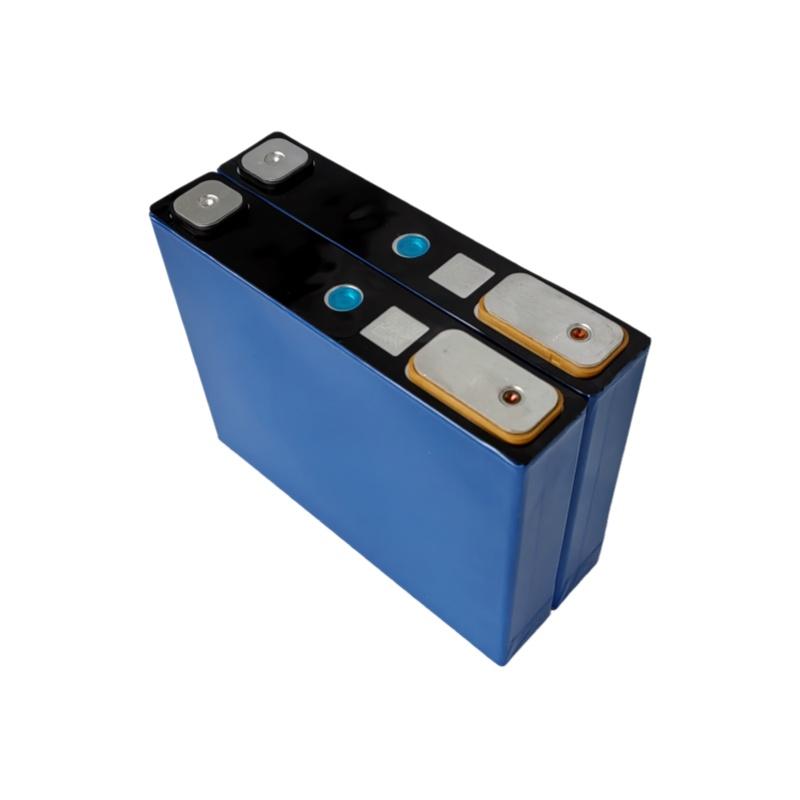

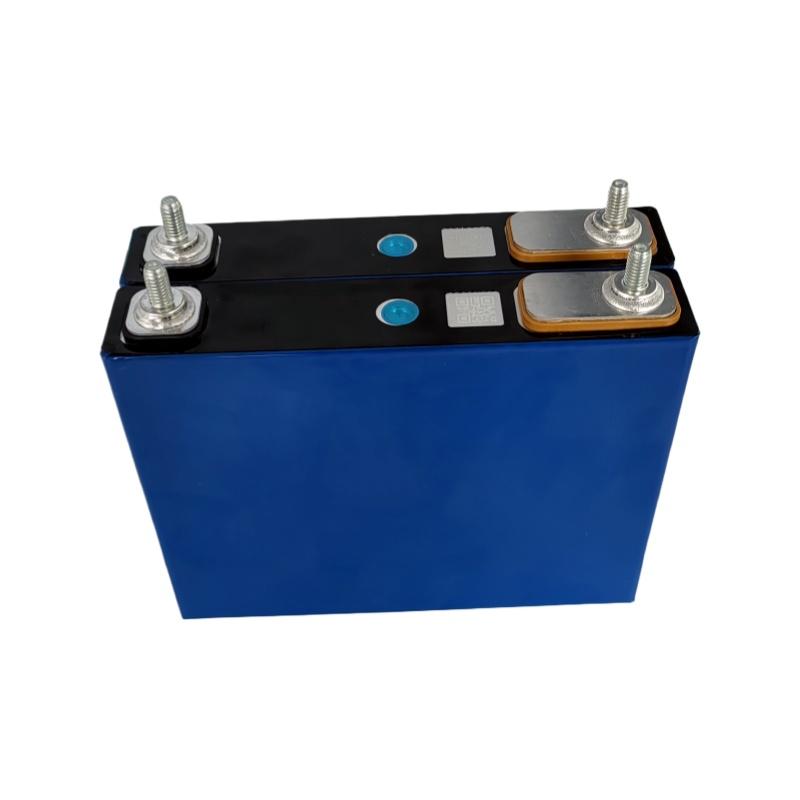

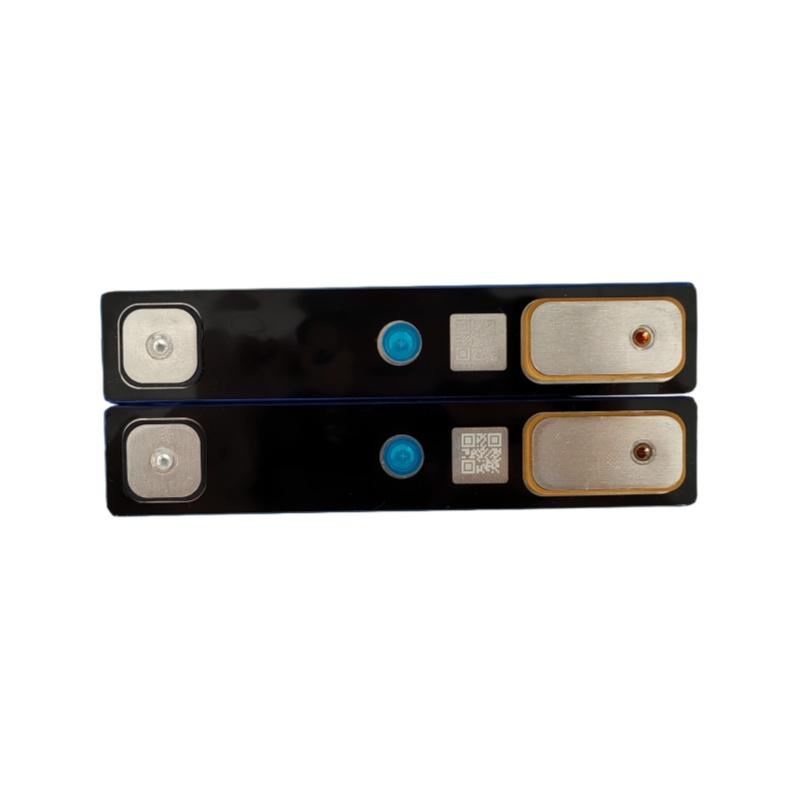

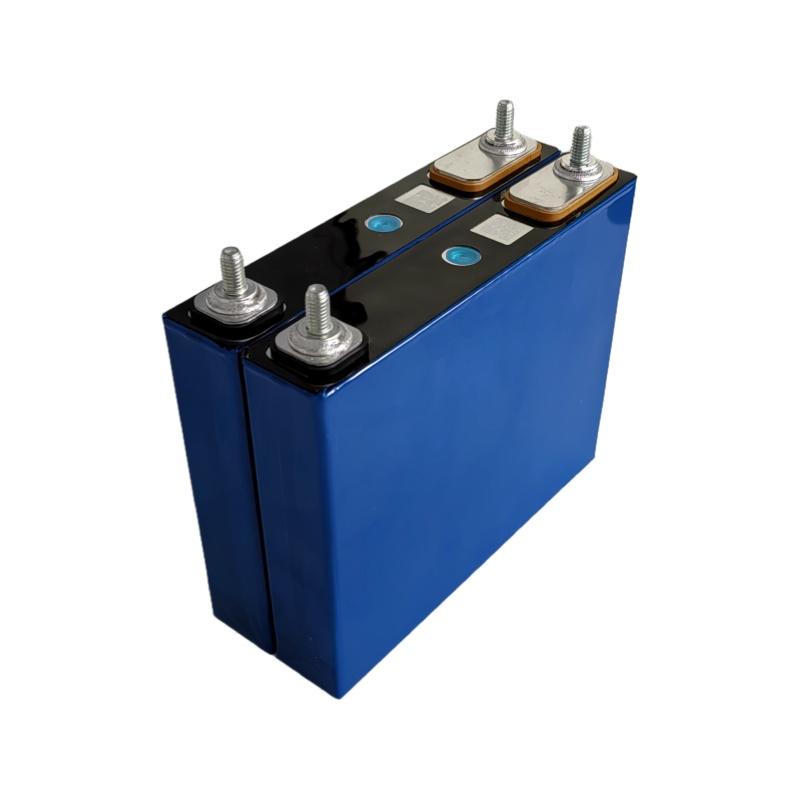

Gotion 3.2V 52Ah Power Lithium LiFePO4 prismatic battery cell is widely used in Energy Storage System, EV, UPS and so on.
Description
1.Widely used in Energy Storage System, EV, UPS and so on
2.Excellent performance
3.High stability
4.Long cycle life time

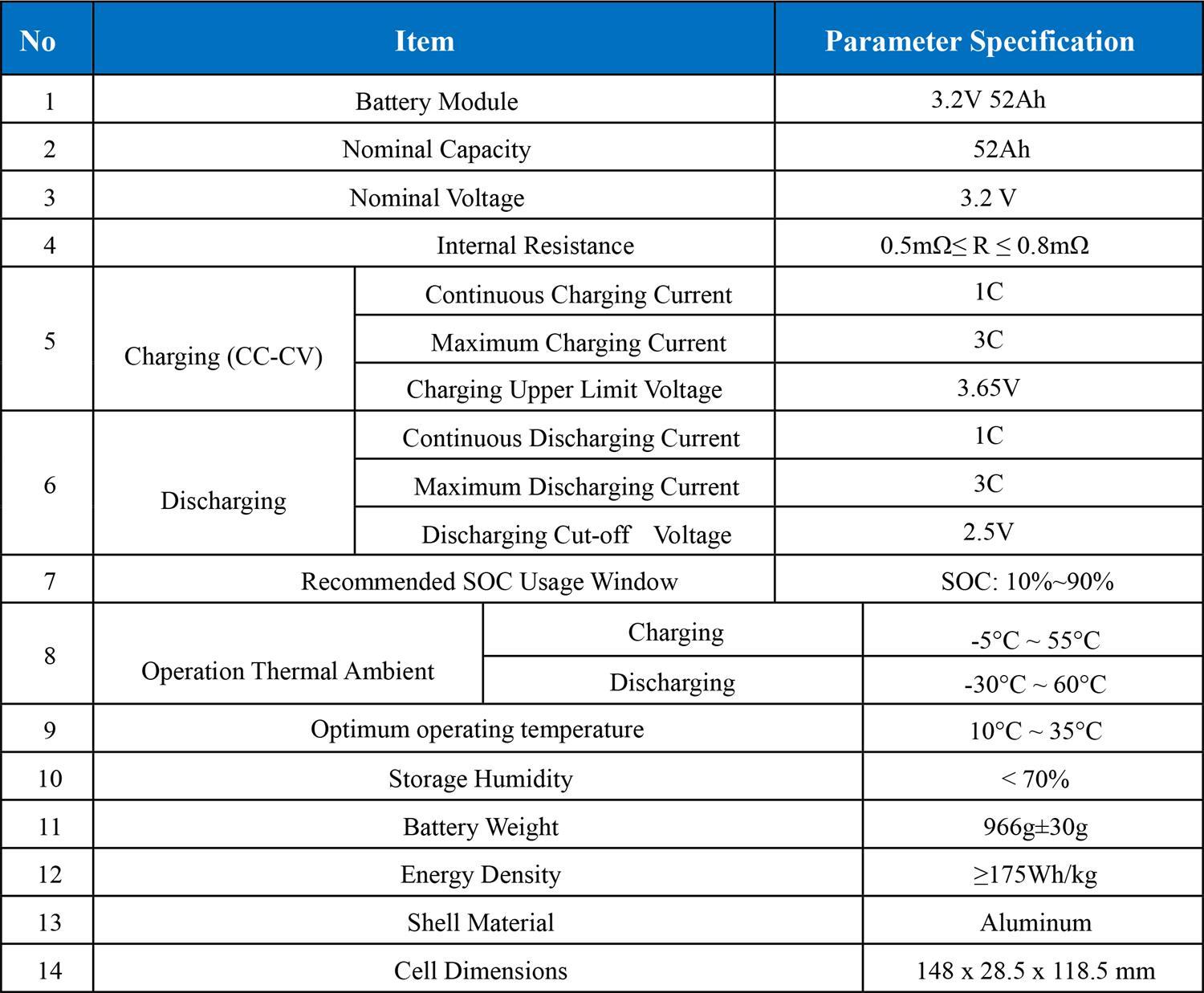

| Item | Parameter Specification |
| Battery Module | 3.2V 52Ah |
| Nominal Capacity | 52Ah |
| Nominal Voltage | 3.2V |
| Internal Resistance | 0.5mΩ ≤ R ≤ 0.8mΩ |
| Charging (CC-CV) - Continuous Charging Current | 1C |
| Charging (CC-CV) - Maximum Charging Current | 3C |
| Charging (CC-CV) - Charging Upper Limit Voltage | 3.65V |
| Discharging - Continuous Discharging Current | 1C |
| Discharging - Maximum Discharging Current | 3C |
| Discharging - Discharging Cut-off Voltage | 2.5V |
| Recommended SOC Usage Window | SOC: 10%~90% |
| Operation Thermal Ambient - Charging | -5°C ~ 55°C |
| Operation Thermal Ambient - Discharging | -30°C ~ 60°C |
| Optimum Operating Temperature | 10°C ~ 35°C |
| Storage Humidity | < 70% |
| Battery Weight | 966g±30g |
| Energy Density | ≥175Wh/kg |
| Shell Material | Aluminum |

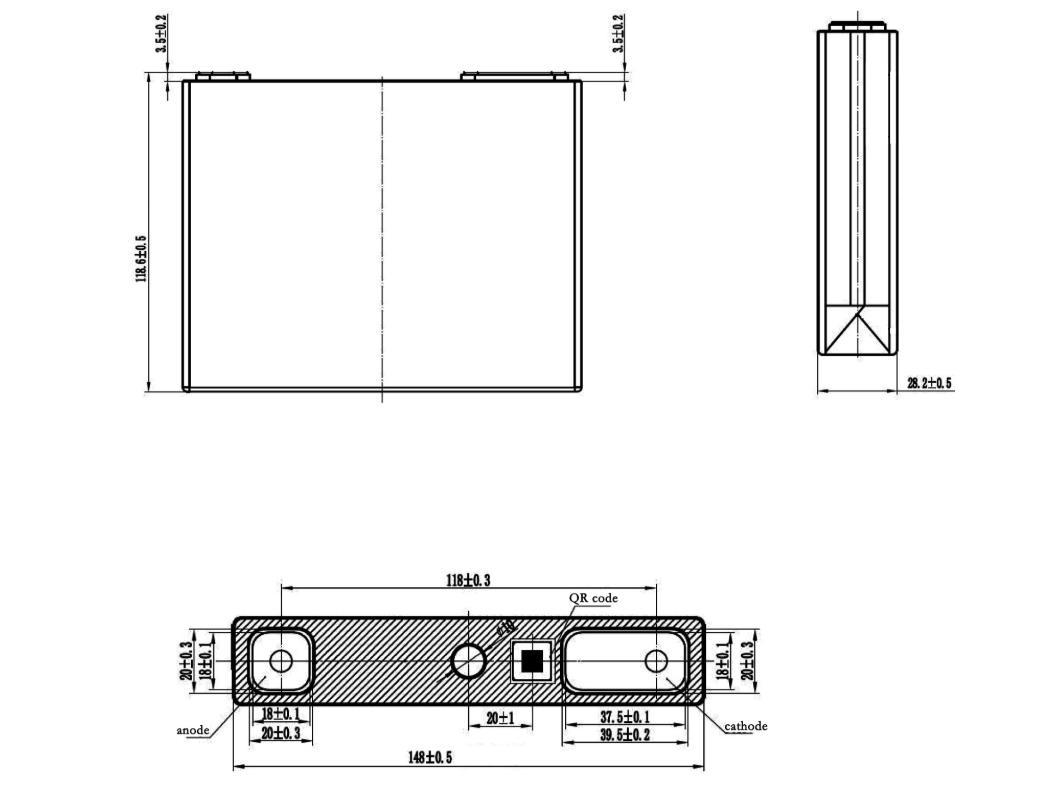

| Cell Dimensions | 148 x 28.5 x 118.5mm |
Please read the instructions carefully and pay attention to the marks on the surface of battery before use.
During operation, please keep the cell away from heat source, fire source. Never beat, drop or shock the cell.
Do not directly solder the cell or pierce it with a nail or other sharp object.
Do not turn over battery. Keep it from strike, throw, tread or bending.
Do not make battery short-circuited, in order to avoid from danger incurring or battery damage.
Discarded battery should be well disposed. Do not throw it into the fire or water.
