Details

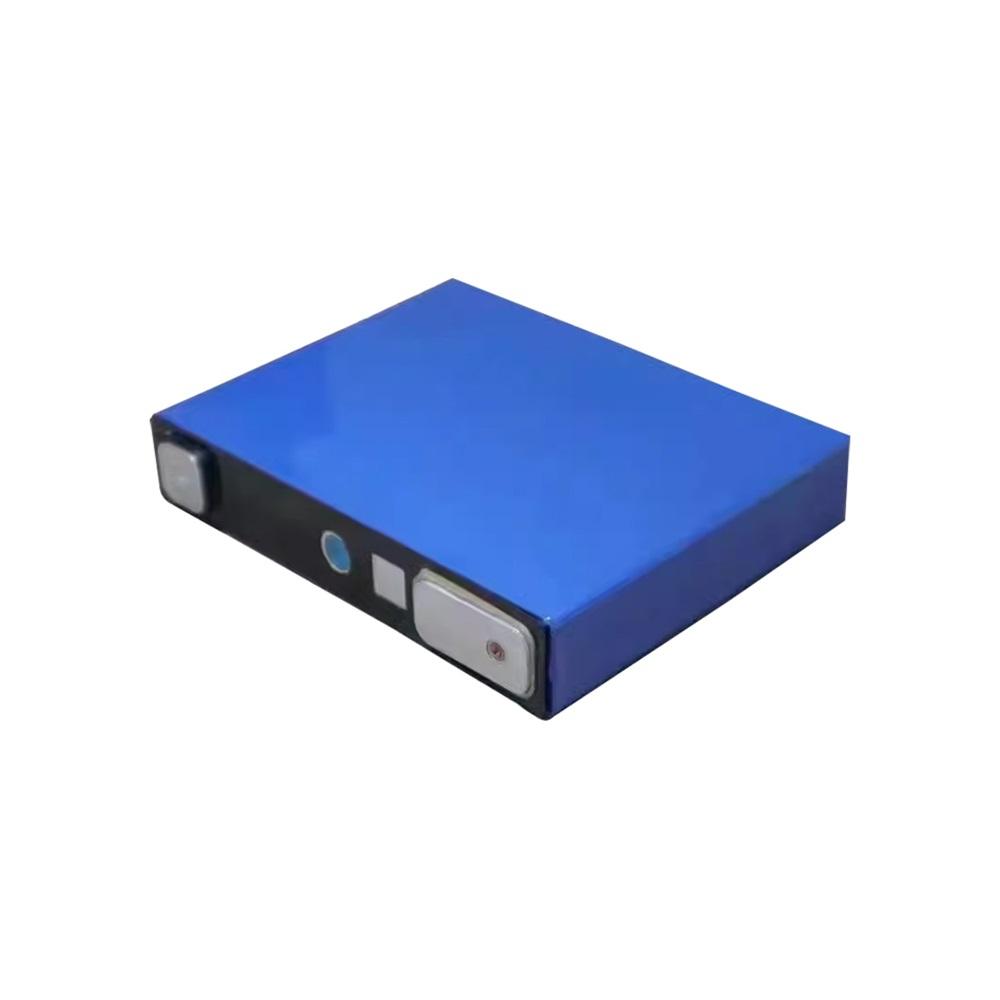

Gotion 3.2V 52Ah LiFePO4 battery mainly used in the field of pure electric vehicles, it is a power battery with high energy density and consumption resistance.
Description
Gotion 3.2V 52AH lithium LiFePO4 battery, widely used in electric vehicles, electric two-three-wheeler, ships, solar energy, energy storage, outdoor power supply and so on.
| Parameter | Specification | Condition |
| Capacity | 52Ah | |
| Nominal Voltage | 3.2V | 1C |
| 3.1V | 0.33C | |
| Charge and Discharge Voltage Range | 2.0V～3.65V | >0℃ |
| 1.8V～3.65V | ≤0℃ | |
| Weight | 966g±30g | Does not contain the outer membrane |
| Mass Energy Density | 175Wh/kg | 0.33C |
| Volume Energy Density | 350Wh/L | 0.33C |
| AC-Internal Resistance | 0.5mΩ≤R≤0.8mΩ | 25℃±2℃ |
| DC-Internal Resistance | ≤2.5mΩ | 50%SOC, 25℃±2℃ |
| Charging Temperature Range | -20℃～55℃ | |
| Discharging Temperature Range | -30℃～60℃ | Maximum cell temperature ≤60℃ |
| Optimum Operating Temperature | 10℃～35℃ | |
| Conventional Charging(Slow) | 26A | 10℃≤T<45℃ |
| Step Charging (Fast) | 1C | 20℃≤T<45℃ |
| Cycle Life | 2000 | 80%DOD, 25℃, 1C |
| Calendar Life | 8 Years | 80%DOD, 25℃, 50%SOC |
| Thickness | (28.2±0.5)mm | 5%SOC, 10kgf |
| Dimension | 148(W)*28.2(T)*118.6(H)mm |
1. When using battery-equipped devices, please refer to the user manual before use.
2. Check the direction of the positive and negative terminals before packing.
3. Connect terminals or wires to the battery module. Ensure that the terminals or wires are insulated to prevent short circuits
4. When not used for a long time, the battery should be stored in a cool and dry place (<35°C, 30%~50%SOC)
5. Do not place the battery in direct sunlight or heat sources.
6. Do not wear metal accessories (such as rings, watches, accessories, etc.) when handling the battery unit.
7. Do not leave the battery outside the operating temperature range specified in this document
1. Do not remove or modify the battery.
2. Do not throw or strike the battery.
3. Do not Pierce the battery with sharp objects
4. Do not mix with other battery or module units.
5. Do not over-squeeze the battery during use.
6. Do not use old and new batteries together in the PACK.
7. Do not place the battery at a temperature higher than 60 ° C.
8. Do not place batteries in a microwave or high-pressure container.
9. Do not connect the positive and negative terminals with conductive materials (such as metal or wire)C Do not wet or immerse the battery in water or seawater.
10. Do not use the battery in any way other than the manufacturer's written agreement.
