Details
Headway LiFePO4 Battery is a kind of high-power lithium iron phosphate battery.It is applied in Electric Vehicles,Solar Energy Systems and Portable Devices.
Description

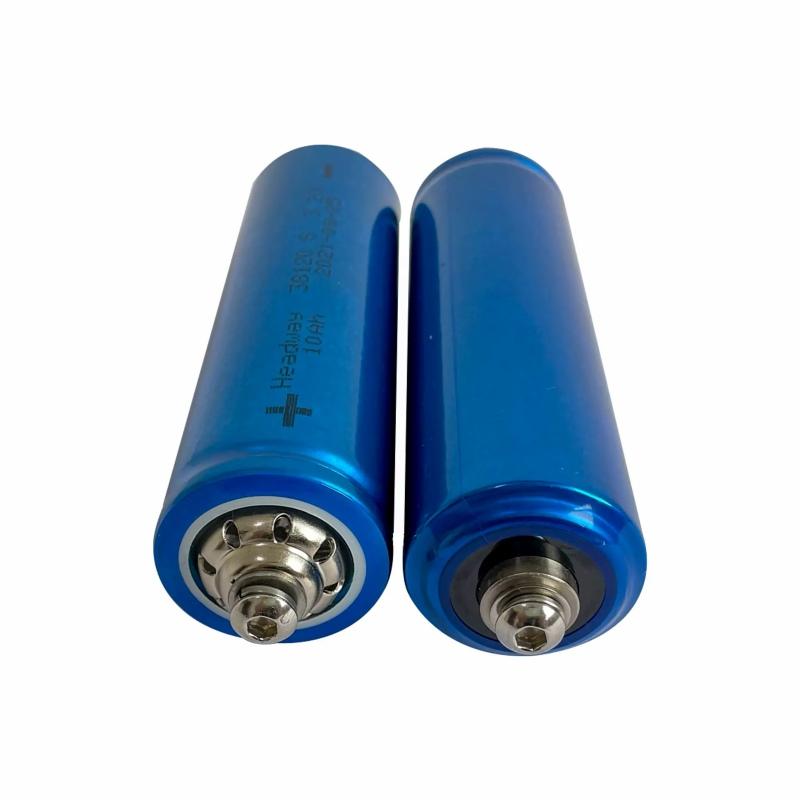

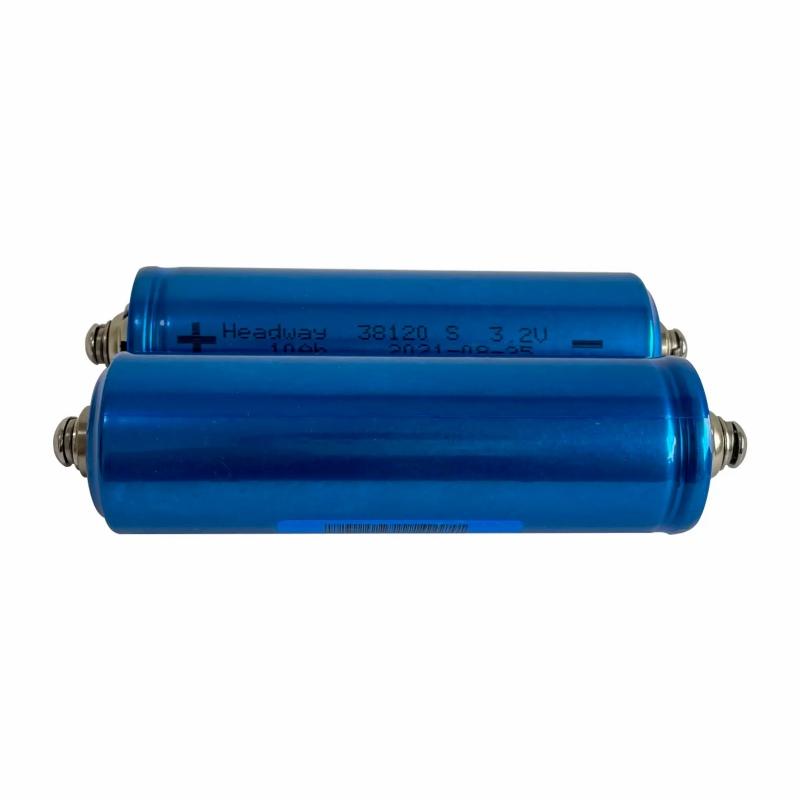

Headway LiFePO4 Battery is a kind of high-power lithium iron phosphate battery. There are the models of 8Ah 38120HP, 10Ah 38120S, 15Ah & 17Ah 40152S and 16Ah 40160 Headway LiFePO4 Battery cells. For more information on the Headway LiFePO4 Battery and connectors and Headway Battery holders, please get in touch with BESS.
Specification | |
Nominal Voltage | 3.2V |
Nominal Capacity (0.5C,25℃) | 10Ah |
Weight (Approximate) | 330±5g |
Recommended Discharge Current | 10A |
Max. Continuous Current | 30A |
Max. 30 sec. Pulse | 100A |
Cut-off Voltage | 2.0V |
Charge Voltage | 3.65V |
Recommended Charge Current | 10A |
Max. Charge current | 20A |
Charge Time | 60min (can be customized) |
Internal Resistance | ≤4mΩ |
Self-discharge rate | ≤2% per month |

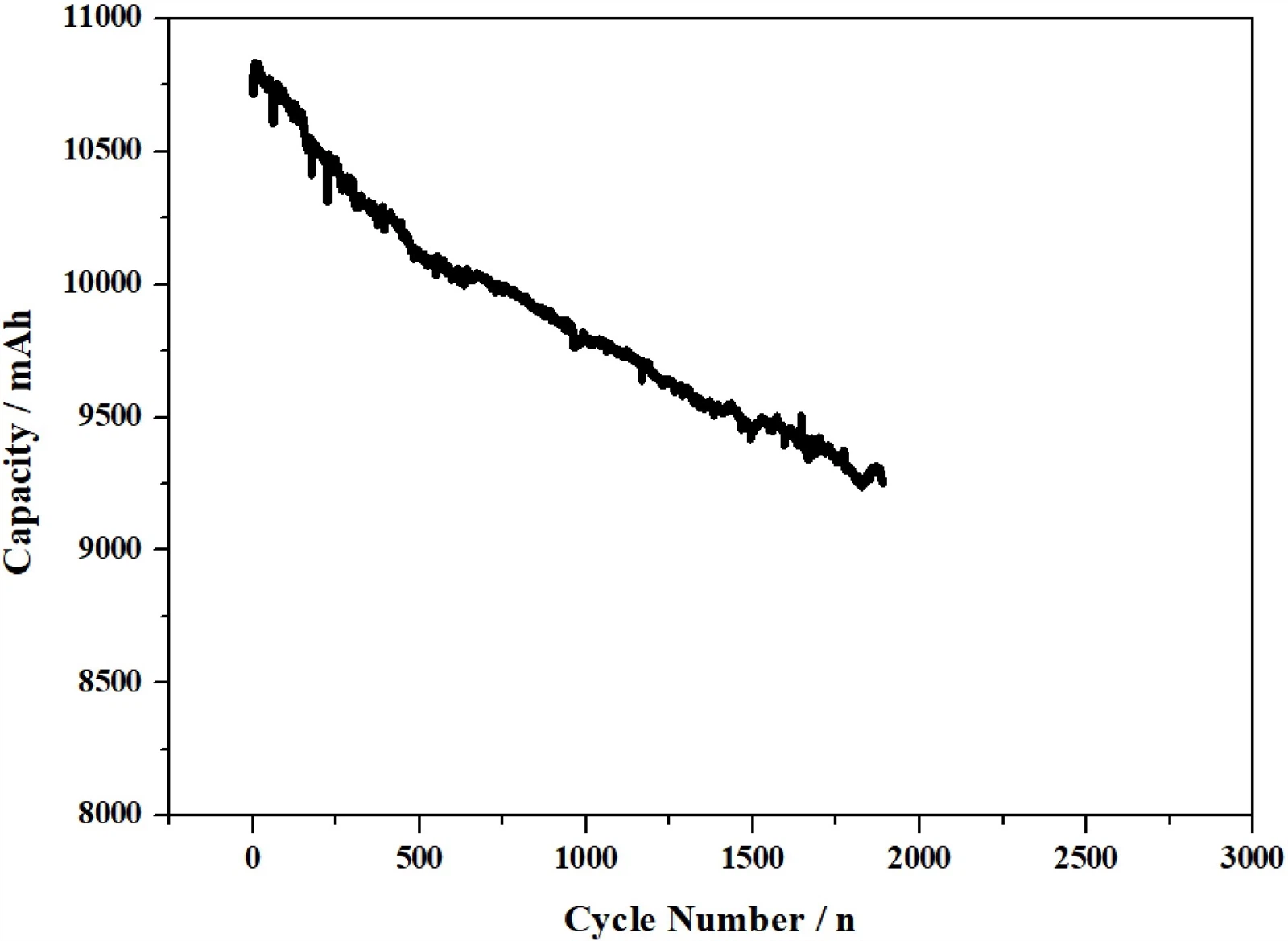

1C/1C cycle life | ≥2000 Times |
1C/3C cycle life | ≥1500 Times |

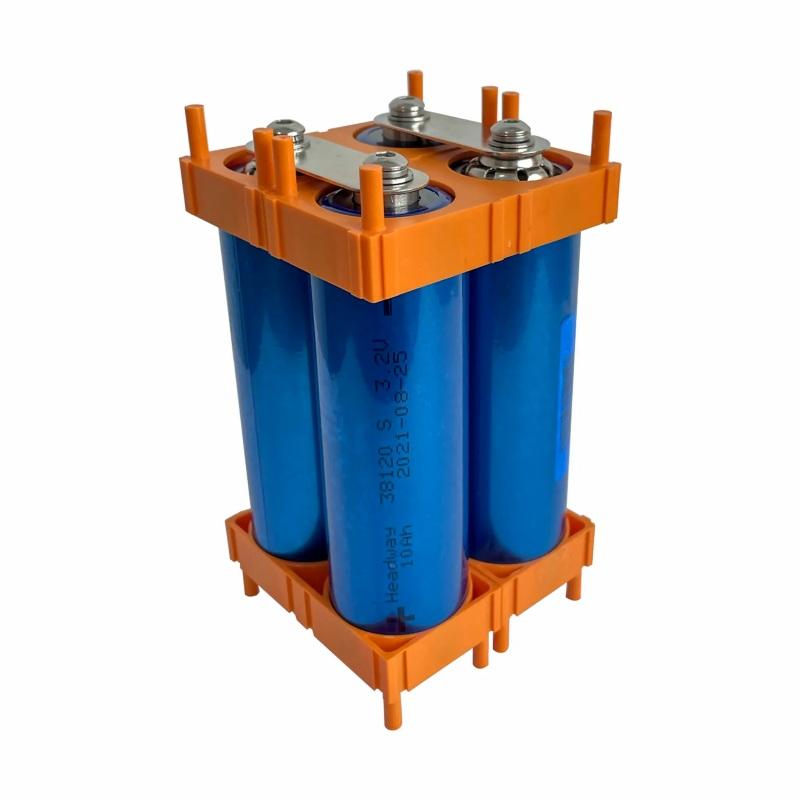

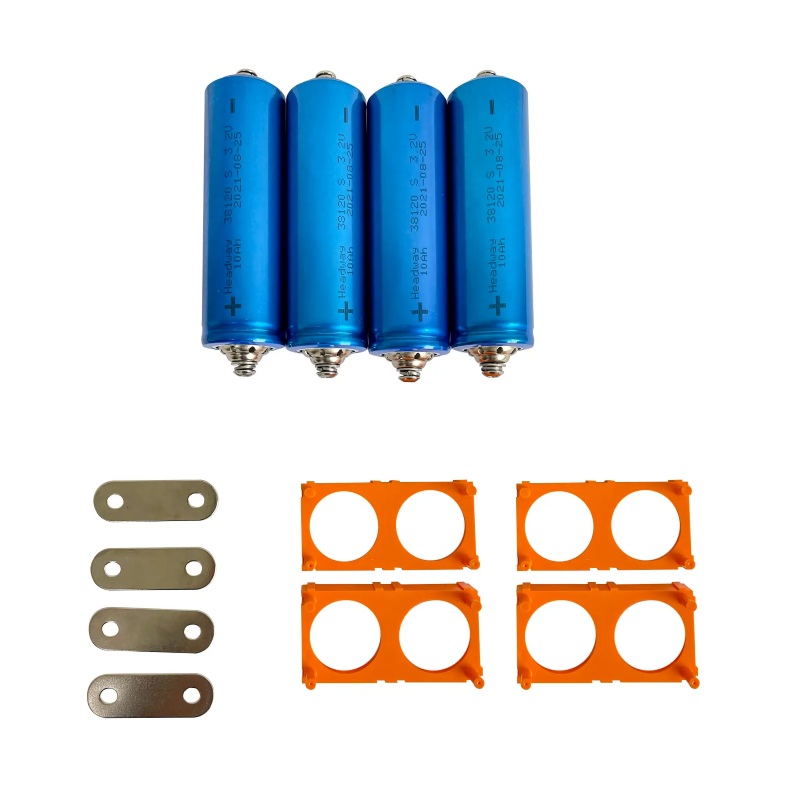

We provide busbars, battery holders and other accessories with the battery cells.
1. Electric Vehicles: Our LFP battery is an ideal power source for electric vehicles, such as electric cars, electric motorcycles, and electric bicycles. It provides high energy density, long cycle life, and fast charging, making it a perfect-fit solution for the automotive industry.
2. Solar Energy Systems: Our LFP battery is an excellent choice for solar energy systems, as it can store excess energy generated by solar panels, which can be used later when needed. The LFP battery provides a cost-effective and efficient way of storing renewable energy.
3. Portable Devices: Our LFP battery is perfect for portable devices such as laptops, smartphones, and tablets. It provides high energy density, fast charging, and long cycle life, making it a reliable and convenient power source for users on the go.
