Description

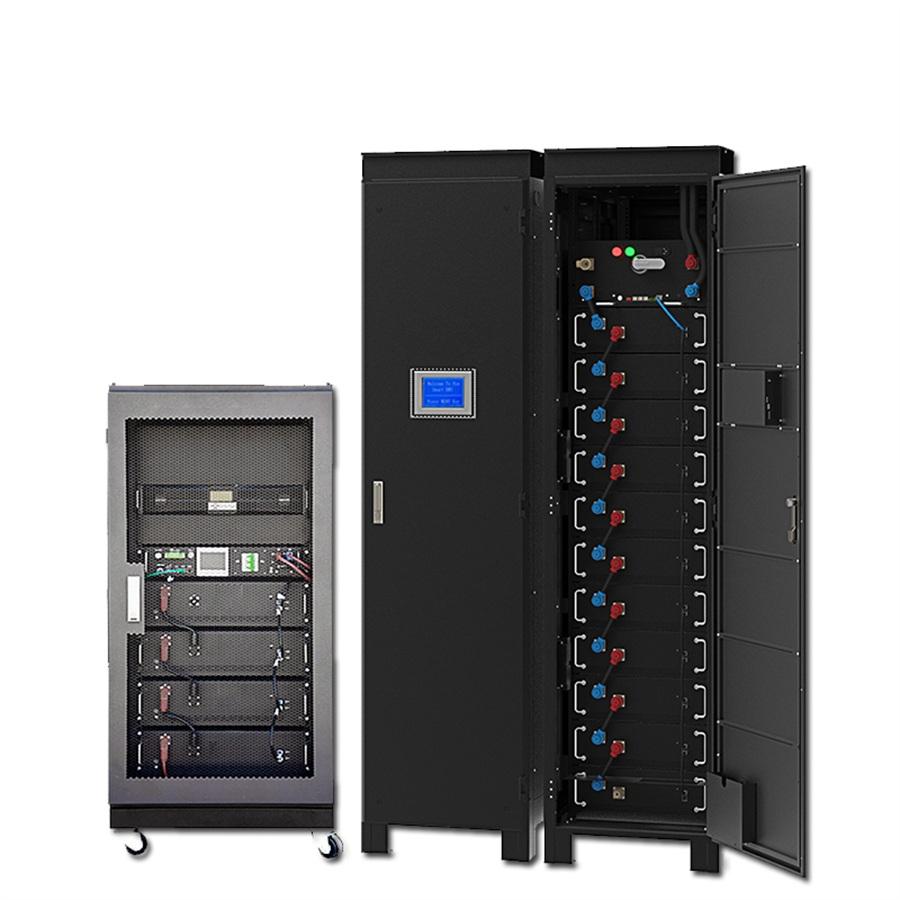

Versatile Voltage & Capacity Configurations
Select from 192V, 384V, 480V, and 512V models with energy capacities ranging from 9.60 kWh to 51.20 kWh, covering a wide spectrum of UPS power requirements. Each model comes with individually tailored output, charging, and cut-off voltage parameters.
Robust Charging & Discharging Performance
Delivers a maximum charging current of 100A and a peak discharge current up to 400A (on most models), ensuring dependable high-power output when you need it most.
High-Efficiency Operation
Achieves over 98% energy conversion efficiency, significantly reducing power waste and lowering operational costs.
Extended Service Life
Rated for more than 6,000 cycles (0.2C, 25°C, 80% DOD) with a design life exceeding 10 years, providing long-term reliability and a lower total cost of ownership.
Broad Environmental Adaptability
Engineered to perform in demanding conditions:
• Humidity: 5%–95% RH
• Charge temperature: 0°C to 55°C
• Discharge temperature: -20°C to 60°C
• Storage temperature: -10°C to 30°C
Flexible Cabinet Dimensions
Available in a variety of cabinet sizes and weights (approx. 190–1,039 kg) to easily fit diverse installation environments.
Built-In Voltage Safety Protection
Independent charge and cut-off voltage thresholds actively prevent overcharging and deep discharging, safeguarding both the battery and the connected equipment.
| Parameter | 192V | 384V | 480V | 512V | |
| Rated Voltage | 192V | 384V | 480V | 512V | |
| Rated Capacity | 50Ah | 100Ah | 100Ah | 100Ah | 100Ah |
| Rated Energy | 9.60kWh | 19.20kWh | 38.40kWh | 48.00kWh | 51.20kWh |
| Output Voltage Range | 162V~216V | 324V~432V | 420.0V~540.0V | 432V~576V | |
| Charging Voltage | 216V | 432V | 540.0V | 552V | |
| Cut-off Voltage | 162V | 324V | 420.0V | 432V | |
| Max. Charging Current | 50A | 100A | 100A | 100A | 100A |
| Recommended Charging Current | 25A | 50A | 50A | 100A | 100A |
| Max.Discharging Current | 200A | 400A | 400A | 400A | 400A |
| Efficiency | >98% | ||||
| Dimension L*W*H(mm) | 600*800*1200 | 600*1000*1200 | 600*1000*2000 | 1200*1000*2000 | 1200*1200*2000 |
| Weight(kg) | ≈190 | ≈230 | ≈550 | ≈950 | ≈1039 |
| Humidity | 5%~95% Relative humidity | ||||
| Charging Temperature | 0℃~55℃ | ||||
| Discharging Temperature | -20℃~60℃ | ||||
| Storage Temperature | -10℃~30℃ | ||||
| Cycle Life | >6000 times (0.2C, @25℃, 80%DOD) | ||||
| Design Life | >10 years | ||||
