Details
EVE MB30 3.2V 306Ah Lithium LiFePO4 LFP prismatic battery cells with 10000 cycles for ess, solar.
Description
Automated: automated production/Product consistency
Ultra-Safe: Explosion-proof/ No leakage
Stable: Low IR/ High CRD/ Discharge Steadily
Customized: Customer Demand Customization
Super Long: Ultra-long life cycle
Environmentally Friendly: Passed environmental/system certification
Item | Specifications |
Nominal Capacity | 306Ah |
Nominal Voltage | 3.2V |
Initial IR | 0.18mΩ ±0.05 mΩ |
Weight | 5600g ±300g |
Charging Cut-off Voltage | 3.65V |
Discharging Cut-off voltage | 2.5 V T >0℃ 2.0 V T ≤0℃ |
Discharging Temperature | -30~60℃ |
Storage Temperature | 0~35℃ |
Model Name | MB30 |
Cycle Life | 10000 |
Standard Charging Power | 0.5P |
Standard Discharging Power | 0.5P |

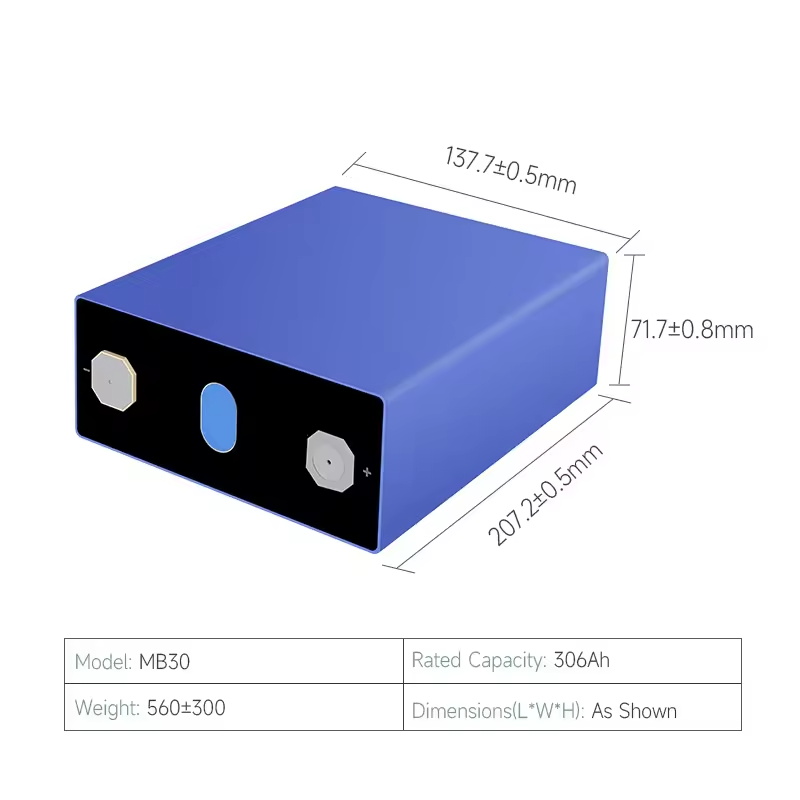

Height(H) with terminal | 207.2 mm ±0.5 mm |
Height(h) without terminal | 204.6 mm ±0.5 mm |
Length | 173.7 mm ±0.5 mm |
Thickness | 71.7 mm ±0.8 mm |
The Prismatic LFP Cell is widely used in the following scenarios. Please consult online customer service for specific models.
