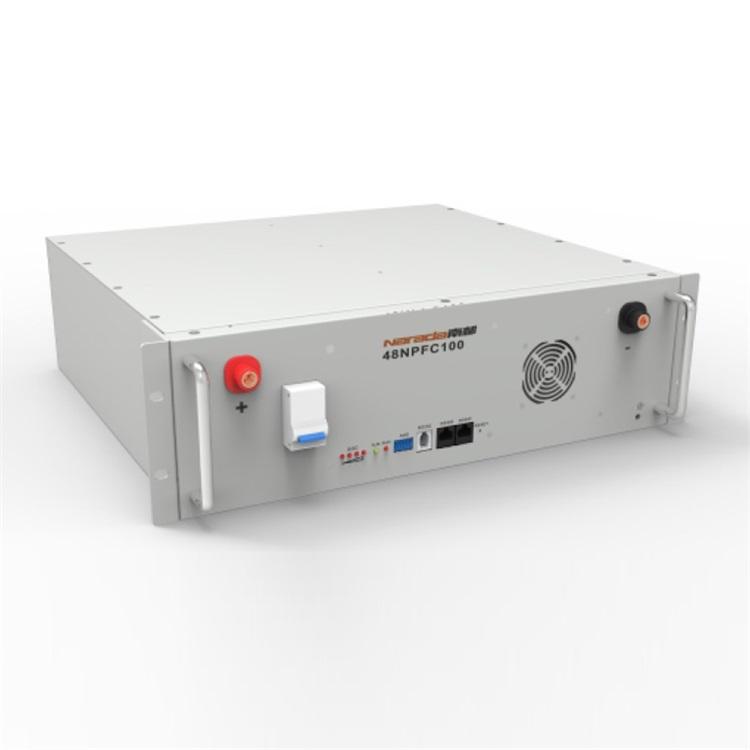

Narada 48npfc100 48V 100Ah Lithium LiFePO4 Battery

Narada NPFC series is a complete range of 48V LiFePO (Lithium Iron 4 phosphate) battery products, for a wide variety of applications, such as telecom base station, UPS, renewable energy system, etc., with advanced life, standard size, light weight and strong environmental adaptability.

Battery Management System(BMS)

For standard Narada lithium battery module, BMS is applied to monitor voltage, current, temperature of cells and module, take protections against over-charge,over-discharge,over-current,over-temperature,undertemperature and short circuit, etc., and provide cell balancing and current limitation during charging process to ensure a reliable safety and excellent performance.

Meantime, Narada supply customized upper computer software for BMS communication via RS485 to set parameters or read monitoring data.


Specifications

Battery Specification	15S
Rated Voltage	48V
Rated Capacity	100Ah (0.5C to 40.5V @ 25 C)
Discharge Current (Max.)	100A
Discharge End Voltage	40.5V
Charge Current (Recomm.)	20A
Charge Current (Max.)	100A
Charge Voltage	54.0±0.5V
Dimensions	443 mm*400mm*133mm (W*D*H)
Typical Weight	42 Kg
Layout of Front Pannel
Status Indicators	SOC / ALM / RUN
Communication Ports	RS232 / RS485*2
Communication in Parallel	8 modules in maximum
Reset Key	Available
Terminal Size	M8 (Screw size)
LCD Screen	Optional
Breaker	Optional
Dry Contact	Optional
Operation Environments
Temperature Range	Discharge:  -20 to + 60 C
	Charge: 0 to + 60 C
	Storage: 0 to + 40 C
Temperature Recommendation	Discharge: +15 to + 35 C
	Charge: +15 to + 35 C
	Storage: +15 to + 30 C
Humidity	5% to 95%
