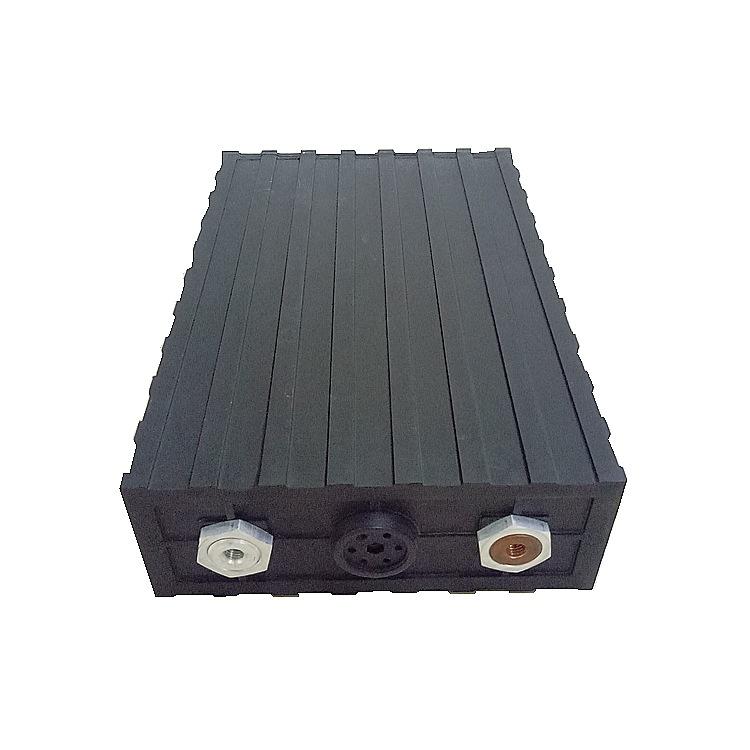

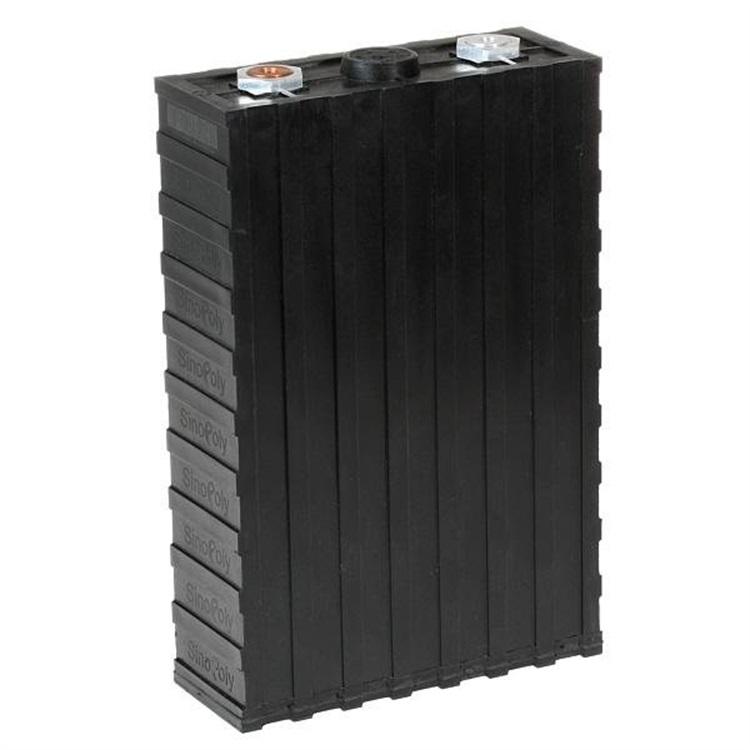

Sinopoly SP-LFP200AHA 3.2V 200Ah lithium iron phosphate lifepo4 battery prismatic lfp cell.
Description
Sinopoly battery in business of research and production of 40AH, 60AH, 100AH, 200AH, 300ah, and 400ah large capacity LiFePO4 battery cells, design and integration of electric energy storage systems, technical consultation and services. Sinopoly batteries are widely used in transportation, power, industrial, communication and other fields. The group has world-class lithium battery production bases, institute for technology innovation and center of engineering and technology. Sinopoly has obtained more than 70 patents, various quality management system certifications (such as ISO9001, ISO14001, TS16949) and product quality certifications (such as PONY, UN38.3, ROHS, CE, UL, QC / T743-2006).Sinopoly battery are popular in United Kingdom, Germany, Italy, United States, Australia, New Zealand, Malaysia and other international markets.With big investment in research in lithium technology, Sinopoly become a top leader in LiFePO4 battery industry and pioneer of innovator. For more information on Sinopoly Battery, please Contact BESS.
Item | Specification | Remark | |
Product Model | SP-LFP-200AHA | ||
Nominal Capacity | 200Ah | ||
Nominal Voltage | 3.2V | ||
Weight | 5.5±0.2Kg | ||
Internal Impedance | ≤0.3mΩ | AC1kHz，20%-50%SOC | |

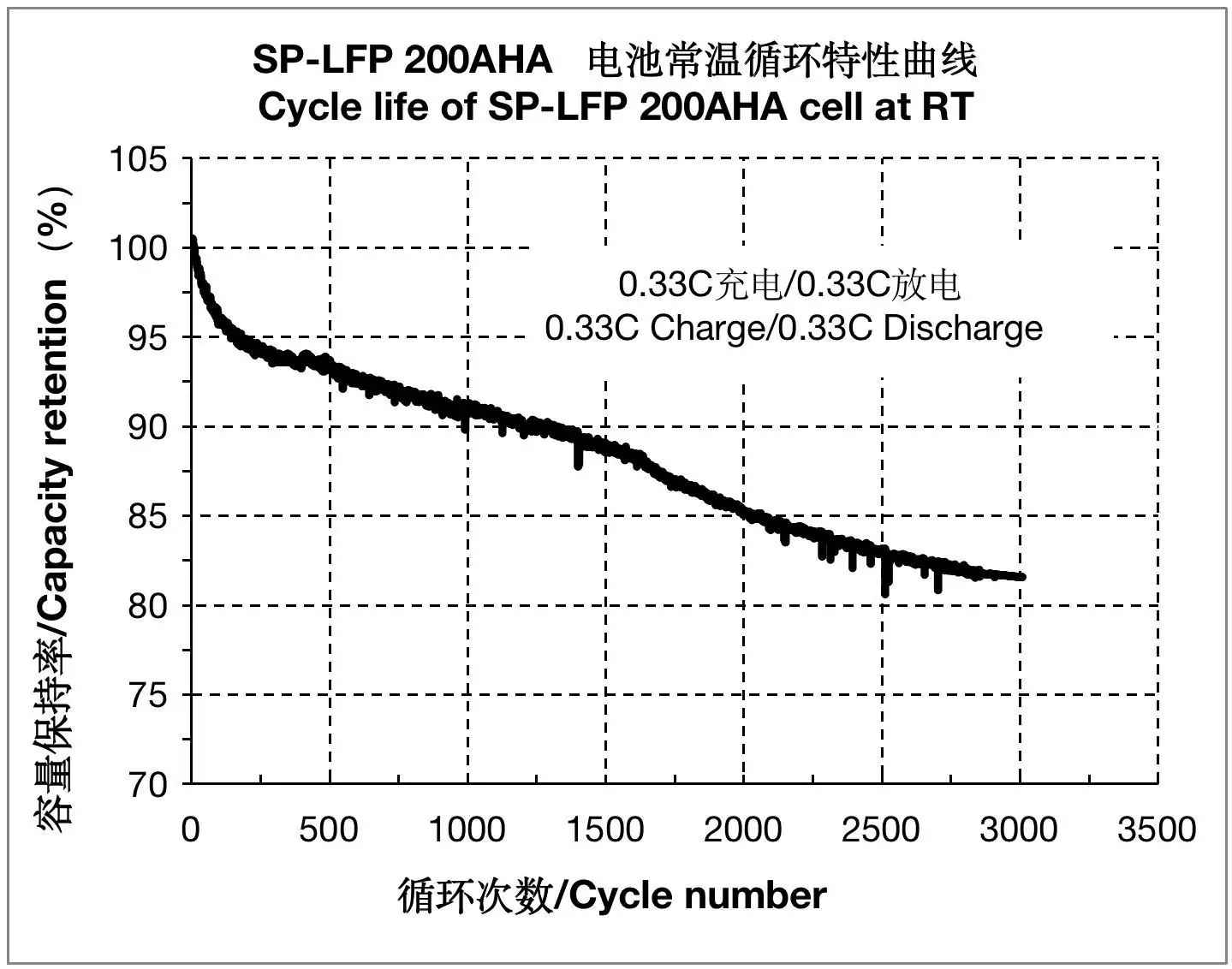

Cycle Life | ≥3000cycles | 0.33C charge/0.33C discharge, 80%DOD, Capacity Retention≥80% | |
Self-discharge rate | ≤3%/month | 25℃, 1month | |

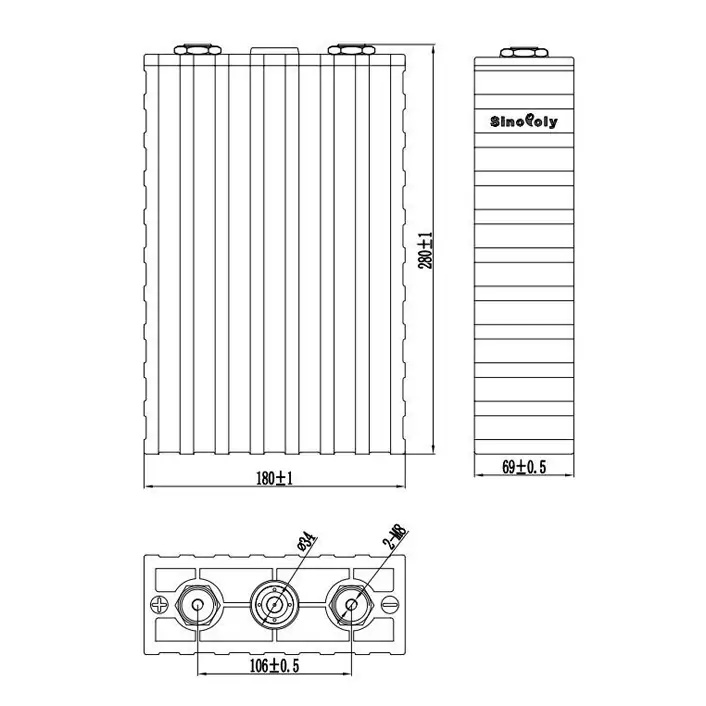

Dimension | 280*180*69mm | L*W*T | |
Charge | Standard Current | 200A | CC&CV |
Max.Current | 2C(400A) | ||
Limited Voltage | 3.65V | ||
End Current | 10A | 0.05C | |
Discharge | Standard Current | 200A | |
Maximum Constant Discharging Current | 3C (600A) | ||
End Voltage | 2.5V | ||
Instant discharge（Long Pulse） | Max.Current | 4C (800A) | Maximum duration:180s |
Instant discharge（Short Pulse） | Max.Current | 5C (1000A) | Maximum duration:10s |
Operation Temperature | Charge | 0℃～45℃ | |
Discharge | -20℃～55℃ | ||
Storage Temperature | Standard Storage Temperature | -20℃~25℃ | |
Absolute Storage Temperature | -20℃~45℃ | ||
Storage Humidity | 15%~90% | RH | |
