Details
Sunmoon ER26500 3.6V 8500mAh Lithium Thionyl Chloride Battery is applied in IoT, medical device ,wireless communication ,etc.
Description
• High Energy Density: Over 620wh/kg[highest among all the chemical batteries]
• Open Circuit Voltage: ≥3.65V, operating voltage ranging from 3.3~3.6V
• Wide Operating Temperature Range: -55°C+85°C
• Long Storage Life: 8-10 years[Under normal room Temperature]
• Operation Characteristic: This series batteries are suitable to operate under long-term tiny current. The batteries are possessing stable operating voltage and safe.

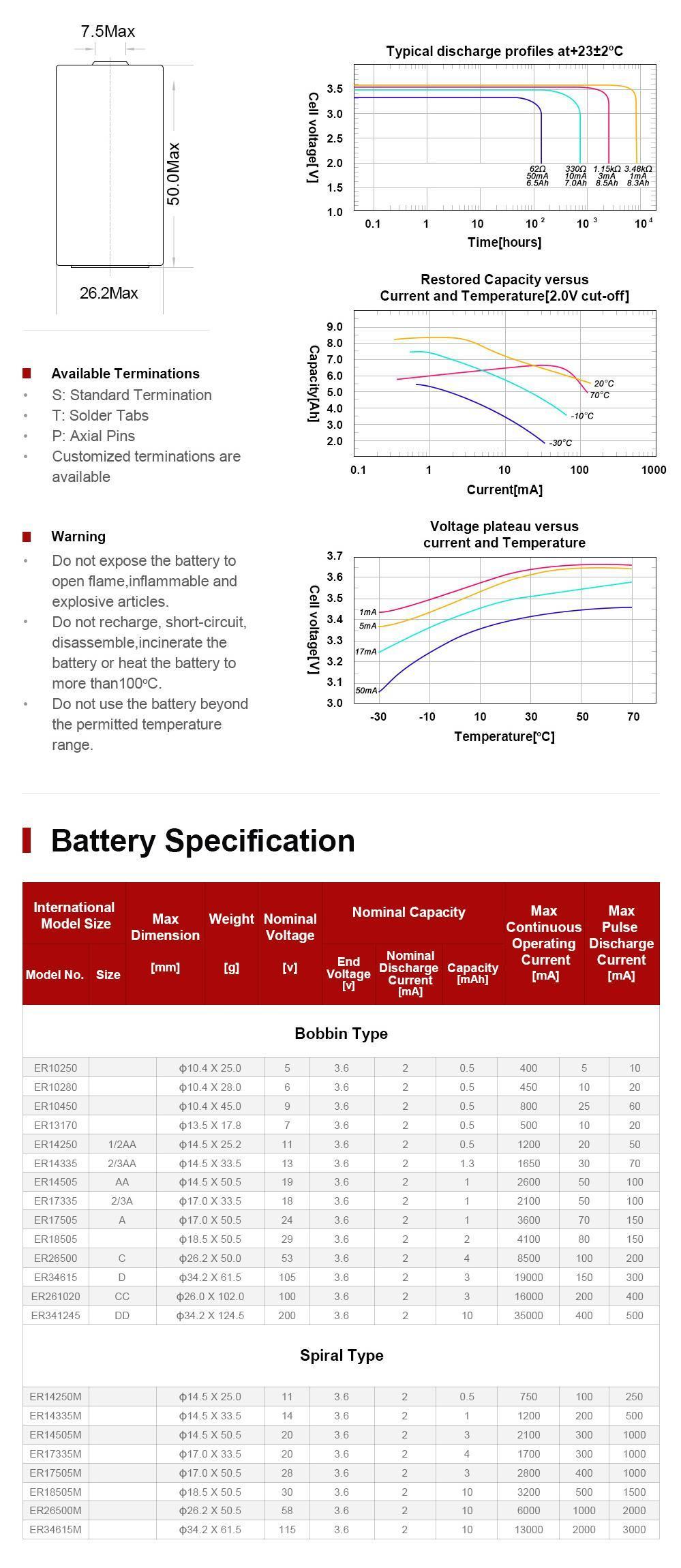

| Parameter | Specification |
| Model | ER26500 |
| Product type | LI/SOCl₂ |
| Battery charging | No |
| Maximum Profile Size (mm) | φ26.2 × 50.0 |
| Weight | 53g |
| Nominal capacity (mAh) | 8500 |
| Use temperature range | -55℃~+85℃ |
| Nominal voltage (V) | 3.6 |
| Discharge cut-off voltage (V) | 2 |
| Rated discharge current (mA) | 4 |
| Maximum continuous discharge current (mA) | 100 |
| Maximum pulse discharge current (mA) | 200 |
• IoT
• Alarms and Security Systems
• Utility Meters/AMR&AMI
• Automotive Telematics
• Storage and Tracking Devices
• Military Equipment
• R&D Instrument
• Sensor
• Oil Drilling
